Jolanta Flieger; El Blicharska Grushka; Czajkowska-Zelazko A

Review Article

Austin J Anal Pharm Chem. 2014;1(2): 1009.

Ionic Liquids as Solvents in Separation Processes

Jolanta Flieger¹*, El Blicharska Grushka¹ and Czajkowska-Zelazko A²

¹Department of Analytical Chemistry, Medical University of Lublin, Poland

²Department of Haematological Diagnostics, Medical University of Lublin, Poland

*Corresponding author: :Jolanta Flieger, Department of Analytical Chemistry, Medical University of Lublin, 20-093 Lublin, Chodzki 4A, Poland.

Received: July 15, 2014; Accepted: July 21, 2014; Published: July 22, 2014

Abstract

The term ‘ionic liquids’ (IL), covers one of the broadest classes of chemical compounds of salt type of low melting temperature with appreciable wide liquid range. Within the last years, ILs has become mainstream solvents in different fields of chemistry. This has been possible owing to environmentally advantageous properties and possibility of adaptation of their structure to the specific task. Although at the beginning, ILs were mainly recognized as the reaction media in organic synthesis, an alternative to organic solvents, nowadays a growing interest of the analytical community with ILs can be observed. As a result, ILs has found a variety of applications in separation techniques. This overview presents chosen extraction techniques with particular emphasis on aqueous two-phase systems based on ionic liquids. The findings presented herein concern applications of ionic liquids as components of liquid/ liquid extraction systems, suitable for isolation of both organic compounds and inorganic ions.

Introduction

Ionic Liquids (ILs) are a new class of solvents that unlike other liquids have ionic structure. However, in contrast to classical salts, ILs is in the liquid state at temperatures below 100°C. Some of them, the so-called ‘room temperature ionic liquids’ (RTILs), melt already at room temperatures. There are also ionic liquids having a melting point below 0°C. Typical ionic liquid consists of organic cation (containing a phosphorus or nitrogen atom) and organic or inorganic anion. Due to the cation structure there are five basic classes of ionic liquids: ammonium, phosphonium, imidazolium, pyridinium, pyrrolidinium (Figure 1).

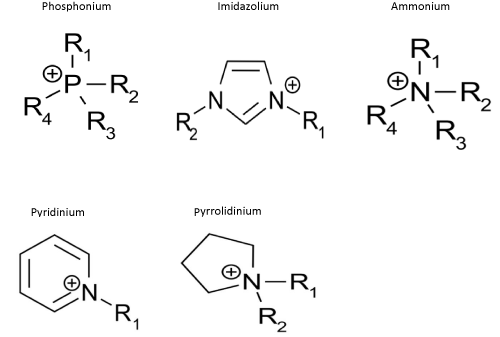

Figure 1: Common ILs cations.



Figure 1:  Common ILs cations.

Among organic or inorganic anions: halides, hexafluorophosphates, tetrafluoroborates, alkyl sulfates, tosylates, methanesulfonates and bis (trifluoromethylsulfonyl) imides have been distinguished.

The most characteristic features of ionic liquids are very low vapor pressure at room temperatures and thermal stability over a wide temperature range. ILs is generally non-flammable and is also very good solvents for both inorganic and organic compounds (from small, simple molecules to complex polymers). Owing to these properties, they are used as a new type of solvent with unique properties in such areas of chemistry as organic synthesis, electrochemistry, extraction, spectroscopy, mass spectrometry as well as separation techniques such as liquid and gas chromatography or capillary electrophoresis. Variety of applications of ionic liquids is also due to the possibility of designing their physicochemical properties by selecting appropriate cation and anion. For example, their solubility in water depends mainly on the anion, but may also be modified by the length of the cations alkyl substituent. Ionic liquids having in its composition such anions as halide, tetrafluoroborate, thiocyanate, sulfonic, trifluoroacetate and nitrate are soluble in water, while containing hexafluorophosphate or bis (trifluoromethylsulfonyl) imide anions they form two-phase systems with water. In turn, lengthening of the alkyl substituent in the cation of water-miscible ionic liquid increases the hydrophobicity and limits miscibility with water.

Number of applications on the use of ionic liquids in the sample pretreatment is constantly increasing [1-4]. Due to ecological nature, and the possibility of design, ionic liquids replace, more often than not, the organic solvents

Ionic Liquids in Liquid/Liquid Extraction

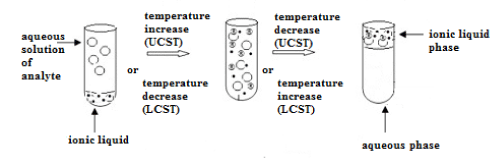

Ionic liquids have been applied for liquid-liquid extraction of metal cations, small organic molecules or large biomolecules as proteins [5]. As it can be observed, water-insoluble ionic liquids play a crucial role especially in the miniaturized version of liquid-liquid extraction technique [6] such as direct immersion, headspace, dynamic, hollow fiber protected liquid phase micro extraction (LPME), single drop micro extraction or dispersive liquid-liquid micro extraction and as modifiers of stationary phases in SPE.

In turn, water-soluble hydrophilic ionic liquids can also be used as extracting solvent, as they induce formation of aqueous biphasic systems (ABS) with suitable salting-out agents.

Ionic liquids in aqueous biphasic systems (ABS)

Aqueous biphasic systems were used already in the 80s of the previous century [7]. They were composed of polymers such as polyethylene glycols or dextrans [8]. After mixing solutions of two different polymers or a polymer and salt solutions at a suitable temperature, two water immiscible phases came to existence [9]. Decisive factor in the two phase formation is the enthalpy of interaction between the polymer molecules. If the value of the enthalpy is greater than the loss in entropy caused by phase separation, the ABS is formed. The analyte introduced to such a system is divided between the two phases. However most of the polymers used in the two-phase systems present a high viscosity and form a cloudy solution, which often makes further analysis difficult. Some polymers also cause interferences in the analysis, which greatly limits detection of the analyzed compounds and scope for the technique. To increase the application potential for ABS, polymers have been replaced by hydrophilic ionic liquids [10,11]. Abraham showed that this kind of ILs in combination with suitable kosmotropic agents form a new type of partitioning systems [12].

Such a two-phase system can be used for extraction as an alternative to conventional extracting systems of either liquid-liquid or liquid-solid type. The resulting extraction system is especially suitable for the analysis of aqueous samples. To create it, the right proportions of ionic liquid and kosmotropic salt should be found. Subsequent steps of ABS formation are presented in Figure 2.

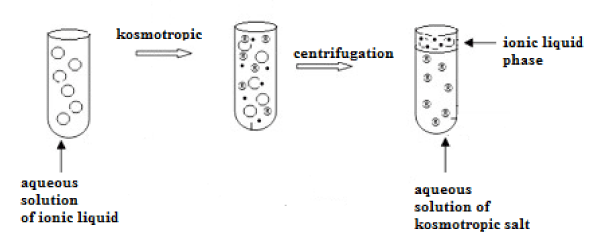

Figure 2: Creation of aqueous bi-phase system (ABS) based on ionic liquid.



Figure 2:  Creation of aqueous bi-phase system (ABS) based on ionic liquid.

Mechanism of phase separation

Most of water-soluble ionic liquids are chaotropic agents, which mean that they perturb structure of hydrogen bonds network in water. Thus, they can be ‘salted out’ from aqueous solution by kosmotropic (water-structuring) salts. Combination of these two solutions with opposite nature causes solution to separate into two immiscible phases. The upper phase is usually an ionic liquid with lower water content, while the bottom one is water solution of the kosmotropic salt [13-16].

The mechanism of the ABS may be explained as follows: the ionic liquid competes with the salt ions for water molecules. Greater affinity of salt particles for water molecules causes their mutual attraction. This forces reduction of ILs is ions hydration and consequently decreases its water solubility. This leads to phase formation, consisting of ionic liquid and a small amount of water. This mechanism can also be explained on the basis of the thermodynamic theory of Gibbs ‘free hydration energy’. Kosmotropic ions having a large negative energy of hydration exhibit high affinity to water particles and attract them stronger than ionic liquids.

The salts were classified by the Hofmeister from kosmotropic (highly hydrated) to the chaotropic (weakly hydrated) according to their tendency to salting out of proteins [17]:

c i t r a t e s^{3 -} > S O_{4}^{2 -} > H P O_{4}^{2 -} > F^{-} > C l^{-} > B r^{-} > I^{-} > N O_{3}^{-} > C l O_{4}^{-} > N {(C H_{3})}^{4 +}

> N H^{4 +} > C s^{+} > R b^{+} > K^{+} > N a^{+} > H^{+} > C a^{2 +} > M g^{2 +} > A l^{3 +}

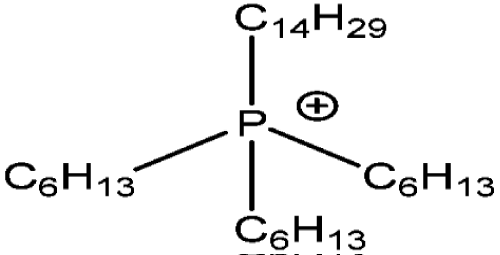

In aqueous biphasic systems the following salts are used: sodium, potassium or ammonium phosphates, the sulfates, carbonates and citrates. Alternatively, kosmotropic non-ionic agents as sugars [18-20] or amino acids [21,22] may be taken advantage of. Most common ionic liquids used in ABS are those composed of 1,3- dialkylimidazolium cation and a suitable anions that enable dissolving them in water: Cl^-, Br^-, I^-, BF4^-, MeSO₄^-, EtSO₄^-, NO₃^-. However, liquids containing phosphonium, pyrrolidinium or ammonium cations have also the potential to create aqueous two-phase systems. These ionic liquids were tested by Bridges as for their ability to create ABS in the presence of most kosmotropic salt - K₃PO₄ [14]. The possibility to create these systems is related to chaotropicity of cations and increases in the following order: P4444Cl > N4444Cl >> [C4py] Cl >> [C4mmim] Cl ≈ [C4mim] Cl. Louros et al. also examined influence of different cations on ability to form ABS [23]. They compared the imidazolium and phosphonium ionic liquids containing the same anions.

Tendency to formation of the two-phase systems can be illustrated by phase diagrams, which are described by an empirical model developed by Merchuk and co-workers [24]. Binodal represents equilibrium concentrations of the ionic liquid and kosmotropic salt at which a separation of two phases occurs. Binodal line is described by the best-fitting equation proposed by Merchuk:

Y = M_{1} \exp [(M_{2} X^{0.5}) + (M_{3} X^{3})]

Data for the graph can be determined experimentally by titration of the solution of a kosmotropic salt with the ionic liquid solution to the end, the so-called ‘cloud point’ which is the turbidity, indicating the formation of a separate phase.

Obtained binodal separates the curve space into two-phase regions situated above it and monophasic region located under the curve. A tight line connecting any two points of binodal determines quantitative composition of the two separated phases. Figure 3 shows the phase diagram drawn for exemplary ABS.

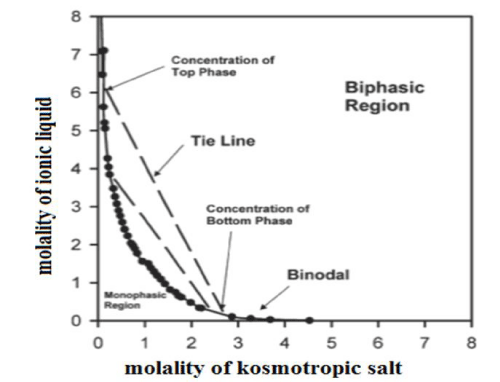

Figure 3: The phase diagram for exemplary ABS illustrating the binodal (-) and the tie lines (--).



Figure 3:  The phase diagram for exemplary ABS illustrating the binodal (-) and the tie lines (--).

Due to a very good solubility in water and relatively low cost, the most common ionic liquids used in aqueous biphasic systems are1,3- dialkylimidazolium chlorides, tetrafluoroborates and alkyl sulfates. Shehong and Li tested 1-butyl,3-methylimidazolium chloride in terms of salting out by various kosmotropic agents [11,25]. This ionic liquid can be salted out only by alkaline salts such as: KOH, NaOH, K₃PO₄, K₂HPO₄, K₂CO₃ or Na₂HPO₄. Salts with a lower pH such as KH2PO₄, (NH₄)₂SO₄, NaCl or KCl are not able to form a two-phase system with this ionic liquid. The ability to create two-phase system expresses the following series: K₂CO₃ ≈ K₃PO₄ ≈ K₂HPO₄>KOH. Tetrafluoroborates are able to form such system with more acidic or neutral salts [26]. The ability to create ABS with BMIMBF4is possible for the following series of salts: Na₂CO₃>Na₂HPO₄>Na₂SO₄>NaH₂PO₄>NaCl. Tetrafluoroborates 1-butyl, 3-methylimidazolium may also form two-phase systems when mixed with certain amino acids such as proline, L- serine, glycine, lysine [21,22]. Deive and co-workers tested a series of imidazolium alkyl sulfates (BMIM CnSO4, n=2,4,6,8) [27]. They proved that tendency to form two-phase systems increases with lengthening chain of the alkyl substituent in the anion. In this case salts can be used in order of highest capacity for salting out as follows: Na₂CO₃>K₃PO₄>K₂CO₃>(NH₄)₂SO₄.

Without any doubt, the most famous ABS has been developed for butyl-methyl imidazolium chloride and K₃PO₄ as the salting-out agent. The equilibrium is achieved almost immediately after short centrifugation. Furthermore the upper phase of a two-phase systems containing aqueous concentrated solution of ionic liquid can be directly dispensed on the chromatographic columns, or after the dilution with an eluent. This simple technique of extraction has already found many practical applications being suitable for the extraction of both ionic and neutral compounds.

Application of ionic liquid aqueous biphasic system (ILABS) for extraction

Among the publications devoted to extraction with ABS, their large number takes into account a practical use. The analysis of complex biological materials such as human body fluids or environmental samples is a virtual analytical challenge. The isolation process usually proceeds across several stages, which may cause the analyte loss at each step. Reducing number of performed steps decreases the risk of analyte loss and shortens the time of analysis, which is of great importance for the analysis of less stable compounds. Taking into account the fact that the aqueous solutions of ionic liquids protect biomolecules from denaturation, ABS technique has proved to be highly competitive in relation to conventional organic solvents in the isolation of biomolecules. Aqueous biphasic systems were used for the extraction of proteins [28-31], hormones [32], alkaloids [33], vitamins [34], antibiotics [35-40], metal ions [41] from different biological samples such as fermentation broth, human urine, food and environmental aqueous samples.

Extraction of protein

S. Dreyer et al using the ammonium ionic liquid Ammoeng 110 (Figure 4) has extracted such proteins as albumin, lysozyme, myoglobin, trypsin, and myoglobin [30]. As the salting-out agent phosphate buffer over a wide pH range was used. In the neutral solution trypsin, albumin and lysozyme were extracted in the range of 83-100%, while the myoglobin at the level of 60%. With the increase in pH overall negative charge of proteins increased as a result of surface functional groups ionization. Albumin showed 100% extraction in the whole pH range, while other proteins were strongly extracted only at higher pH values. In case of lysozyme and trypsin, total positive charge was reduced and charge of myoglobin turned into negative. Thus, selection of pH allows the selective extraction of albumin from a mixture of proteins. This also revealed that electrostatic forces are chiefly responsible for the mechanism of protein interactions with ionic liquids. The more negative charge on the protein surface, the stronger the interaction with the ionic liquid cation. Another factor considered affecting the change in extraction degree was the temperature in range of 4–70°C. The temperature increase during the formation of the two phase system, results in extraction decrease of the smaller molecular weight proteins.

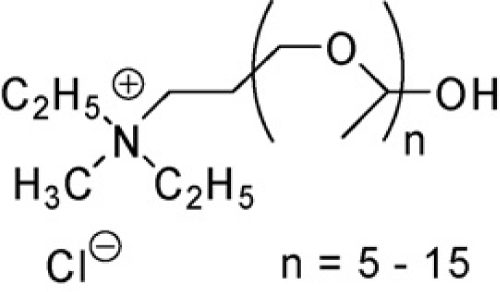

Figure 4: Ammoeng 110.



Figure 4:  Ammoeng 110.

Experiments published by Pei co-workers showed that apart from electrostatic interactions hydrophobic forces are equally responsible for protein extraction mechanism [28]. Proteins such as albumin, trypsin, cytochrome c and γ - globulins were extracted with 1,3-dialkylimidazolim bromide with different lengths of the cation substituent’s (C_4,6,8 MIM Br). For salting out a phosphate buffer was used. In this case, the extraction of proteins was with 75-100% efficiency and reached maximum after application of the ionic liquid with the longest alkyl substituent in the cation. In the same time increase in temperature caused the increase in the degree of extraction. Also effect of the ionic liquid on the proteins activity was examined. It turned out that activity of trypsin in the IL solution decreases only slightly as compared to the ABS consisting of polymer and kosmotropic salt where there protein activity declines.

ABS extraction of protein (albumin and transferrin) from a real biological matrix like human urine was carried out [31]. The system used was composed of BMI MCl andK2HPO4. Recoveries of proteins on three different concentration levels of spiked human urine samples were in the range of 94-102%. The extraction was also highly selective, all concomitants like metal species remained in the K₂HPO₄ rich lower phase. According to the authors, the forces causing the extraction of proteins can be electrostatic interaction between negatively charged proteins and ionic liquid cations or only the salting out effect as a consequence of reduced protein solubility in a solution of K₂HPO₄.

Extraction of hormones, alkaloids and vitamins

He and co-workers determined testosterone and epitestosterone in human urine [32]. The extraction was carried out with 80-90 % efficiency. Analysis of urine samples was carried out in three stages, which consisted of enzymatic hydrolysis, protein removal with trichloroacetic acid, extraction with the use of 1-methyl-3- butylimidazolium chloride and K₂HPO₄. The ionic liquid upper phase was analyzed by high performance liquid chromatography. For both analytes the limit of detection reached 1ng/ml.

Aqueous phase systems based on ionic liquids were applied for isolation of alkaloids such as caffeine and nicotine from human urine [33]. The study showed that both compounds can be isolated in almost 100%by the use1,3 – dialkylimidazolium chloride. For salting out the most kosmotropic salt was utilized (K₃PO₄). The results showed that the extraction of alkaloids significantly improved samples in human urine in comparison to simpler aqueous phases. Authors concluded that the presence of a biological matrix containing additionally neutral salt NaCl and urea with chaotropic properties favored the alkaloid partitioning for the IL phase.

ABS systems were also used to quantify vitamin B12 in human urine [34]. After adequate preparation of urine samples (deproteinized and hydrolysis) vitamin B12 was extracted with 1-hexyl-3–methylimidazolium chloride that was further salted out by K₂HPO₄. The average extraction efficiency was 97 %.

Aqueous two phase system was applied for selective extraction of quinine from human plasma. Bi-phase was constructed from ionic liquid: butyl-methyl-imidazolium chloride following the addition of kosmotropic salts K₃PO₄ or KH₂₃PO₄. Quinine was determined in plasma samples after drinking of tonic containing quinine. Proposed strategy provides suitable sample purification and gives extraction yields in the range of 89-106 % [35].

Extraction of antibiotics

Isolation of antibiotics from fermentation broths followed by their separation and purification usually constitutes a large technological challenge. In order to test the activity, determine molecular structure and prepare the final form of drug, chemically pure compounds are required. Penicillin is one of the most popular and most commonly used antibiotics, thus streamlining and improving the efficiency of the production process as well as increasing its purity is essential.

Conducted in 2005 experiments by Luis how that the ABS composed of BMIM BF₄ and NaH₂PO₄can be used for extraction of penicillin G from fermentation broth with more than 90 % efficiency [36]. Standard extraction with ethyl acetate is carried out in an environment of pH 2 while with the ionic liquid at pH ranging 4-5. As penicillin G is not stable in an environment with strongly acidic pH, the method presented by Luis allows maintaining the stability of the antibiotic particles and the same increases the efficiency of the extraction process.

Due to the widespread application of antibiotics both in human and veterinary therapy there is a risk of passing them into wastewater and next direct into the environment. Therefore the tests of drug levels are carried out in environmental samples. Han and co-workers used aqueous two-phase systems for extraction of antibiotics from water environmental samples (river, lake, medical sewage, pond water, ground water). They determined levels of macrolide antibiotics such asazithromycin and mydecamycin [37], roxithromycin [38], sulfadimidine [39], acetylspiramycin [40].

Optimizing the extraction systems for azithromycin, mydecamycin [37] and roxithromycin [38] binodal curves were done using 1-buty l,3-methylimidazolium tetrafluoroborate (BMIM BF₄) and salts as Na₂CO₂, Na₂HPO₄, Na₂₄SO₄, NaH₂PO₄, NaCl and NaOH [37,38]. Next, partition coefficients for each antibiotic were determined as well as the effect of the added amount of salt in the extraction systems having the largest distribution coefficients. The highest degree of extraction of azithromycin was achieved with the system consisting of 10% BMIM BF₄ and 24.5% Na₂CO₃ and of mydecamycin- 10% BMIM BF₄ and 28.3% NaH2PO4. Under these conditions recovery of azithromycin and mydecamycin from environmental samples was from 91.8% to 96.2% and from 89.6% to 92.2%, respectively.

In turn, the system used for extraction of roxithromycin composed of BMIM BF₄ and Na₂CO₃ had almost twice higher extraction capacity than traditionally used organic solvent [38]. Extraction of roxithromycin with ionic liquid exceeds 90%, whereas with an organic extractant reaches only about 50%.

ABS extraction procedure was also performed for analysis of sulfadimidine in river, lake and fish farm water [39]. In order to ensure proper pH of the extraction, (NH₄) ₂SO₄ was selected as a salting-out agent. Ionic liquid capable of forming biphasic system with such salt (in a more acidic pH) was BMIM BF4. The maximum degree of extraction was achieved at pH between pK₁ and pK₂ of sulfadimidine, which suggests that the analyte in its neutral form interacts strongest way with the ionic liquid. In the extraction of real spiked water samples recovery between 101 and 107% were obtained.

ABS system was also used to analyze food samples such as milk, honey, drinking water [41]. With a system consisting of BMIM BF4 and sodium citrate single-step extraction of chloramphenicol was determined. In recovery tests of spiked samples with 10-100ng/mL of chloramphenicol, extraction efficiency ranged 90-102%. The method has also high selectivity, sugars and other substances present in food samples do not interfere in the assay.

Extraction of metal ions

Ionic liquids have been used for extraction of metals after addition of appropriate complexation reagent. Zhao distinguished three different procedures suitable for the extraction of metal cations from aqueous samples [42]. First method is based on Dai methodology applying crown ethers as complexing agent [43] second utilizes different anionic ligands for this purpose [44-48], and the last one proposes task-specific ILs (TSIL) with the covalent tethering of a cationic interchangeable functional group [49].

Imidazolium ionic liquids as solvents in liquid-liquid extraction systems have been most broadly described in literature, so far. The most promising examples of ionic liquids used for this purpose are 1-alkyl- 3-methylimidazolium hexafluorophosphate, tetrafluoroborate and bis (trifluoromethylsulphonyl) imide. Extraction of metal ions into ionic liquid phase requires addition of special ligand with the aim to enhance affinity of strongly hydrated ions to hydrophobic ILs phase. The most commonly used extractants are macrocyclic compounds like crown ethers, complexions (TBP-tributyl phosphate, CMPO-octyl (phenyl)-N,N-diisobutyl carbamoylmethyl phosphine oxide, PAN-(1-(2-pyridylazo)-2-naphtol, TAN-1-(2-thiazolyl)-2-naphtol, TODGA-N,N,N’,N’-tetra (octyl)diglycolamide) and other ligands like dithizone, 8-hydroxyquinoline, 1-(2-pyridylazo)-2-naphtol. Owing to above liquid-liquid extraction systems, significant improvement in extraction of alkali metals and lanthanides in comparison to traditional molecular organic solvent has been reported [50-56]. It has been also established that the distribution coefficients for metal cations were the most advantageous for shorter 1-alkyl-3-methyl imidazolium ILs. However it should be emphasized that lowering of ionic liquid hydrophobicity involves decreasing of the solubility of ligands in ionic liquid phase, finally worsening the extraction efficiency [56]. Another interesting observation has been made by Kozonoi et al. who reported better transferring of metal ions with greater charges to IL mona fluorobutyl sulphonate [57]. In turn, Domanska drew attention to importance of IL anion on extraction efficiency. It appeared that better extraction efficiency of Ag⁺ and Pb²⁺can be achieved with decreasing hydrophobicity of ILs anion [58].

A mechanism of metal ions extraction with imidazolium based ionic liquids can be described by cation-exchanging according to the following equation [59]:

M_{(w)}^{m +} + m_{(0)} + m {[C_{n} m i m^{+}]}_{(0)} \leftrightarrow M L_{m (0)}^{m +} + m {[C_{n} m i m^{+}]}_{(w)}

Ligand addition is not “conditio sine qua non” for metal ions extraction by ionic liquids from aqueous media. Some metals like Zn²⁺ or Fe³⁺ can be directly transferred from aqueous phase into ionic liquid 1-octyl-3-methylimidazolium tetrafluoroborate [60], another one like Ce⁴⁺ from acidified water into 1-octyl-3-methylimidazolium hexafluorophosphate [61].

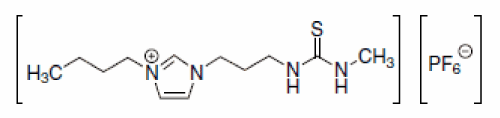

Furthermore, ionic liquid cations can be easily derivatized to include task-specific metal ligating groups. This causes significant enhancing of the partitioning of metal ions into the IL phase from water without necessity of additional ligands or extractants addition. Visser et al at the beginning of XXI century syntethsized imidazolium based ionic liquids derivatives that incorporated thiourea, thioether, urea [62] (Figure 5).
