Chemical Shrinkage During Hydration Reactions of Calcium Aluminate Cement

Research Article

Austin J Chem Eng. 2014;1(3): 1011.

Chemical Shrinkage During Hydration Reactions of Calcium Aluminate Cement

Ukrainczyk N*

Faculty of Chemical Engineering and Technology, University of Zagreb, Croatia

*Corresponding author: Ukrainczyk N, Faculty of Chemical Engineering and Technology, University of Zagreb, Marulicev trg 20, 10 000 Zagreb, Croatia

Received: October 07, 2014; Accepted: October 24, 2014; Published: October 27, 2014

Abstract

Calcium Aluminate Cement (CAC) is special cement used in versatile high performance applications. Hardening of CAC is primarily due to the hydration of mono-calciumaluminate, in idealized pure form CaAl2O4, but other minerals also participate in the hydration process especially at higher temperatures and in long term. During the hydration reactions of cement, absolute volume of hydration products formed is smaller than that of its reactants, cement and water, resulting in chemical shrinkage. Chemical shrinkage is the main driving mechanism leading to desiccation and early age cracking of cement based materials. Its evolution is an overall result of complex kinetics of many simultaneous hydration reactions. Even same minerals can have different reaction schemes due to the transformation process of metastable hydration products to the stable ones, which are promoted by temperature.

In this paper the hydration of synthetic CaAl2O4 and commercial iron-rich CAC were investigated at 15 and 55 °C by measurements of chemical shrinkage evolution and quantitative powder X-ray diffraction analysis. Design of an experimental configuration for measuring the chemical shrinkage during CAC hydration is discussed. A model is proposed to predict the evolution of chemical shrinkage during hydration. The model is based on the main chemical reaction schemes of the CAC hydration and showed good agreement with the observed experimental results.

Keywords: Calcium aluminate cement; Hydration; Chemical shrinkage; X-ray diffraction; Mathematical modeling

Abbreviations

CAC: Calcium Aluminate Cement; PC: Ordinary Portland Cement; C: CaO (cement chemistry notation); A: Al2O3; F: Fe2O3; S: SiO2; H: H2O; CA: CaAl2O4; C12A7: Ca12Al14O33; C4AF: Ca4Al2Fe2O16; Ff: Ferrite Phase (C4AF); CT: CaTiO3; vH: Specific Volume of Water; vm: Specific Volume Of Cement Mineral; vhydrates: Volume of the formed hydration products per 1 g of reacted mineral m; m: cement mineral: CA, C12A7 or C4AF; h: hydration product: CAH10, C2AH8, C3AH6, AH3, FH3, CH or C4AFH16; stoichiometric coefficient; M: Molar Mass; ρ: density; CSm: Chemical Shrinkage of fully reacted pure mineral m; αm: fraction of reacted mineral m; wm mass fraction of the mineral m in cement; W: Weight; V: Volume; Vpaste: the Volume change of the cement paste; t: time.

Introduction

Calcium Aluminate Cement (CAC) is special cement used in versatile high performance applications [1-8] such as those requiring: resistance to chemical attack, high early strength, refractory, resistance to abrasion, and/or low ambient temperature placement. Setting and hardening of CAC is primarily due to the hydration of CA (cement chemistry notation: C=CaO, A=Al2O3, F=Fe2O3, S=SiO2, H=H2O), but other compounds also participate in the hardening process especially in long term strength development [1,2] and at higher temperatures of hydration. The hydration of CAC is highly temperature dependent [1-3,9], yielding CAH10 as main products at temperatures less than 20 °C, C2AH8 and AH3 at about 30 °C, and C3AH6 and AH3 at temperatures greater than 55 °C. Platy (hexagonal) CAH10 and C2AH8 [10] are metastable at ambient temperature and convert to the more stable C3AH6 and AH3 with consequent material porosity and permeability increase and loss of strength [1]. The conversion is accelerated by temperature and moisture availability.

Chemical shrinkage occurs during cement hydration reactions because the absolute volume of hydration products formed is smaller than that of its reactants, cement and water (i.e. νhydrates < νcement+ νH2O). Chemical shrinkage is generally considered as the main driving mechanism (at microscopic scale) leading to early age cracking and, thus, to the loss of durability of cement based materials at macroscopic scale (e.g. concrete structures) [11-13]. The external (macroscopic) dimensional shrinkage of cement based materials is very similar to the chemical shrinkage until the establishment of a semi-rigid skeleton around setting time [11]. After setting time chemical shrinkage results in vapor filled internal porosity that develops capillary related internal stresses. To quantify chemical shrinkage, cement paste specimen must be kept water saturated so the imbibed external water needed to replace the volume decrease can be measured. Techniques for measuring chemical shrinkage and the discussion on systematic errors and critical design of an experimental configuration are presented in next section (Chemical shrinkage tests).

There is a lack of knowledge related to the volume change behaviour of CAC. Recently, Ideker et al. [12,13] studied the early-age volume change behaviour during hydration of low-iron grade CAC. To the best of our knowledge there are no experimental data showing the evolution of the chemical shrinkage during pure CA and iron-rich CAC hydration. Chemical shrinkage evolution is an overall result of complex kinetics of many reactions of several cement minerals. Even same minerals can have different reaction schemes due to the transformation process of metastabile hydration products to the stable ones, whose rate is increasing with temperature. Mounanga et. al. [14] successfully described chemical shrinkage evolution during hydration of Portland cement. The information about hydration kinetics of individual minerals during CAC hydration is not yet fully available [15]. In literature there is still not yet an adequate cement paste model for CAC hydration analog to PC hydration [14]. However, in first approximation the early age of CAC hydration, especially at lower temperatures (T < 20°C) could be described by hydration reactions of the principal minerals [15,16]. This paper comes within the scope of a larger study conducted to build a model for CAC hydration that requires complementary experimental results on evolution of various properties. For this non-destructive continuous experimental tests are desired, such as calorimetry [7,15,17], chemical shrinkage, thermal properties [9], ultrasonic wave propagation [18,19], which need to be combined with destructive tests to determine the chemically bounded water [10,20], fractions of reacted cement minerals [15], hydration products formed [8], density of the cement paste solids (volume fraction of the solids) [18], porosity, and strength [8,17,18].

In this paper the hydration of synthetic CaAl2O4 and commercial iron-rich calcium aluminate cement were investigated by Quantitative Powder X-Ray Diffraction (QXRD) analysis and measurements of chemical shrinkage evolution. A model is proposed to predict the evolution of chemical shrinkage during hydration based on the main chemical reaction schemes of the CAC hydration. The model predictions of the chemical shrinkage hydration are compared to the experimental results.

Chemical shrinkage tests

There are three basic techniques for measuring chemical shrinkage: dilatometry, pycnometry and gravimetry [11,21,22]. In dilatometry test procedure a drop of water level in a capillary tube above a specimen is monitored manually or automatically [23]. Pycnometry consists of a pycnometer filled with paste and water on top. At different ages water is added to refill the pycnometer, and the weight increase relates to the total volume change. In gravimetric test procedure the volume change due to water imbibition in the hydrating specimen is obtained by measuring submerged weight according to Archimedes law. This paper employed the gravimetric method that is relatively simple to automate and is described in detail in section Chemical shrinkage measurement.

Recent review of chemical shrinkage methods in cement based materials at early ages is given in [11]. The test methods for measuring chemical shrinkage have experimental difficulties that must be adequately accounted for in order to avoid systematic errors in results. First, the specimen must be thin enough (especially for specimens with low water to cement mass ratio, H/CAC) to easily imbibe the clear water above the cement paste and thus avoid the creation of vapor filled internal porosity created by chemical shrinkage [11,23]. In other words, the rate of water supply (or transfer) from the top to the bottom of the specimen must be higher than the rate of chemical shrinkage. For Portland cement paste with a low water to cement ratios, this scale effect is not significant for sample thickness inferior to 10 mm during the first 24 h of hydration [14]. Second, the specimen must be de-aired, because the entrapped air bubbles going from water to paraffin change the submerged weight during the measurement. Third, the amount of the clear water above the specimen, and its chemical composition influence the results, especially in initial stage. Larger amount of clear water above the cement paste accelerate the initial reaction because of the dilution of the cement paste pore solution [11]. To obtain measurements on water to cement ratios closer to practical values with lower dilution one should employ paraffin oil as buoyancy fluid. Moreover, as the chemical shrinkage begins instantly upon water contacting cement (during initial mixing), the measurement results depend on the delay of the starting time. The data have to be carefully referenced to the time of starting the measurements which is about ten minutes after mixing the cement with water due to sample preparation. And lastly, the temperature gradients of the sample should be kept low. This is important if the measurements of chemical shrinkage of cements (especially calcium aluminates) are performed at higher temperatures when the reactions rates, and thus the heating rates are high. During the hydration of CAC a large quantity (70-90 % [6-9,15]) of heat is liberated within one day that may cause a considerable increase of temperature in CAC based material. All the aforementioned effects must be considered when designing an experimental set-up and interpreting the results of the chemical shrinkage measurement.

Materials and Methods

Commercial CAC ISTRA 40 was taken from a regular production of Istra Cement, Croatia (CALUCEM Group). The cement has the oxide mass fraction composition listed in Table 1. Physical properties of used cement are given in Table 2. The main compounds are CA (45%) and ferrite phase (C4AF, 21%), with mayenite (C12A7, 5%), gehlenite (C2AS) and β-C2S as minor compounds. For the syntheses of CA, ferrite phase and C12A7, precipitated calcite (CaCO3 analytical grade purity, Kemika), gibbsite (Al(OH)3, Sigma-Aldrich) and Fe2O3 have been wet homogenized in planetary mill (FRITSCH, Pulverisette 5, α-Alumina pot and grinding balls) in the required stoichiometric mole proportion, dried at 105 °C and then fired at 1350 °C for 3 h in an air atmosphere electric furnace. Synthetic minerals were milled in a ring agate mortar and sieved below 40 μm. XRD analysis of the synthesised CA (Figure 1) shows its high crystallinity and purity, with only small traces of detected Cμ12

Aμ7 and corundum. Specific surface of the prepared CA used for chemical shrinkage measurements was 4960 cm2/g (Blaine). Decarbonated and deionised water is used and exposure of the samples to the (CO2) atmosphere is kept to a minimum.

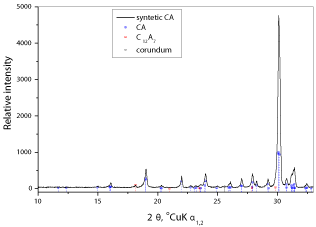

Figure 1 :XRD analysis of the synthesised CA sample (traces of C12A7 and corundum were detected).






Figure 1 : XRD analysis of the synthesised CA sample (traces of C12A7 and corundum were detected).

Table 1: Chemical composition of investigated CAC.







CaO


Al2O3


Fe2O3


FeO


SiO2


TiO2


MgO


SO3


Na2O


K2O


Sum






37.1


38.5


14.4


2.9


4.4


1.1


0.9


0.2


0.14


0.17


99.81











Table 1:  Chemical composition of investigated CAC.

Table 2: Physical properties of investigated CAC.







>90 μm,


%


<40 μm,


%


Blaine, cm2/g


Specific gravity, g/cm3


Setting time,


min


Standard consistency, %






Initial


final






3.76


80.50


3508


3.20


298


329


24.0











Table 2:  Physical properties of investigated CAC.

Chemical shrinkage measurement

In this study, chemical shrinkage measurements are carried out using a gravimetric method [11,21,23]. The change in buoyancy was continuously monitored for samples suspended in paraffin oil. The illustration of the experimental setup is given in (Figure 2). The samples are prepared in a thin glass sample holder (2r = 29 mm and h = 50 mm). Firstly, on 8 g of cement the deionized water was added with a medicine dropper to obtain water to cement mass ratio of H/CAC = 0.5 and H/CA = 0.95 for Istra 40 and synthetic CA, respectively. This paste was mixed by applying vibrations. Secondly, more deionized water was added with a medicine dropper to form a layer of clear water above the cement paste. The overall H/CAC ratio was H/CAC = 1.0 and H/CA = 1.5 for the Istra 40 and the synthetic CA, respectively. As the measurement necessities the presence of the clear water above the cement paste the overall water to cement ratio was chosen accordingly to compensate the volume changes (water uptake) that are expected during measurement time. The prepared specimens (cement pastes without the clear water above it) are 5 mm thick. Thirdly, specimens were de-aired by placing the filled sample holder in a desiccator. Air was evacuated from the desiccator by using a vacuum pump. During the de-aeration the desiccator was vibrated. Lastly, the paraffin oil is added, initially with a medicine dropper to form a layer above the water, followed by pouring larger quantities of paraffin to almost completely fill the sample holder.

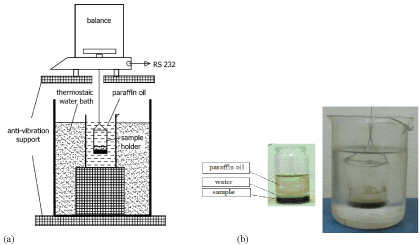

Figure 2 :Experimental set-up to measure chemical shrinkage: (a) scheme (b) a photo of the sample holder immersed in paraffin oil.






Figure 2 : Experimental set-up to measure chemical shrinkage: (a) scheme (b) a photo of the sample holder immersed in paraffin oil.

The sample holder is hung on a balance (sensitivity 0.1 mg) by a thread and immersed in a laboratory glass (400 mL) filled with paraffin oil (Figure 2) at the required curing temperature (thermostated 15 L water bath with ± 0.05 °C). Balance is connected to the Personal Computer (PC) via RS232 protocol employing acquisition software. The measurement started 10 min after initial water-cement contact with a sampling rate of 15 s. appropriate corrections were applied to account for a temperature stabilization of the sample during first minutes of the measurement. This was done by subtracting the baseline obtained by measuring the response of the hydrated sample (stabilized at room temperature) when immersed in a curing temperature of paraffin oil.

The density of used paraffin oil, ρpar was measured (to be 0.850 g/cm3 at 15 °C) by applying Archimedes method and utilizing glass sinker (part of standard equipment for density measurements by KERN ALS 220-4 balance):

ρpar =(Wair - Wpar)/Vs + ρair (2.1)

where: ρair is air density [0.0012 g/cm3], ρpar - density of the paraffin oil [cm3/g], (Wair - weight of the sinker in air [g], Wpar - weight of the sinker submerged in the paraffin oil [g], Vs - volume of glass sinker [10.4920 cm3].

Likewise, using the Archimedes law the chemical shrinkage [CS, cm3/g] evolution during cement paste hydration is calculated:

CS(t)=⊗Vpaste (t)/Wcem=(W(t) - W(24))/(ρpar Wcem) (2.2)

where: ΔVpaste is the volume change of the cement paste [cm3], t is time, Wcem is weight of cement in paste [g], W(t) is weight of the submerged paste at time t [g], W(24) is an initial weight of the submerged paste 24 min after cement-water mixing [g], and ρpar is density of the paraffin oil [cm3/g].

At the end of chemical shrinkage measurements the specimens were removed from the sample holder and crushed to a fine powder. The hydration was blocked and free water removed by addition of acetone (2-propanon). This was done by grinding and mudding the sample in three doses with acetone in agate mortar and CO2 free atmosphere.

Powder X-ray diffraction

The composition of CAC and hydrates formed was investigated by powder X-Ray Diffraction (XRD). Shimadzu diffractometer XRD-6000 with Cu Kα1,2 radiation was used (the scan step was 0.02° with collection time of 1 for qualitative and 4 s for quantitative analysis). For Quantitative X-Ray Analysis (QXRD), the prepared hydrated samples were additionally fired at 500 °C (for 10 min) to decompose the hydrates to amorphous oxides and water vapor. Expected amorphous oxides after heating are C2A(am.) from C2AH8, CA(am.) from CAH10, A(am.) from AH3 and C3A(am.) from C3AH6. By this method, proposed in [15], the interferences of the hydration products are excluded from the diffractograms. This enables a direct determination of the degree of hydration of individual minerals upon comparing the quantities in hydrated and initial (non-hydrated) cement samples. The temperature for decomposition was chosen by inference to thermogravimetry and XRD analysis of hydrated samples [10,15].

CAC quantitative X-ray diffraction using the adiabatic principle with auto flushing as proposed by Chung [24] is proven to be a suitable method [25]. Here, the matrix-flushing method [24] was applied as it enables to directly quantify relative portions in sample including both the crystalline and amorphous components by analyzing for only those components of interest. Here only CA, C12A7 and C4AF, while quantification of other minerals (e.g. pleochroite, C2AS, C2S, FeO, CT) and amorphous phases was and can be omitted. The criterion for this method is that the reference material must have the same level of crystallinity (the same level of perfection or imperfection in crystal structure) as the component in the sample. The Full-Width at Half- Maximum (FWHM) of reflections in an X-ray diffraction pattern was compared as an indication of the crystallinity of the components. FWHM for CA was measured from the peak comprising three close reflections at 30.06° , 30.1° and 30.17° and corrected by subtracting it with the width of this reflections (0.11°). The obtained FWHM were 0.17°, 0.16°, 0.12° and 0.16° for rutil (reflection at 27.4°), C12A7 (33.3° and 18.1°), CA and C4AF (12.2°), respectively. This indicates no significant differences in their crystallinity. It is important to note that the possible effect of the observed difference is lowered by using peak areas instead of peak heights to define/quantify diffraction peak intensity. In the matrix-flushing method the relationship between the peak intensity (peak area) of the characteristic X-ray reflection Ii is directly proportional to the weight fraction of the component by the factor ki which contains the mass absorption coefficient of the total sample. Experimentally determined ki values hold only for the detecting system and for no other. Reasonable standard materials for such a study are rutile (TiO2) [15] or corundum (Al2O3) [25]. The rutile used in this study had a narrow particle size distribution around approximately 0.4 μm, which would reduce microabsorption effect. XRD analysis of chosen standard rutile showed no traces of anatas. In this work, CA, C12A7, C4AF in CAC and fired hydrated samples are quantified based on the matrix-flushing method by Chung. The ki values were determined by mixing of pure phase and standard mineral rutile (TiO2) in a 50:50 weigh ratio. Pure synthetic minerals were milled in a ring agate mortar and sieved below 40 μm to maximize the number of particles analyzed, to improve powder homogeneity and packing characteristics, and to minimize micro absorption-related problems. Each sample prepared for QXRD (0.7 g) was mixed with a fixed amount of rutile (0.14 g), followed by grinding and homogenization in an agate mortar under acetone. Appropriate corrections for peak overlap were meticulously applied by inference to the (measured) intensities of the pattern due to pure phases.

Modeling methodology

If knowing the densities of components (Table 3) and hydration reaction stoichiometry (eqs 1-7 presented in Table 4) the chemical shrinkage of pure minerals (in cm3/g of mineral) for complete hydration can be calculated as:

Table 3: Densities and molar masses of the components [5,26,27].







Component


ρ / g cm-3


M / g mol-1






CA


2.98


158.1






C12A7


2.85


1387






C4AF


3.73


485.9






CAH10


1.72


338.1






C2AH8


1.96


358.2






C4AFH16


2.2


774.1






C3AH6


2.52


378.3






AH3


2.44


156.0






FH3


2.20


213.7






CH


2.24


76.1











Table 3:  Densities and molar masses of the components [5,26,27].

CSm= νH + νm - νhydrates (8)

Where the νmand νH is the specific volume of the cement mineral and water, respectively, and νhydrates is the volume of the formed hydration products per 1 g of reacted mineral calculated as:

v hydrates = ∑ h ( M h   υ h M m   υ m   ρ h   ) hydrates                                                                                                               ( 9 ) MathType@MTEF@5@5@+=feaaguart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLnhiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=xfr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaGaamODamaaBaaaleaacaqGObGaaeyEaiaabsgacaqGYbGaaeyyaiaabshacaqGLbGaae4CaaqabaGccqGH9aqpdaaeqbqaamaabmaabaWaaSaaaeaacaWGnbWaaSbaaSqaaiaadIgaaeqaaOGaaGPaVlabew8a1naaBaaaleaacaWGObaabeaaaOqaaiaad2eadaWgaaWcbaGaaeyBaaqabaGccaaMc8UaeqyXdu3aaSbaaSqaaiaab2gaaeqaaOGaaGPaVlabeg8aYnaaBaaaleaacaWGObaabeaaaaGccaaMc8oacaGLOaGaayzkaaaaleaacaWGObaabeqdcqGHris5aOWaaSbaaSqaaiaabIgacaqG5bGaaeizaiaabkhacaqGHbGaaeiDaiaabwgacaqGZbaabeaakiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcWaaeWaaeaacaqG5aaacaGLOaGaayzkaaaaaa@DE9A@

where the sum is for all hydration products (h), ν and M are stoichiometric coefficient and molar masses of the reaction components, respectively, and ρh is the density of hydration product [5,26,27] (Table 3). The volume of the water required for the stoichiometric hydration of the mineral m is:

v H = M H   υ H M m   υ m   ρ H                                                                                                                                                              ( 10 ) MathType@MTEF@5@5@+=feaaguart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLnhiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=xfr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaGaamODamaaBaaaleaacaqGibaabeaakiabg2da9maalaaabaGaamytamaaBaaaleaacaqGibaabeaakiaaykW7cqaHfpqDdaWgaaWcbaGaaeisaaqabaaakeaacaWGnbWaaSbaaSqaaiaab2gaaeqaaOGaaGPaVlabew8a1naaBaaaleaacaqGTbaabeaakiaaykW7cqaHbpGCdaWgaaWcbaGaaeisaaqabaaaaOGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOamaabmaabaGaaeymaiaaicdaaiaawIcacaGLPaaaaaa@FFF1@

Table 4 summarizes theoretical values of total chemical shrinkage for complete hydration of mineral upon individual reaction stoichiometry at T = 15 and 55 °C. Furthermore, the evolution of chemical shrinkage could be calculated by multiplying the total chemical shrinkage by the degree of reacted mineral.

Table 4: Theoretical values of chemical shrinkage for complete hydration of mineral upon individual reaction stoichiometry [1,27].







Mineral


Reaction eq.


Eq. no.


Temperature,


°C


CS, cm3/g of mineral






CA


CA + 10 H → CAH10


(1)


15


0.2317









2 CA + 11 H → C2AH8 + AH3


(2)


15


0.1821









3 CA + 12 H → C3AH6 + 2 AH3


(3)


55


0.2113






C12A7


C12A7 + 60H → 5C2AH8 + 2CAH10


C12A7 + 33H → 4C3AH6 + 3AH3


(4)


(5)


15


55


0.1879


0.2140






C4AF


C4AF + 10H → C3AH6 + CH + FH3


C4AF + 16H → C4AFH16


(6)


(7)


55


15


0.0658


0.1343











Table 4:  Theoretical values of chemical shrinkage for complete hydration of mineral upon individual reaction stoichiometry [1,27].

To model the chemical shrinkage evolution of CAC paste we need to know the hydration reaction stoichiometry (thermodinamics) and reaction kinetics of all cement minerals. This information is not yet fully available due to the complexity of reactions involved during hydration of commercial CAC. However, in first approximation principal hydration reactions can be considered. From these data, the chemical shrinkage (CS in cm3/g of CAC) versus overall hydration degree (α) of the principal minerals, m can be expressed as:

CS(α)= ∑ m C S m   α m   w m                                                                                                                                                ( 11 ) MathType@MTEF@5@5@+=feaaguart1ev2aaatCvAUfeBSjuyZL2yd9gzLbvyNv2CaerbuLwBLnhiov2DGi1BTfMBaeXatLxBI9gBaerbd9wDYLwzYbItLDharqqtubsr4rNCHbGeaGqiVu0Je9sqqrpepC0xbbL8F4rqqrFfpeea0xe9Lq=Jc9vqaqpepm0xbba9pwe9Q8fs0=yqaqpepae9pg0FirpepeKkFr0xfr=xfr=xb9adbaqaaeGaciGaaiaabeqaamaabaabaaGcbaGaam4qaiaadofacaGGOaGaeqySdeMaaiykaiabg2da9maaqafabaGaam4qaiaadofadaWgaaWcbaGaaeyBaaqabaGccaaMc8UaeqySde2aaSbaaSqaaiaad2gaaeqaaOGaaGPaVlaadEhadaWgaaWcbaGaamyBaaqabaaabaGaaeyBaaqab0GaeyyeIuoakiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcGaaiiOaiaacckacaGGGcWaaeWaaeaacaqGXaGaaeymaaGaayjkaiaawMcaaaaa@EF6C@

Where: CSm is the chemical shrinkage of fully reacted pure mineral calculated by eq. , αm is the fraction of reacted mineral (m), and wm is the mass fraction of the mineral in cement. To predict the chemical shrinkage of CAC by eq. (11), in this paper the hydration of CA, C4AF and C12A7 is considered upon reaction schemes as shown in Table 4. At 15 °C (t < 35 h) only metastabile hydration products are formed, while at 55 °C and sufficient time the conversion is practically completed leaving only stable hydration products. To test the proposed model against the measured chemical shrinkage the amount of reacted CA, C4AF and C12A7 was quantified by QXRD analysis.

Table 5: Experimental plan for investigating the hydration of the cement samples.







Sample label


Cement sample description


T, °C


H/c






CA15


CaAl2O4


15


55


15


1.5






CA55


CaAl2O4


1.5






CAC15


CAC ISTRA 40


1.0






CAC55


CAC ISTRA 40


55


1.0











Table 5:  Experimental plan for investigating the hydration of the cement samples.

In the case of the iron rich CAC, the most hydraulic phases are CA and C12A7, while C2AS, C2S and ferrite phase (nominally C4AF) are considered to have no significant reactivity at early ages (first 48 hours) below 20 °C [1,5,15]. However, although C4AF reactivity has usually been disregarded in studies of CAC hydration, because of its high quantities (up to 30 %) one should be careful in considering its contribution.

Results and Discussion

XRD analysis on samples obtained from hydrated specimens cured at different conditions (Figure 3) confirmed the hydrate compositions expected from the literature [1,5,8,15]. The main hydration products observed on specimens hydrated at 15 oC was CAH10 with traces of C2AH8 and AH3. Transformed samples hydrated at 55 °C gave C3AH6 and AH3 as hydrated products. Main diffraction peaks of metastable hydration products and AH3 are fairly broadened, indicating poor crystallinity, while that of the C3AH6 product showed good crystallinity. The QXRD analysis of investigated CAC gave the mass proportions of CA, C12A7 and C4AF to be 45 %, 5 % and 21 %, respectively. From the QXRD analysis the degree of hydration of CA, C12A7 and C4AF was obtained and presented in Table 6. It can be observed that the fraction of reacted cement minerals (CA, C12A7 and C4AF) significantly increased with temperature.

Figure 3 :XRD analysis of the hydrated CAC pastes.






Figure 3 : XRD analysis of the hydrated CAC pastes.

Table 6: Results of the QXRD analysis and the comparison of predicted and measured chemical shrinkage (at hydration time th = 35 h).










Sample





αC12A7


αFf


QXRD


αCA


CS , cm3/g of sample


Deviation, %






Model


Measured






CA15


-


-


0.72


0.167


0.166


0.5






CA55


-


-


0.97


0.199


0.200


- 0.4






CAC15


0.6


0.08


0.80


0.091


0.096


- 4.9






CAC55


1.0


0.5


0.95


0.108


0.107


0.9











Table 6:  Results of the QXRD analysis and the comparison of predicted and measured chemical shrinkage (at hydration time th = 35 h).

Results of the chemical shrinkage evolution during the hydration of the cement samples (Figure 4) indicate the kinetics of the cement hydration. When cement and water first come in contact the initial hydration is attributed mainly to the cement wetting and dissolution processes. During the induction period a small rate of hydration reaction is observed. Induction period is followed by the onset of the accelerated stage of reaction due to massive precipitation of hydrates. The hydration rate is than again decreasing due to consumption of the reactants and mass transfer limitations [15]. The reason for slower nucleation activity of the CA15 than CAC15 (Figure 4) could be explained by the lack of germination sites for the nuclei to start the precipitation of the metastabile hydration products. On the other hand, at 55 °C, the CA55 has higher nucleation activity than CAC55, which can be attributed to the higher specific surface of the synthetic CA. Both the nucleation period and the reaction rate after the onset of the massive precipitation are higher at higher temperature.

Figure 4 :Experimental results of chemical shrinkage evolution.






Figure 4 : Experimental results of chemical shrinkage evolution.

Less amount of chemical shrinkage is evolved during the initial (dissolution) stage for CAC than for Portland cement (compared with the experimental results from [11]). This was also observed by calorimetric measurements [7,8,15]. The maximal CAC hydration rate at 15°C (inflection point of the CAC15 curve in Figure 4 at tmax = 4.3 h), dCS/dtmax is 25 10-3 cm3/(g h) which is about ten times greater in comparison to chemical shrinkage results on PC (dCS/dtmax,PC ~ 2.5 10-3 cm3/(g h) [11]). After 35 h of hydration at 15oC chemical shrinkage of CAC (0.096 cm3/g) is more than 2.5 times higher than for PC (about 0.035 cm3/g [11]). If temperature gradients are ensured to be low (below ~ 1°C) the higher hydration rate and achieved hydration degree could enable more accurate measurements of CAC chemical shrinkage in comparison to PC (Table 5). As expected, the obtained values of chemical shrinkage for synthetic CA15 are even higher (Figure 4 and Table 6), about 2.2 times that for CAC15, with a maximal rate dCS/dtmax of 0.055 cm3/(g h). The lower values of chemical shrinkage for commercial CAC hydration than synthetic CA can be explained mainly by a high amount of slow reacting minerals in the CAC sample. Moreover, CAC has a lower specific surface than CA sample.

Results of the QXRD analysis and the comparison of predicted and measured chemical shrinkage is presented in Table 6. One can see that the model eq. (10) based on the reaction an equation (1-7) (Table 4) is in good agreement with the obtained experimental results. The reactivity of other phases but CA, C12A7 and C4AF has been disregarded in the simplified stoichiometric model to describe chemical shrinkage of CAC. At 15°C it was assumed that C2AH8 originates only from hydration of C12A7 (eq. 4), as the conversion of CAH10 to C2AH8 is very slow at T ≤ 15°C [1-3]. Calculated amount of formed C2AH8 in cement paste by reaction eq. 4, considering water to cement mass ratio of 0.5, 5% of C12A7 in CAC of which 60% has reacted, is 2.6%, in agreement with its relatively very low diffraction peak. However, at longer times and at higher temperatures conversion is significant, and to calculate the chemical shrinkage the ratio of reactions (eqs. 1-3) should be determined, e.g. from ratio of formed hydration products, which is quite challenging. More data are needed to validate the used model for predicting the chemical shrinkage evolution during continuous hydration, especially at higher temperatures. The presented modeling methodology can be extended to develop more complex models to describe all three reactions of CA hydration scheme simultaneously, and even to include other hydraulically active minerals (e.g. C12A7, C4AF and C2S). QXRD analysis of cement is difficult as the multiple phases result in substantial peak overlap. There is also difficulty in securing suitable pure phase reference standards. For better accuracy, these concerns may be addressed using the quantitative Rietveld analysis of all CAC phases. More accurate quantitative data on hydration of different CACs should be used to additionally test the proposed model for predicting the evolution of chemical shrinkage during CAC hydration.

Conclusion

Chemical shrinkage test methods have experimental difficulties that must be adequately accounted for in order to avoid systematic errors in experimental results. From the chemical shrinkage results obtained the following can be stressed out. After 35 h of hydration chemical shrinkage of CAC is more than 2.5 times higher than for Portland cement but about 2.2 times lower than for synthetic CA. Lower chemical shrinkage evolved during the measurements of commercial CAC than synthetic CA can be attributed mainly to a high amount of slow reacting minerals in the CAC sample, and also to difference in the specific surface of the cement samples. The reason for the faster nucleation activity of the CAC than CA at 15 °C could be explained by more germination sites and the seeded heterogenous nuclei effect. On the other hand, at 55 °C, the synthetic CA has higher nucleation activity than the commercial CAC, which can be attributed to the higher specific surface of the CA. Both the nucleation period and the reaction rate after the onset of the massive precipitation are higher at higher temperature.

Chemical shrinkage can be calculated using the stoichiometry of the individual hydration reactions, the density of hydration products and reactants and the degree of conversion for each reaction. Model predictions of chemical shrinkage based on the main reaction scheme of the CA hydration are in reasonable agreement with the experimental results. More data are needed to additionally validate the used model for predicting the chemical shrinkage evolution during continuous hydration, especially at higher temperatures when initially formed metastable hydration products transform to stabile ones. The presented modeling methodology can be extended to develop more complex models to describe all reactions simultaneously, and even to include other hydraulically active minerals (e.g. C12A7, C4AF and C2S). For such models more quantitative data on hydration of each mineral are needed.

Acknowledgement

The authors acknowledge support from the Croatian Ministry of Science, Education and Sports under project's no. 125-1252970- 2983 "Development of hydration process model" and thank Calucem, Croatia for providing CAC samples.
