Considerations on the Advantages of Small Tracers for Optical Molecular Imaging

Abstract

Molecular imaging is nowadays gaining a complementary role in cancer therapy, specifically in diagnosis, selection of therapy, monitoring of therapeutic efficacy, and also in the surgical setting. Many tumor-targeted tracers have been developed for these applications. Optical molecular imaging has been gaining more importance, particularly due to the absence of ionizing radiation, rendering its use friendlier and safer for patients and medical personnel. Recently, clinical trials have been initiated for tumor optical imaging with monoclonal antibodies conjugated to the near-infrared fluorophore IRDye 800CW. Yet, preclinical studies clearly indicate several aspects that favor smaller tracer formats over antibodies, namely, their rapid distribution, efficient penetration, and the rapid clearance of unbound tracers. Altogether, these small tracers lead to adequate contrast within minutes or hours after administration, instead of days. Here, the discussion will be centered on the properties of the different formats of tracers, in particular the small formats. Although, the conventional antibody format has already reached clinical trials, optical imaging trials with smaller formats are eagerly awaited to clarify whether their advantages over antibodies are also evident in patients.

Keywords: Optical imaging; Tumor targeting; Antibody; Nanobody; Affibody

Introduction

In the current era of increased awareness of the complementary role of molecular imaging in cancer therapy, tremendous efforts are being made in the development and evaluation of new tumortargeted tracers for molecular imaging. Not only can these tracers be relevant for diagnosis, they can also be determinant for selection of therapy, for monitoring of therapeutic efficacy, as well as for drug development [1, 2]. In addition, some of these can be employed in the surgical setting, to guide tumor resections. In this particular context, optical molecular imaging has been recently gaining more importance, due to advances in optical imaging technologies, and due to the absence of ionizing radiation, rendering its use friendlier and safer for patients and medical personnel [3, 4]. Recently, clinical trials have been initiated with monoclonal antibodies (mAbs) targeting the tumor markers VEGF or EGFR, that are conjugated to the nearinfrared fluorophore IRDye 800CW. On the other hand, many preclinical studies suggest that smaller tracers have advantages in molecular imaging, when compared to conventional mAbs. Here, the discussion will be centered on the properties of the different formats of tracers, in particular highlighting studies in which small tracers have been conjugated to the fluorophore IRDye 800CW.

Optical Imaging Principles

In general, optical imaging relies on the detection of fluorescence emitted by fluorophores, upon light excitation. For more effective imaging of structures below a couple of centimeters from the surface of the skin, fluorophores with maximum excitation and emission within the near- infrared wavelength should be employed (i.e. 700- 1000 nm). In this range of wavelength, auto fluorescence of tissues is at the lowest possible level and the lowest amount of fluorescence is lost through absorption by tissue components [5]. Currently, methylene blue (700 nm) and indocyanine green (800 nm) are the only nearinfrared fluorescent agents approved for human use, where the latter, besides being employed for tumor imaging, has particularly been explored for sentinel lymph node mapping. This procedure refers to the identification of the closest lymph node to the tumor, which is then tested for the presence of tumor cells before other lymph nodes are resected, as would be done in common practice. Importantly, two more near-infrared fluorophores have been subjected to numerous pre-clinical studies and are in the process of clinical translation: IRDye 800CW (LI-COR Biosciences, Lincoln, NE) and ZW800-1 (The FLARE Foundation, Wayland, MA) [3], being the former in a relatively more advanced stage.

Tumor targeting and contrast

For tumor imaging in particular, the near-infrared fluorophores should accumulate specifically and only in tumors, so that high tumor-to-background ratios are obtained (at least 2, but as high as possible) and images with good contrast are acquired. Nevertheless, the intravenous or local administration of these fluorophores leads to an inevitable distribution in normal tissues. Thus, higher contrast can be obtained by 1) targeting moieties, such as antibodies (e.g. [6]), to which these fluorophores are conjugated (active targeting), or 2) by systems used for drug delivery, i.e. nanoparticles, such as liposomes (e.g. [7]), that are employed to protect normal tissues and favor the accumulation of optical tracers in the tumor area (passive targeting). In both cases, after the intravenous administration of the tracers, these have to extravasate at the tumor and be retained specifically on or in tumor cells.

Normal vasculature possesses gaps between endothelial cells of 6-7 nm [8]. Notably, tumor vasculature is in general leakier due to the rapid and unorganized growth of tumor blood vessels. With pores between endothelial cells that may reach approximately 800 nm, extravasations becomes possible for molecules or nanoparticles in the range of 10-200 nm [9]. Moreover, this property is in the ‘enhanced permeability and retention’ effect (EPR) [10] combined with the lack of proper lymphatic drainage. Together, these lead to the accumulation of molecules or nanoparticles at the tumor site, by passive targeting, provided that they circulate long enough in the bloodstream [11]. Alternatively and simplistically, when tracers are smaller and have a short half-life in the bloodstream (e.g. hours or minutes), their binding affinity becomes the most important parameter, as these molecules may encounter the target only once, and thus may have only one chance for specific binding. In this case of active targeting, binding affinities in the range of 0.1 – 10 nM have been described to be essential for sufficient tumor accumulation [12].

Background and contrast

Next to the specific accumulation at the tumor, the elimination of the remaining tracer from the bloodstream and normal tissues is essential for low background fluorescence, so that adequate contrast is obtained. Two main routes are responsible for clearance of unbound tracers: hepatic or renal. The kidneys are mainly responsible for clearing small sized particles from the bloodstream, through the urine. The glomerular filtration is dependent on the size of the molecule, where molecules with an in vivo hydrodynamic diameter (HD) under 6 - 8 nm are filtered, which in general is related to an average molecular weight cutoff of approximately 60 kDa [13, 14]. This process is also dependent on the charge or the molecules, where positively charged molecules are more likely to be cleared. Alternatively, the charge of the molecule may provide interactions with plasma proteins, increasing the HD and preventing renal clearance. In that case, and for other large particles (HD >10 - 20 nm) which are not cleared by the kidneys, e.g. antibodies and nanoparticles, the liver is the main responsible for clearance. Such particles are endocytosed by Kupffer cells and hepatocytes, which are then excreted into the bile. In addition, other phagocytic cells, such as monocytes and macrophages located in lymph nodes and in the spleen, are responsible for clearance of large particles [14, 15].

In principle, the quicker the unbound tracer is removed from the normal tissues and blood, the faster the contrast is created and the image can be obtained, provided that the tracer is retained at the tumor. For diagnosis and selection of therapy, the sooner the image is obtained (hours instead of 3 to 7 days), the sooner the patient can initiate therapy, the shorter the time period spent in the hospital, and likely the lower the costs involved. On the other hand, rapid clearance decreases the chance of accumulation at the tumor, and overall tumor uptake may be lower, unless such tracers compensate their short halflife by high binding affinities, as discussed earlier [12].

Formats of Targeting Moieties

Although nanoparticles have very interesting applications in imaging, multi-modal imaging, therapy and even combinations of these, this section focuses on active targeting by antibodies, their fragments and other small targeting moieties (Figure 1). mAbs have been used in molecular imaging for their binding specificity, to target particular tumor antigens (or tumor markers) that are solely expressed or over expressed in tumors, compared to normal tissues. mAbs have been conjugated to radio ligands for PET/SPECT or to fluorophores for optical imaging [16-18], being the latter addressed here in more detail. mAbs targeting EGFR (cetuximab, panitumumab), HER2 (trastuzumab), and VEGF (bevacizumab) have been conjugated to IRDye 800CW and employed pre-clinically to image subcutaneous xenografts of breast [6, 19], vulva [20], and ovarian [21] tumors, of gliomas [22], and of peritoneally disseminated ovarian or gastric tumors [21]. In general, encouraging results have been obtained, which combined with the fact that these mAbs are already approved for therapy in the clinic, stimulated and accelerated the process for clinical translation of antibody-targeted optical imaging. In fact, clinical trials have been initiated with Bevacizumab-IRDye 800CW (ClinicalTrials.gov: NCT01508572, NCT01972373, NCT02129933) and Cetuximab-IRDye 800CW (ClinicalTrials.gov: NCT01987375).

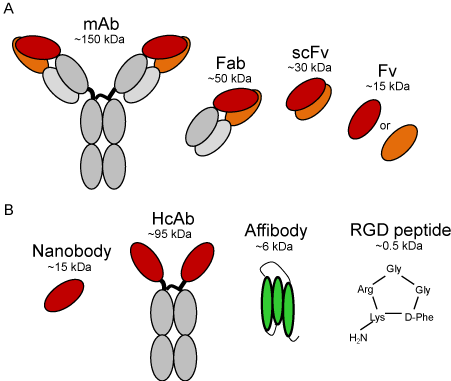

    Figure 1:  Schematic representation of antibodies and smaller targeting
moieties that have been investigated conjugated to IRDye 800CW: A.
monoclonal antibody (mAb) and its fragments, i.e. antigen-binding fragment
(Fab), variable fragment (Fv), and single-chain variable fragment (scFv); B.
nanobody derived from a heavy chain antibody (HcAb), affibody, and cyclic
RGD peptide. The approximate molecular weight of each type of molecule is
depicted for relative comparison.
