Foliage Spraying Molybdenum Promotes Plant Growth and Controls Soilborne Ralstonia solanacearum in Different Tobacco Varieties

Research Article

Ann Agric Crop Sci. 2021; 6(2): 1074.

Foliage Spraying Molybdenum Promotes Plant Growth and Controls Soilborne Ralstonia solanacearum in Different Tobacco Varieties

Chen J1#, Zheng S1#, Du G1, Wang D2 and Ding W1*

1Laboratory of Natural Product Pesticide, College of Plant Protection, Southwest University, Chongqing, PR China

2Tobacco Scientific Research Institute of Chongqing, Chongqing, PR China

#Contributed Equally to this Work

*Corresponding author: Wei Ding, Laboratory of Natural Product Pesticide, College of Plant Protection, Southwest University, Chongqing, 400715, PR China

Received: February 23, 2021; Accepted: March 19, 2021; Published: March 26, 2021

Abstract

Tobacco growing is greatly threatened by the devastating bacterial wilt disease caused by soil-borne bacteria Ralstonia solanacearum (R. solanacearum). Balanced plant nutrition has become effective strategy for crop disease management. In this study, we firstly conducted greenhouse and field experiments to investigate the effects of Molybdenum (Mo), acting as a foliar fertilizer, on tobacco plant growth and bacterial wilt control. A susceptible variety (Yunyan 87) and a moderately resistant cultivar (Nanjiang 3) were used in this study. Under greenhouse condition, the results demonstrated that the disease incidence in the Mo-treated plants decreased to 41.7% (Yunyan 87) and 44.4% (Nanjiang 3) compared with that of non-Mo-treated plants. The control mechanisms are related to the reduced bacteria colonializations in tobacco and improvement of defense enzymes including peroxidase, catalase, superoxide dismutase, polyphenol oxidase and phenylalanine ammonialyase. Malondialdehyde levels halved after 200mg/L Mo treatment compared to the control group. The field experiment results also showed that supplements of 200mg/L Mo significantly decreased the disease incidence by 30.3% and 33.9%, respectively. Moreover, foliar application of Mo increased plant growth under both growth conditions, promoting leaf and root development. Mo was taken up by tobacco leaves, but the content decreased during the growth of plants. Mo application could provide an alternative strategy for efficient management of tobacco bacterial wilt, even in crops other than tobacco, especially in Modeficient planting regions, which would have a great impact on agriculture and favor sustainable agriculture development.

Keywords: Molybdenum; Tobacco; Bacterial wilt; Control efficacy; Defense enzymes

Introduction

Bacterial wilt, caused by R. solanacearum, is one of the most devastating soil-borne bacterial diseases in Chongqing tobacco growing areas. The disease predominantly occurs in tropical, subtropical and temperate soils [1,2], but it can spread to areas at high latitudes and high elevations. Due to the complex diversity of host plants, pathogenicity, and infectious conditions, it is difficult to develop highly effective measures to protect plants from infection [3]. Integrated management strategies that include biological and chemical compounds, and resistant varieties are applying to resisting the disease [4,5]. However, excessive use of bactericides has caused adverse impacts on ecological environments and human health [6], consequently hindering sustainable agricultural crop production, especially for the Solanaceae family of plants. Therefore, it is essential to explore more sustainable and effective approaches to manage bacterial wilt, protecting yield and improve product quality.

Recent studies have proved that it is important to manage nutrient balance through foliar fertilizers or soil amendments to influence nutrient availability and in that way to control bacterial wilt disease [7]. Organic fertilizer applications, soil amendments, and soil pH adjustments have attempted to provide nutrition strategies for this problem to some extent, such as K, Mg and Mn, reducing the susceptibility of plants to disease [5]. At present, tobacco is commonly grown in more than 10 provinces in China and bacterial wilt is the most prevalent and economically important disease especially in Chongqing, which is associated with soil acidification, ultimately, reduces mineral nutrients available for plants [8]. Some nutrients have been successfully implicated in bacterial and fungal disease management strategies, i.e. Silicon (Si), Calcium (Ca), Potassium (K), Phosphorus (P) and Nitrogen (N) reduced the incidence and severity of bacterial wilt and increased plant resistance [7-12]. An increase in Boron (B) dramatically reduced the tomato bacterial wilt and lead to a better performance in resistant varieties [8]. It was proposed that a combination of increased H2O2 content and Peroxidase (POD) and Polyphenol Oxidase (PPO) activities in the tomato plants played a role in the improved performances of the resistant varieties. Foliar applications and soil amendments with Mo fertilizers have also reduced various bacterial and fungal diseases in plants, such as tomato Verticillium wilt [13], common bean angular leaf spot (Phaeoisariopsis griseola) [14] and common bean anthracnose (Colletotrichum lindemuthianum) [15]. However, the effect of Mo in the management of bacterial wilt diseases is still not known.

Mo plays an essential role as a catalytic metal for various enzymes in plants, including nitrate reductase, aldehyde oxidase, xanthine dehydrogenase/oxidase, and aldehyde oxidase [16]. Desirable soil levels for plants range from 0.5 to 5 mg/kg soil [17]. Mo deficiency induces reduced Molybdenum cofactor (Moco) biosynthesis and Mo enzymes activities, decreasing in quality and yield and intensifying disease symptoms by a lack of micronutrients [16,18]. Characteristics of Mo deficiency in tobacco include leaf mottling or interveinal necrotic areas that gradually developed until the entire leaf wilts. Yield loss is common, eventually increasing the plant susceptibility to bacterial wilt, especially in acidic planting fields [19,20]. In addition, previous studies have shown that Mo has beneficial effects against disease development and on plant physiology. The area under the disease progress curve of Anthracnose decreased by 38% after a foliar application of NaMo (20g Mo ha-1) to beans 25 days after sowing [14]. Foliar application of Mo reduced the Verticillium wilt of tomato (Lycopersicon esculentum Mill.) by 18% to 37% [12]. Limited Mo phytotoxicity was observed in tomato and cauliflower in the field condition [21]. In addition, Mo has shown excellent antimicrobial activity against phytopathogenic fungi (Phytophthora cinnamomi, Phytophthora drechsleri and Rotylenchus reniformis) during in vitro studies [22].

Moreover, Mo supplementation improved the frost, cold and salt stress tolerance of winter wheat, which was attributed to the enhancement of the antioxidant enzymes activities of Peroxidase (POD), Catalase (CAT), and Superoxide Dismutase (SOD) and an osmotic adjustment that resulted in greater K+/Na+ ratios [23-26]. In addition, many studies have shown that pathogens infections in host plants can result in an increased production of active oxygen species such as superoxides, hydroxyl radicals, and superoxide radicals [27]. Malondialdehyde (MDA) can be used to indicate the level of oxidative stress, which can damage cell membranes and disintegrate biological cells [28]. However, the relationship between Mo and tobacco bacterial wilt has not yet been elucidated.

Therefore, in this study, based on theoretical and practical foundation, we investigated whether Mo effectively control bacterial wilt under field and greenhouse condition by foliar application. Furtherly, toxicity of Mo on R. solanacearum in vitro and the effect of Mo on the growth of two tobacco varieties (susceptible and moderately resistant) were evaluated. The uptake of Mo and changes in defense enzyme activities between Mo-deficient and Mo-supplied plants were studied to elucidate the regulatory mechanism of tobacco resistance against bacterial wilt. The study holds great promise regarding their application in plant protection and nutrition for development as a new potentially disease management strategy.

Materials and Methods

Greenhouse experiment

Plant materials and growth conditions: The tobacco (Nicotiana tabacum) cultivars Yunyan 87 and Nanjiang 3, which are susceptible and moderately resistant to bacterial wilt, respectively, were used for greenhouse experiments. Yunyan 87 was produced by the Yunnan tobacco scientific research institute through hybridization breeding. It is a popular variety in most areas of China because of its wide adaptability and high yield. Tobacco seeds were sown in a floating seedling system filled with commercial matrix (Hunan Xianghui Agriculture Technique Development Co. Ltd), containing a very low level of Mo content (0.007mg/kg). Seedlings were watered regularly and fertilized twice weekly with pH 6.0 Mo-free Hoagland solution (diluted to 1:40 medium: sterile water). All plants were placed in a growth chamber (MA-835/2106UR; Marconi) until the four-leaf stage (approximately two months) at 30°C/27°C (day/night), with a relative humidity of 85~90 %, photoperiod of 14h and light intensity of 320μmol·m-2·s-1 (Philips TL-D 36W/840). Then, the seedlings were transplanted into polyethylene pots (80mm diameter × 80mm height) filled with 200g of humus medium.

Inoculum preparation: R. solanacearum strain (CQPS-1, Biovar 3, Phylotype I), was isolated from infected tobacco in the Chongqing and purified by the Laboratory of Natural Product Pesticide, Southwest University (SWU). The strain used in this study is highly virulent to tobacco [29]. For inoculation, CQPS-1 was cultured on Nutrient Broth (NB) medium (3g beef extract, 10g peptone, 5g NaCl, and 1000mL deionized water, pH 7.0) and grown for one night at 28°C. The resultant NB culture was centrifuged, the supernatant was disposed and the bacterial cell pellet was suspended in deionized double distilled water that had been purified with a Milli-Q system (Millipore Corp., Bedford, MA, USA). The inoculum suspension was adjusted to 107 CFU/mL using a WGZ-2-XJ bacteria turbidimeter (Xinrui Co. Ltd, China) and used immediately.

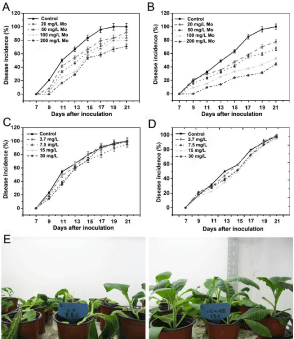

Growth chamber assays to assess the effect of Mo and N on bacterial wilt: As abovementioned, two tobacco cultivars (Yunyan 87 and Nanjiang 3) were grown until the development of the fourth leaf. Four concentrations of Mo solutions were prepared using (NH4)6MoO24·4H2O (Sigma-Aldrich, USA), resulting in elemental Mo contents of 0.2%, 0.10%, 0.05%, and 0.02% (w/v), namly, 200mg/L, 100mg/L, 50mg/L and 200mg/L. To eliminate the role of the nitrogen source, treatments with different concentrations of ammonium nitrate (NH4NO3) (Sigma-Aldrich, USA) treatments (0.0037%, 0.0075%, 0.015%, 0.03%), namly, 3.7mg/L, 7.5mg/L, 15mg/L, and 30mg/L, which were corresponding equivalent to the corresponding molar nitrogen values of the different ammonium molybdate treatments, were used. For the control group, the tobacco seedlings were watered with distilled water. For the treatments, the nutrient solutions were sprayed onto the tobacco plants using an atomizer. For each plant, both leaf surfaces of each plant were sprayed until run-off, which amounted to 20mL solution per seedling. Seven days after treatment, tobacco plants were inoculated with R. solanacearum using the root-drenching method. Briefly, we inserted a long, narrow blade into the pot at four positions to damage the roots. Then, 20mL of the R. solanacearum inoculum suspension was poured around the base of each plant. For the non-inoculated control plants, 20mL of distilled deionized water was poured around the base of each plant. Following the inoculation, the plants were returned to the growth chamber described above. Pots were arranged in a randomized block design that consisted of 36 replications per treatment. Each plant was considered a replication. Three plants per treatment were randomly selected and sampled at 6 DAI for enzyme quantification, while 33 plants were maintained for symptom evaluation. The experiments were conducted three times.

To determine the effect of Mo on tobacco plants growth, the same four Mo solutions or distilled water (negative control) were applied to tobacco plants at the four-leaf stage as described above. Pots were arranged in a randomized block design that consisted of 30 replications (plants) per treatment. The following growth characteristics were recorded for each plant 20 days after treatment: plant fresh weight, plant dry weight, root fresh weight and stem length.

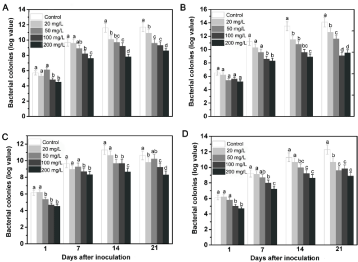

Measurement of R. solanacearum populations in tobacco roots and stems: Under greenhouse condition, the roots and stems (1cm above roots) of the tobacco plants were sampled at 1, 7, 14 and 21 days (DAI), washed with sterilized DI water and then, dried on filter paper. For the tested plants, 0.5g of roots or stems were immersed in 75% ethanol for 20s, and rinsed with sterilized DI water three times. The roots or stems were ground in a mortar containing 1mL of sterile water. A serial dilution from 10-1 to 10-8 times of the homogenate was prepared in sterile distilled water. A total of100μL from each dilution were spread onto NA agar plates containing 0.1% TTC. The plates were placed in an incubator at 30°C for three days, and the number of representative colonies was counted. All treatments were individually repeated at least three times.

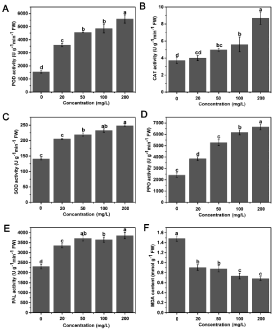

Effects of foliar-applied Mo on defense enzyme activity and MDA level: For all Mo, N and control groups, leaf samples (a mixture of one oldest leaf and one youngest leaf of one tobacco plants) of Yunyan 87 were collected 6 DAI in the greenhouse, which corresponded to the early onset of the disease. Three seedlings per treatment were collected. A sample of the leaf tissue (0.5g) was homogenized in 5mL of borate extraction buffer, which was consisted of 0.2M borate buffer (pH 8.8), 5mM β-mercaptoethanol (Sigma-Aldrich, USA), 1mM EDTA (Sigma-Aldrich, USA) and a small quantity of PVP (Sigma-Aldrich, USA), in an ice bath. The supernatants were collected by centrifugation at 12000rpm for 20min at 4°C and sampled to measure the activity of enzymes. Changes in the enzyme activity of the healthy tobacco plants after the foliar Mo application but without the R. solanacearum inoculation were also measured in parallel.

The POD activity was assayed in accordance with previous method [8]. The CAT activity was determined in accordance with the method described [30]. A change in absorbance of 0.1 was defined as one Unit (U). The SOD activity in the extract was measured using a SOD kit (Beyotime, China). The absorbance at 560nm was measured using a UV1000 spectrophotometer. The enzyme quantity resulting in 50% inhibition of NBT photoreduction was defined one Unit (U). The PPO activity was quantified using a 3mL reaction mixture consisting of 2.95mL of 0.02M catechol (pH 6.8) and 50μl of crude enzyme extract [8]. A change in absorbance of 0.1 was defined as one Unit (U). The PAL activity was measured and calculated using previously described methods [31].

MDA was measured in a 4mL reaction mixture containing 2mL of 0.6% (w/v) Thiobarbituric Acid (TBA) solution and 2mL of crude enzyme extract. After the mixture was quickly cooled and centrifuged (12000g, 20min), the absorbance of the supernatant was measured at 532, 450 and 600 nm. The content of MDA in the extract was calculated as described previously [28].

Field experiments

Soil sampling and properties measure: Field experiments were also conducted at the Qianjiang tobacco planting area in Chongqing. Tobacco has been cultivated for more than ten years at this site, which is geographically located at 29°19' N and 108°36' E at an altitude of 750m. Bacterial wilt was prevalent at the site. In July, August, and September of both years, the weather was rainy, and the average monthly temperature ranged from 24 to 27°C, which is considered suitable for bacterial wilt development.

Soil cores were sampled at an approximate depth of 5 to 20 cm using a soil probe (5cm diameter × 15cm depth). Five soil samples were collected from each sampling area (diameter 100m) and mixed to form a composite sample. After the removal of plant residues and stones, the soil was ground and sifted using a 60-mesh nylon membrane sieve, after which the samples were stored at 4°C until further use.

The soil physicochemical properties and nutrient indicators, including pH, organic matter, available nitrogen, phosphorus, potassium, and Mo content were determined for each soil sample. Alkaline hydrolysis diffusion was used to determine nitrogen [32]. The dichromatic oxidation titration method was used to analyze organic matter content [33]. The Flame Atomic Absorption Spectrometry (FAAS) method was used to determine the available K, Fe and Mo [34]. The planting date, harvest date, the onset date of disease and the ending date of disease are presented in Table S1.

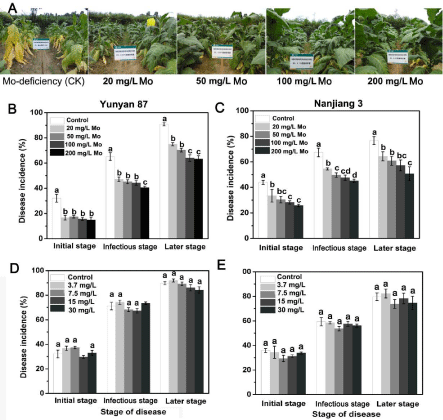

Field experimental design and disease severity assessment: Yunyan 87 and Nanjiang 3 tobacco seedlings with six or seven leaves were transplanted into the selected plots at Qianjiang. We planted both varieties from May to September. The two whole test plots covered approximately an area of 1000.5m2. Each variety was planted as a separated block with a randomized selection. Each experimental plot was zoned into five rows of 5m in length with 1.5m row spacing. Tobacco plants spacing in the rows was 0.5m (15000 plants ha-1); thus, there were 80 plants per plot. The treatments consisted of four levels of Mo supplementation using the same concentrations as those in the greenhouse experiment. Briefly, Mo was applied as a foliar spray to tobacco at three growth stages: the seedling stage (14 days after transplanting, (DAT)), the rosette stage (45 DAT), and the strong rapid growth stage (55 DAT). A complete randomized block design with three replications was used. Commercial fertilizers were applied to the entire experimental area prior to transplanting. Specifically, there were 50kg of special tobacco compound fertilizer (9-12-25) per 667m2, 30kg of organic fertilizer (organic matter ≥30%, N-P2O5- K2O ≥4.0%) per 667m2, 15kg of potassium nitrate (13.5-0-44.5) per 667m2 and 2.5kg of ammonium nitrate-phosphorus (30-6-0) per 667m2. During the period from 60 to 75 DAT, when approximately 50% of the plants in each plot were in at full bloom, the terminal inflorescence of each plant was removed when the plant had 16 to 20 leaves. A suckercide (12.5% flumetralin EC) was applied to all tobacco plants to prevent lateral shoots from developing. Bacterial wilt disease indexes were recorded at the initial, infectious, and later stages of disease (45, 75 and 90 DAT, respectively). In addition, the plant height, stem diameter, maximum leaf length, width, and the number of leaves remaining per plant at 75 DAT in the field tests were investigated.

The bacterial wilt disease assessments began with the appearance of leaf symptoms and continued at daily intervals until the plant had died or the symptoms no longer progressed and classified using the standard described in the study of Godiard et al. (in the supporting information) [35].

Determination of the Mo content: The concentrations of Mo in tobacco plants were measured at 14 DAI in the greenhouse experiment for the Yunyan 87 cultivar and the Nanjiang 3 cultivar, and at 75 DAT in the field experiment in both years. Briefly, 1g of leaf tissue (dry weight) was treated for 2h in a microwave digester (SpeedWaveTM, MWS-3+, Berghof) with 3mL of 65% HNO3 and 2mL of 30% H2O2. The digested samples were then diluted with distilled water to a total volume of 25mL. Rhizosphere soils (0-15 cm depth) were sampled for all the treatments in the greenhouse experiments and field tests. After removing the loosely adhering soil by vigorous shaking, soils were sieved (2mm-mesh) to eliminate plant residues and air-dried and prepared as described previously [36]. Then, all the samples were analyzed using the above mentioned FAAS methods on a Perkin-Elmer 5000 instruments. The Mo levels in the stems and roots were also determined using the same procedure.

Antibacterial tests of Mo in vitro

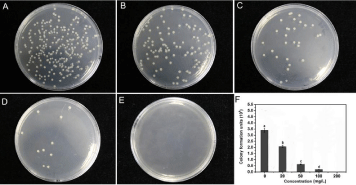

The antibacterial activity of Mo against R. solanacearum was investigated in vitro. A culture of R. solanacearum was collected during the exponential growth phase. A 20μL drop of bacterial suspension was pipetted and spread onto sterile solid NB media containing Mo content of 20, 50, 100 and 200 mg/L. The control agar plates contained NB media with no Mo. The plates were incubated for three days at 30°C. The viable cell number was recorded as the number of bacterial colonies growing on the plate. There were at least three plates for each Mo concentration.

Statistical analysis

All experiments were performed three times, and the data were expressed as the means of the triplicates. One-way Analysis of Variance (ANOVA) was performed. The treated means were compared using Fisher’s protected least significant difference test (P≥0.05) for multiple mean comparisons. The statistical analysis was implemented using the Statistical Product and Service Solutions software (SPSS) (SPSS 16.0, SPSS Inc. USA) for data analysis.

Results

Physicochemical properties and Mo content of the rhizospheric soil

As shown in Table S2, the soil samples from Qianjiang were classified as typical yellow soil and contained low organic matter (18.7mg/kg), high available nitrogen (98.4mg/kg), high available phosphorus (45.6mg/kg), and high available potassium (103.9mg/kg) contents. Noticeably, the content of Mo in the soil was 0.068mg/kg. The soil was acidic (pH=5.5), which was determined in a 1:2.5 (w/v) soil to calcium chloride suspension. The average active Mo contents of the rhizosphere soil around the infected tobacco plants within the typical tobacco-growing areas in Chongqing were also determined. All were similar, with the exception of the Mo contents in Pengshui, which were also relatively low (Table S3).

Mo accumulation in the soil and tobacco plants

The Mo accumulation in the soil and leaves of tobacco cultivar Yunyan 87 and in the soil and leaves of tobacco cultivar Nanjiang 3 followed the same trends in both greenhouse and field experiments (Table 1). Compared with control, the leaf Mo content in tobacco gradually increased with increasing applied Mo concentration (20, 50, 100 and 200 mg/L) under both field and greenhouse conditions. For Yunyan 87 cultivar, the leaf Mo concentration of the 200mg/L Motreated group was 89.7% and 62.9% greater than that of the control in the field test and in the greenhouse test, and 96.8% and 97.6% greater for Nanjiang 3. The average Mo content of the rhizosphere soil in the control and Mo-treated was similar. The application of different concentration of N did not affect Mo uptake efficiency from either the soil and in leaves.
