Research Article
Austin J Anat. 2014;1(3): 1014.
Age-Related Changes of Lumbar Vertebral Body Morphometry
Mavrych V1*, Bolgova O1, Ganguly P2 and Kashchenko S3
1Department of Anatomy, St. Matthew’s University, Cayman Islands
2Department of Anatomy, College of Medicine Alfaisal University, Saudi Arabia
3Department of Histology and Cell Biology, Lugansk State Medical University, Ukraine
*Corresponding author: Mavrych V, Department of Anatomy, St. Matthew’s University, School of Medicine, Save Haven, Leeward 3, Regatta Park, PO Box 32330, Grand Cayman, KY1-1209, Cayman Islands.
Received: July 18, 2014; Accepted: August 22, 2014; Published: August 28, 2014
Abstract
This study was designed to provide a large, accurate database of vertebral body size, focus–ing on age-related changes along the lumbar spine, and to look for size variations with relation to sex. All lumbar vertebrae (L1-L5) of 212 individuals (0-90 years) were dissected and analyzed by age and sex. A digital caliper was used to measure all vertebral body heights, lengths, and widths. This study showed that the vertebral body size was independent of sex but correlated with the individuals’ age. The most intensive growth of vertebral body sizes was found in children 1-7 year-old and the second peak of growth was observed in teenagers 13-16 year-old.
Anterior and posterior vertebral body heights were almost identical for all lumbar vertebrae in newborns and continuously increased through children, teenagers and adult age groups, then slightly decreased in senior persons due to osteopenia. The posterior vertebral body height was smaller than the anterior vertebral body height at L2 through L5 indicating posterior wedging with a peak at L3-L4 (except individuals of the 1st year of postnatal life). The superior vertebral body lengths constantly increased from L1 to L5 and inferior lengths - from L1 to L4, slightly decreased at L5. No significant difference was found between the superior and inferior vertebral body lengths of the same vertebra (P > 0.05). The superior vertebral body width typically was smaller than inferior widths of the same vertebra and superior width of adjacent inferior vertebra, resulting in a trapezoidal vertebral body shape in the lumbar spine.
As result of this research, a comprehensive database of vertebral body dimensions was generated from direct measurements of 1060 lumbar vertebrae. These results are invaluable in establishing an anthropometric model of the human lumbar spine, and provide useful data for spinal surgery and spinal implants design. In addition this information has important implications for workspace specifications for a robot-assisted surgery system.
Keywords: Vertebral body; Anatomical dimensions; Lumbar spine
Abbreviations
AVBH: Anterior Vertebral Body Height; PVBH: Posterior Vertebral Body Heights; SVBL: Superior Vertebral Body Length; IVBL: Inferior Vertebral Body Length; SVBW: Superior Vertebral Body Width; MVBW: Middle Vertebral Body Width; IVBW: Inferior Vertebral Body Width
Introduction
Existing databases of vertebral and inter vertebral dimensions are incomplete at present and limited either in accuracy, study population or parameters recorded. However, information on the precise dimensions of the lumbar vertebrae is essential for the spinal implants design, lumbar decompression surgery and workspace definition for robot-assisted surgery [1].
Previous studies have initiated the establishment of standard numeric values of vertebral body shape both in normal and pathological conditions [2-5]. The value of their data has depended on the number of samples and the accuracy of measurement. Many of the existing reports are based on a small sample size or isolated vertebrae of a small section of the spine. A comprehensive study of 12 specimens of human cadaveric lumbar vertebrae was published by Panjabi et al. however; the number of specimens was very limited as they were difficult to obtain [6]. Berry et al manually measured 30 skeletons, creating a database for implants but there was insufficient information to calculate lateral vertebral body sizes and not all pedicle dimensions were measured [7]. Fang et al. [8] reported an important study based upon CT scans of the lumbar spine obtained from Asian population, Aly and Amin [9] did research of lumbar spinal canal dimensions in Egyptians, but these are not necessarily applicable to Caucasians. The investigations of Zindrick et al. [10] and Chawla [11] were limited to the height, width, and transverse angles of vertebral pedicles. One large series was reported by Van Schaik et al. but they focused on the transverse process dimensions and structure only [12]. Gilad and Nissan measured the sagittal plane dimension of several anatomic structures of the vertebrae using lateral radiographs of 157 patients, and no data on L2 and L4 were provided [13]. Zhou et al published a large database of L3 - L5 vertebrae and L3/4 - L5/ S1 inter vertebral disks characteristics from 126 digitized CT scans, unfortunately the investigation was limited by a small section of the spine [14]. The anatomic dimensions of lumbar vertebrae from CT scans of 55 patients were reported by Wolf et al, their study was designed for a robotic surgery workspace creation [1]. In the comprehensive investigation of 240 adult human skeletons from the Cleveland Museum of Natural History by Masharawi et al. T1 - L5 vertebral body dimensions were obtained, but no age-related data were indicated [15].
The investigations of Kunkel et al. established some prediction equations for human thoracic and lumbar vertebral morphometry [16]. The morphological changes of the vertebrae associated with normal aging are still subject of debate, whereas this knowledge is important in detecting vertebral fractures and degenerative shape changes [17-22]. Some studies of human spine indicated a decrease in vertebral heights with advancing age and menopause [23,24]. Many studies indicated that the numerical mathematical modeling of the human spine for biomechanical studies requires the establishment of an accurate and large database on vertebral morphometry [25-27].
In this investigation, using a well-controlled sample size and measuring devices, the authors sought to establish morphometry standards for all lumbar vertebrae for all age groups and found age-related changes in vertebral body shape and sizes.
Materials and Methods
Study population
Direct measurements of 7420 lumbar vertebral body dimensions by digital caliper were obtained from 212 normal complete lumbar spines (107 male, 105 female) of individuals (0 - 90 years). All anatomic samples of lumbar spine had been collected in 2001-2006 from cadavers of Caucasian individuals living in Lugansk city and region in Pathology Department of Lugansk Regional Hospital under a license of Bioethical Commission of LSMU (file No:3, 10-NOV- 05), Ukraine. All specimens were originated from victims of trauma (without spine damage), poisonings, and asphyxia and sudden death form vascular disorders. The study material was distributed among 11 age groups: from newborns through senior people (Table 1).
Age Group
Year-old
N
1
0
23
2
0-1
12
3
1-3
9
4
3-7
7
5
8-12
6
6
13-16
8
7
17-20
14
8
21-35
33
9
36-60
38
10
60-74
36
11
75-90
26
Totally:
212
Table 1: Material of the research: number of complete lumbar spine specimens - age distribution.
Measuring methods
A total of 1060 vertebrae from L1 through L5 were measured. Direct measurements the following seven parameters were taken from each vertebral body, and their ratios were analyzed: anterior and posterior VB heights in the midsagittal plane; superior and inferior VB anteroposterior (A-P) lengths; superior, middle and inferior VB widths (Figure 1). Anterior (AVBH) and posterior (PVBH) vertebral body heights are distances in the sagittal plane between central borders of superior and inferior vertebral body, anteriorly and posteriorly, respectively.

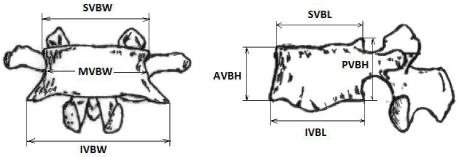

Figure 1: The measurement diagram: AVBH and PVBH - anterior and posterior body heights; SVBL and IVBL – superior and inferior vertebral body lengths; SVBW, MVBW and IVBW – superior, middle and inferior vertebral body widths, respectively.
Superior (SVBL) and inferior (IVBL) vertebral body lengths are distances in the sagittal plane between anterior and posterior borders of superior and inferior vertebral body, respectively.
Superior (SVBW), middle (MVBW) and inferior (IVBW) vertebral body widths are distances in the transverse plane between left and right borders of the superior, middle (1/2 of height), and inferior vertebral body, respectively. All measurements were taken from the external borders of the vertebral body rims, excluding any osteophytes.
Repeatability of measurements
To assess measurement errors for intra reliability tests, 4 patients were randomly selected and all parameters from their 20 lumbar vertebrae (L1-L5) were measured on 2 consecutive days by the same observer under similar experimental conditions. For inter reliability tests, two investigators undertook three sets of measurements from 20 third lumbar vertebrae.
Statistical analysis
Descriptive statistics were calculated for all measurements. Rate of a vertebral body growth was calculated as a % difference from a previous age group for all dimensions. The association of vertebral body dimensions with age was calculated using analysis of variance (ANOVA). Analysis of variance followed by orthogonal contrasts was used to compare the vertebral dimensions at different spinal levels. A significance level of P < 0.05 was used.
Results
Both the intra tester and inter tester reliability for all measurements were high. The intra class correlation coefficients varied from 0.93 to 0.97 for the intra tester reliability, and from 0.80 to 0.85 for the inter tester reliability. Validity was also very high (r = 0.92; P < 0.001).
Vertebral body heights and sagittal wedging
Table 2 summarizes data for the anterior and posterior vertebral body heights L1 - L5 for persons of different age groups. Anterior vertebral body heights were almost identical for all lumbar vertebrae in newborns (6.9 ± 0.3 mm - 7.2 ± 0.3 mm) and continuously increased through childhood, adolescence, and adulthood (in age group 8: 25.5 ± 2.7 mm for L1; 27.7 ± 2.5 mm for L2; 30.8 ± 3.3 mm for L3; 28.9 ± 4.6 mm for L4; 28.2 ± 2.4 mm for L5), then slightly decreased in senior persons due to osteopenia. Anterior vertebral body heights increased from L1 troughs L3 (P < 0.05) and decreased at L4 - L5 (for age groups 6 - 11). Figure 2 summarizes data for the anterior vertebral body heights L1 - L5 and rate of their growth for persons of different age groups. The most intensive rate of growth of anterior vertebral body heights (above of 40%) was found in children 3rd and 4th age groups (1-7 year-old) and the second peak of growth was observed in teenagers 13-16 year-old (age group 6). ANOVA shows a statistically significant correlation between the anterior vertebral body heights and person’s age (r=0.57 in men and r=0.69 in women; P < 0.0001).

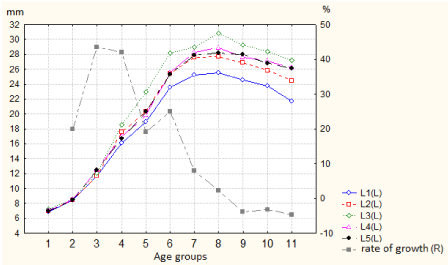

Figure 2: Anterior vertebral body heights (mm) for different age groups and rate of growth (%).
Age group
Dimension
L1
L2
L3
L4
L5
(1) 0 yr
AVBH
6.9 ± 0.3
7.0 ± 0.2
7.2 ± 0.3
7.1 ± 0.3
7.0 ± 0.4
PVBH
7.2 ± 0.6
7.2 ± 0.4
7.2 ± 0.4
7.3 ± 0.4
7.3 ± 0.3
(2) 0-1 yr
AVBH
8.4 ± 0.3
8.4 ± 0.2
8.5 ± 0.4
8.5 ± 0.4
8.4 ± 0.6
PVBH
8.6 ± 0.7
8.6 ± 0.7
8.7 ± 0.7
8.7 ± 0.4
8.7 ± 0.9
(3) 1-3 yr
AVBH
11.7 ± 0.6
11.7 ± 0.8
12.1 ± 0.6
12.5 ± 1.0
12.5 ± 0.7
PVBH
11.2 ± 0.5
11.1 ± 0.5
11.1 ± 0.7
11.3 ± 0.7
10.8 ± 0.6
(4) 3-7 yr
AVBH
16.1 ± 1.4
17.6 ± 2.2
18.5 ± 2.4
17.0 ± 1.7
16.7 ± 3.1
PVBH
16.3 ± 0.9
15.9 ± 1.6
16.1 ± 1.8
14.7 ± 1.8
13.9 ± 1.3
(5) 8-12 yr
AVBH
18.9 ± 3.0
20.3 ± 4.7
23.0 ± 2.7
19.8 ± 3.4
20.3 ± 1.9
PVBH
18.3 ± 3.6
19.9 ± 4.0
18.2 ± 3.4
16.5 ± 3.2
16.3 ± 3.2
(6) 13-16 yr
AVBH
23.6 ± 1.4
25.4 ± 2.7
28.2 ± 2.8
25.5 ± 1.8
25.3 ± 3.5
PVBH
22.1 ± 2.4
25.3 ± 3.7
24.9 ± 3.2
23.5 ± 3.0
19.9 ± 3.3
(7) 17-20 yr
AVBH
25.2 ± 3.1
27.6 ± 2.6
29.0 ± 3.5
28.3 ± 2.1
27.9 ± 2.7
PVBH
25.0 ± 3.8
27.1 ± 3.4
27.1 ± 2.7
26.5 ± 3.7
23.3 ± 3.4
(8) 21-35 yr
AVBH
25.5 ± 2.7
27.7 ± 2.5
30.8 ± 3.3
28.9 ± 4.6
28.2 ± 2.4
PVBH
25.9 ± 3.1
27.1 ± 2.9
27.0 ± 2.9
25.8 ± 3.0
23.2 ± 2.9
(9) 36-60 yr
AVBH
24.5 ± 3.2
26.9 ± 2.8
29.3 ± 3.2
27.6 ± 2.7
28.0 ± 2.7
PVBH
25.5 ± 3.4
26.6 ± 2.7
27.3 ± 2.8
25.9 ± 3.0
23.2 ± 2.8
(10) 60-74 yr
AVBH
23.8 ± 2.6
25.8 ± 3.2
28.4 ± 3.2
27.1 ± 2.8
26.8 ± 3.2
PVBH
25.7 ± 3.3
25.9 ± 3.3
26.1 ± 2.7
25.1 ± 3.7
22.4 ± 3.1
(11) 75-90 yr
AVBH
21.7 ± 2.2
24.4 ± 2.9
27.2 ± 3.4
26.2 ± 3.2
26.1 ± 2.6
PVBH
23.9 ± 2.2
24.2 ± 2.8
24.7 ± 2.2
24.6 ± 2.8
21.7 ± 2.5
Table 2: Vertical dimensions for lumbar vertebrae (mm) for 212 persons of different age groups (mean ± SD) (AVBH – anterior vertebral body height, PVBH – posterior vertebral body height).
Average sizes of posterior vertebral body heights for L1 - L5 in newborns and infants of the first year of postnatal life were slightly above than anterior heights (7.2 - 7.3 mm and 8.6 - 8.7 mm, respectively). But starting from the 3rd age group on, the situation is quit opposite, anterior heights prevailed (P < 0.05).
Posterior vertebral body heights continuously increased with the age and reach their maximums in adults (25.9 ± 3.1 mm for L1, 27.1 ± 2.9 mm for L2, 27.0 ± 2.9 mm for L3, 25.8 ± 3.0 mm for L4 and 23.2 ± 2.9 mm for L5). The correlation of this dimension with the age was also significant for both sexes (r=0.66 in men and r=0.64 in women (P < 0.0001). The posterior vertebral body height was smaller than the anterior vertebral body height at L2 through L5 indicating posterior wedging with a peak at L3 - L4 (except persons of the 1st year of postnatal life).
Vertebral body lengths
The superior vertebral body lengths were 7.6 ± 0.5 mm - 7.8 ± 0.3 mm in newborns (L1-L5) and drastically increased during the first 3 years of the postnatal life (age groups 1-3), reaching 17.2 ± 0.7 mm - 17.7 ± 0.6 mm (Table 3). Unlike vertical dimensions, that is the only peak of growth for vertebral body lengths with more than 80% rate (Figure 3). Even later, when the rate of growth is much less, this dimension was growing up until adulthood. The superior vertebral body lengths constantly increased from L1 (32.4 ± 4.3 mm) to L5 (37.0 ± 4.8 mm) in the lumbar spine (age group 10). The inferior vertebral body length increased from L1 (34.1 ± 4.2 mm) to L4 (37.3 ± 4.9 mm) and then slightly decreased at L5 (34.7 ± 5.7 mm). No significant difference was found between the superior and inferior vertebral body lengths of the same vertebra (P >0.05). ANOVA shows a statistically significant correlation between the superior vertebral body lengths and person’s age r=0.76 for men and r=0.71 for women (P <0.0001).

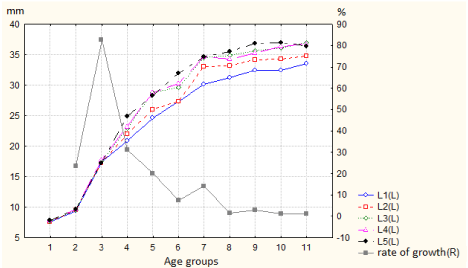

Figure 3: Superior vertebral body lengths (mm) for different age groups and rate of growth (%).
Age group
Dimension
L1
L2
L3
L4
L5
(1) 0 yr
SVBL
7.6 ± 0.5
7.6 ± 0.4
7.7 ± 0.4
7.8 ± 0.2
7.8 ± 0.3
IVBL
7.7 ± 0.3
7.7 ± 0.3
7.7 ± 0.4
7.8 ± 0.4
7.8 ± 0.4
(2) 0-1 yr
SVBL
9.4 ± 0.7
9.5 ± 0.5
9.5 ± 0.7
9.6 ± 0.7
9.6 ± 0.7
IVBL
9.4 ± 0.5
9.6 ± 0.8
9.5 ± 0.7
9.6 ± 0.7
9.6 ± 0.7
(3) 1-3 yr
SVBL
17.4 ± 0.5
17.2 ± 0.7
17.5 ± 0.7
17.7 ± 0.6
17.2 ± 0.8
IVBL
16.3 ± 1.2
16.3 ± 1.2
16.2 ± 1.3
16.2 ± 1.6
16.3 ± 1.2
(4) 3-7 yr
SVBL
20.9 ± 2.4
22.0 ± 3.1
22.9 ± 2.8
23.2 ± 3.2
24.9 ± 3.1
IVBL
22.6 ± 3.5
23.2 ± 2.6
24.5 ± 3.3
24.7 ± 2.9
23.1 ± 1.4
(5) 8-12 yr
SVBL
24.6 ± 5.1
26.0 ± 5.6
28.8 ± 7.6
28.8 ± 6.2
28.3 ± 6.1
IVBL
25.6 ± 5.9
28.5 ± 6.4
27.4 ± 5.5
28.0 ± 5.4
26.5 ± 3.6
(6) 13-16 yr
SVBL
27.3 ± 1.8
27.3 ± 3.9
29.7 ± 3.0
30.3 ± 2.9
31.9 ± 4.4
IVBL
29.1 ± 2.6
30.7 ± 2.6
31.1 ± 2.6
32.7 ± 2.1
30.6 ± 2.4
(7) 17-20 yr
SVBL
30.1 ± 2.7
33.0 ± 3.2
34.5 ± 4.1
34.6 ± 2.5
34.6 ± 2.6
IVBL
31.3 ± 2.9
34.7 ± 2.8
35.1 ± 3.7
35.2 ± 2.3
33.1 ± 2.8
(8) 21-35 yr
SVBL
31.2 ± 4.2
33.2 ± 3.6
34.9 ± 4.2
34.3 ± 4.2
35.5 ± 5.0
IVBL
32.9 ± 4.0
33.9 ± 3.5
34.5 ± 3.7
36.0 ± 3.9
33.6 ± 5.3
(9) 36-60 yr
SVBL
32.4 ± 4.3
34.1 ± 4.5
35.6 ± 4.0
35.2 ± 4.3
36.8 ± 4.5
IVBL
32.5 ± 4.8
34.6 ± 4.7
35.5 ± 5.3
36.1 ± 4.7
34.7 ± 5.7
(10) 60-74 yr
SVBL
32.5 ± 4.5
34.3 ± 4.7
36.1 ± 4.6
36.4 ± 4.8
37.0 ± 4.8
IVBL
34.1 ± 4.2
35.6 ± 4.5
36.7 ± 4.9
37.3 ± 4.9
35.4 ± 5.7
(11) 75-90 yr
SVBL
33.5 ± 3.7
34.8 ± 3.6
37.0 ± 3.8
36.7 ± 4.0
36.4 ± 4.2
IVBL
34.2 ± 4.2
35.8 ± 3.7
36.4 ± 4.8
37.5 ± 3.2
34.9 ± 4.7
Table 3: Longitudinal dimensions for lumbar vertebrae (mm) for 212 persons of different age groups (mean ± SD) (SVBL – superior vertebral body length, IVBL - inferior vertebral body length).
Vertebral body widths
Table 4 summarizes data for the superior, middle and inferior vertebral body widths L1 - L5 for persons of different age groups. The superior vertebral body widths slightly increased from L1 to L5 in newborns (14.5 ± 0.9 mm - 14.8 ± 0.6 mm) and infants of the first year of postnatal life (17.3 ± 1.4 mm - 17.6 ± 1.6 mm). The middle vertebral body width was bigger than superior and inferior one in the first two age groups (P < 0.01) and was in the range 15.1 ± 0.6 mm - 15.4 ± 0.6 mm in newborns and 17.6 ± 1.2 mm - 18.0 ± 1.3 mm in 1st year infants. The most intensive vertebral body growth in coronal plane (more then 60%) was registered in the first three years of the postnatal life (age group 3) (Figure 4). The second peak of growth (up to 30%) was found in teenagers (age group 6) and in this age middle vertebral body width became the same size or slightly below than the superior and inferior one and vertebral “waist” formation began. In adults (e.g. age group 10), superior vertebral body widths constantly increased from L1 to L5 (49.3 ± 7.0 mm - 56.0 ± 7.5 mm). The superior vertebral body width typically was smaller than inferior widths of the same vertebra and superior width of adjacent inferior vertebra, resulting in a trapezoidal vertebral body shape in the lumbar spine. Also with age, the vertebral “waist” (middle width) became less thick compared with superior and inferior widths at the same vertebrae. ANOVA shows a statistically significant correlation between vertebral body widths and age (r=0.78 for men and r=0.72 for women; P < 0.0001).

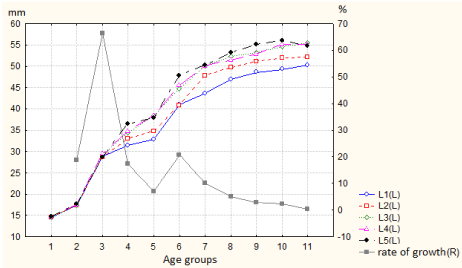

Figure 4: Superior vertebral body widths (mm) for different age groups and rate of growth (%).
Age group
Dimension
L1
L2
L3
L4
L5
(1) 0 yr
SVBW
14.5 ± 0.9
14.6 ± 0.8
14.6 ± 0.6
14.8 ± 0.5
14.8 ± 0.6
MVBW
15.1 ± 0.6
15.1 ± 0.6
15.2 ± 0.7
15.4 ± 0.6
15.4 ± 0.6
IVBW
14.7 ± 0.5
14.6 ± 0.6
14.6 ± 0.7
14.9 ± 0.7
14.9 ± 0.7
(2) 0-1 yr
SVBW
17.3 ± 1.4
17.3 ± 0.9
17.4 ± 1.3
17.5 ± 1.2
17.6 ± 1.6
MVBW
17.6 ± 1.2
17.8 ± 1.1
17.8 ± 1.3
17.9 ± 1.2
18.0 ± 1.3
IVBW
17.2 ± 1.0
17.6 ± 1.5
17.4 ± 1.3
17.6 ± 1.2
17.7 ± 1.3
(3) 1-3 yr
SVBW
28.9 ± 0.9
28.7 ± 1.1
29.2 ± 1.2
29.5 ± 1.1
28.6 ± 1.3
MVBW
27.6 ± 1.1
27.4 ± 1.5
27.6 ± 1.5
27.7 ± 1.7
27.4 ± 1.5
IVBW
27.2 ± 1.9
27.2 ± 2.1
27.0 ± 2.1
26.9 ± 2.7
27.1 ± 2.1
(4) 3-7 yr
SVBW
31.4 ± 3.6
33.0 ± 4.6
34.4 ± 4.3
34.8 ± 4.8
36.5 ± 5.8
MVBW
32.2 ± 4.2
33.4 ± 4.2
35.1 ± 4.5
35.4 ± 4.5
34.8 ± 5.2
IVBW
33.9 ± 5.2
34.9 ± 3.9
36.8 ± 4.9
37.1 ± 4.3
34.0 ± 5.1
(5) 8-12 yr
SVBW
32.8 ± 6.7
34.7 ± 7.5
38.4 ± 10.1
38.4 ± 8.3
37.8 ± 8.1
MVBW
32.5 ± 7.1
35.5 ± 7.8
36.6 ± 8.1
37.0 ± 7.3
35.7 ± 6.3
IVBW
34.1 ± 7.9
38.0 ± 8.5
36.5 ± 7.4
37.3 ± 7.2
35.3 ± 4.8
(6) 13-16 yr
SVBW
41.0 ± 2.7
40.9 ± 5.8
44.6 ± 4.5
45.5 ± 4.4
47.8 ± 6.7
MVBW
41.1 ± 2.8
42.3 ± 3.4
44.4 ± 3.5
46.1 ± 3.3
45.6 ± 3.8
IVBW
43.7 ± 3.9
46.1 ± 3.9
46.7 ± 3.9
49.0 ± 3.2
45.9 ± 3.7
(7) 17-20 yr
SVBW
43.6 ± 3.9
47.8 ± 4.5
50.1 ± 5.9
50.1 ± 3.5
50.2 ± 3.9
MVBW
42.7 ± 3.6
47.3 ± 4.0
48.7 ± 5.1
48.8 ± 3.2
47.3 ± 3.6
IVBW
45.3 ± 4.3
50.3 ± 4.0
50.9 ± 5.3
51.1 ± 3.2
48.0 ± 4.2
(8) 21-35 yr
SVBW
46.9 ± 6.4
49.8 ± 5.4
52.4 ± 6.4
51.5 ± 6.2
53.3 ± 7.5
MVBW
46.1 ± 5.8
48.3 ± 4.9
50.1 ± 5.6
50.7 ± 5.7
49.8 ± 7.2
IVBW
49.3 ± 6.0
50.8 ± 5.3
51.8 ± 5.5
54.0 ± 5.8
50.4 ± 8.0
(9) 36-60 yr
SVBW
48.6 ± 6.4
51.2 ± 6.7
53.3 ± 6.1
52.8 ± 6.4
55.2 ± 6.8
MVBW
46.2 ± 6.2
49.1 ± 6.4
50.8 ± 6.7
50.9 ± 6.4
51.1 ± 7.0
IVBW
48.8 ± 7.2
51.9 ± 7.0
53.2 ± 8.0
54.1 ± 7.1
52.1 ± 8.6
(10) 60-74 yr
SVBW
49.3 ± 7.0
52.0 ± 7.3
54.6 ± 7.2
55.1 ± 7.4
56.0 ± 7.5
MVBW
47.4 ± 6.7
50.0 ± 6.7
52.1 ± 7.0
52.8 ± 7.1
51.8 ± 7.8
IVBW
51.6 ± 6.7
53.9 ± 7.0
55.6 ± 7.6
56.4 ± 7.5
53.6 ± 8.9
(11) 75-90 yr
SVBW
50.2 ± 5.5
52.2 ± 5.4
55.5 ± 5.7
55.1 ± 6.0
54.7 ± 6.2
MVBW
47.3 ± 5.4
49.4 ± 4.7
51.5 ± 5.5
52.2 ± 4.5
50.0 ± 6.0
IVBW
51.4 ± 6.2
53.7 ± 5.5
54.6 ± 7.1
56.3 ± 4.8
52.4 ± 7.1
Table 4: Widths dimensions for lumbar vertebrae (mm) for 212 persons of different age groups (mean ± SD) (SVBW – superior vertebral body width, MVBW - middle vertebral body width, IVBW - inferior vertebral body width).
Discussion
Information regarding the precise dimensions of the lumbar vertebral bodies is essential for spinal surgery and instrumentation, but we did not find longitudinal studies covering all age groups because of the extreme difficulty in obtaining such specimens. Even in the most comprehensive investigations like Masharawi et al., where dimensions were obtained from 240 normal complete spines of adult human skeletons (age range 20 - 80 years), or Wolf et al. (20 - 90 years old 55 patients), it is assumed that the vertebral body external shape is maintained with age [1,15]. Our finding challenges this concept and shows that a vertebral body is a dynamic structure, which grows constantly with different velocities until maturation. Shape of vertebral body is also different for different age groups. In newborns and infants of the first year of the postnatal life, L1-L5 vertebral bodies are oval in shape and almost identical in size. They grow dramatically in childhood and become cylindrical in shape. We have registered 2 peaks of vertebral body grow: in children of 1-3 years old and teenagers 13-16 years old. In 17-20 years old individuals, lumbar vertebral bodies get a definite shape (middle vertebral body width is less than superior or inferior one).
Measurements of vertebral body heights indicated a most rapid growth of anterior vertebral body height in L3 (compare with other lumbar vertebrae), one of the factors, as we believe, that contributes to the lumbar curve formation. Also our results shows decrease in vertebral heights with advancing age and menopause that supports some earlier studies [13,28,29] and challenges another opinion that decreases in human height with aging, results from a decrease in the thickness of the inter vertebral discs only [15,30].
The current data indicate that vertebral body lengths and widths constantly increase with the age. There are the same two peaks of growth in kids and teenagers groups. Also, vertebral body lengths and widths rates of growth are different in L1 - L5 row: L1 growths the less intensively and L5 - the most (Figure 4 ). This finding supports the prevalent concept about pyramidal structure of the vertebral column, in which the vertebral body dimensions continuously increase along the lumbar spine [14,31].
Our results show a statistically significant correlation between all vertebral body dimensions and age for both, men and women. This is in contrast with earlier studies that did not find such a correlation [15]. The contrasting findings are possibly due to the larger sample size and the age groups used in the current study (age range 0-90 years vs. 20-80 years). In addition, our results support the opinion that there is no sexual dimorphism (P > 0.05) in measurements of lumbar vertebral bodies [32,33].
Knowing the exact vertebral body size and shape is an important factor in the diagnostic and treatment processes of different spinal deformities. This study has been conducted to evaluate lumbar vertebral body anatomy of the Eastern Ukrainian population in terms of morphometry measurements in healthy cases as well as giving data to the spinal surgeons for more precise operations planning, choosing an adequate inter body device or appropriate bone graft, and fixation plates or screws to the different vertebral levels. Further studies are needed with larger samples in order to support our data and biomechanical studies are required to validate these implications.
Acknowledgement
The authors thank Dr. Anthony Lyons, St. Matthew’s University, School of Medicine, for his valuable comments and suggestions to improve the quality of the paper.
References
- Wolf A, Shoham M, Michael S, Moshe R. Morphometric study of the human lumbar spine for operation-workspace specifications. Spine (Phila Pa 1976). 2001; 26: 2472-2477.
- Bruijne M, Michael MT, Tanko LB, Pettersen PS, Nielsen M. Quantitative vertebral morphometry using neighbor-conditional shape models. Medical Image Analysis. 2007; 11: 503-512.
- Karabekir HS, Gocmen-Mas N, Edizer M, Ertekin T, Yazici C, Atamturk D. Lumbar vertebra morphometry and stereological assesment of intervertebral space volumetry: a methodological study. Ann Anat. 2011; 193: 231-236.
- Scoles PV, Linton AE, Latimer B, Levy ME, Digiovanni BF. Vertebral body and posterior element morphology: the normal spine in middle life. Spine (Phila Pa 1976). 1988; 13: 1082-1086.
- Parent S, Labelle H, Skalli W, Latimer B, de Guise J. Morphometric analysis of anatomic scoliotic specimens. Spine (Phila Pa 1976). 2002; 27: 2305-2311.
- Panjabi MM, Goel V, Oxland T, Takata K, Duranceau J, Krag M, et al. Human lumbar vertebrae. Quantitative three-dimensional anatomy. Spine (Phila Pa 1976). 1992; 17: 299-306.
- Berry JL, Moran JM, Berg WS, Steffee AD. A morphometric study of human lumbar and selected thoracic vertebrae. Spine (Phila Pa 1976). 1987; 12: 362-367.
- Fang D, Cheung KM, Ruan D, Chan FL. Computed tomographic osteometry of the Asian lumbar spine. J Spinal Disord. 1994; 7: 307-316.
- Aly T, Amin O. Geometrical dimensions and morphological study of the lumbar spinal canal in the normal Egyptian population. Orthopedics. 2013; 36: e229-234.
- Zindrick MR, Wiltse LL, Doornik A, Widell EH, Knight GW, Patwardhan AG, et al. Analysis of the morphometric characteristics of the thoracic and lumbar pedicles. Spine (Phila Pa 1976). 1987; 12: 160-166.
- Chawla K, Sharma M, Abhaya A, Kochhar S. Morphometry of the lumbar pedicle in North West India. Eur J Anat. 2011; 15: 155-161.
- van Schaik JJ, Verbiest H, van Schaik FD. Morphometry of lower lumbar vertebrae as seen on CT scans: newly recognized characteristics. AJR Am J Roentgenol. 1985; 145: 327-335.
- Gilad I, Nissan M. Sagittal evaluation of elemental geometrical dimensions of human vertebrae. J Anat. 1985; 143: 115-120.
- Zhou SH, McCarthy ID, McGregor AH, Coombs RR, Hughes SP. Geometrical dimensions of the lower lumbar vertebrae--analysis of data from digitised CT images. Eur Spine J. 2000; 9: 242-248.
- Masharawi Y, Salame K, Mirovsky Y, Peleg S, Dar G, Steinberg N, et al. Vertebral body shape variation in the thoracic and lumbar spine: characterization of its asymmetry and wedging. Clin Anat. 2008; 21: 46-54.
- Kunkel ME, Schmidt H, Wilke HJ. Prediction equations for human thoracic and lumbar vertebral morphometry. J Anat. 2010; 216: 320-328.
- Briggs AM, Greig AM, Wark JD, Fazzalari NL, Bennell KL. A review of anatomical and mechanical factors affecting vertebral body integrity. Int J Med Sci. 2004; 1: 170-180.
- Guglielmi G, Diacinti D, van Kuijk C, Aparisi F, Krestan C, Adams JE, et al. Vertebral morphometry: current methods and recent advances. Eur Radiol. 2008; 18: 1484-1496.
- Möller G, Andresen R, Banzer D. Shape model-based semi-automatic morphometric assessment of vertebral deformities in clinical practice. Osteologie. 2011; 20: 239-247.
- Pouletaut P, Dalqamoni H, Marin F, Ho Ba Tho MC. Influence of age, gender and weight on spinal osteoarthritis in the elderly: An analysis of morphometric changes using X-ray images. IRBM. 2010; 31:141-147.
- Whitmarsh T, Del Río Barquero LM, Gregorio SD, Sierra JM, Ludovic Humbert, Frangi AF. Age-Related Changes in Vertebral Morphometry by Statistical Shape Analysis. Mesh Med. 2012: 7599: 30-39.
- Weber K, Lunt M, Gowin W, Lauermann T, Armbrecht G, Wieland E, et al. Measurement imprecision in vertebral morphometry of spinal radiographs obtained in the European Prospective Osteoporosis Study: consequences for the identification of prevalent and incident deformities. 2014; 72: 957-966.
- Diacinti D, Guglielmi G, Tomei E, D'Erasmo E, Minisola S, Valentini C, et al. [Vertebral morphometry: evaluation of osteoporosis-caused fractures]. Radiol Med. 2001; 101: 140-144.
- Ruyssen-Witrand A, Gossec L, Kolta S, Dougados M, Roux C. Vertebral dimensions as risk factor of vertebral fracture in osteoporotic patients: a systematic literature review. Osteoporos Int. 2007; 18: 1271-1278.
- Stern D, Njagulj V, Likar B, Pernuš F, Vrtovec T. Quantitative vertebral morphometry based on parametric modeling of vertebral bodies in 3D. Osteoporos Int. 2013; 24: 1357-1368.
- Oei L, Ly F, E Saddy S, Makurthou AA, Hofman A, van Rooij FJ, et al. Multi-functionality of computer-aided quantitative vertebral fracture morphometry analyses. Quant Imaging Med Surg. 2013; 3: 249-255.
- Tomomitsu T, Murase K, Sone T, Fukunaga M. Comparison of vertebral morphometry in the lumbar vertebrae by T1-weighted sagittal MRI and radiograph. Eur J Radiol. 2005; 56: 102-106.
- Diacinti D, Guglielmi G. Vertebral morphometry. Radiol Clin North Am. 2010; 48: 561-575.
- Diacinti D, Pisani D, Del Fiacco R, Francucci CM, Fiore CE, Frediani B, et al. Vertebral morphometry by X-ray absorptiometry: which reference data for vertebral heights? Bone. 2011; 49: 526-536.
- Castillo M, Smith K, Mukherji K. The Spine. New York: Lippincott-Raven. 1998.
- Kapandji IA. The Physiology of the Joints: The Trunk and the Vertebral Column. 2nd ed. London: Longman Group. 1992.
- Gilsanz V, Boechat MI, Gilsanz R, Loro ML, Roe TF, Goodman WG. Gender differences in vertebral sizes in adults: biomechanical implications. Radiology. 1994; 190: 678-682.
- Gocmen-Mas N, Karabekir H, Ertekin T, Edizer M, Canan Y, Izzet Duyar I. Evaluation of lumbar vertebral body and disc: a stereological morphometric study. Int. J. Morphol. 2010; 28: 841-847.
Download PDF
