Nanoceria Decrease Vascular Permeability in a Mouse Model of AMD

Cai X¹*, Seal S⁴ and McGinnis JF^1,2,3*

¹Department of Ophthalmology, University of Oklahoma Health Sciences Center, USA

²Department of Cell Biology and Oklahoma Center for Neuroscience, University of Oklahoma Health Sciences Center, USA

³Department of Oklahoma Center for Neuroscience, University of Oklahoma Health Sciences Center, USA

⁴Advanced Materials Processing Analysis Center, University of Central Florida, USA

*Corresponding author: Xue Cai, Department of Ophthalmology, University of Oklahoma Health Sciences Center, 608 Stanton L. Young Blvd, Oklahoma City, OK 73104, USA

McGinnis JF, Department of Ophthalmology, University of Oklahoma Health Sciences Center, 608 Stanton L. Young Blvd, Oklahoma City, OK 73104, USA

Received: September 22, 2016; Accepted: October 25, 2016; Published: October 27, 2016

Abstract

The Very Low Density Lipoprotein Receptor Knockout (vldlr^-/-) mouse is a model for a distinct form of Age-Related Macular Degeneration (AMD) called Retinal Angiomatous Proliferation (RAP). It is characterized by neovascularization, increased vascular permeability and retinal degeneration. We have reported that administration of nanoceria to pigmented vldlr^-/- mice significantly inhibits the developmental neovascularization when injected at postnatal day (P) 7 and produces sustained regression of the existing neovascularization when applied at P28. In this study, we characterized the effects of the homozygous presence of the vldlr mutation on an albino background on retinal degeneration and neovascularization. We also examined the effects of increasing concentrations of nanoceria on: inhibition of the expression of Vascular Epithelium Growth Factor (VEGF), the number of retinal and choroidal neovascularization, the health of Retinal Pigment Epithelium (RPE) cells and the loss of RPE junctional proteins using albino vldlr^-/- mice. Our data demonstrate that nanoceria function in a dose-dependent manner to up-regulate the expression of RPE65 and tight-junction proteins, down-regulate angiogenesis-stimulating factors, inhibit Blood-Retinal Barrier (BRB) breakdown and decrease vascular permeability in adult mice. These findings suggest that nanoceria are potential therapeutics for treatment of ocular diseases caused by RPE dystrophy and BRB dysfunction.

Keywords: Albino vldlr^-/- mice; Nanoceria; RPE; Tight-junction proteins; Blood-retinal barrier

Abbreviations

AMD: Age-Related Macular Degeneration; BRB: Outer Blood- Retinal Barrier; CNV: Choroidal Neovascular “tufts”; FITC: Fluorescein Isothiocyanate; INL: Inner Nuclear Layer; Nanoceria: Cerium Oxide Nanoparticles; ONL: Outer Nuclear Layer; OPL: Outer Plexiform Layer; qRT-PCR: Quantitative Real Time RT-PCR; RAP: Retinal Angiomatous Proliferation; RNV: Retinal Neovascular “blebs”; ROS: Reactive Oxygen Species; RPE: Retinal Pigment Epithelium; TRX: Thioredoxin; VEGF: Vascular Epithelium Growth Factor; vldlr^-/-: Very Low Density Lipoprotein Receptor Knockout; wt: Wild Type; ZO: Zonula Occludens

Introduction

The Retinal Pigment Epithelium (RPE) cells form a monolayer of cells in the back of the eye adjacent to the photoreceptors and play important physiological and functional roles in the process of conversion of light to neural signals [1,2]. The communication and cooperation between RPE cells and photoreceptors completes the visual cycle. The RPE cells, which contain pigmented granules, shield the photoreceptors from excessive light, and digest the aged outer segment discs of photoreceptors. The RPE cell also secretes growth factors, transports nutrients and provides iron channels [2]. It forms an outer Blood-Retinal Barrier (BRB) to control vascular fluid (as well as to absorb fluid from the retinal space) and exchanges nutrients and metabolic materials between the choroid and subretinal space [1]. This enables it to be highly selective in the modulation of the movement of oxygen and other molecules from the choroidal circulation system to the retina [3,4]. The tight junction complex forms the fundamental structure of the BRB and contributes to epithelial cell adhesion, communication and cellular movement. More than 40 proteins are found to be closely associated with tight junctions [5]. Among them, transmembrane claudins and occludin, and the scaffolding Zonula Occludens (ZO) proteins play essential roles in the formation and regulation of the BRB.

Breakdown of the BRB and consequences of the dysregulation of vascular permeability are closely associated with angiogenesis and can result in retinal edema [6-8]. This pathological condition is also correlated with an elevation of Vascular Epithelium Growth Factor (VEGF) [9,10]. The progression of the pathology of Age- Related Macular Degeneration (AMD) is predominantly and strongly correlated with oxidative stress-induced molecular and cellular injury, and the deposition of damaged proteins and other molecules in the RPE cells results in dystrophy of the RPE [11,12]. The central role of the RPE cell and the correlation of its dysfunction with the pathogenesis of AMD have been demonstrated by many laboratories [13,14]. The eventual degeneration of photoreceptors appears to be secondary to RPE senescence [15].

We have previously shown that catalytic inorganic Cerium Oxide Nanoparticles (nanoceria), which regeneratively scavenge Reactive Oxygen Species (ROS) and mimic the activities of the antioxidative enzymes, superoxide dismutase and catalase [16-18], have therapeutic effects against light-induced damage to the retina of albino Wild Type (wt) rats [19]. We have also shown that nanoceria prevent retinal degeneration in tubby mice [20,21] and inhibit the development of neovascularization and cause regression of the existing neovascularization in pigmented vldlr^-/- mice [22,23]. Recently, we demonstrated that long-term retention of nanoceria in the retina does not induce any changes in retinal structure and function in albino rats [24], and we did not detect any increased inflammatory responses caused by any of the nanoceria concentrations tested in wt mice [25]. In the current study, we focus on the ability of nanoceria to provide protection to RPE cells, regulate tight-junctions and other junctional proteins, and to inhibit increased vascular permeability in adult albino vldlr^-/- mice.

Materials and Methods

Intravitreal injection

Saline (1 μl), or saline with increasing concentrations of nanoceria from 0.001 mM (0.172 ng), 0.01 mM (1.72 ng), 0.1 mM (17.2 ng), 1 mM (172 ng) to 10 mM (1720 ng) were delivered into the vitreous of the albino vldlr^-/- mice at P28 by injection as previously reported [23]. Uninjected vldlr^-/- and wt Balb/C mice served as controls.

Vascular filling assay

The mice, at scheduled time points, were anesthetized and then 40 μl of 2.5% high molecular weight Fluorescein Isothiocyanate (FITC) - dextran (Sigma-Aldrich, FD-2000S) were injected into the left ventricle of the heart [22,23]. The anesthetized mice were killed 5 minutes later; the eyes were enucleated and fixed in 4% paraformaldehyde. The eyes were dissected, flat-mounted, observed and imaged as previously reported [22,23]. Eyes (20-30 per group) were analyzed and retinal neovascular “blebs” and choroidal neovascular “tufts” were counted using an Olympus MVX10 stereomicroscope. Data shown are mean ± SEM.

Fundus imaging and fluorescein angiography

Observation of the fundus and neovascularization were done as previously reported [23] with minor modification. Briefly, mice were anesthetized, the eyes were dilated, and the mice were placed on the bed of the Micron III system (Phoenix Research Labs, Pleasanton, CA). After the fundus was clearly seen and images taken, 20 μl of 5% AK-Fluor (Alcon) was intraperitoneally injected into the mouse. The photographs were captured 30 seconds, 60 seconds and 90 seconds after injection using StreamPix software and blue filters.

Optical Coherence Tomography (OCT)

Mice were fully anesthetized and eyes were dilated. One drop of refresh optive moisturizing solution was placed on the cornea. The mouse was put on the adjustable curset of the OCT machine (Bioptigen) and the head was held in a proper position, then the retina was scanned and images were saved.

Electroretinography (ERG)

Mice were dark adapted overnight, the eyes were dilated, and intensity scotopic ERGs were performed at P35 days with light intensities of 0.002, 0.02, 0.2, 2, 200 and 2000 cds /m². Full field scotopic ERG with light intensity of 600 cds /m² and photopic ERG with light intensity of 1000 cds /m² were performed at P35 days (P35d), 3 months (P3m), and 7 months (P7m).

Immunocytochemistry and whole mount immunofluorescence staining

The eyes were collected, fixed, dissected as eyecups (SCR, Sclera-Choroid-RPE) without lens and cornea. For flat mount immunofluorescence staining, the dissected SCRs were blocked with 5% BSA, incubated with primary antibodies: either mouse anti-RPE65 (1:500, Millipore) or rabbit anti-ZO-1 (1:300, invitrogen) at 4°C overnight then incubated in anti-mouse or anti-rabbit AlexaFluor 488 for 1 hr at room temperature. After DAPI counterstaining, the SCRs were flat-mounted on the slides with RPE face-up and 4-6 radial cuts were made before coverslipping. For cryosectioning, the SCRs were embedded in OCT media and 10 μm sections were cut as previously reported [20,23]. The slide-mounted cryo-sections were blocked and incubated in the above primary antibodies at room temperature for 2 hrs, then incubated in anti-mouse or anti-rabbit AlexaFluor 488 for 1 hr at room temperature. After DAPI counterstaining the slides were coverslipped. Image capture was performed using a Nikon Eclipse 800 epi-fluorescence microscope.

Histology and quantitation of nuclei

The procedure for histology is the same as previously reported [20,23]. H & E stained slides from eyes at different developmental stages were observed and imaged with a Nikon Eclipse 800 microscope under 10x and 40x. For morphometry and quantitative histological analysis, three fields with 0.48 mm intervals between each field were imaged superiorly and inferiorly under 40x with the first image at a distance of 0.48 mm from ONH (Optic Nerve Head). The number of nuclei in the Outer Nuclear Layer (ONL) was determined (3-6 eyes per group) and the data shown are the averages of all measurements within the same age per group.

Quantitative Real Time RT-PCR (qRT-PCR)

Eyecups (3-5), without cornea and lens, from each group at P35 days, were collected and kept in TRIzol at -80°C. Total RNA isolation and cDNA synthesis are the same as previously reported [20]. For each sample, 20 ng of cDNA in triplicate was used for qRT-PCR reactions to determine the mRNA levels of VEGF. Primer sequences for the VEGF gene and the house-keeping gene (GAPDH) are the same as previously reported [23]. Relative expression levels were calculated [23] and are shown as mean ± SEM.

Western blot

Eyecups (3-8) from each group were collected. Protein extraction, quantitation, gel electrophoreses, membrane transfer and membrane development were the same as previously reported [20]. Soluble protein (50 μg) was loaded in each well of the gel. The following primary antibodies were used: sheep anti-VEGF and goat anti- Occludin (1:1000 and 1:750 respectively, Santa Cruz), mouse anti- RPE65 (1:2000, Millipore), anti-IL-1β (1:1000, Millipore), rabbit anti-ZO-1 (1:500, invitrogen), anti-TNF-a (1:1000, Millipore), and anti-IL-6 (1:1000, Proteintech). Rabbit anti-β-actin (HRP conjugate) (1:1000, cell signaling technology) or anti-GAPDH (1:2500, Abcam) antibody served as loading controls. The band detection and densitometric analysis of the bands were performed as previously reported [20,23].

Statistical analysis

One way ANOVA analysis with Bonferroni post hoc test and/or unpaired student t-test was performed and P value of less than 0.05 (P<0.05) was considered as a significant difference and is indicated in each figure.

Results

Retinal development and photoreceptor degeneration in albino vldlr^-/- mice

Eyes at P7–365 were collected and processed for analysis of the development of the retina and neovascularization. There are no major differences in retinal morphology and the nuclear number in the ONL of albino vldlr^-/- and wt Balb/C mice at P7 and P14 (Figure 1A) although the initiation of neovascularization in vldlr^-/- mice occasionally appeared at P14. The obvious retinal structural changes, because of the penetration of neo-blood vessels from the Outer Plexiform Layer (OPL) through the ONL and connecting to the choroid, were always seen at P21 (Figure 1A). Histological analysis indicated that the mutant retinas at P28 have 91.39% of the nuclei present in age-matched wt littermates (Figure 1B). Severe ONL abnormalities with regional increases in RPE layers, accompanied by photoreceptor cell death (Figure 1A, Figure 1B), are frequently observed after P35. At P49, retinal detachment occurred because of drusen formation (Figure 1A), and at P70, about 20% of the photoreceptors were lost. Severe retinal degeneration occurred by P5m, when 37% of photoreceptor cells in the mutant retinas were absent (Figure 1B). Irregular retinal structures, such as a thickened RPE with multiple layers of cells, rosette-like structures in the ONL, thinning of the ONL and/or INL (Inner Nuclear Layer) beneath the lesion area, and the fusion of the retinal neovascular vessels and choroidal neovascular vessels represent the typical retinal morphology in vldlr^-/- mice (Figure 1A). OCT images of the retina of living vldlr^-/- mice at P35d, P3m and P7m revealed the progressive development of the lesions, the enlarged fused neovasculature, and retinal thickening indicative of edema, all of which eventually cause severe retinal detachment (Figure 1C). To further examine the retinal degeneration and its function in response to light, full field ERG (Figure 2A) was performed at P35d, P3m and P7m of age. The amplitude of cone ERG at P35d had decreased to 71.5% of wt and it further decreased to 61% of wt by P7m. In contrast, the rod function has no large changes at P35d when measured by full field ERG. However, intensity ERG (Figure 2B) at P35d demonstrated that the rod sensitivity to light in vldlr^-/- mice is statistically lower than in wt mice. Rod response to the light in vldlr^-/- mice declined to 76% of wt at P3m (a-wave only, the b-wave has minor changes) and it was only 69% of wt at P7m (Figure 2A). These data indicate that cone degeneration occurred earlier than rod degeneration and degeneration of secondary neurons occurs later than the primary neurons.

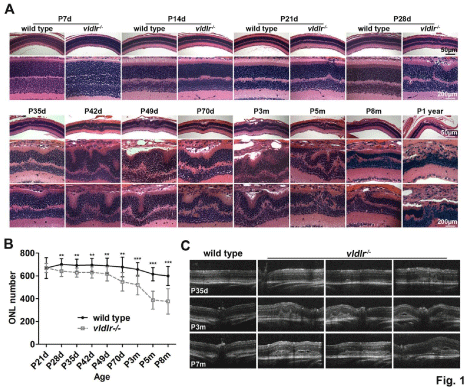

Figure 1: Neovascularization and retinal structure changes occur over time in the vldlr^-/- retinas. (A) The neovascularization arises from the OPL and disruptions of retinal structure begin to be seen at P21 days. Thereafter, abnormal retinal structures are seen throughout the retina. Representative images from each group are shown. N=3-6 eyes per group. Scale bar, 50 μm and 200 μm, respectively. (B) Quantitation of nuclei in the ONL demonstrates temporal loss of photoreceptor cells in vldlr^-/- mice. The number of nuclei from 3-6 eyes with 18-36 measurements per group of mice was determined at each of the time points listed. **P<0.0003, ***P<0.000001. (C) OCT reveals the progression of the neovascularization development in vldlr^-/- mice. Compared to wt, the enlargement and fusion of the neovasculature, retinal thickening, and eventual retinal detachment occur in the mutant mice. Representative OCT images from each group are shown. N=5-8 eyes per group.



    Figure 1:  Neovascularization and retinal structure changes occur over time in the vldlr^-/- retinas. (A) The neovascularization arises from the OPL and disruptions
of retinal structure begin to be seen at P21 days. Thereafter, abnormal retinal structures are seen throughout the retina. Representative images from each
group are shown. N=3-6 eyes per group. Scale bar, 50 μm and 200 μm, respectively. (B) Quantitation of nuclei in the ONL demonstrates temporal loss of
photoreceptor cells in vldlr^-/- mice. The number of nuclei from 3-6 eyes with 18-36 measurements per group of mice was determined at each of the time points listed.
**P<0.0003, ***P<0.000001. (C) OCT reveals the progression of the neovascularization development in vldlr^-/- mice. Compared to wt, the enlargement and fusion of
the neovasculature, retinal thickening, and eventual retinal detachment occur in the mutant mice. Representative OCT images from each group are shown. N=5-8
eyes per group.

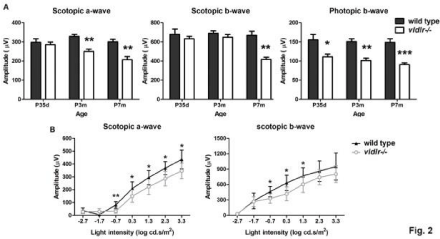

Figure 2: Electroretinography demonstrates losses in retinal function over time in vldlr^-/- mice. (A) Full field ERG evaluation of retinal function shows that cone function declines, but rod function is similar to wt at P35d. Reduced rod function was detected at P3m in vldlr^-/- mice and intensity ERG evaluation at P35d (B) demonstrated that the rod function has actually declined in mutant mice. N=7-14 animals, *P<0.05, **P<0.005, ***P<0.0001.



    Figure 2:  Electroretinography demonstrates losses in retinal function over time in vldlr^-/- mice. (A) Full field ERG evaluation of retinal function shows that cone
function declines, but rod function is similar to wt at P35d. Reduced rod function was detected at P3m in vldlr^-/- mice and intensity ERG evaluation at P35d (B)
demonstrated that the rod function has actually declined in mutant mice. N=7-14 animals, *P<0.05, **P<0.005, ***P<0.0001.

Neovascularization development and leakage in albino vldlr-/- mice

Initial formation of abnormal blood vessels was seen at P14 and originated from the inner retina and progressed towards the subretinal space (Figure 1A). Abnormal retinal structure was evident at P21 (Figure 1A), and using an FITC-Dextran vascular filling assay (Figure 3A), numerous Retinal Neovascular “blebs” (RNV) can be seen at this time. However, a few typical choroidal “neo” vessels can also be seen in some of the eyes at this age (Figure 3A). Significant increases in the number of Choroidal Neovascular “tufts” (CNV) occurred by P28. Both blebs and tufts reached the maximum number at P35, an age earlier than in the pigmented vldlr^-/- mice in which maximum neovascularization occurred at P42 [26]. In addition, the vascular filling assay also showed that the number of RNV and CNV in albino vldlr^-/- mice is much less than that in the pigmented vldlr^-/- mice [22] (Figure 3A). Fundoscopic imaging and fluorescein angiography demonstrated the neovascularization in the retina of the albino vldlr^-/- mice as bright spots from which severe fluorescein leakage (Figure 3B) occurred. In vivo evaluation of the time course of fluorescein intensity at P35d, P3m and P7m (Figure 3B) showed that the uninjected and saline injected vldlr^-/-mice progressively exhibited more severe leakage of fluorescein dye with increasing time, compared to the wt. Nanoceria treatment inhibited the leakage and decreased the fluorescence intensity level similar to that seen in the wt (Figure 3B).

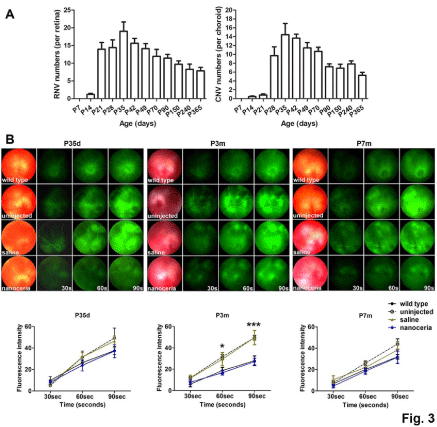

Figure 3: Nanoceria inhibit neovascularization and vascular leakage. (A) Vascular filling assays over a one year period indicated that the number of Retinal Neovascular “blebs” (RNV) greatly increased by P21d and the number of Choroidal Neovascular “tufts” (CNV) greatly increased by P28d. Both RNV and CNV reached their highest numbers by P35d. N=10-30 eyes per group. (B) Fundoscopy and fluorescein angiography (top) at P35d, P3m and P7m demonstrated that, the fluorescein intensity is greatly increased in the mutant over time compared to the wt controls demonstrating the increased vascular permeability, whereas nanoceria treatment considerably decreased the fluorescein leakage. Quantitation of fluorescein intensity (bottom) at the above time points supports that conclusion. N=5-8 eyes per group, *P<0.05, ***P<0.001.



    Figure 3:  Nanoceria inhibit neovascularization and vascular leakage. (A) Vascular filling assays over a one year period indicated that the number of Retinal
Neovascular “blebs” (RNV) greatly increased by P21d and the number of Choroidal Neovascular “tufts” (CNV) greatly increased by P28d. Both RNV and CNV
reached their highest numbers by P35d. N=10-30 eyes per group. (B) Fundoscopy and fluorescein angiography (top) at P35d, P3m and P7m demonstrated that, the
fluorescein intensity is greatly increased in the mutant over time compared to the wt controls demonstrating the increased vascular permeability, whereas nanoceria
treatment considerably decreased the fluorescein leakage. Quantitation of fluorescein intensity (bottom) at the above time points supports that conclusion. N=5-8
eyes per group, *P<0.05, ***P<0.001.

Nanoceria function in a dose-dependent manner

We next examined the effects of different doses of nanoceria. 1 μl of increasing concentrations of nanoceria (0.001 mM, 0.01 mM, 0.1 mM, 1 mM and 10 mM) was intravitreally injected at P28, and then the transcription level of VEGF, and the number of RNV and CNV was evaluated at P35 by qRT-PCR (Figure 4) and an FITCdextran vascular filling assay (Figure 5A). The data demonstrated that nanoceria at 0.001 mM reduced VEGF expression by 1.30 and 1.34 fold of the levels found in uninjected and saline injected vldlr^-/- mice, respectively. The VEGF levels were further decreased with increasing nanoceria doses. The highest inhibition of VEGF expression was reached with 1 mM nanoceria, which significantly decreased VEGF more than 3 fold compared to the uninjected (P=0.003092) and saline injected mice (P=0.011325). However, inhibition of VEGF expression by nanoceria at 10 mM is not significantly different from that seen with 0.001 mM (P=0.480162) (Figure 4A). Western blots, to analyze the expression of VEGF protein at P35, demonstrated that VEGF was increased in mutant mice and was down regulated by treatment with 1 mM nanoceria (Figure 4B). Moreover, quantification of vascular filling assays showed that the number of RNV and CNV was progressively reduced with increasing concentrations of nanoceria. However the number of RNV and CNV in the eyes injected with 10 mM of nanoceria was similar to that seen with 0.1 mM concentration (Figure 5B). Our data further support the conclusion of our previous report that 1 μl of 1 mM nanoceria provides the maximum effect in cultured cells and mouse tissues [27].

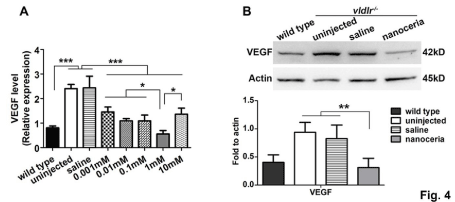

Figure 4: Nanoceria decrease VEGF expression in a dose dependent manner. (A) qRT-PCR analysis at P35 demonstrated that the elevated VEGF mRNA expression in vldlr^-/- retinas was progressively decreased with increasing amounts of nanoceria with 1mM having the highest effect. N=3-5 eyes per group. *P<0.05, ***P<0.0001. (B) Western blot and densitometric analysis of the bands demonstrated that VEGF levels in uninjected and saline injected vldlr^-/- eyes are more than 2 fold higher than in wt. Treatment with 1 mM nanoceria reduced the VEGF level to the equivalent of wt. N=3-8 eyes per group. **P<0.005.



    Figure 4:  Nanoceria decrease VEGF expression in a dose dependent manner. (A) qRT-PCR analysis at P35 demonstrated that the elevated VEGF mRNA
expression in vldlr^-/- retinas was progressively decreased with increasing amounts of nanoceria with 1mM having the highest effect. N=3-5 eyes per group. *P<0.05,
***P<0.0001. (B) Western blot and densitometric analysis of the bands demonstrated that VEGF levels in uninjected and saline injected vldlr^-/- eyes are more than 2
fold higher than in wt. Treatment with 1 mM nanoceria reduced the VEGF level to the equivalent of wt. N=3-8 eyes per group. **P<0.005.

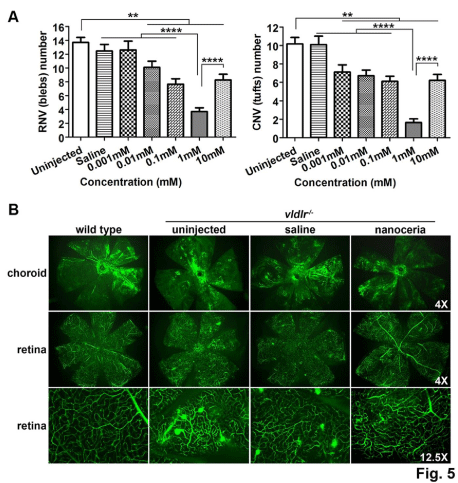

Figure 5: Nanoceria inhibit neovascularization in a dose dependent manner. (A) Quantitation of RNV and CNV number. (B) Representative eyes of vascular filling assay from each group are shown. N=10-20 eyes per group. **P<0.005, ****P<0.00001.



    Figure 5:  Nanoceria inhibit neovascularization in a dose dependent manner. (A) Quantitation of RNV and CNV number. (B) Representative eyes of vascular filling
assay from each group are shown. N=10-20 eyes per group. **P<0.005, ****P<0.00001.

Nanoceria up regulate RPE65 and the junctional proteins

Next we determined the expression, localization and distribution of an RPE specific protein and the proteins of the junctional complex in vldlr^-/- RPE cells. Immunofluorescent labeling of RPE65 in whole mount eyecups (Figure 6A) at P35d shows uniform intensity of fluorescence in RPE cells in the wt mice but variable intensities in vldlr^-/- RPE cells, with some cells being completely devoid of fluorescence. Many more RPE cells have very weak RPE65 labeling at P7 months. ZO-1 protein distribution (Figure 6B) in the boundary of the cells was similar in both wt and mutant at P35d, but at P7m the RPE cells in the mutant exhibited frequent discontinuities of the boundary and numerous damaged areas. Immunocytochemistry of cryosections at P35d and P7m demonstrated that the RPE65 fluorescence (Figure 7A) was weak and distributed in the swollen and irregular shaped RPE cells with some areas of discontinuity in the mutant mouse. The connections between the cells are loose, compared to the very dense borders of intact and uniformed shaped RPE cells in the wt controls. ZO-1 protein labeling (Figure 7B) in the mutant was weaker and showed discontinuity, compared to the more continuous and brighter fluorescence of ZO-1 labeling in wt. Nanoceria treatment greatly increased the fluorescence intensity of these two proteins in the mutant (Figure 7A & Figure B). Western blot assay at P35d and P7m indicated that uninjected vldlr^-/- mice have decreased levels of RPE65 (Figure 7C), ZO-1 (Figure 7D) and Occludin (Figure 7E & Figure 7F), which are 2.5, 4.7, and 3.7 fold less, respectively, than those of wt. These decreases are indicative of breakdown/malfunction of the BRB and increased vascular permeability in vldlr^-/- mice. However, nanoceria treatment elevated these proteins to amounts equivalent to wt.

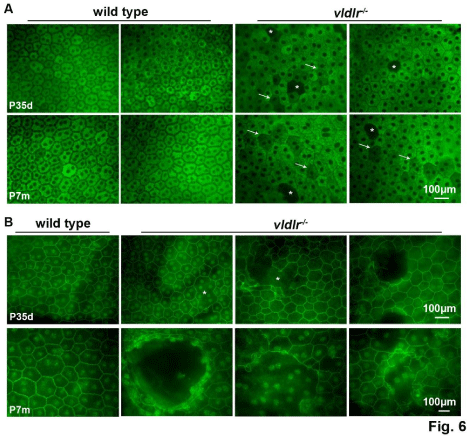

Figure 6: Whole mount immunostaining of eye cups indicates that RPE65 and ZO-1 in vldlr^-/- mutants are decreased. (A) Weaker RPE65 fluorescence (arrow) and fluorescence voids (asterisk) were seen in the mutant mice compared to the strong fluorescence in the wt. (B) Junctional integrity of ZO-1 is seen in the solid narrow boundary of the RPE cells in wt, whereas the expression pattern in the mutant is disrupted and discontinuous (asterisk). N=10-12 eyes per group. Scale bar, 100 μm.



    Figure 6:  Whole mount immunostaining of eye cups indicates that RPE65 and ZO-1 in vldlr^-/- mutants are decreased. (A) Weaker RPE65 fluorescence (arrow)
and fluorescence voids (asterisk) were seen in the mutant mice compared to the strong fluorescence in the wt. (B) Junctional integrity of ZO-1 is seen in the solid
narrow boundary of the RPE cells in wt, whereas the expression pattern in the mutant is disrupted and discontinuous (asterisk). N=10-12 eyes per group. Scale
bar, 100 μm.

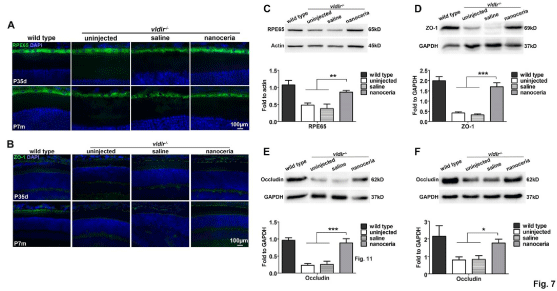

Figure 7: Nanoceria increase the expression and improve the distribution of RPE65 and junctional proteins. Immunostaining of RPE65 (A) and ZO-1 (B) in cryosections at P35d and P7m showed that nanoceria treatment increased the distribution and fluorescence intensity of these two proteins. N=5-8 eyes per group. Scale bar, 100 μm. (C-F) Western blot assay showed that the protein levels of RPE65 (C), ZO-1 (D), and Occludin (E, F) are greatly decreased in the mutant, and nanoceria treatment significantly increased their levels. (C), (D) and (E) are at P35d, (F) is at P7m. N=5-7 eyes per group. *P<0.05, **P<0.001, ***P<0.0001.



    Figure 7:  Nanoceria increase the expression and improve the distribution of RPE65 and junctional proteins. Immunostaining of RPE65 (A) and ZO-1 (B) in
cryosections at P35d and P7m showed that nanoceria treatment increased the distribution and fluorescence intensity of these two proteins. N=5-8 eyes per group.
Scale bar, 100 μm. (C-F) Western blot assay showed that the protein levels of RPE65 (C), ZO-1 (D), and Occludin (E, F) are greatly decreased in the mutant, and
nanoceria treatment significantly increased their levels. (C), (D) and (E) are at P35d, (F) is at P7m. N=5-7 eyes per group. *P<0.05, **P<0.001, ***P<0.0001.

Nanoceria decrease the expression of pro-inflammatory cytokines

TNF-a is a principal inflammatory factor and was reported to be elevated and involved in the increased BRB permeability [28,29] and pathology of the vldlr^-/- phenotype [30]. To examine the expression of TNF-a, and other inflammatory factors in vldlr^-/- mice, western blot assays were carried out. As shown in Figure 8, TNF-a, IL-1β and IL-6 were up-regulated 2.1, 2.7 and 4.6 fold respectively, in the uninjected and saline injected mice compared to the wt, whereas nanoceria treatment significantly decreased their expression to that of wt.

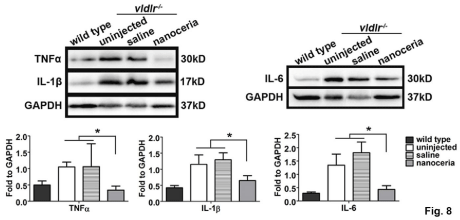

Figure 8: Nanoceria down regulate major inflammatory cytokines. Western blots at P35d demonstrated that TNFa, IL-1β and IL-6 are greatly up regulated in the uninjected and saline treated eyes, whereas nanoceria treatment significantly reduced the levels of these cytokines. N=4-6 eyes per group. *P<0.05.



    Figure 8: Nanoceria down regulate major inflammatory cytokines. Western blots at P35d demonstrated that TNFa, IL-1β and IL-6 are greatly up regulated in the
uninjected and saline treated eyes, whereas nanoceria treatment significantly reduced the levels of these cytokines. N=4-6 eyes per group. *P<0.05.

Discussion

The physicochemical properties of nanoparticles determine their function. Specifically, the size and surface charge of the nanoparticles play critical roles in their cellular uptake, internalization, localization, free radical scavenging and even toxicity [27,31,32]. Surface charge of the particles also determines their attachment and binding to the membrane (which has negatively charged domains) and subsequent internalization [33]. It has been shown that nanoceria, at a concentration below 1 mM, exhibit a variable surface charge but a positive charge remained on the surface when concentrations were above 1 mM [27]. Here we showed that nanoceria decreased the level of VEGF expression and reduced the number of RNV and CNV in a dose-dependent manner. Although nanoceria at 1 μM produced positive effects, the most effective dose was 1mM, and the highest dose we tested (10 mM) was no more effective than the 1 μM dose. These results further confirmed the conclusion that injection of 1 μl of 1 mM is optimal for producing the highest therapeutic effect in vivo [27]. We have shown that 1 μl of nanoceria at 10 mM does not have an adverse effect on retinal structure and function, and does not cause an acute or chronic increase in inflammatory cytokines in wt mice [25]. As with many therapeutic agents, too much of a good thing is bad, or in this case simply less effective.

RPE cells are essential structural and physiological components needed for the regeneration of the visual pigment and they also phagocytose the aged discs of outer segments of the rods and cones which enables renewal of the photoreceptor outer segments [2,34]. Accumulated evidence suggests that loss of RPE function precedes the death of photoreceptors in AMD [15]. The RPE cells form the outer BRB that is critical for controlling the precise movement and exchange of molecules and nutrients between the choroid and the retina [1,3,4]. The tight junction is an integral component of the primary structure that enables the BRB to prevent subretinal edema. It has been reported that oxidative stress, caused by light exposure [35] or hydrogen peroxide [36], disrupts the cell-cell junctional structures and immunostaining patterns of ZO-1, N-cadherin and β-catenin in Balb/C mice and in RPE19 cells. Decreased expression of ZO-1 [30,37] or Occludin [6] and the consequent breakdown of the BRB and increased vascular permeability have been reported in vldlr^-/- mice, diabetic retinopathy and ischemia mice. Furthermore, knockdown of ZO-1 resulted in the loss of the polarization and changed the morphology of RPE cells, implying dysfunction of the RPE [38]. In the current study, we show that albino vldlr^-/- mice have RPE cells without RPE65 protein in their cytoplasm, and the labeling of the tight junction protein adaptor, ZO-1, was observed to be disrupted compared to its very uniform and continuous boundaries in wt mice. In addition, the RPE cells in the immunostained cryosections from the mutant mice were shown to have irregular-shapes. The localization patterns of both RPE65 and ZO-1 were altered with much weaker staining compared to the regular and intense signals seen in wt, suggesting decreased amounts and distributions of RPE65 and ZO-1 in the RPE cells.

Western blot assays further demonstrated that the levels of RPE65 and junctional complex proteins (ZO-1 and Occludin) are greatly decreased in the untreated mutant mice, reflecting the BRB breakdown/malfunction and dysregulation of vascular permeability in vldlr^-/- mice. This phenomenon was further demonstrated by fluorescein angiographic evaluation of the time course of fluorescein leakage in the vldlr^-/- mice. Collectively, these findings, in agreement with those of Chen and colleagues [30], support the conclusion that the BRB is impaired in vldlr^-/- mice. However, antioxidant nanoceria treatment significantly increased the amount of RPE65 and junctional proteins and inhibited the fluid leakage, suggesting that nanoceria, by destroying the excessive ROS, maintain normal RPE integrity and function, and thereby prevent increased permeability of the BRB.

Inflammatory cytokines play an important role in development of AMD and pathological neovascularization, disruption of the BRB morphology and function, increases in vascular permeability and RPE-choroid changes [28,35,39,40]. The phenotype and pathology of the vldlr^-/- mouse have been shown to be correlated with chronic inflammation [30] through up-regulation of TNFa, NF-κB and subsequently VEGF [41]. IL-1β has been shown to promote neovascularization in laser injured C57BL/6j and Cx3cr1^-/- mice and light injured albino mice [42], and recently, it was identified as an important effector of inflammasome (NLRP3) activation, which has been implicated in AMD pathogenesis [43,44]. The excessive levels of VEGF [30,45,46] were demonstrated to promote the development of abnormal blood vessels rather than regulate normal vascular development, and inhibition of VEGF has served as a therapeutic strategy for treatment of AMD and neovascular diseases [41,47,48]. It has been shown that elevation of VEGF expression is closely related with disruption of the tight junction complex and breakdown of the BRB which consequently results in increased vascular permeability [9-10,49]. Our previous PCR array analyses showed that nanoceria inhibit expression of genes associated with inflammation and angiogenesis within one week [50]. In the current study, data obtained from western blots show that VEGF is elevated in vldlr^-/- mice when examined at P35d and P7m. Pro-inflammatory cytokines, TNF-a, IL-1β and IL-6 are also elevated in the mutant retinas, and nanoceria treatment decreases their expression. In our earlier report on the pigmented vldlr^-/-, we demonstrated that nanoceria act as direct antioxidants and function similar to Thioredoxin (Trx) to down regulate the level of VEGF and inhibit/regress neovascularization through regulation of the ASK1-P38/JNK-NF-κB signaling pathway [23]. Our current report further demonstrates that nanoceria, by modulation of inflammatory cytokines; protect the RPE against oxidative stress-induced damage and the loss of BRB function.

Conclusion

Our data demonstrated that nanoceria decrease the expression of VEGF and the number of retinal and choroidal neovascularization in a dose-dependent manner following a single intravitreal injection, with 1 μl of 1 mM (172 ng) producing the maximum effect. Nanoceria also up regulate RPE65 and the components of the RPE junctional complex, regress neovascularization, inhibit vascular permeability, and down regulate pro-inflammatory cytokines.

Acknowledgement

The authors thank the personnel at the animal, imaging and molecular modules of the Vision Research Core Facility at the Oklahoma University Health Sciences Center.

Financial Support

This work was supported in part by National Institutes of Health (NIH) National Eye Institute (NEI) P30 EY021725, R21EY018306, R01EY018724 and R01EY022111, National Science Foundation: CBET-0708172 and unrestricted funds from RPB.
