Connection Beyond Words: Establishing Emotional Communication with Autistic Children

Yangyi Tai; Jihua Yang

Research Article

Austin J Autism & Relat Disabil. 2021; 7(1): 1056.

Connection Beyond Words: Establishing Emotional Communication with Autistic Children

Yangyi Tai¹ and Jihua Yang²*

¹University College London, London, United Kingdom

²Department of Oncology, Fifth Medical Center of PLA General Hospital, Middle Street of 4th West Ring Road, Beijing, China

*Corresponding author:Jihua Yang, Department of Oncology, Fifth Medical Center of PLA General Hospital, Middle Street of 4th West Ring Road, Beijing, 100039, China

Received: June 21, 2021; Accepted: July 13, 2021; Published: July 20, 2021

Abstract

To help autistic children promote Social Competence (SC) and connect to other people, the study designed a therapy toy that can react emotional response and provide haptic communication, in a comfortable and engaging way. Five children with autism were invited to play with the device focusing on the evaluation of interactions and behaviors. The results show significant relief of autism severity and improvements on the willing of expression.

Keywords: Autism; Children; Mental health; Psychology; Haptic therapy

Introduction

Autism Spectrum Conditions are neuro-psychological disorders commonly apparent around 3 years old [1]. Children with autism feel difficult to process sensory information and to interact with external stimulation [2]. It is characterized by three symptoms: 1) repetitive and obsessive behaviors; 2) atypical communication skills; 3) abnormalities in social relationships. Current explanation of autism is disease hereditary and there is no cure for the condition [3]. The overall intelligence degrees of autistic group vary greatly. Although the impairments in social and communication may stay a lifetime, the potential of education and therapy to activate children with autism is hard to ignore. Some people diagnosed with Asperger Syndrome have the ability to take care of their life independently and get successful career when they grow up [4].

The existing therapeutic methods for autism include behavior therapy, game therapy, art therapy, music therapy and so forth [5]. The therapies currently in used is more about “learned routine” instead of “spontaneous”. Spontaneity allows autistic children to present themselves and integrate in social activities, in turn, achieve the development of social inclusion [6]. Therapists need play with autistic children indirectly because of the problem of fearing people. For this reason, it is required to have an object between therapists and children no matter which way we use. Limited SC is the major impairment that prevent the communication of autism. Research does demonstrate that game therapy could help autistic children acquire SC and facilitate imagination in the long term [7]. The alternative strategy for autism could be non-verbal communication like touch-based interfaces.

However, limited study has focused on the exploration of sensory products for autistic children to calm and relax. Sometimes, therapists and parents need modify the toys by themselves in order to adapt to their needs [8]. The idea is to develop a novel therapy to increase vocalizing and improve the quality of family life. This study aimed to design a portable and accessible toy for children to interact and connect to the outside world with safety. The challenge is to attract their attention and increase their performance of concentration. To address the social aspect of the design, the toy should be able to encourage children with autism to proactively integrate in a group and to open up to the surroundings.

Literature Review

Triadic interaction

Triadic relation is composed of a child, a robot, and another participant could be a child, a parent, or a therapist. Research has claimed the effect of using objects to elicit conversations between autistic children and the others [9]. Children with autism are attracted by mechanical objects such as toys and robots and emerge novel social interactions during the observation. These children treat toys as mediators to convey information which results in promoting interactions. An independent study shows the presence of robots encouraged the children to directly ask help from therapists [10]. On one hand, it demonstrated that triadic interaction is the essential pivot for autism to achieve or transfer communication. On the other hand, it provided evidence that game therapy could generate improvements in SC.

Tangible user interface

Children interact with objects reflect their perception of how they position themselves in the world [11]. Autistic children appear delay on the development of functional and social respects in connection with objects. They tend to explore smell, taste and touch in a repetitive way without function needs [12]. Understanding the relationship between autistic children and objects could assist the development of interventions on game therapy to improve SC. Tangible User Interface (TUI) is more intuitive and entertaining for children. It allows sharing space between companions which increases the observations of behavior and enable the possibility of interacting with autistic children. Compared with LEGO intervention, playing with TUI could reduce the solitary activities and facilitate collaborative and associative play sequences [13]. The results of experimental studies showed the usability and emotions of touch-based interfaces were more positive than remote interfaces [14,15].

Non-humanoid appearance

The appearances of object influence the efficiency of therapy in clinic. Children with autism generally withdraw and avoid interactions with human forms. The abstract and cartoonish appearances could appeal them especially when they are introduced to the toys at the first time [16]. Pet-like objects make them engage and elicit emotional connections within the games. This observation is consistent with the general understanding of autistic children gravitate toward repeatable and mechanical behaviors. Researchers advocate the approach of designing simple interactions with appropriate appearances to minimize the frequency of distractions [17]. In fact, non-humanoid robots are much more affordable than the human forms. Children could start therapy with the simple object and switch to the realistic one once they get comfortable. This way, they could wean off the mechanical mediator and interact with people naturally.

Haptic therapy

Recent research discusses that mental disorders can be significantly affected by the touch sensations [18]. The Wilbarger Protocol and Therapeutic holding are revealed as sensory integrations to effectively treat depressive and anxiety disorders. Brushing, joint compression and weight are three types of touch practices presented by The Wilbarger Protocol [19]. The psychotherapeutic outcomes are enhanced when message is involved in regimen [20]. Therapeutic holding is applied as an alternative way to restrain aggressive children in America. Children feel less punitive because of the reducing of mechanical restraints [21]. The meaning of haptic stimulation is addressed as an intervention for autistic children to distract attention, manage pain and avoid panic attack [22].

Rather than face to face dialogue, children prefer to revolve communication around play [23]. In particular, autism have trouble with verbalism because of the limited conversation skills. A research mentioned the meaning of touch related to younger children, it could provide the feeling of connection when children are separated with their parents [24]. Interpersonal touch could promote affective response and emotional wellbeing to address the meaning of nonverbal communication. Existing product such as Frebble [25] are proposed to allow people to hold hands remotely with physical and emotional connections.

Research

Interview and observation

In order to gather detailed user requirements that could help autistic children evoke the desire of expression and leave stressful situation, we conducted an investigation with the autistic children below the age of 7 around one week. By visiting a special education school in China, we observed potential factors that may affect the interactions between autistic children and toys. Additionally, we prepared semi-structed interviews to ask parents and therapists about children’s favorite objects and activities during the process.

From the observation, we found therapists use toys to help children calm down in the three situations: 1) when they are not allowed to do something; 2) when they are interrupted by something 3) when their requirements are denied. The children are easy to get overwhelmed by sensatory stimulation. Since their communication skills are limited, the key of guiding comfortable conservation is to provide the variation from simple to complex interactions. They are interested about ball-size moving toys. Colors and lights could facilitate their emotional connection with the objects. We tested three types of vibration including heartbeat, phone haptics and breath frequency. The results showed they could only perceive simple patterns from strong vibration to soft vibration instead of distinguishing various forms.

Established requirement

Based on the findings, a list of design needs was summarized:

• The size should be small and lightweight for children to play around.

• The shape should be rounded to attract attention and to keep safety.

• The colors of the light should vary based on the emotion in order to elicit expression and maintain calm.

• The interactions should be simple and easy to understand.

• The patterns of haptic could be strong vibration, soft vibration, and no vibration.

• The signal should be motion-based to visually engage children.

“we” Prototype

“we’ (Figure 1) is a toy designed to assist autistic children to communicate and socialize with family and surroundings. The goal is to engage them in multisensory interactions while simultaneously tracking their emotions. “we” uses sensors to detect and react to children’s behaviors in order to help them explore emotional cognition and SC. For example, it will turn red light if a child hurts it or throws it away. Parents and therapists could use the toy to guide children through different tasks and activities. The device could be paired remotely to send haptic communication, when a child touch the screen, the other device will vibrate with the floating balls. The patterns of vibration determined by the strength of touch.

Figure 1: Mockup of “we”.



    Figure 1: Mockup of “we”.

Method

Design

The study was approved by the UCL Departmental Ethics Committee. It used a between-subjects design. The independent variables were emotion and touch. The dependent variables were color and vibration. The Wizard of Oz testing has been integrated into the experiments. Sensors sent real-time signals to the toy after detecting children’s behaviors. Since there was no control group during the evaluation, our focus was on comparing each child’s performances with his or her previous situation based on the GARS Questionnaire.

Participants

5 autistic children (3 female) and 5 parents have been recruited from the same Chinese special education school. Children are aged between 3 and 7 years (mean age=5). Three children were Pervasive Developmental Disorders and the remaining two were Autistic Disorders with different degrees of communication skill. The experiments have two phases and lasted 5 days. Each child was observed around 3 hours (total 15 hours). In-depth interviews were conducted with their parents to collect extra information and feedbacks. Informed consent forms have been signed by their guardians since autistic children are not capable of civil conduct.

Materials

Electronic prototype consists of Arduino, vibration sensor, speech recognizer, Leap Motion, and mini projector (Figure 2). The mini projector was used to display the variations of light. Vibration sensor and Leap Motion were designed to transfer haptic communication. GARS Questionnaire was applied to collect data for the measurement of affective interactions (Figure 3).

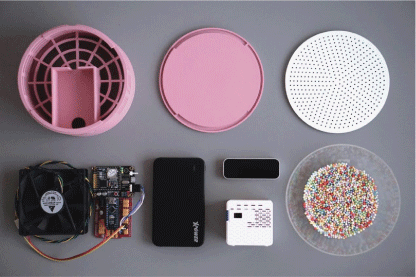

Figure 2: Design of the mockup.



    Figure 2: Design of the mockup.

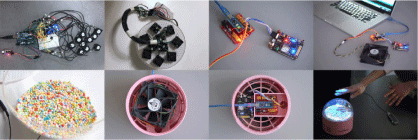

Figure 3: Electronic prototype.



    Figure 3: Electronic prototype.

Procedure

Children were accompanied by the therapist and the experimenter that sat at the back of the room. Their parents stayed in the next room. The therapist introduced how to interact with the toy at the beginning and was allowed to guide children while they were playing. Before the experiment, both parents and the therapist were trained by the experimenter and assigned time to familiarize themselves.

The experiment was composed of two phases:

• Phase 1: Children were allowed to play with the toy by themselves around 20 minutes. After that, they were asked to complete daily tasks depending on the situation such as washing hand. If they performed well, the device would turn green light otherwise it would turn red light. The toy would display different colors of light to express their emotion while interacting with children.

• Phase 2: Children were allowed to emotionally connect to their parents though the haptic communication. They could send strong or light vibrations based on the strength of touch. Children did not know their parents stay at the other room until the end of the experiments.

Results

The results of GARS showed the reduction associated with autism severity of five children from Pre-test, Phase 1 and Phase 2 (Figure 4). It revealed that children with autism enjoy interacting with the toy and are interested with the haptic communication. Detailed evaluation of the GARS questionnaire presented the improvement of P2 and P5 in regards to SC. P1 felt anxious to play with the new toy at first and started to engage after Phase 1. Overall GARS scores keep stable impact on children during Phase 2. All children feel comfortable to communicate with their parents though vibrations and keep sending signals after familiarization.

Download PDF

Citation: Tai Y and Yang J. Connection Beyond Words: Establishing Emotional Communication with Autistic Children. Austin J Autism & Relat Disabil. 2021; 7(1): 1056.
