Ghosalkar A; Kashid MG

Research Article

Austin J Biotechnol Bioeng. 2016; 3(3): 1066.

Oxygen Uptake Rate Measurement by Modified Dynamic Method and Effect of Mass-Transfer Rates on Growth of Pichia Stipitis: Modeling and Experimental Data Comparison

Ghosalkar A¹ and Kashid MG^1,2*

¹Department of Technology, University of Pune, Ganeshkhind, India

²Praj Matrix R&D Center, Division of Praj Industries Ltd., India

*Corresponding author: Kashid MG, Praj Matrix R&D Center, Division of Praj Industries Ltd., Urawade, Pirangut, Pune, India 412115

Received: May 09, 2016; Accepted: June 16, 2016; Published: June 22, 2016

Abstract

In the aerobic fermentation of xylose for the production of ethanol with the help of Pichia stipitis, optimum oxygen must be continuously supplied in order to achieve the desired yield and productivities. Oxygen Uptake Rate (OUR) and Oxygen Transfer Rates (OTR) for xylose fermentation with Pichia stipitis has been determined in a stirred tank bioreactor under different transport conditions using modified dynamic method. Logistic equation based kinetic model is applied to predict the cell biomass concentration during Pichia stipitis growth. The experimental values from the modified dynamic method were used for development of mathematical model based on oxygen uptake rate.

The proposed model is used for obtaining the kinetic growth parameters like Yield coefficient (Y_ox), Specific maintenance coefficient (m₀). Model predicted values are compared with the experimental values with good agreement. Effect of mass transfer conditions are studied on the cell mass growth and ethanol formation. Overall maximum ethanol productivity (0.57 g/l/h) and maximum ethanol yield (0.45 g/g of xylose) has been observed at 200 rpm agitation rate. Maximum oxygen uptake rate of 8.6 x 10^-6 moles of O₂/ L/s was observed at 300 rpm. The proposed models can be used to predict the influence of oxygen on cell growth and ethanol productivity in industrial fermentation.

Keywords: Modified dynamic method; Pichia stipitis; Oxygen uptake rate; Growth model; Kinetic parameters

Abbreviations

OTR: Oxygen Transfer Rate (moles of O₂ m^-3 s^-1); OUR: Oxygen Uptake Rate (moles of O₂ m^-3 s^-1) a specific interfacial area (m^-1); DO: Dissolved Oxygen; kL: Mass Transfer Coefficient (m s^-1); kLa: Volumetric Mass Transfer Coefficient (s^-1); qo₂: Specific Oxygen Uptake Rate (mol O₂ kg^-1 s^-1); CL: Concentration of Compound in Liquid Phase (kg m^-3 or mol m^-3); C*: Equilibrium Concentration (kg m^-3 or mol m^-3); h: Time (h); X: Cell Mass Concentration (g L^-1); mo: Oxygen Maintenance Coefficient (mol O₂ g^-1 X s^-1); Yox: Oxygen Consumption Coefficient (mol O₂ g^-1 X); P: Product Concentration (g L^-1); Qp/s: Ethanol Volumetric Productivity (g L^-1 h^-1); Yp/s: Ethanol Yield On Xylose (g g^-1); I.D: Internal Diameter (mm)

Introduction

Bio-ethanol which is the product of fermentation process is considered as a potential alternative fuel. Being a renewable energy source, bio-ethanol has important advantages when compared to gasoline. Being an oxygen rich fuel, the emission of green house gases and particulate materials from ethanol combustion is lower [1].

For ethanol fermentation, generally streams coming from agricultural products such as corn, sugarcane, sweet sorghum are used. In recent years, agriculture residues such as byproducts of corn, sugarcane and wood industry have also been identified as potential sources for ethanol production [2]. Most of these agricultural feedstock contains both hexose and pentose sugars. Though hexose sugars are used today for ethanol production, it is also possible to utilize xylose (pentose) for the ethanol fermentation, as xylose is the second major product of saccharification of lignocellulosic feedstocks [3].

In the common bio-ethanol fermentation processes Saccharomyces cerevisiae yeast is widely used for ethanol production [4]. However, S. cerevisiae is only able to ferment glucose sugars, and cannot ferment pentose sugars like xylose [5]. Successful utilization of xylose would help in driving the process economics of lignocellulosic biomass to ethanol fermentation favorably. In several reports, yeast Pichia stipitis has been identified for efficient conversion of xylose to ethanol under micro-aerobic conditions. The dissolved oxygen concentration affects the cell mass growth and ethanol production rate in fermentation of xylose using Pichia stipitis [6-10].

Xylose to ethanol fermentation process could be further optimized by the development of realistic growth and fermentation models. In aerobic fermentation process oxygen should be continuously supplied in order to achieve higher productivities, as the role of oxygen in microorganism growth and metabolism is vital. The measurement of Oxygen Transfer Rate (OTR) and Oxygen Uptake Rate (OUR) by the cell can help in optimizing supply of oxygen to the fermenter.

Dissolved Oxygen Concentration (DO) in the fermentation broth depends on the balance of oxygen consumption rate for the cell growth and the oxygen transfer rate from the gas to the liquid phase [11]. Monitoring of DO in the fermentation broth is essential as oxygen often becomes the governing factor in the microbial metabolic pathways [12].

The OUR measurement has vital importance in biochemical processes to check the viability of the culture and maintain desired productivity. Different OUR measurement techniques currently being used in the bioprocess industry are: gas balancing method, dynamic method, and yield coefficient method. Dynamic method, which is mostly used for measurement of OUR is based on measurements of oxygen concentration in the broth and on the respiratory activity of the microorganism [13-15]. Modified dynamic method is an improvement to dynamic method, in which inlet air to the fermentation broth is replaced with the pure oxygen. After achieving the equilibrium oxygen concentration, pure oxygen is replaced with the air in the fermentation broth [16].

For better understanding and prediction of xylose to ethanol fermentation process, employment of mathematical model can allow us to predict the cell growth, oxygen uptake rate, substrate consumption and product formation rates [17-19]. In fact, mathematical modeling is requisite for the aerobic fermentation processes as it provides useful information related to OUR and OTR during cell growth and production process [20,21]. In xylose to ethanol production by Pichia stipitis, it is essential to understand Oxygen Uptake Rate (OUR) to supply optimum aeration for maximum yield and productivity. During fermentation, Pichia stipitis consumes oxygen as the substrate for cell growth and for cell maintenance. Hence OUR can be linked with the cell growth and cell maintenance parameter [22].

OUR measurement has recently received the due attention in different bio-process studies, such as in production of Xanthan gum [23] xylitol production and bio-desulphurization processes [24]. Previous studies have been carried out to determine the effect of oxygen uptake and mass transfer rates on the growth of Psedomonas putida CECT2579 as well as influence on bio-desulfurization capability [16].

This is the first report for the oxygen uptake rate measurement by modified dynamic method and the OUR model application which considers oxygen as a substrate for xylose to ethanol fermentation by Pichia stipitis. The focus of this work was to estimate the oxygen uptake rate to determine the optimum operating condition for maximum ethanol production taking in to account the rates of substrate consumption, oxygen uptake and ethanol production. Estimation of nonlinear growth kinetic parameters has been carried out and OUR pattern throughout the experiment was studied. Mathematical models such as logistic equation and Heijnen & Roelsmodel [25] were applied to provide model predicted values for cell biomass, oxygen uptake rate throughout the fermentation. Experimental values of OUR then compared with the model predicted values.

Material and Analytical Methods

Microorganism

Pichia stipitis ATCC 58784 was adapted by serial propagation in xylose hydrolysate. The adapted strain was designated as Pichia stipitis PSA30. It was maintained at -80°C in the form of glycerol stock in xylose rich hydrolysate.

Media and bioreactor assembly

Yeast extract (1%w/w), Peptone (2%w/w) and Xylose (3%w/w) media (YPX media) was used for inoculum development. Two stage inoculations were done to prepare inoculum for main fermentation. First stage inoculum (Seed-I) was grown by transferring cells from glycerol stock to 100 mL conical flask containing 50 mL YPX media. The inoculated flasks were incubated at 32°C in a rotary shaker at 250 rpm for 24 h. After incubation, a sample was removed to measure the cell concentration. Culture from seed-I was used to inoculate second seed stage (Seed-II) in the two 500 mL flask containing 250 mL YPX media. Seed-II flasks were incubated for 24 h under same conditions as seed-I. This culture was used as inoculum for main fermentation of 5 L working volume in YPX media. The concentration of D-xylose was increased to 4%w/w in the main fermentation.

The fermentation trials were performed in New Brunswick BioFlow 7 L fermenter with pH, temperature, agitation, aeration control with 5 L working volume. During the fermentation temperature and pH was set at 30°C and 5.2 respectively. Aeration rate kept at 0.2 vvm and agitation rates were operated in the range of 150-300 rpm.

Analytical methods

Sugars (cellobiose, glucose, xylose), fermentation products (ethanol, xylitol, glycerol) and inhibitors (formic acid, acetic acid) were analyzed by High Performance Liquid Chromatography (HPLC) using an Agilent 1100 system, refractive index detector and Bio-Rad Aminex HPX-87H column (300×7.8 mm I.D.) for separation of compounds at 55°C Sulfuric acid (0.005 M) was used as the mobile phase at flow rate of 0.6 mL/min. Cell growth was measured by using spectrophotometer, in terms of optical density at 600 nm. Dry cell weights were measured by keeping samples overnight in vacuum oven at 60°C.

Data processing-model fit

Data fitting to the model were performed by linear regression using the least-squares method, based on the assumption that the distribution of errors is normal. Estimates for parameters were obtained by minimizing the Residual Sum of Squares (RSS).

$RSS = \sum_{i = 1}^{n} y^{i} - y^{i'} (1)$

Where n is the number of data points, yⁱ is the observed value, and yⁱ’ is the fitted value. The performance of the models was evaluated by using correlation coefficients (r).

$r = \sqrt{1 - \frac{RSS}{\sum_{i = 1}^{n} {(y^{i} - y^{'})}^{2}}} (2)$

Where, y’ is the mean value

Model is accurate when value of correlation coefficient (r) is around 1.

Measurement of OUR

In previous studies, oxygen transport and consumption have been mostly measured by the dynamic method [16-18]. The mathematical model for the description of OUR and OTR by dynamic method is given by,

$\frac{d c}{d t} = K_{L} a {.(C}^{*} {-C)-q}_{02} . X (3)$

Where,

$\frac{d c}{d t}$ = Oxygen accumulation rate in the liquid

k_La.(C* - C) = Oxygen Transfer Rate (OTR)

q_O2 . X = Oxygen Uptake Rate (OUR)

Though, dynamic method has a lot number of applications, it has challenges with regard to obtaining accurate measurements [26]. In the case of aerobic fermentation of xylose by Pichia stipitis, oxygen uptake rate is very high. When we cut off the aeration to fermenter, DO quickly decreases below the critical levels very fast and DO do not increases when aeration is resumed.

In case of modified dynamic method pure oxygen is introduced in the fermenter instead of cutting airflow during absorption stage. After achieving steady state oxygen concentration in the fermentation broth, pure oxygen flow to the fermenter is interrupted. In the desorption phase pure oxygen is replaced with air and rate of depletion of DO is used to measure the OUR (Figure 1).

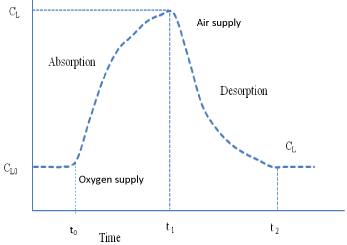

Figure 1: Evolution of oxygen concentration in the liquid phase when the air is replaced with the oxygen rich stream for modified dynamic method.



    Figure 1: Evolution of oxygen concentration in the liquid phase when the air
is replaced with the oxygen rich stream for modified dynamic method.

On integration of equation (3) for the absorption phase (supply of pure oxygen) for the limit of t=0, C=C_L0 for initial conditions and t=t₁, C=C_L, will generate the following equation:

m 4

Equation (4) shows the impact on oxygen concentration in the liquid phase when the air is replaced with the pure oxygen at concentration of C_L0.

In case of desorption phase (replacement of pure oxygen with the air), the integration of equation (3) for the limit of t= t₁, C=C_L1 for initial conditions and t= t₂, C= C_L, will generate the following equation:

M 5

Equation (5) shows the impact on oxygen concentration in the liquid phase when the pure oxygen is replaced with the air at concentration of C_L1

OUR values were determined by above equations during the xylose fermentation by Pichia stipitis at different time intervals. Model parameters were estimated by fitting experimental data to the mathematical equations using nonlinear regression analysis.

Mathematical modeling for OUR estimated by modified dynamic method

A logistic equation based model was used under optimal growth conditions and when the inhibitory effects of substrate and product played no role to describe the cell growth [25]. The rate of cell growth followed the well-known exponential relationship.

dX/dt = μ_m.X. (1 - X/X_m) (6)

Where,

μm = Maximum specific growth rate

X = Cell mass concentration

Xm = Maximum Cell mass concentration.

Prit model proposed that substrate requirement for growth includes a substrate for maintenance and substrate for biomass production. By using this principle OUR can be related to the cell mass concentration. According to this OUR can be divided into two terms, Oxygen necessary for cell mass production rate and other is for oxygen required for cell maintenance [13,18,19,23, 24,27].

Equation for OUR for Pichia stipitis cell mass in xylose fermentation can be described by,

OUR= m_o.X + Y_OX .dx/dt (7)

Where,

m_o = Specific maintenance constant

X = Cell mass concentration

Y_OX = Yield coefficient for oxygen consumed for cell mass

On substituting Logistic equation (6) in equation (7) gives the following equation for OUR.

OUR = m_o.X + Y_OX. μ_m. X. (1-X/X_m) (8)

The fitting of the experimental values of OUR in the equation (8) estimates the values of oxygen consumption factors related to the cell mass growth (Y_OX), cell mass maintenance (m_o).

Results and Discussion

Fermentation of xylose to ethanol in presence of Pichia stipitis has been carried out at constant aeration rate of 0.2 vvm and at different agitation rate i.e. 150, 200, 250, 300 rpm. Biomass concentration, xylose consumption, ethanol production and oxygen uptake rate was measured at various time intervals.

The fermentation profiles for cell growth, xylose consumption and ethanol production are shown in Figure 2 & Figure 3. It was observed that xylose consumption rate increased with increase in agitation at constant aeration rate. At higher rpm of 250 and 300, the initial xylose was consumed within 26-28 h of fermentation time. Slower xylose consumption rate was observed under low agitation of 150 and 200 rpm and the total xylose consumed in between 34-36 h. From the experimental data it has been observed that with increase in agitation the cell mass concentration increases. Higher cell mass growth at higher rpm can be attributed to increase in mass transfer coefficient.

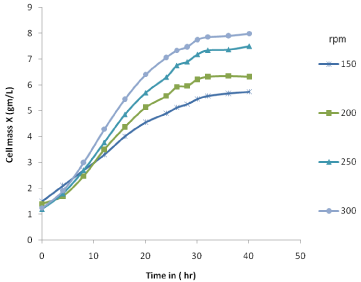

Figure 2: Experimental cell mass production variation at different rpm.



    Figure 2: Experimental cell mass production variation at different rpm.

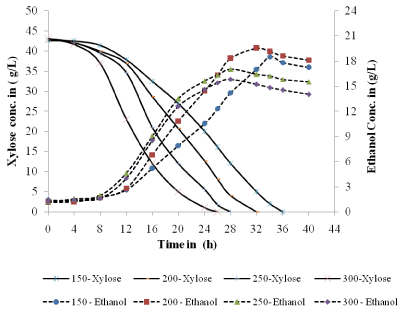

Figure 3: Experimental xylose consumption and ethanol production behavior at different rpm.



    Figure 3: Experimental xylose consumption and ethanol production behavior
at different rpm.

Ethanol yield and productivity at different rpm and k_La are shown in Table 1. For the experimental trials k_La value for xylose fermentation by Pichia stipitis has been found to be in the range of 6.48 to 14.5 h^-1.Overall maximum ethanol productivity (0.57 g/L/h) and maximum Ethanol yield (0.45 g/g of xylose) was observed at 200 rpm agitation speed and at k_La value of 10 h^-1. At the agitation speed of 300 rpm, although the biomass concentration was high, the ethanol yield was lower, as at higher agitation more xylose was consumed for cell growth and which leads to decrease in ethanol yield.

Table 1: Experimental data for evaluation of the agitation rate on ethanol production from xylose by Pichia stipitis.





    Agitation    speed
      (rpm)
    Aeration    rate
      (vvm)
    kLa
      (h-1)
    P
      (g/L)
    QP/S
      (g/L/h)
    YP/S
      (g/g)


    150
    0.2
    6.48
    18.5
    0.50
    0.43


    200
    0.2
    9.96
    19.5
    0.57
    0.45


    250
    0.2
    12.0
    17.0
    0.56
    0.39


    300
    0.2
    14.5
    15.8
    0.52
    0.36


    P=Maximum    ethanol concentration; QP/S=ethanol productivity;    YP/S=Ethanol    Yield on xylose basis (g of ethanol / g of xylose).



Table 1:  Experimental data for evaluation of the agitation rate on ethanol
production from xylose by Pichia stipitis.

Table 2: Estimated oxygen uptake rate parameters from fitting of equation (6) to experimental data.





    Variable
    Yoxx 10-2
      (Moles    of O2/gof cell mass)
    mox 10-7
      (Moles    of O2/g of cell mass/s)


    Constants
    2.07
    7.83



Table 2:  Estimated oxygen uptake rate parameters from fitting of equation (6) to
experimental data.

Xylose consumption rate has been found to be increase with Oxygen Transfer Rate (OTR). However, at higher OTR more xylose was utilized for cell mass production. The ethanol productivity increased with OTR but the overall ethanol yield has been decreased due to consumption of xylose for cell growth by Pichia stipitis. Maximum ethanol yield and volumetric productivity was achieved at 200 rpm agitation and 6.66 x 10^-7 moles of O₂/ L/s OTR.

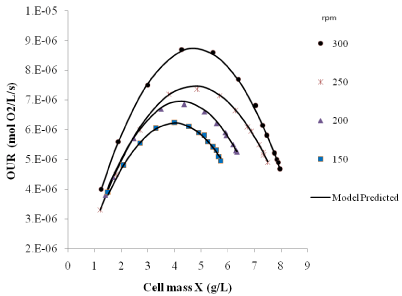

Experimental & modeled predicted values of OUR with respect to biomass concentration at different agitation rate is shown in Figure 4. OUR values have been found to increase during the initial stage of growth of Pichia stipitis. It has been observed that after achieving cell mass concentration of 3-4 g/L, OUR started decreasing till the end of fermentation. The decrease in oxygen uptake rate after reaching a maximum value can be attributed to the shift in metabolism of Pichia stipitis cell towards ethanol production. As shown in Figure 3, the rate of ethanol production increases at approximately 12 h when cell mass concentration reached to 3-4 g/L. With increase in cell concentration in fermentation broth, the shift of Pichia stipitis metabolism from growth to ethanol production could be attributed to limitation in oxygen transfer rate at respective agitation and aeration rate.
