The Roles of Ultrasonography in the Management of Axillary Node Metastases in Breast Cancer

Rosso KJ¹, Ko Un Park¹, Shah R¹, Rubino G² and Nathanson SD¹*

¹Department of Surgery, Henry Ford Hospital and Wayne State University School of Medicine, USA

²Wayne State University School of Medicine, USA

*Corresponding author: S David Nathanson, Department of Surgery, Henry Ford Health System, Wayne State University School of Medicine, 2799 W, Grand Boulevard, Detroit, MI 48202, USA

Received: June 22, 2015; Accepted: August 05, 2015; Published: August 08, 2015

Abstract

In patients with early stage breast cancer, surgical management of the axilla has become less invasive. Multiple randomized control trials have demonstrated that in patients with minimal axillary nodal disease, complete axillary lymph node dissection does not offer a survival benefit when compared to sentinel lymph node biopsy alone. Ultrasonography of the axilla and ultrasound guided biopsy of suspicious lymph nodes has become a highly specific test to identify locoregional disease. Nodal metastasis detected by ultrasound guided lymph node biopsy has allowed patients to be treated as “lymph node positive” or N1, receive neoadjuvant chemotherapy and undergo a subsequent definitive axillary operation. In those patients who achieve a pathologic complete response after neoadjuvant chemotherapy, however, removal of axillary nodes that are free of residual cancer may be of no benefit. Targeted axillary dissection is a novel technique that allows limited, image guided removal of the previously biopsied axillary nodes and the sentinel lymph node during definitive axillary dissection following neoadjuvant chemotherapy. This practice relies on the specificity of ultrasound guided axillary lymph node biopsy to detect disease as well as the placement of markers that label the biopsied node. Contemporary research that utilizes ultrasound to differentiate between patients with minimal axillary nodal metastasis from those with extensive axillary nodal disease will contribute substantially to the less invasive surgical management of the axilla.

Keywords: Axillary node; Breast cancer; AUS

Introduction

The sentinel lymph node (SLN) is the first node (or nodes) to receive tumor cells traveling from the primary tumor to the locoregional nodal basin. The surgical sentinel lymph node biopsy (SLNB) relies on orderly lymphatics from the breast to the axilla and the combined use of blue dye and radiolabeled colloid tracers allows for its highly accurate localization. Since its inception and subsequent application, the SLNB has become the validated gold standard to stage the axilla. Clinically, lymph node status remains one of the most important prognostic factors in breast cancer and guides treatment algorithms.

Axillary ultrasound (AUS) with ultrasound guided lymph node biopsy (either by fine needle aspiration or core needle) can identify most patients with extensive axillary nodal disease burden with specificity approaching 100%. Sonographic characteristics suspicious for metastasis in the lymph node include cortical thickening, changes in shape and size and absence of the fatty hilum but the morphology that defines presence of metastasis or indication for ultrasound guided lymph node biopsy (USLNB) is not standardized.

Prior to the Z0011 trial [1] demonstrating that complete axillary dissection offered no survival benefit in patients with limited axillary disease, AUS was used for preoperative locoregional staging. A positive AUS and USLNB allowed the patient to undergo neoadjuvant chemotherapy and one definitive axillary surgery by avoiding the SLNB altogether.

Following Z0011 and the subsequent randomized trials like AMAROS [2] echoing its results, management of the axilla has become less invasive and the role of AUS and USLNB is being redefined. Some centers abandoned preoperative ultrasonographic axillary staging in the clinically negative axilla, others rely on a negative preoperative AUS with USLNB to determine if the patient is indeed a candidate for surgical management by Z0011 criteria, while other institutions consider a positive AUS and USLNB to be N1 disease and treated as such. The clinical application of AUS and USLNB in the post-Z0011 era is highly variable. The National Comprehensive Cancer Network guidelines do not advocate for routine axillary ultrasonography in patients with clinically negative axilla (cN0) [3]. New promising randomized trials like the SOUND study [4] are attempting to identify the most efficient and beneficial utilization of this imaging modality in the management of the axilla breast cancer. These contemporary studies aim to investigate disease free and overall survival in patients with early breast cancer and negative AUS that are randomized to SLNB or no further axillary staging. This article reviews the abnormal morphology of a suspicious lymph node, sensitivity, specificity, predictive values and common indications for AUS and USLNB, techniques to mark the biopsied node, utilization of AUS USLNB following neoadjuvant chemotherapy, and lastly, some promising studies that will help further define and standardized its use.

Identifying a suspicious lymph node by ultrasonography

Ultrasound examination should include the total axilla extending to the anatomic borders from the level of the fourth rib inferiorly to the costoclavicular ligament and axillary vein superiorly, and from the pectoralis muscles anteriorly to the subscapularis and latissimus dorsi muscles posteriorly [5]. There is a high concordance rate of finding the true SLN when the ultrasound is focused in the same anatomic area as used by surgeons during open SLNB [5]. Most SLNs are found intraoperatively close to the lowest axillary hair follicle [5] and more than 80% of sentinel nodes by ultrasound represent the lowest node in the axilla [6].

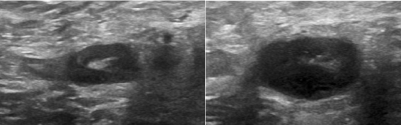

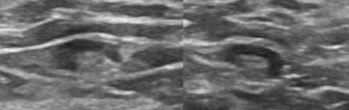

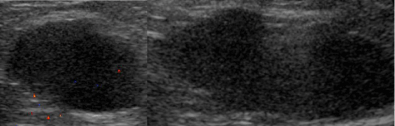

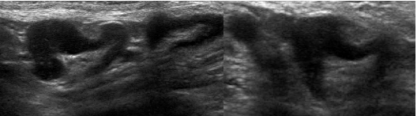

Distinctions between normal appearing nodes, solitary sonographically abnormal appearing nodes or multiple abnormal nodes should be documented [7], as should the location of the abnormal node or nodes within the axilla. A normal appearing lymph node is characterized by having an elliptical shape, a thin, even hypoechoic cortex measuring <3mm, and a hyperechoic hilum with blood vessels entering the hilum [5,8]. Common sonographic findings of a suspicious or abnormal lymph node include a thickened, lobulated cortex >3mm, loss or effacement of the fatty hilum, and loss of normal lymph node architecture [5,6,9-20] (Table 1), but these morphological characteristics have yet to be standardized. Such variations in the criteria that define an abnormal node and thus the indications for biopsy affect the sensitivity and specificity of AUS and USLNB [5,7,8,12-15,17-20] (Table 2).

Table 1: Abnormal lymph node morphology.





    Choy N et al. Annals of surgical oncology 2015 [9]
    Generalized or focal thickening of nodal cortex,    disparity in size of one or more LNs compared with others, rounded    appearance, and effacement of node fatty hilum.


    vanWely BJ et al.    British Journal of Surgery 2015 [10]
    Round, asymmetrical cortex, thicker than 3mm, loss of    hyperechoic hilum


    Caudle AS et al. JAMA surgery 2015 [11]
    Eccentric cortical thickening, hilar compression,    displacement, effacement, and irregular nodal margins


    Farrell TPJ et al. European radiology 2015. [12]
    Cortical thickness >3mm, prominent eccentric    lobulation, and a replaced/eccentric hilum


    Fung AD et al. Cancer Cytopathology 2014 [13]
    Eccentric cortical thickening, diminutive or absent    echogenic hilum, or round shape. Areas of the cortex with increased    vascularity by color Doppler ultrasound are preferentially targeted for    sampling.


    Houssami N et al.    Cancer biology & medicine 2014 [14]
    Thickening of the cortex, cortical thickening may be    diffuse or focal; eccentric or    irregular; asymmetric; lobulated (uni- or multi-lobulation); absence/loss of    central fatty hilum, rounded nodes (ratio of the longitudinal and transverse    dimensions).


    Cools-Lartigue J et al. Annals of surgical oncology    2013 [15]
    Absence of a fatty nodal hilum, eccentric cortical    thickening, and a round hypoechoic node, multiple enlarged (>1 cm) nodes


    Ibrahim-Zada I et al. Journal of the American College    of Surgeons 2013 [16]
    Hilar effacement, hilar replacement, node matting,    perinodal edema, and unclear node margins and cortical thickening >3 mm,    especially if nodular or asymmetric


    Valente SA et al. Annals of surgical oncology 2012    [17]
    Rounded shape, a long-to-short axis ratio of <2,    hypoechoic, compression or disappearance of the fatty hilum, or cortical    thickening or asymmetry


    Oz A et al. Journal of breast cancer 2012 [18]
    Cortical symmetrical and asymmetrical thickening    (cortex thickness >3 mm) compared to the lymph nodes on the same or other    side, increased size of the lymph nodes, an increase in the sphericity index    (short/long diameter =0,5), increased cortex hypoechogenicity (cortex more    hypoechoic than the subcutaneous fatty tissue), and non-hilar cortical flow.


    Torres Sousa MY et al.Radiología 2011 [19]
    Local or diffuse cortical thickness =3mm, absence,    obliteration or eccentric location of the hilar fat, and/or non-hilar    cortical vascular flow (NHVCF).


    Britton P et al. Clinical radiology 2010 [6]
    Greater than 5 mm in longitudinal section


    Mainiero MB et al. American Journal of Roentgenology    2010 [8]
    Benign: even cortex < 3 mm
      Indeterminate:    even cortex but = 3 mm or < 3 mm but was focally thickened
      Suspicious:    focally thickened cortex = 3 mm or the fatty hilum was absent.


    Nathanson SD et al. Annals of surgical oncology 2007    [5]
    Normal lymph nodes: elliptical shape; a thin,    hypoechoic cortex; and a hyperechoic hilum with blood vessels entering the    hilum.
      Abnormal lymph nodes: round shape; uniform or eccentric thickening of the    cortex; focal bulging or irregularity of the cortex; displacement or    obliteration of the hilum; or total loss of recognizable lymph node    architecture.


    Krishnamurthy S et al. Cancer 2002 [20]
    Increased thickening and/or lobulation of the    hypoecholic lymph node cortex compared with other ipsilateral or    contralateral lymph nodes, eccentric lobulation of the hypoechoic lymph node    cortex with compression of the adjacent hilar fat, and complete disappearance    of the hilar fat, which is replaced by hypoechoic cortex.



Table 1:  Abnormal lymph node morphology.

Table 2: Axillary ultrasound and ultrasound guided lymph node biopsy.





    Study
    Type/Purpose
    Sensitivity %
    Specificity %
    PPV %
    NPV %


    Farrell TPJ et al. European radiology 2015 [12]
    To correlated the number of abnormal LN on AUS with    final nodal burden and determine the utility of AUS with sampling in    preoperative staging.
    AUS alone: 64

      AUS with sampling: 86.2
    AUS alone: 76.9

      AUS with sampling: 100
    AUS alone: 63.8

      AUS with sampling: 100
    AUS alone: 77.1

      AUS with sampling: 71.9


    Fung AD et al. Cancer Cytopathology 2014 [13]
    To characterize the use of rapid onsite evaluation    (ROSE) of adequacy by the cytopathologist and/or cytotechnologist during the    procedure. A retrospective review of    axillary lymph node US guided FNAs.
    75
    100
    100
    79


    Houssami N et al. Cancer biology & medicine 2014    [14]
    A meta-analysis and review to estimate and discuss    the utility of UGNB highlighting the role of preoperative UGNB and its    consequences on surgical management of the axilla.
    79.6
    98.3
    100
    67.4


    Cools-Lartigue J et al. Annals of surgical oncology 2013 [15]

    A retrospective review to determine the sensitivity,    specificity, and accuracy of AUS and FNAB in the identification of axillary    nodal metastasis in early breast cancer patients.
    All US= 55

      Abnormal AUS with FNAB=69%
    All US= 88

      Abnormal AUS with FNAB= 100
    All US= 74

      Abnormal AUS with FNAB= 100
    All US= 75

      Abnormal AUS with FNAB= 54


    Valente SA et al. Annals of surgical oncology 2012    [17]
    To examine the ability to accurately predict axillary    nodal involvement by using physical examination and standard breast imaging    studies in combination.
    43.5
    96.2
    79.3
    83.3


    Oz A et al. Journal of breast cancer 2012 [18]
    To detect preoperative axillary metastases with    ultrasound (US)-guided fine needle aspiration biopsy (FNAB), eliminate the    need for sentinel lymph node (SLN) scintigraphy and biopsy, and in that of    with suspicious US findings, and to evaluate the accuracy of preoperative    US-guided FNAB for patients with suspicious lymph node metastases on US.
    88.46


    100
    100
    66.6


    Torres Sousa MY et al. Radiología 2011 [19]
    To investigate the sensitivity, NPV and PPV of the    axillary biopsy using different morphologic LN parameters
    94
    NR
    100
      (in the presence of both cortical thickening and    non-hilar cortical vascular flow)

      Cortical thickening 68%
      Changes in the hilar fat 90%
      NHCVF (nonhilar cortical vascular flow) 78%
    88.9


    Mainiero MB et al.    American Journal of Roentgenology 2010 [8]
    To evaluate the utility of ultrasound-guided    fine-needle aspiration (FNA) of the axillary lymph nodes in breast cancer    patients depending on the size of the primary tumor and the appearance of the    lymph nodes.
    Overall= 59

      Primary tumor
      T0, T1a-b=29
      T1c=50
      T2= 69
      T3,T4=100

      LN appearance
      Benign =11
      Intermediate=44
      Suspicious=93
    Overall= 100
    NR
    NR


    Nathanson SD et al. Annals of surgical oncology 2007    [5]
    To investigate the use of ultrasound-guided core    needle biopsy of a morphologically normal or abnormal lymph node in the    anatomic position of the SLN would accomplish the goal of a single axillary    operation.
    77.3
    94.4
    94.4
    77.3


    Krishnamurthy S et al. Cancer 2002 [20]
    To determine diagnostic accuracy of US guided FNA of    indeterminate, suspicious or metastatic appearing ALNs during initial staging
    86.4
    100
    100
    67


    PPV: Positive    Predictive Value; NPV: Negative Predictive Value; NR: Not Recorded



Table 2:  Axillary ultrasound and ultrasound guided lymph node biopsy.

Size of the primary tumor, size of the metastatic deposit in the lymph node, and increasing number of affected nodes will increase the sensitivity and specificity of AUS and USLNB. In a study of 224 patients, sensitivity of USLNB was 100% with primary tumors >5cm, 69% with primary tumors >2 to = 5cm and 29% in patients with tumors = 1 cm [8]. Based on this finding, the authors recommended axillary ultrasound in patients with tumors >1cm and USLNB in patients with LN that have indeterminate or suspicious features [8] (Table 1). In another study evaluating the diagnostic accuracy of US-guided FNA of suspicious or metastatic appearing lymph nodes in early breast cancer, characteristics of the cortex and hilum were examined (Table 1). All cases with three or more axillary lymph nodes harboring metastasis and 93% of metastatic deposits measuring >0.5 mm were detected by USLNB. The probability of detecting nodes with smaller metastatic deposit less than 0.5mm was 44% [20]. Recent studies suggest that patients with nodal disease detected by ultrasound have significantly more axillary nodal involvement and larger number of axillary lymph nodes containing metastasis than those who have a negative AUS and USLNB but positive SLNB [21]. A meta-analysis comparing 532 patients with positive USLNB to 248 patients with a negative USLNB but positive SLNB demonstrated that the number of involved nodes was significantly higher in patients whom axillary metastasis was detected by ultrasound guided biopsy (p<0.001) [10].

Marking the biopsied lymph node

In breast cancer, the conventional definition of the SLN is the first node (or nodes) in the axilla to receive lymphatic drainage from the primary tumor in the breast. Identification of the SLN in the operating room depends on the reliable lymphatic uptake of tracers (blue dye, radio-labeled colloid, indocyanine green) as well as the gradient of that lymphatic flow from the tumor to the first node. Occasionally, nodal tumor infiltration can obstruct the orderly flow of lymph and high nodal pressure in the SLN can divert the lymphatic stream to other axillary non-SLNs [22], leading to a false positive identification. To identify any nodal burden in the axilla that may not be identified by optical or radioactive tracers, the surgeon palpates the soft tissue in the axilla and any hard, matted, or suspicious lymph nodes are considered abnormal and removed.

Accurate examination of the clinically negative axilla by ultrasound relies on the anatomic location, morphology, size and Doppler flow characteristics in the nodes. Debate regarding SLN identification by AUS has revolved around the concept of the “true SLN”. Some argue that the true SLN is the suspicious, cancer-containing node on preoperative ultrasound and percutaneous biopsy. Others believe that the true SLN is the “hot and blue node” identified by the orderly lymphatics with the combined use of radiocolloid and blue dye.

Marking the biopsied axillary node with a microchip [5] or percutaneous tattooing [9] is helpful to identify previously biopsied node. A microchip is a reliable way to determine if the lymph node that was initially biopsied is the same node that is removed during SLNB [5]. The “true SLN” (as identified in the operating room) was the node that was preoperatively biopsied in 47 of 60 (78.3%) of patients in whom a microchip was placed [5]. The microchip can easily be seen on an x-ray of the specimen if present. Evidence of percutaneous biopsy can sometimes be noted during open SLNB, including presence small hematoma, seroma or inflammatory reaction. But the main disadvantage of marking the node with a clip is that it is placed inside the body of the node and not visually apparent intraoperatively. To provide the surgeon with visual confirmation, one study injected black ink into the percutaneously biopsied node. The black ink was found to be easily distinguishable from blue dye, and tattooed ALNs were identified in all patients treated with neoadjuvant chemotherapy [9]. Clip placement in combination with tattooing allows for both radiological and visual confirmation and may increase the identification rate when compared to each individual modality alone.
