Intensification of Synthesis of Crystalline Zinc Phosphate (Zn<sub>3</sub>(Po<sub>4</sub>)<sub>2</sub>) Nanopowder: Advantage of Sonochemical Method Over Conventional Method

Research Article

Austin Chem Eng. 2016; 3(2): 1028.

Intensification of Synthesis of Crystalline Zinc Phosphate (Zn3(Po4)2) Nanopowder: Advantage of Sonochemical Method Over Conventional Method

Jadhav AJ, Holkar CR, Pandit AB and Pinjari DV*

Chemical Engineering Department, Institute of Chemical Technology, Matunga, Mumbai, India

*Corresponding author: Pinjari DV, Chemical Engineering Department, Institute of Chemical Technology, Matunga, Mumbai, India

Received: April 12, 2016; Accepted: May 02, 2016; Published: May 03, 2016

Abstract

In the present study, nano-sized zinc phosphate (ZP) powders were prepared using conventional (NUS) and sonochemically assisted (US) precipitation method, using zinc chloride and potassium dihydrogen phosphate as precursors and 25% of ammonia solution in the water as a precipitating agent. The ZP synthesized material by both the methods (NUS and US) was characterized by Fourier transform infrared (FTIR) spectra. The average particle size of synthesized ZP by US and NUS were found to be 110.3 nm and 214.9 nm, respectively. The particle size of synthesized ZP may consist of bunch of crystal structures, hence the crystal size has been checked using X-ray analysis. Crystal size of US and NUS synthesized ZP was found to be 34.9 ± 1.6 nm and 32.1 ± 3.9nm respectively. It was observed that US synthesized ZP has a higher crystallinity (45.94 ± 0.6%) than NUS synthesized ZP (36.19 ± 1.8%) which has improved the crystallinity by almost 27%. It was also found that US method is energy efficient method and saves more than 80% of energy requirement as compared to NUS for the synthesis of ZP particles. Reaction time for US synthesis has been greatly reduced; 15 minutes from 60 minutes (NUS method), which was also a significant achievement.

Keywords: Zinc phosphate; Nanomaterials; Sonochemical method; Acoustic cavitation

Introduction

Zinc phosphate (ZP), is a non-toxic and one of the most important multifunctional metal phosphate for its interesting properties and wide applications in various fields. ZP is widely used as an anticorrosive pigment because it can provide the physical barrier; can block both, anodic and cathodic corrosion reactions on metal; can inhibit anodic acidification reaction; and phosphatize the metal substrate and form complexes with the binder [1-4]. The drying property and adhesion of paint film to the metal substrate can be improved in the presence of ZP [5]. ZP is well known to have a high affinity for living or ganisms and is therefore expected to be use ful as white pigments in cosmetics [6]. Due to its low solubility in water/biological environment and biocompatibility, ZP is widely used as dental cement [7,8]. ZP has excellent catalytic properties in hydrocarbon conversion process, such as dehydration/dehydrogenation of sec-butanol and methanol conversion [8,9]. ZP is also one kind of commonly used luminescent host material, ZP doped orco-doped with rare earth metal such as Eu3+,Tb3+ and Tm3+ shows excellent luminescent properties [10].

Several researchers have published reports on the synthesis of ZP by various techniques such as hydrothermal method [11-13], sol-gel method [14], solid-state method [15] a polyol-mediated approach etc [16]. Different precursors have also been used for the synthesis of ZP material such as Zinc phosphate tetra hydrate [8,9], zinc nitrate [17], zinc sulphate [15,18]. The sonochemical method (US) has been reported to be an advantageous technique to obtain novel materials [19-21] over other conventional methods (NUS) due to US input specifically from a horn, is highly directional and localized as well as intensification of processes due to US generally is attributed to improved transfer coefficients as a consequence of cavity collapse. Ultrasonic irradiation produces the acoustic cavitation which can be described as sequential formation, growth and collapse of millions of microscopic vapor bubbles (voids) in the liquid. The collapse of these voids creates high localized temperatures and pressures of nearly 5000–10000 K and 1000–2000 atm. respectively [22,23]. This cavitationally prompted phenomenon can result into an activation of reactant molecules entering into it and thereby converting them into free radicals [24]. Thus, US helps in improvement of the rate of reaction, reduces particle size distribution and particle size also reduces crystallite size, increases percentage crystallinity [25].

In the present work, an attempt was made to synthesize ZP nanocrystals using NUS and US precipitation method. The synthesized ZP powders were characterized by Fourier transform infrared spectroscopy (FTIR), particle size analysis, X-ray diffraction (XRD) measurement and scanning electron microscopy (SEM) to determine functional groups, average particle size, crystallite size and % crystallinity and morphology, respectively.

Material and Methods

Materials

Zinc Chloride (ZC) (analytical grade, 99%) precursor was procured from S. d. Fine Chemicals Ltd., Mumbai, India. Potassium dihydrogen phosphate (analytical grade, 99%) was purchased from Hi-media Chemicals. Ammonia solution (AR) was obtained from Merck Ltd., Mumbai, India. Distilled water prepared using Millipore apparatus was used during all the experimental runs.

Reaction scheme

The ion exchange reactions can take place between zinc chloride and potassium dihydrogen phosphate as given by the following equation. The formed HCl is neutralized by ammonia water (NH4OH), moving the reaction equilibrium to the right site.

4ZnCl2+2KH2PO4+2NH4OH Zn3(PO4)2+2KCl+4HCl+2NH4Cl+ Zn(OH)2

Ultrasound set-up

Ultrasound for sonochemical synthesis is generated with thehelp of ultrasonic instrument set up (horn type). The specification and details of the setup, processing parameters used during the experiments are:

Make: ACE, USA.

Operating frequency: 20 kHz

Rated output power: 750 W

Diameter of stainless steel tip of horn: 1.3 ×10-2m

Surface area of ultrasound irradiating face: 1.32×10-4 m2

Ultrasound Intensity: 3.4×105 W/m2

Synthesis of ZP by conventional method

The aqueous solutions of zinc chloride7.06g (0.05 gmol) and potassium dihydrogen phosphate 3.53g (0.026 gmol) were prepared in 25 ml distilled water, separately. The potassium dihydrogen phosphate solution was then added drop wise into the zinc chloride solution over 20 min under constant stirring using a magnetic stirrer (Model RQ1210, Remi Metals Gujarat Limited, India). The aqueous clear solutions turned into visible turbid white color as the reaction proceeds. After complete addition of potassium dihydrogen phosphate solution, the pH of the reaction mixture was adjusted to 3.0 by using ammonia solution. At pH of 3.0 the reaction mixture results into a formation of dense white precipitate of ZP. The reaction was then allowed to proceed for 60 min (this was the maximum time for the completion of reaction after which no further improvement in the reaction yield was obtained, explained in detailed in Section 4.1) under stirring at room temperature (35 ± 2°C). After 60 min, the solution was filtered to separate the product and the solid product was washed thrice using distilled water to remove the by-products and unreacted reactant, if any. After complete washing, the product was dried at 800C for 3h in a suitable oven. After complete removal of water, obtained ZP powder (whitish in nature) was cooled, checked for yield and characterized by FTIR, XRD, particle size analysis and SEM analysis.

Synthesis of ZP by sonochemical method

Initially, aqueous solutions of zinc chloride and potassium dihydrogen phosphate were prepared separately by adding, 7.06g (0.05 gmol) of zinc chloride in 25 ml distilled water and 3.53g (0.026 gmol) of potassium dihydrogen phosphate in 25 ml distilled water. The prepared aqueous solution of potassium dihydrogen phosphate was then added drop wise to the prepared aqueous solution of zinc chloride in the presence ultrasonic irradiation (ACE horn, 22 kHz frequency) at 40% amplitude for 5 min with a 5 s ON and 5 s OFF cycle from time t = 0h. After complete addition of potassium dihydrogen phosphate, pH of solution was adjusted by ammonia solution up to 3.0 and further reaction was continued for further 5 min with a 5 s ON and 5 s OFF cycle from time t = 5min which results into a formation of dense white precipitate of ZP nanoparticles. The solution was filtered to separate the product and the solid product was washed thrice using distilled water to remove the by-products and unreacted reactant, if any. After complete washing, the product was dried at 80°C for 3h in a suitable oven. After complete removal of water, obtained ZP powder (whitish in nature) was cooled, checked for yield and characterized by FTIR, XRD, particle size analysis and SEM analysis.

Characterizations

The NUS and US synthesized ZP were characterized as follows: The FTIR spectra of ZP nanoparticles were recorded using Shimadzu FTIR spectrophotometer using ATR mode of operation and scanning of the FTIR spectrophotometer was carried out from the wavelength of 4000 to 600 cm-1.Particles size was determined by a dynamic light scattering technique (DLS) which was done with Malvern Zetasizer (ZS-90). Precipitated ZP particles suspension was used for the measurement of particle size, which was analyzed by using Zetasizer. The dried ZP samples (powder form) were characterized by studying their X-ray Diffraction patterns on a Rigaku Mini-Flex X-ray Diffractometer with a copper target and X-ray wavelength Cu Ka = 1.54Å. The current generated in the diffractometer was 15 mA with a voltage of 30 kV. XRD patterns were recorded at angles between 2° and 80°, with a scan rate of 2°/min. Crystal size was determined using the Debye–Scherrer equation. Scanning Electron Microscopy of the samples was carried out on a JOEL JSM 680LA 15 kV SEM to estimate the surface characteristics of the sample.

Results and Discussions

Reaction time and percentage reaction yield

The reaction time required for obtaining maximum yield of ZP by NUS and US method were found out by conducting the experiments with varying reaction time with respect to the final yield obtained. It was found that 60 min of reaction time was optimum for NUS method (Figure 1 (B)) as the further improvement in the % yield was not observed, while in case of US method10 min was found to be an optimum reaction time to get the highest yield (Figure 1 (A)). The yield of the reaction in case of US synthesized method (97.50±0.43%) was marginally higher than the NUS synthesized method (95.50±0.58%). The acoustic cavitation can boost rapid micro mixing of reactants resulting in an increased in yield of the reaction with a saving of 50min reaction time, also reducing the average particle size (as explained in Section 4.2 and 4.4).

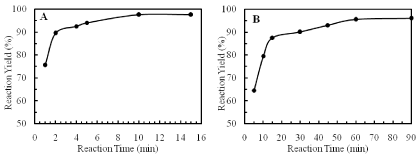

Figure 1: Reaction Yield (%) of synthesized zinc phosphate by (A) sonochemical method and (B) conventional method.








    Figure 1:  Reaction Yield (%) of synthesized zinc phosphate by (A) sonochemical method and (B) conventional method.

Particle size

The particle size was measured using the Malvern Zetasizer (ZS-90), which utilizesa dynamic light scattering technique (DLS), transmitted through a particle suspension to measure the properties of suspended particles in water. The average particle size of ZP synthesized by the US and NUS methods were found to be 110.3 nm and 214.9 nm, respectively. The reason for this is maybe the fast kinetics and efficient micro mixing of the sonochemical reaction providing not enough time for growth of particle thus a reduced average particle size. Due to the physical effects of the ultrasonic irradiation such as significantly improved micro mixing, enhanced solute diffusional transport, rapid nucleation, and formation of a large number of nuclei, as well as possibly the fast kinetics (due to increased local temperature), which does not give enough time for growth of the particles leading to a reduced particle size.

FTIR spectrum analysis

The FTIR spectrum (Figure 2) of the NUS and US synthesized ZP was recorded. The FTIR spectrum reflects characteristic absorptions of H2O andPO4 3–. Water bonding at 1639.38 cm-1 and O–H stretching broad band centered at 3300~3400 cm-1 can be observed, implying the presence of crystalline hydrate [17]. Presence of several strong and sharp absorption bands from 800 to 1200 cm-1, which splits into three peaks, report a complex of stretching ofPO4 3– group [15]. The absorption band at 1004.84 and 1099.35 cm-1 were the antisymmetric stretching and symmetric stretching of PO4 3–, respectively. A very strong peak at 1064.63 and 945cm-1 were observed due to the anti-symmetric stretching of PO4 3– and P-O bending respectively [8]. From the above discussion it was confirmed that the ZP material can be synthesized successfully by both the methods.

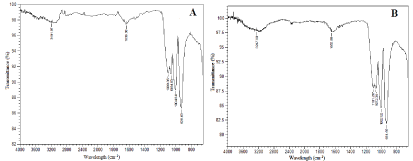

Figure 2: FTIR spectra of (A) sonochemically (B) conventionally synthesized zinc phosphate.








    Figure 2:  FTIR spectra of (A) sonochemically (B) conventionally synthesized zinc phosphate.

Abstract

The XRD pattern of US and NUS synthesized ZP was shown in Figure 3. The fifteen strong peaks have been observed at 2θ values of 9.65°, 16.68°, 17.79°, 18.26°, 19.38°, 22.17°, 25.67°, 31.31°, 35.67°, 39.88°, 46.78°, 47.54°, 49.94°, 56.41° and 61.07°°. The pattern matches the standard XRD datafor Zn3(PO4)22H2O of JC-PDS file (Numbers: 33-1474). XRD pattern of synthesized ZP for both US and NUS method exactly matches each other (Figure 3). Crystallite size and % crystallinity were calculated using XRD patterns. The crystal size for US and NUS synthesized ZP was 34.9 ± 1.6 nm and 32.1 ± 3.9 nm respectively, whereas % crystallinity was 45.94± 0.6% and 36.19 ± 1.8% respectively. It was found that US synthesized ZP shows more crystallinity (higher by 27%) than NUS synthesized ZP. Also, the crystal size of NUS synthesized ZP was found to be less than the US synthesized ZP. The crystallinity of US sample is more than that of NUS sample because of the energy dissipated by acoustic cavitation phenomenon and micro mixing may increase the randomness of the solute diffusive motion/Brownian motion of the formed ZP raw molecules (acoustic cavitation causes the micro mixing of particles and molecules which gives oscillatory motion to reactant molecules), resulting into the formation of regular crystal formation in less time and increasing overall crystallinity of synthesized ZP molecule. NUS synthesized ZP was exposed for longer time, utilizing more energy which may convert crystalline form of material into amorphous, resulting into a decrease in the overall crystallinity of the NUS ZP sample

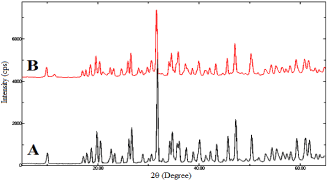

Figure 3: XRD patterns of (A) sonochemically and (B) conventionally synthesized zinc phosphate.








    Figure 3:  XRD patterns of (A) sonochemically and (B) conventionally
synthesized zinc phosphate.

Scanning Electron Microscopy (SEM) analysis

It can be seen from Figure 4 that NUS synthesized ZP having plate like structure while US synthesized ZP having hexagonal type of structure as clearly seen at 5000 × magnification. It was also observed from SEM images, that the particle size of ZP synthesized by US method is less than that of NUS method. The effects of cavitation on the particle size as well as shape have been clearly observed from SEM analysis.

Figure 4: SEM of zinc phosphate (A) at 500 ×,(B) at 1000 × (C) at 5000 × synthesized by sonochemically and (D) at 500 ×, (E) at 1000 × (F) at 5000 × synthesized by conventionally.








    Figure 4:  SEM of zinc phosphate (A) at 500 ×,(B) at 1000 × (C) at 5000 × synthesized by sonochemically and (D) at 500 ×, (E) at 1000 × (F) at 5000 × synthesized
by conventionally.

Energy Efficacy

The amount of energy required for the synthesis of ZP nanoparticle by NUS and US has been compared in Appendix A. The energy utilized for the synthesis of ZP nanoparticle is the total energy supplied (kJ) per unit weight of the material obtained (g). The total time required for the synthesis of ZP nanoparticle by NUS and US was 60 min and 10 min respectively as mentioned in Section 4.1. Total energy required per unit weight of the material processed to synthesize ZP is 47.43 × 10-2 (kJ/gm) for NUS method and 8.6 × 10-2(kJ/gm) for US method. Thus, US method proved to be energy efficient which saved more than 80% of energy utilized by NUS method and also a reduction in the reaction duration.

Conclusion

ZP nanoparticles were successfully synthesized using NUS and US method. It was concluded that the method of sonochemical synthesis can save substantial energy, give higher reaction yield, uniform particle size, material with higher crystallinity, also this technique is fast, simple, convenient, time saving, economical, and environmentally benign. Our belief that this method promises us a future large-scale synthesis for many applications in nanotechnology field.

Acknowledgment

The authors would like to acknowledge the Department of Science and Technology, Government of India for providing necessary financial assistance to conduct the research work.

References

  1. Van Phuong N, Moon S, Chang D, Lee KH. Effect of microstructure on the zinc phosphate conversion coatings on magnesium alloy AZ91.Applied Surface Science. 2013; 264: 70-78.
  2. Rezaee N, Attar MM, Ramezanzadeh B. Studying corrosion performance, microstructure and adhesion properties of a room temperature zinc phosphate conversion coating containing Mn2+ on mild steel. Surface and Coatings Technology. 2013; 236: 361-367.
  3. Hao Y, Liu F, Han E, Anjum S, Xu G. The mechanism of inhibition by zinc phosphate in an epoxy coating. Corrosion Science. 2013; 69: 77-86.
  4. Abd El-Ghaffar MA, Youssef EAM, Ahmed NM. High performance anticorrosive paint formulations based on phosphate pigments. Pigment & Resin Technology. 2004; 33: 226-237.
  5. Nabih N, Herrmann U, Glasser G, Lieberwirth I, Landfester K, TadenA. Water-based hybrid zinc phosphate–polymer miniemulsion as anticorrosive coating. Progress in Organic Coatings. 2013; 74: 555-562.
  6. Onoda H, Haruki M, Toyama T. Preparation and powder properties of zinc phosphates with additives. Ceramics International. 2014; 40: 3433-3438.
  7. Jabri M, Mejdoubi E, El Gadi M, Hammouti B. Optimisation of hardness and setting time of dental zinc phosphate cement using a design of experiments. Arabian Journal of Chemistry. 2012; 5: 347-351.
  8. Jung SH, Oh E, Shim D, Park D, Cho S, Lee BR, et al. Sonochemical Synthesis of Amorphous Zinc Phosphate Nanospheres. Bulletin of Korean Chemical Society. 2009; 30: 2280-2282.
  9. Tagiyev DB, Aliyev AM, Mamedov ND, Fatullayeva SS. Hydrothermal synthesis of zeolite-like iron and zinc phosphates and its application in the methanol conversion. Studies in Surface Science and Catalysis. 2004; 154: 1049-1055.
  10. Ning Z, Li W, Sun C, Che P, Chang Z. Synthesis and optical properties of zinc phosphate microspheres. Transaction of Nonferrous Metals Society of China. 2013; 23: 718-724.
  11. Yan B, Xiao XZ. Hydrothermal Synthesis, Con-trolled Microstructure, and Photoluminescence of hydrated Zn3 (PO4)2: Eu3+ Nanorods and Nanoparticles. Journal of Nanoparticle Research. 2009; 11: 2125-2135.
  12. Boonchom B, Baitahe R, Kongtaweelert S, Vit-tayakorn N. Kinetics and Thermodynamics of Zinc Phosphate Hydrate Synthesized by a Simple Route in Aqueous and Acetone Media. Industrial & Engineering Chemistry Research. 2010; 49: 3571-3576.
  13. Pawlig O, TrettinR. Synthesis and Characterization of a-hopeite Zn3(PO4)2•4H2O. Materials Research Bulletin. 1999; 34: 1959-1966.
  14. Lee BI, Samuels WD, Wang LQ, ExarhosGJ. Sol-gel Synthesis of Phosphate Ceramic Composites. Journal of Materials Research. 1996; 13: 134-143.
  15. Yuan QA, Liao S, Tong ZF, Wu J, Huang ZY. Synthesis of Nanoparticle Zinc Phosphate Dihydrate by Solid State Reaction at Room Temperature and Its Thermo chemical Study. Materials Letters. 2006; 60: 2110-2114.
  16. Roming M, Feldmann C, Avadhut YS, auf der Gunne JS. Characterization of Noncrystalline Nanomaterials: NMR of Zinc Phosphate as a Case Study. Chemistry of Materials 2008; 20: 5787-5797.
  17. Wang JD, Li D, Liu JK, Yang XH, He JL, Lu Y. One-Step Preparation and Characterization of Zinc Phosphate Nanocrystals with Modified Surface. Soft Nanoscience Letters. 2011; 1: 81-85.
  18. Yan S, He W, Sun C, Zhang X, Zhao H, Li Z, et al. The biomimetic synthesis of zinc phosphate nanoparticles. Dyes and Pigments. 2009; 80: 254-258.
  19. Jadhav AJ, Pinjari DV, Pandit AB. Surfactant Assisted Sonochemical Synthesis of Hollow structured Zinc Phosphate Nanoparticles and their Application as Nanocarrier. 2016; 297: 116-120.
  20. Jadhav AJ, Karekar SE, Pinjari DV, Datar YG, Bhanvase BA, Sonawane SH, et al. Development of Smart Nanocontainers With A Zinc Phosphate Core and A pH-Responsive Shell for Controlled Release of Immidazole. Hybrid Materials. 2015; 1: 71-79.
  21. Pinjari DV, Pandit AB. Room temperature synthesis of crystalline CeO2 nanopowder: Advantage of sonochemical method over conventional method. Ultrasonics Sonochemistry. 2011; 18: 1118-1123.
  22. Jadhav AJ, Holkar CR, Karekar SE, Pinjari DV, Pandit AB. Ultrasound Assisted Manufacturing of Paraffin Wax Nanoemulsions: Process Optimization. Ultrasonics Sonochemistry. 2015; 23: 201-207.
  23. Holkar CR, Jadhav AJ, Bhavsar P, Kannan S, Pinjari DV, Mahamuni NM, et al. Acoustic cavitation assisted alkaline hydrolysis of wool based keratins to produce organic amendment fertilizers. ACS Sustainable Chemistry & Engineering. 2016; 4: 2789-2796.
  24. Singh SB, Lobo HR, Pinjari DV, Jarag KJ, Pandit AB, Shankarling GS, Ultrasound and deep eutectic solvent (DES): A novel blend of techniquesfor rapid and energy efficient synthesis of oxazoles. Ultrasonics Sonochemistry. 2013; 20: 287-293.
  25. Jarag KJ, Pinjari DV, Pandit AB, Shankarling GS. Synthesis of chalcone (3-(4-fluorophenyl)-1-(4-methoxyphenyl) prop-2-en-1-one): Advantage of sonochemical method over conventional method. Ultrasonics Sonochemistry. 2011; 18: 617-623.
