Photodegradation of Ciprofloxacin and Ofloxacin Antibiotics and Their Photo-Metabolites with Sunlight

Koyuncuoglu P1* and Sponza DT2

1Department of Environmental Engineering, Pamukkale University, Turkey

2Department of Mechanical Engineering, Dokuz Eylul University, Turkey

*Corresponding author: Pelin Koyuncuoglu, Pamukkale University, Engineering Faculty, Environmental Engineering, Denizli, Turkey

Received: March 19, 2019; Accepted: May 02, 2019; Published: May 09, 2019

Abstract

In this study, Nano Graphene Oxide Magnetite (Nano-GO/M) composite was prepared and characterized under laboratory conditions with FTIR and SEM analysis to investigate the metabolites of Ciprofloxacin (CIP) and Ofloxacin (OFL) antibiotics formed during photooxidation under sunlight. Two different metabolites of CIP and OFL namely desenthylenciprofloxacin (M1) and oxociprofloxacin (M3); and 9-Piperazino Ofloxacin (POF) and des-Methyl Ofloxacin (MOF) were in HPLC. For maximum removal efficiency (80%) of 1 mg/L initial CIP concentration, 250 min irradiation time were obtained as optimum time for photo-oxidation via sunlight irradiation at 80 W power in august at hours between 10.00 am and 17.00 pm (for 24 hours experiments, we keep going at these hours for 4.5 days). Best results were obtained at 1mg/L initial concentration of CIP, at original pH of CIP solutions (6.5) and at 2g/L Nano-GO/M concentration. For maximum OFL removal (82%) the optimum Nano-GO/M concentration was found to be 2g/L at 1mg/L OFL concentration, at pH 6.5, after 350 min irradiation time, at 35°C±5°C. Final concentrations of M1, M3, POF and MOF metabolites were found as 0.425, 0.125, 0.098 and 0.075 mg/L, respectively.

Keywords: Ciprofloxacin; Ofloxacin; Photo-oxidation; By-product; Sunlight

Introduction

Antibiotics are commonly utilized for treatment and prevention of deadly infections in humans and animals [1]. Fluoroquinolones antibiotics (FQs) are one type of the most important synthetic antibiotics that are widely employed to treat infections [2]. Ciprofloxacin (CIP), Ofloxacin (OFL), Moxifloxacin (MOX), and Norfloxacin (NOR), are the antibacterial synthetic drugs, belonging to fluoroquinolones group [3]. They usually used to treat infections due to their potent antibacterial activity against gram-positive and gramnegative bacteria. Since the inefficient removal in the industrial and domestic wastewater treatment plants, FQs have been a frequently detected category of antibiotics in natural waters and wastewaters around the world, with concentrations ranging from ng/L to mg/L [4]. FQs in aquatic ecosystems could induce transcriptional changes in microbial communities, thus contributing to the development of resistant bacteria and genes [4]. FQs may also cause the physiological teratogenesis of plants/algae and be genotoxic/carcinogenic for organisms. Unfortunately, FQs are only weakly biodegradable [5]. As a consequence, the application of complementary processes able to efficiently eliminate antibiotics from water is urgently required [1]. So far, many different treatment technologies, such as adsorption [6- 8], biodegradation [9,10] and mainly chemical oxidation [2,11-15] have been applied in FQ removal. Among these approaches, chemical oxidation by means of a catalyst is a crucial subject for removal of complex compounds. Therefore, it is necessary to develop efficient catalyst for FQ removal.

Advanced Oxidation Processes (AOPs) are used to oxidize complex compounds in wastewater which are not degrading biologically. AOP benefit from the reactions of highly reactive hydroxyl radicals (•OH) that are produced in various ways, depending on the technique applied [16]. Nowadays, AOPs have been developed to remove FQs from wastewater [4,12,17,18]. Photocatalytic oxidation is a type of AOP. Serpone and Emiline [19], defined that photocatalysis, in its most simplistic description, is the acceleration of a photoreaction by action of a catalyst. Among the AOPs, heterogeneous photocatalysis has attracted attention as a promising technique for solving environmental problems especially in the degradation of organic pollutants in water treatment [20]. Furthermore, in photo driven AOPs, energy costs can be saved by using sunlight.

Graphene is Two-Dimensional (2D) sheets of carbon atoms arranged in a honeycombed network and gained much attention in last fifteen years. Owing to their chemical, physical, and mechanical properties, such as large special surface area, excellent electrical and thermal conductivity, high mechanical strength, flexibility, high surface to volume ratio and efficient wide range of light adsorption, graphene-based materials are popular in a broad range of applications [21,22]. Graphene Oxide (GO), originated from sheets of GO. There are a lot of oxygen-containing functional groups on GO nanosheets such as epoxy (C-O-C), Hydroxyl (OH) and Carboxyl (COOH) [23]. The oxygen containing groups on the GO nanosheets makes it easy to functionalize them. Iron oxide nanoparticles have received great interest in different applications due to their superior magnetic properties. Fe3O4, one of the iron oxides, has an inverse spinel structure where all the Fe2+ ions are located in the octahedral spaces and Fe3+ ions are located in the tetrahedral and octahedral spaces [24]. Being magnetic, abundant, biocompatible, and almost semiconductor, magnetite has received great attention in various fields especially in photocatalytic removal of organic pollutants [25]. Magnetic Fe3O4 has the advantage for the usage as support material of composite nano graphene oxide (Nano-GO/M) composite because it can be easily separated by an external magnetic field [26]. Iron oxide nanomaterials composited with GO as magnetic adsorbents were useful and do not need extra filtration or centrifugation.

Yoon et al. [27] studied arsenic removal using Fe3O4– graphene oxide composite (M-GO) and Fe3O4- reduced graphene oxide composite (M-rGO). The M-GO was obtained more effective to adsorb both As(III) and As(V) than M-rGO, because the more functional groups existing on the M-GO. The adsorption capacity of M-GO and M- rGO for As(III) and As(V) were 85mg/g (MGO for As(III)), 38mg/g (M-GO for As(V)), 57mg/g (M-rGO for As(III)), and 12mg/g (M- rGO for As(V)). Kinetic results indicated that the adsorption process could be defined by the pseudo-secondorder kinetic model under the selected arsenic concentration range (1mg/L, 0.3mg/L and 0.15mg/L), and the adsorption isotherm was fitted well to Freundlich model. Dong et al. [26], recently reported a study about removal of two pollutants namely Levofloxacin (LEV) and Lead (Pb) by using GO. 10mL GO suspension (40mg/L) was used as the adsorbent. 10mL of LEV or Pb solutions of seven different concentrations (LEV: 1, 2, 5, 10, 20, 30, and 40 mg/L; and Pb: 1, 2, 5, 10, 20, 40, and 60 mg/L) were used for sorption experiments for 24 h retention time at 25°C. GO showed strong affinity for LEV and Pb in aqueous solutions with Langmuir maximum adsorption capacities of 256.6 and 227.2 mg/g, respectively. Liu et al. [28], reported the use of graphene as an adsorbent for removal of Methylene Blue (MB) from its aqueous solution. The dye uptake capacity increased from 153.5mg/g to 204.08mg/g with the rise in temperature from 293 K to 333 K while the maximum dye removal (~ 99.68%) was observed at pH 10.0. Adsorption equilibrium data fitted well to the Langmuir isotherm model than the Freundlich model. Tayyebi et al [29], studied the removal of Sr2+ and Co2+ ions (50mg/L initial concentration) by using magnetic GO (M-GO). 20mg of adsorbent was added to vessels which contained 100mL of Co2+ or Sr2+ solution at pH 6.5. M-GO is saturated at the loading of 0.28 and 0.56 meq/g of Sr2+ and Co2+ ions, respectively. Adsorption isotherms of Sr2+ and Co2+ ions, which were fitted by Langmuir monolayer model.

The objective of this study was i) to synthesize a novel nano particle, ii) to obtain the optimum operational conditions for maximum removal yields of CIP and OFL iii) and to evaluate the formation of by-products of CIP (M1 and M3) and OFL (POF and MOF) during photocatalytic decomposition under sunlight with Nano-GO/M.

Material and Methods

Quartz glass reactors for the photocatalytic treatment under sunlight

In sunlight studies, quartz glass reactors coated with teflon were used for photocatalytic experiments. Experiments were carried out at different retention times of the day (30,120,250,350 min and 24h) and different initial concentration of CIP and OFL and the reactors were placed at an angle of 90 degrees to the sun at hours 08.00-17.00. The pH of the reaction mixture was adjusted from 4 to 6.5 and 10 using 1 mol/L of H2SO4 and NaOH solutions. The effects of 0.5g/L,2g/ L,3.5g/L,5g/L and 10g/L Nano-GO/M composite concentrations on the removals of CIP and OFL with constant sunlight time (250 min for CIP removal, 350 min for OFL removal were chosen due to preliminary studies results) at original pH of CIP and OFL solution (pH=6.5) under sunlight irradiation with a power of 80 W at outdoor temperature (35°C ± 5°C).

Synthesis of nano-GO/M composite under laboratory conditions

GO was synthesized using modified Hummer’s method that involved both oxidation and exfoliation of graphene. In a typical synthesis, 5 g purchased graphene was dispersed in 120ml H2SO4 by adding 2.5 g of NaNO3 in glass flasks coated by teflon on a magnetic stirrer for 30min placed in a water bath at a temperature of 18°C by the procedure given by Nengsheng et al. [30]. After stirring the mixture mentioned above at a rpm of 5000; 15 g of KMnO4 was added gradually, and continued to stir the last mixture overnight, continuously at 18°C. Then, 150ml H2O was slowly added and continued to mix a day at 98°C. Finally, 50mL of 30% H2O2 was added to the final mixture. The mixture was washed with 5% HCl and deionized water for several times and then, centrifuged and dried under vacuum for purification the GO which was obtained in a solid phase. The Fe3O4 nano particles were dispersed in 25mL water and added to 50mL GO aqueous solution. This mixture contained 1 mg Fe+3 /1mL GO and it was stirred at 60°C through 1h. The nanocomposite was collected by using a magnet from the outside of the glass reactor and washed with water three times [30].

Analytical methods

HPLC equipment specifications: A HPLC Degasser (Agilent 1100), a HPLC Pump (Agilent 1100), a HPLC Auto-Sampler (Agilent 1100), a HPLC Column Oven (Agilent 1100) and a HPLC Diode- Array-Detector (DAD) (Agilent 1100) were used. Figure 1,2 shows the molecular structure of CIP and OFL and their metabolites, respectively.

Figure 1: Molecular structures of CIP and its metabolites namely M1 (desenthylenciprofloxacin) and M3 (oxociprofloxacin).








    Figure 1: Molecular structures of CIP and its metabolites namely M1
(desenthylenciprofloxacin) and M3 (oxociprofloxacin).

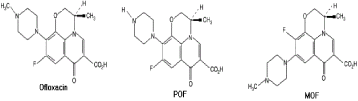

Figure 2: Molecular structures of OFL and its metabolites namely POF (9-piperazino ofloxacin) and MOF (des-methyl ofloxacin).








    Figure 2: Molecular structures of OFL and its metabolites namely POF
(9-piperazino ofloxacin) and MOF (des-methyl ofloxacin).

For quantification, an external standard method was utilized. Peak areas from the HPLC chromatogram were plotted against to the known concentrations of stock solutions at varying concentrations. Equations generated by linear regression were used to establish concentrations for CIP and OFL standard solutions.

Standard solutions and calibration curves for CIP and its metabolites: Mean areas generated from the standard solutions were plotted against concentration to establish calibration equations. CIP, M1 (desenthylenciprofloxacin) and M3 (oxociprofloxacin) peaks were seen at 7.342, 6.51 and 8.49 min (Figures 3-5). The mobile phase consisted of KH2PO4 in aqueous solution and Acetonitrile (95:5, v/v). The flow rate was set at 1.5mL/min and injection volume at 20μL. C18 column was used for the analysis.

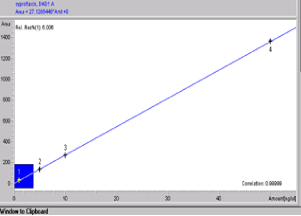

Figure 3: Calibration graph of CIP.








    Figure 3: Calibration graph of CIP.

Figure 4: Calibration graph of M1 (desenthylen ciprofloxacin).








    Figure 4: Calibration graph of M1 (desenthylen ciprofloxacin).

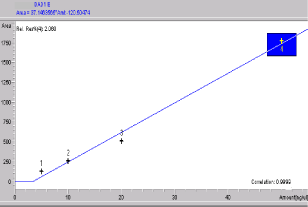

Figure 5: Calibration graph of M3 (oxociprofloxacin).








    Figure 5: Calibration graph of M3 (oxociprofloxacin).

Standard solutions and calibration curves for OFL and its metabolites: The mobile phase consisted of acetonitrile (18:82, v/v). The aqueous component of the mobile phase was prepared using ammonium acetate and potassium perchlorate by ultrasonic treatment. The column was equilibrated to stable baseline at a flow rate of 1.0 mL min-1, maintaining the temperature of the column at 45°C. Detection was at 294 nm [31]. OFL, POF (9-piperazino ofloxacin) and MOF (des-methyl ofloxacin) metabolites peaks were seen at 10.01, 7.99 and 9.68 min (Figures 6-8).

Figure 6: Calibration graph of OFL.








    Figure 6: Calibration graph of OFL.

Figure 7: Calibration graph of POF (9-piperazino ofloxacin).








    Figure 7: Calibration graph of POF (9-piperazino ofloxacin).

Figure 8: Calibration graph of MOF (des-methyl ofloxacin).








    Figure 8: Calibration graph of MOF (des-methyl ofloxacin).

Instrumental characterization

Fourier Transform Infrared (FT-IR): FT- IR spectra’s of Nano- GO/M after different conditions applied were measured with the Perkin Elmer FTIR System Spectrum BX with the KBr method for photocatalytic processes.

SEM: The morphological and structural observation was made on a scanning electron microscope VegaII/LMU (Tescan, Czech Republic) for photocatalytic processes.

Results and Discussion

Physicochemical properties of nano-GO/M

FTIR analysis of nano-GO/M: The produced nano-composite was characterized using Fourier Transform Infrared spectroscopy (FTIR). In the spectrum of Nano-GO/M, the peaks at 2359, 1568 cm-1 are the characteristics spectrum of benzene ring of Nano-GO/M while the peak at 1073 cm-1 is the characteristic spectrum of the C– OH rings of Nano-GO/M (Figure 9). This confirms the presence of graphene oxide peak at 600 cm-1 which is the characteristics of Fe3O4 giving an evidence of the successful preparation of the Nano-GO/M as reported by Huamin et al., [32].

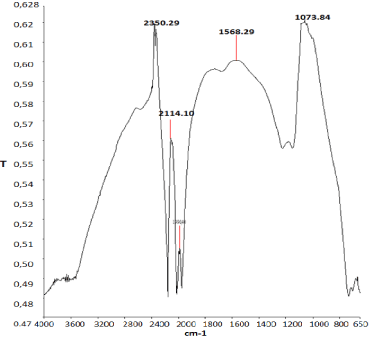

Figure 9: FTIR analysis of the synthesized Nano-GO/M composite.








    Figure 9: FTIR analysis of the synthesized Nano-GO/M composite.

SEM analysis of nano-GO/M: The SEM images of synthesized GO, Fe3O4 nanoparticles and Nano-GO/M were given in Figure 10- 12. While GO structure was seen in a sheet form, Fe3O4 nanoparticles seen as small dots on the GO sheets (Figure 10). The anchored spherical clusters of magnetite nanoparticles on the wrinkled and layered GO platelets can be observed in the micrographs (Figure 11) [33]. Fe3O4 and GO were dispersed densely and evenly on the surface of the Nano-GO/M composites and they had a core shell structure (Figure 12).

Figure 10: SEM imagine of synthesized GO (1 μm).








    Figure 10: SEM imagine of synthesized GO (1 μm).

Figure 11: SEM imagine of Fe3O4 (500 nm).








    Figure 11: SEM imagine of Fe3O4 (500 nm).

Figure 12: SEM image of raw Nano-GO/M.









    Figure 12: SEM image of raw Nano-GO/M.

Determination of optimum operational conditions for the maximum removal yields of CIP and OFL

Effects of concentration of nano-go/m composite on the treatment of CIP and OFL under sunlight: Effects of 0.5g/L,2g/ L,3.5g/L,5g/L and 10g/L Nano-GO/M composite concentrations on the removals of CIP and OFL were studied with constant sunlight time (for CIP: 250 min, for OFL: 350 min was chosen due to preliminary studies results) at original pH of CIP and OFL solution (pH=6.5) under sunlight irradiation with a power of 80 W at outdoor temperature (35°C±5°C). Figure 13 summarizes the effects of increasing Nano- GO/M concentrations (0.5,2,3.5,5 and 10g/L) on CIP removal yields at a CIP concentration of 1 mg/L after 250 min irradiation time at pH=6.5 and at 35°C±5°C and with a power of 80 W sunlight. The effect of Nano-GO/M concentration on the degradation efficiency of CIP was investigated over the concentration range from 0.5 to 10 g/L. A significant increase is observed in the efficiency of degradation of CIP within the range of Nano-GO/M concentration from 0.5 to 3.5 g/L. As the concentration of Nano-GO/M was increased from 0.5 g/L to 2 g/L and to 3.5 g/L, the CIP removal efficiency increased from 49% to 80% and to 82% for initial CIP concentration of 1 mg/L (Figure 13). The number of available adsorption and Nano-GO/M sites on the Nano-GO/M surface increases with increasing in Nano-GO/M concentration, resulting in the observed enhancement in degradation efficiency [34]. However, a further increase in Nano-GO/M (from 3.5 to 10 g/L) concentration also reduces the removal efficiency of CIP antibiotic. Because, further increases in Nano-GO/M catalyst loading led to an evident decrease of degradation efficiency due to the excess catalyst acts as scatter or reflects photons to hinder the excitation of the photocatalyst. Moreover, with increasing quantities of photocatalyst, the population of active sites was found to be reduced due to the aggregation of photocatalyst particles [2]. As a result, the optimum Nano-GO/M concentration was chosen as 2g/L to reduce the operational cost of photocatalytic removal of both CIP and OFL.

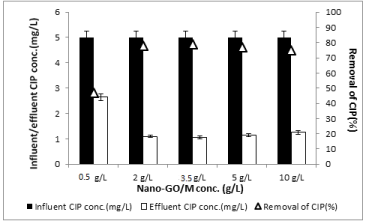

Figure 13: Effect of increasing concentration of Nano-GO/M (0.5, 2, 3.5, 5 and 10 g/L) on the yields of CIP removal for constant CIP concentration (1 mg/L) at pH=6.5, at 35°C±5°C and 250 min irradiation time and with a power of 80 W sunlight (‹a (0.05)).








    Figure 13: Effect of increasing concentration of Nano-GO/M (0.5, 2, 3.5, 5
and 10 g/L) on the yields of CIP removal for constant CIP concentration (1
mg/L) at pH=6.5, at 35°C±5°C and 250 min irradiation time and with a power
of 80 W sunlight (‹a (0.05)).

To investigate the effect of Nano-GO/M dosage on the removal efficiency of OFL; CIP treatment procedure was applied to OFL antibiotic. Effects of 0.5 g/L, 2 g/L, 3.5 g/L, 5 g/L and 10 g/L Nano- GO/M composite concentrations on the removals of OFL studied with constant sunlight time (350 min was chosen due to preliminary studies results) at original pH of OFL solution (pH=6.5) under sunlight irradiation with a power of 80 W at outdoor temperature (35°C±5°C). The results were given in Figure 14. A significant increase is observed in the efficiency of degradation of OFL within the range of Nano- GO/M concentration from 0.5 to 3.5 g/L. The number of available adsorption and Nano-GO/M sites on the Nano-GO/M surface increases with increasing in Nano-GO/M concentration, resulting in an enhancement in degradation efficiency. However, a further increase in Nano-GO/M (from 3.5 to 10 g/L) concentration also reduces the specific activity of the catalyst because of agglomeration of catalyst particles and light scattering and screening effect, thus leading to the decreased photocatalytic degradation efficiency from 82% to 73% for 1 mg/L initial OFL concentration. Therefore, all experiments were carried out with 2 g/L Nano-GO/M to avoid the excessive usage of the catalyst.

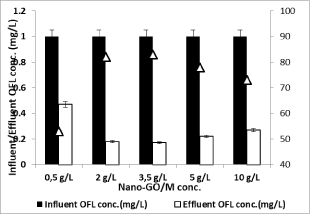

Figure 14: Effect of increasing concentration of Nano-GO/M (0.5, 2, 3.5, 5 and 10 g/L) on the yields of OFL removal for constant OFL concentration (1 mg/L) at pH=6.5, at 35°C ±5°C and 350 min irradiation time and with a power of 80W sunlight (‹a (0.05)).








    Figure 14: Effect of increasing concentration of Nano-GO/M (0.5, 2, 3.5, 5
and 10 g/L) on the yields of OFL removal for constant OFL concentration (1
mg/L) at pH=6.5, at 35°C ±5°C and 350 min irradiation time and with a power
of 80W sunlight (‹a (0.05)).

Effects of irradiation time on the treatment of CIP and OFL under sunlight: The optimum dosage of catalyst and light irradiation time were necessary to ensure strong degradation efficiency [35]. Since the optimum Nano-GO/M composite concentration was found as 2 g/L; the effects of five different sunlight irradiation times (30 min, 120 min, 250 min, 350 min and 24h) on the CIP and OFL photooxidation times were studied at a pH of 6.5 and at constant 2 g/L Nano-GO/M composite concentration with a power of 80 W sunlight. As the irradiation time was increased from 30 min to 120 min, to 250 min and to 350 min the CIP removals increased from 55% to 75% to 80% and to 81% for initial CIP concentration of 1mg/L (Figure 15). Further increase in irradiation time from 350 min to 24 h did not affect the CIP removal yield significantly. CIP removal efficiency was increased only 2% (from 81% to 83%). The optimum sunlight irradiation time can be considered as 250 min for the maximum removal efficiency of CIP.

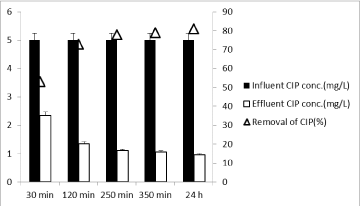

Figure 15: Effect of irradiation time on the yields of constant CIP concentration (5 mg/L), at a constant Nano-GO/M concentration (2g/L), at a pH of 6.5 and at 35°C ± 5°C and at increasing irradiation time and with a power of 80 W sunlight (‹a (0.05)).








    Figure 15: Effect of irradiation time on the yields of constant CIP concentration
(5 mg/L), at a constant Nano-GO/M concentration (2g/L), at a pH of 6.5 and
at 35°C ± 5°C and at increasing irradiation time and with a power of 80 W
sunlight (‹a (0.05)).

To determine the optimum irradiation time for maximum OFL removal yields, increasing irradiation (30 min, 120 min, 250 min, 350 min and 24h) times were used (Figure 16). As aforementioned in the upper section, the optimum Nano-GO/M composite concentration was found as 2g/L. Therefore, the effects of irradiation times of sunlight on the removal of OFL studied under the same operational conditions {at constant OFL concentration (1mg/L), at five different sunlight irradiation times (30 min, 120 min, 250 min, 350 min and 24h), at a pH of 6.5 and at constant 2 g/L Nano-GO/M composite concentration with a power of 80 W sunlight)}. The removal yields of OFL were obtained as 57%, 77%, 79% and 82% at 30 min, 120 min, 250 min and 350 min, respectively. Further increase in irradiation time from 350 min to 24 h did not affect the OFL removal yield significantly (Figure 16). OFL removal efficiency was increased only 3% (from 82% to 85%). The optimum sunlight irradiation time can be considered as 350 min for the maximum removal efficiency of OFL (82%- for 1mg/L OFL). Lin and Wu [36] showed that CIP was degraded as a function of time at a Na2S2O8 concentration of 1.92g/L. The efficiency of photo-degradation of CIP (initial concentration 10mg/L) reached 70% after 5min and then increased with time and the maximum CIP yield was recorded as 90%. They also reported that after 30 min irradiation time the degradation efficiency did not show a significant increase compared to our study.

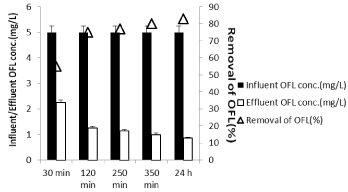

Figure 16: Effect of irradiation time on the yields of constant OFL concentration (5 mg/L), at a constant Nano-GO/M concentration (2g/L), at a pH of 6.5 and at 35°C ± 5°C and at increasing irradiation time and with a power of 80 W sunlight (‹a (0.05)).








    Figure 16: Effect of irradiation time on the yields of constant OFL
concentration (5 mg/L), at a constant Nano-GO/M concentration (2g/L), at
a pH of 6.5 and at 35°C ± 5°C and at increasing irradiation time and with a
power of 80 W sunlight (‹a (0.05)).

Effects of pH on the of removal CIP and OFL throughout photodegradation under sunlight: Due to the chemical nature of fluoroquinolones, pH is the parameter ruling the photodegradation of CIP onto the catalyst surface. The pH value is among the most important parameters that has an impact on the photocatalytic capacity of Nano-GO/M. The effects of pH on the on the 1mg/L CIP and OFL concentrations were studied under acidic, neutral and alkaline pHs (4, 6.5 and 10) at an irradiation time of 250 min for CIP and 350 min for OFL, at a Nano-GO/M concentration of 2 g/L and at 35°C±5°C. Table 1 represents the effects of different pH’s on the removal efficiency of CIP. Photocatalytic removal efficiency of CIP and OFL on Nano-GO/M was relatively high at pH 6.5 (Table 1). The zero charge point of (pHpzc) Nano-GO/M is at pH ≈ 5.5 [37]. Thus, the surface of Nano-GO/M was positively charged when pH ‹ pHpzc, and negatively charged when pH > pHpzc. CIP has positively charged (cationic; pH=3), negatively charged (anionic; pH=7.5), and/or zwitterionic (pH=10) species at pH’s due to different pKas of 6.1 and 8.7, respectively [38]. In the case of pH 6.5 (the natural pH of CIP), photocatalytic removal efficiency was the highest and the surface of Nano-GO/M was still in the positive form and the CIP was in its neutral form [39]. The low photodegradation efficiency at more acidic pH (for example, at 4) may be related to the decomposition and corrosion of catalyst in acidic medium [40]. On the other hand, both Nano-GO/M and CIP were negatively charged in basic conditions, leading to electrostatic repulsion between them and the lower photodegradation efficiency of CIP. In the case of pH 6.5 (the natural pH of CIP), photocatalytic removal efficiency was the highest and the surface of Nano-GO/M was still in the positive form and the CIP was in its neutral form [39]. The photooxidation of OFL depends on pH value of OFL solution same as CIP antibiotic. Since it determines the surface charge properties of the photocatalyst and therefore the adsorption behavior of the organic substrate. pH 4 and 10 are not suitable for OFL adsorption on the Nano-GO/M surface. According to the protonation constants of OFL (log K1 8.28, log K2 = 6.00), OFL exists as a species positively charged on the piperazine nitrogen atom at pH 4, as zwitterionic form, positively charged on piperazine moiety and negatively charged on quinoline moiety, at pH 7, and as the species negatively charged on quinoline at pH 9 [41].

Table 1: Photocatalytic removal efficiencies of CIP and OFL at acidic, neutral and alkaline pH’s (4, 6.5 and 10) at 35°C ± 5°C and at 2 g/L constant Nano-GO/M concentration at 250 min under 80W sunlight.









CIP concentrations (1 mg/L)


OFL concentrations (1 mg/L)






Removal efficiency (%) at pH= 4


69


71






Removal efficiency (%) at pH=    6.5


80


82






Removal efficiency (%) at pH=    10


50


53












Table 1: Photocatalytic removal efficiencies of CIP and OFL at acidic, neutral
and alkaline pH’s (4, 6.5 and 10) at 35°C ± 5°C and at 2 g/L constant Nano-GO/M
concentration at 250 min under 80W sunlight.

Determination of by-products of CIP and OFL

In this study we also investigated the metabolites of CIP (M1: desenthylenciprofloxacin ans M3: oxociprofloxacin) and OFL (POF: 9-Piperazino Ofloxacin and MOF: Des-methyl Ofloxacin) which are released during photocatalytic processes. To measure the metabolites of CIP and OFL (initial antibiotic conc. 1mg/L), all experiments were realized at original pH (6.5) of antibiotic solutions with 2 g/L Nano- GO/M at photooxidation times of 250min and 350min for CIP and OFL, respectively. It was observed that after photocatalytic treatment 1mg/L initial CIP degraded with a yield of 80%. 0.8mg/L CIP was photodegraded into the final product such as CO2 and H2O (Table 2). 20% of CIP was remained in the effluent with an effluent concentration of 0.2mg/L. After photocatalytic treatment from 1mg/L OFL 0.82mg/L OFL was photodegraded while 18% of OFL was not removed. Final concentrations of M1, M3, POF and MOF metabolites were found as 0.425, 0.125, 0.098 and 0.075 mg/L, respectively. Mella et al. [42] found that 7-[(2-aminoethyl) amino]-6-fluoroquinoline) formed by the loss of the piperazine ring. This pathway was widely reported in the literature as being the primary one for CIP photo-degradation under acidic conditions [43]. Previous studies demonstrated that with longer irradiation times, therefore mentioned product photodegraded, resulting in 7-amino-6-fluoroquinoline [43]. However, this species was not detected in the present study. Despite the fact that these compounds were preferentially found under acidic conditions, they have been observed to a very low extent at neutral pH [42], as well as in alkaline medium (pH 8.6 and 10.6) [44]. According to the authors, under such alkaline conditions several additional photo-degradation products were detected, corroborating our results. However, no consistent information was found regarding the mechanism of these reactions. Albini and Monti [45] have suggested possible hydrogen abstraction either through some excited state or by hydroxyl radicals arising through the direct oxidation of water or the activation of residual dioxygen. Because an air-flushed solution was used in our study, the latter hypothesis must especially be considered here. The differences in metabolites could be attributed to the differences in the nanocomposites used, to the temperature, to the pH and to the other environmental conditions. However, Pico and Andrew, Bobu et al., Senta et al [46] and Radjenovic et al [47] investigated similar metabolites from CIP and OFL although the removal processes (photodedradation, biological treatment in membrane bioreactor) are quite different.

Table 2: Shows the influent/effluent and removed/transformed CIP (250 min) and OFL (350 min), (operational conditions: pH 6.5, 2 g/L Nano-GO/M and 80 W sunlight).









Influent (mg/L)


Effluent (mg/L)


Removed concentration (mg/L)






CIP


1


0.2


0.8






M1 (desenthylenciprofloxacin)


0


0.425


0.425






M3 (oxociprofloxacin)


0


0.125


0.125






Total metabolites


0


0.54


0.54






The rest of CIP


1


0.25


0.05






OFL


1


0.18


0.82






POF (9-piperazino ofloxacin)


0


0.098


0.8211






MOF (des-methyl ofloxacin)


0


0.075


2.211






Total metabolites


0


0.173


3.032






The rest of OFL


1


0.467


0.647












Table 2: Shows the influent/effluent and removed/transformed CIP (250 min)
and OFL (350 min), (operational conditions: pH 6.5, 2 g/L Nano-GO/M and 80
W sunlight).

Fluoroquinolones in the triplet state can be quenched by oxygen through energy transfer with organic metabolites containing -NH and -F groups. The formation of singlet oxygen and electron transfer to form the superoxide anion and the fluoroquinolone cation radical [45]. Another possibility is the direct decarboxylation of the CIP. In the current investigation no other electrolyte or buffer was present and, under such conditions, HO- would work as an electron donor following the mechanisms mentioned above. Starting from there and considering the capacity of quinolones without a piperazine moiety to convert to a triplet state is possible, after partial degradation of the piperazine side chain and subsequent formation of a metabolite containing the -OH, -NH2, -O and NH groups can be occurred. Xing et al., [48] examined eighteen of degradation products (some of these DP8: C15H14FN3O4; DP9: C13H11FN2O3; DP10: C17H19N3O4; DP11: C17H18FN3O6 etc.) of CIP and the most of the degradation products had lower toxicity (e.g. DP16, DP19, DP 41, DP46) than CIP, but some of the degradation products (e.g. DP10, DP11, DP20 etc.) were more toxic.
