Study on Liquid Chromatography and Mass Spectrometry of Memnoniella echinata Metabolites against Vector of Dengue and Chikungunya

Research Article

Austin Chromatogr. 2014;1(3): 6.

Study on Liquid Chromatography and Mass Spectrometry of Memnoniella echinata Metabolites against Vector of Dengue and Chikungunya

Gavendra Singh1* and Soam Prakash1

1Department of Zoology, Dayalbagh Educational Institute, India

*Corresponding author: Gavendra Singh, Environmental and Advanced Parasitology and Vector Control Biotechnology, Biomedical Laboratories, Department of Zoology, Dayalbagh Educational Institute, Agra-282005, India

Received: October 08, 2014; Accepted: October 27, 2014; Published: October 29, 2014

Abstract

Aedes aegypti and Ae.albopictus are vectors for transmitting Dengue, Chikungunya, and Yellow fever. These fevers are growing public health problem globally. Memnoniella echinata is a cosmopolitan fungus. This fungi is exceptionally good model for bio control and more significant as bio agent. Recently, especially fungi, has emerged as a current and future candidate for mosquito control. In the study M. echinata was cultured in the Potato Dextrose Broth (PDB) medium. The metabolites were filtered with the Whatman-1 filter paper. These purified metabolites were tested in the statistically significant concentrations of 50, 100, 150, 200, 250 ppm against first, second, third, and fourth instar larvae of Ae. aegypti and Ae. albopictus. The bioactive compounds have been isolated with the Thin Layer Chromatography (TLC) plates with chloroform and methanol used as solvent system for analysis. These compounds were detected with the Liquid Chromatography Mass Spectrometry (LC-MS/MS) analysis. The LC50, LC90 and LC99 values were 84, 188, 205 ppm against first and second instar. However, in case of third instar 115, 191, 209 ppm and 125, 196, 214 ppm was observed against fourth instarlarvae of Ae. aegypti. Thus, the LC50, LC90 and LC99 values were 84, 188, 205 ppm against first and second instar of A. albopictus. The third instar LC50, LC90 and LC99 values were 84, 192, 210 ppm, and fourth instar 89.2, 196, and 215 ppm respectively after exposure for 24 hours. These new results significantly support broadening the current dengue and Chikungunya vectors control paradigm beyond chemical larvicides.

Keywords: Memnoniella echinata; Metabolites; LC-MS/MS analysis; Aedes aegypti, Ae. Albopictus

Introduction

Aedes aegypti and albopictus are vectors for dengue Chikungunya, and Yellow fever. In recent years, dengue and Chikungunya transmission has increased predominantly in urban and semi-urban areas as major public health concern. Globally, the incidence of dengue has grown in recent decades. Approximately 2.5 billion people over40% of the world’s population is now at risk from dengue. Currently there may be 50–100 million dengue infections worldwide every year [1]. The entomopathogenic fungus to control mosquito adults and larvae is not a new issue [2]. In contrast to bacteria, fungi are adulticidal agents that could be developed for domestic use to reduce vector densities and impair their vectorial capacity. Globally, chemical spraying methods have used for control Ae. aegypti and Ae. albopictus during dengue and Chikungunya epidemics. Therefore new alternative is urgently needed. The entomopathogenic fungi have used for control of Ae. aegypti and Ae. albopictus. The virulence of entomopathogenic fungi has confirmed against adult Ae. aegypti [3,4]. Metarhizium anisopliae is well known entomopathogenic fungi. M. anisopliae strain IP 46 was isolated from soil which shows pathogenicity against all stages of Ae. aegypti including the egg [5- 8]. Field studies have encouraged because significant and rapid larval mortality caused by Leptolegnia chamanii against Ae. Aegypti [9]. Lecanicillium muscarium has isolated from a dead culicid mosquito, this found pathogenic to adults of Ae. aegypti, An. arabiensis and Cx. quinquefasciatus under laboratory conditions demonstrating how naturally occurring fungal pathogens of culicids might have potential for mosquito control [10]. Aspergillus clavatus isolated from an African locust causes >95% mortality after 24 hours against An. gambiae, Ae. aegypti, and Cx. quinquefasciatus larvae [11]. The oil based formulations of conidia of M. anisopliae have enhanced ovicidal of activity at high humidity in the control of Ae. aegypti [12].

The effectiveness and deploy ability of such fungi under field conditions have yet to be explored. The fungal toxins are the true chemical in nature. The entities of fungal metabolism are not known until recent times. The fungi have isolated, a Glomeromycete (possibly Entrophospora sp.) and a Dothideomycete (possibly Phaeosphaeria sp.), for bioactive secondary metabolites. The six new compounds consisting of clearanols and disulochrin have purified [13]. A new fungi Chrysosporium lobatum strain BK-3 has isolated from Assam India. This fungal strain has produced two bioactive compounds [14]. Several metabolites from entomopathogenic Deuteromycetes have been investigated. Moreover, Beauveria spp. was known to produce beauvericin, a depsipeptide metabolite which has shown toxicity to a number of invertebrates [15]. Similarly, proteases have produced by entomopathogenic fungi to degrade cuticle and assist entry into the host were similar to proteases used by insects to degrade their own cuticle during molting [16]. A number of enzymes have known from entomopathogenic fungi, such as the proteases, lipases, and chitinases that assist in cuticular breakdown. These enzymes can be thought of as bioactive and there has been increasing interest in use of these enzymes in mosquito control. Entomopathogenic fungi also produce insecticidal toxins. The early literature on toxins from entomopathogenic fungi was reviewed by Roberts and Stressed [15,17].

Memnoniella echinata is a cosmopolitan fungus. This commonly found in tropical and sun tropical areas especially on cellulose based materials. The maximal spore germination temperature is 37 °C. M. echinata releases different mycotoxins. Accordingly in present study we investigated the efficacy of M. echinata metabolites against Ae. aegypti and Ae. albopictus larvae in laboratory and Liquid Chromatography Mass Spectrometry (LC-MS/MS) analysis for compounds.

Material and Methods

Collection and culture of Memnoniella echinata (MTCC 604)

The discovery of bioactive compounds usually begins with isolation and identification of the fungi and growing them at various temperature regimes in a variety of selective and non-selective culture media. The M. echinata (MTCC 604) was obtained from Microbial Type Culture Collection and Gene Bank, Institute of Microbiology, Chandigarh, India. The Potato Dextrose Broth (purchased from Himedia) M403, 24.0 gm was suspended in sterile water. The medium was sterilized by autoclaving at 15 lbs pressure (121°C) for 15 minutes. The broth was supplemented with 50 μg/ml chloramphenicol as a bacteriostatic agent. M. echinata colonies grown on the Sabouraud Dextrose Agar plates were transferred to each flask using the inoculation needle. The conical flasks inoculated with M. echinata were incubated at 24±2°C for 15 days (Figure 1).

Figure 1: The culture of Memnoniella echinata in the Potato Dextrose Broth medium maintained in the laboratory.






Figure 1:  The culture of Memnoniella echinata in the Potato Dextrose Broth medium maintained in the laboratory.

Maintenance of mosquito larvae in laboratory

Aedesaegypti and Ae.albopictus larvae were reared in the laboratory at a temperature of 25±2°C, 70±5% relative humidity and LD 14:10 h. The different larval instars were maintained in separate enamel containers (25-cm length×15-cm width×5-cm depth), at a density of 200 larvae per container. All larvae were fed 0.4 mL/ container of a 5% (w/v) autoclaved suspension of freeze-dried yeast in distilled water on day 1 and day 2. Larvae were reared in deionised water at pH 7.0. To counteract evaporation, water was added daily.

Bioassays

The larvae were collected from a mosquito colony maintained at insectaria at the Department of Zoology, Dayalbagh Educational Institute. The bioassays were performed as per the standard procedures recommended by World Health Organization with some modifications [18]. The first, second, third and fourth instars larvae of Ae. aegypti and Ae. albopictus have been tested (50, 100, 150, 200, 250 ppm) at selected concentrations. These experiments were carried out in triplicate using 20 larvae for each replicate assay. The replicates were run simultaneously yielding a total of 60 larvae for each dosage. The larvae were placed in 50 ml disposable plastic cups containing 15 ml of test solution and fed on larval food during all testing. Mortality and survival was established after 24h of exposure. The number of the dead larvae in the three replicates was expressed as the percentage mortality for each concentration. The negative control was deionised water while the positive control was the Chitinase of S. griseus C6137 purchased from Sigma-Aldrich. After determining the mortality of larvae in this same range of concentrations were used to determine LC50, LC90 and LC99 values. Batches of 20 first, second, third and fourth in star larvae were transferred by means of strainers, droppers to Schott Duran beakers, each containing 200ml of triple deionised water. Unhealthy or damaged larvae or pupae were removed and replaced. The depth of the water in the cups or vessels should remain between 5cm and 10cm, deeper levels may cause undue mortality.

Statistical Analysis

Data from all replicates have been pooled for probit analysis [19]. The LC50, LC90 and LC99 values were calculated from a log dosage probit mortality regression line using computer software programs IBM SPSS 19.0. The bioassays have been repeated at least three times, using new solutions and different batches of larvae each time. Standard deviation or confidence intervals of the means of LC50 values are calculated and recorded.

Thin layer chromatography (TLC)

The TLC was used to monitor the identity of each extracts and fractions, additionally to screen the qualitative purity of the isolated compound. It was also developed to optimize the solvent system that would be applied for column chromatography. The Analytical TLC was performed on precoated TLC plates with Si gel 60 F254 (0.2 mm, Merck) and RP-2 (0.2 mm, Merck) using diverse solvent systems for mostly semi-polar compounds. However, solvent system containing EtOAc: Acetone: n-Hexane: Formic acid (25:4:18:0.3, v/v) was mostly used, unless otherwise stated. The compounds were then detected by their UV absorbance at wavelength 254 and 366 nm and/or by spraying the TLC plates with spraying reagents followed by heating at 110 °C. The solvent systems: SS1: EtOAc: Acetone: n-Hexane: Formic acid (25:4:18:0.3, v/v), SS2: DCM: EtOAc (65:35, v/v).

Column chromatography (CC)

What man no.1 filtered metabolites were subjected to repeated separation through column chromatography using appropriate stationary phase and the solvent system previously determined by TLC? The column chromatography was carried out on silica gel 60 (0.015-0.040 and 0.040-0.063 mm mesh size, Merck) and Sephadex LH-20 (25-100 μm mesh size, Amersham Biosciences). Further purification of the fractions was later performed on another CC, preparative TLC or semi-preparative HPLC using C-18 column. The separation systems were a) Stationary Phase: Silica gel Solvent systems: SS1 : EtOAc: Acetone: n-Hexane (25:4:18, v/v), SS2: DCM: EtOAc (65:35, v/v), SS3 n-Hexane: EtOAc (gradient), SS4: DCM: EtOAc (gradient), SS5: DCM:MeOH (10:1, v/v), SS6: Chloroform: MeOH (95:5, v/v). b) Stationary Phase: Sephadex LH-20 and the Solvent systems: SS1 MeOH:H2O (gradient), SS2:MeOH, SS3: DCM:MeOH (10:1 to 4:1, v/v).

Liquid chromatography mass spectrometry (LC-MS/MS)

Ultra-High performance Liquid Chromatography Mass spectrometry (Waters ACQUITY®) was used to identify the interesting peaks from extracts and fractions as well as to evaluate the purity of isolated compounds. The gradient used started with 10:90 (MeOH: H2O to 100% MeOH) in 35 min. Column C-18 was used for the isolation of pure compounds from fractions previously separated using column chromatography. Each injection consists of about 2-5 μl of the fraction dissolved in 1 μl of the solvent system. The solvent system consisting of MeOH or MeCN and aqua bidestillata was pumped through the column at a flow rate of 1 ml/min. The eluted peaks which were detected by the online UV detector were collected separately in round bottom flasks.

Results and Discussion

Fungi have significant attention in recent years to produce novel compound. The fungi are toxins resources and pathogenic against adult mosquitoes, pupae and larvae. In the present investigation the metabolites of M. echinata has shown significant efficacies at all tested concentrations against larvae of Ae. aegypti and Ae. albopictus. The LC50, LC90 and LC99 values were 84, 188, 205 ppm against first in star, 86, 188, 205 ppm against second instar. Moreover, third instar 115, 191, 209, ppm and 125, 195, 215 ppm were observed against fourth instar of Ae. aegypti. Moreover, the LC50, LC90 and LC99 values were 84, 188, 206 ppm against first and second instar of Ae. albopictus. The third instar LC50, LC90 and LC99 values were 84, 192, 210, and fourth instar 89.2, 196, and 215ppp. Moreover, significant percent mortality has observed at selected concentration against larvae of Ae. aegypti and Ae. albopictus (Figure 2,3 Table 1). The compounds were detected in metabolites of M. echinata when pass through TLC plates in the chloroform and methanol as solvent system. Figure 4 has demonstrated the excellent match between the observed MS/ MS spectrum from 150-400 m/z at 1: scan ES+5.61e6. Moreover, Figure 5 has shown the MS/MS spectrum from 150-500 m/z at 1: scan ES+1.11e7. The chromatographic pecks predicted proteins and enzymes from the metabolites of M. echinata one of the sample.

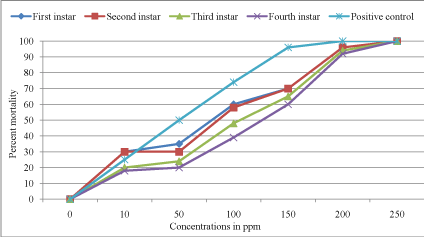

Figure 2: Effect of culture filtrates of Memnoniella echinataagainst Aedes aegypti at different concentrations after exposure of 24hours.






Figure 2:  Effect of culture filtrates of Memnoniella echinataagainst Aedes aegypti at different concentrations after exposure of 24hours.

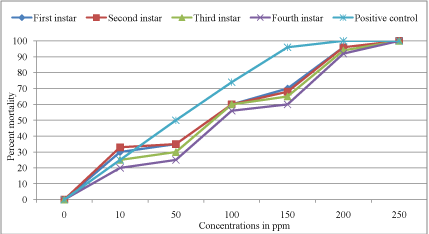

Figure 3: Effect of culture filtrates of Memnoniella echinata against Aedes albopictus at different concentrations after exposure of 24h.






Figure 3:  Effect of culture filtrates of Memnoniella echinata against Aedes albopictus at different concentrations after exposure of 24h.

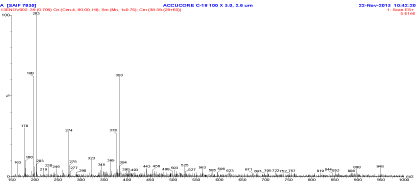

Figure 4: Liquid Chromatography Mass spectrometry (LC-MS/MS) spectra of culture filtrates of Memnoniella echinata scan at ES+5.61e6 by C-18 column.






Figure 4:  Liquid Chromatography Mass spectrometry (LC-MS/MS) spectra of culture filtrates of Memnoniella echinata scan at ES+5.61e6 by C-18 column.

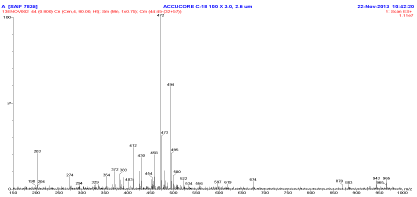

Figure 5: Liquid Chromatography Mass spectrometry (LC-MS/MS) spectra of culture filtrates of Memnoniella echinata scan at ES+1.11e7 by C-18 column.






Figure 5:  Liquid Chromatography Mass spectrometry (LC-MS/MS) spectra of culture filtrates of Memnoniella echinata scan at ES+1.11e7 by C-18 column.

Table 1: Bioassays of Memnoniella echinata culture filtrates against Aedes aegypti Ae. albopictus after exposure of 24 hours.







Instars


Aedes aegyptiAedes albopictus






LC50


LC90


LC99


LC50


LC90


LC99






First    instars


84


188


205


84


188


206






Second    instars


86


188


205


84


188


206






Third    instars


115


191


209


84


192


210






Fourth    instars


125


195


215


89.2


196


215











Table 1:  Bioassays of Memnoniella echinata culture filtrates against Aedes aegypti Ae. albopictus after exposure of 24 hours.

The chemical insecticides have been replaced for malaria control with residual sprays of fungal bio pesticides has been suggested in areas of high insecticide resistance [20]. M. anisopliae has been practically introduced in rural Tanzanian village houses. The black cotton sheets were when impregnated with M. anisopliae spores in sunflower oil and hung from the ceiling of traditional houses to provide a resting substrate for mosquitoes after taking their blood meals. This led to the infection of about a quarter of the mosquitoes collected from these sheets and to considerably faster death compared to controls. They claimed that the implementation of such control method would lead to significant reduction in malaria transmission intensity by about 75% [6].In the present study the metabolite of M. echinata Figure 6 has shown significant efficacies against larvae of Ae. aegypti and Ae. albopictusat all the concentrations (10, 50,100,150, 250 ppm). The percent mortalities were minimum 20% and maximum 100% after exposure in 24 hours. In our laboratory the culture filtrates of Culicinomyces clavisporus, Trichophyton ajelloi, and Lagenidium giganteum have been found highly pathogenic against Ae. aegypti, Ae. stephensi, and Cx. quinquefasciatus larvae and adults also [21,22]. The entomopathogenic fungi were acted through external contact without the need to be ingested [23]. The spraying of a biopesticide contained natural isolate of B. bassiana on clay tiles with subsequent transient exposure of An. stephensi could lessen malaria transmission potential to zero within a feeding cycle [24]. Moreover, fungal efficacy against mosquitoes under field conditions are needed before their full potential as alternatives to insecticides can be determined [25]. The insecticide resistant Anopheles mosquitoes were susceptible to B. bassiana infection. The latter finding was important in considering the involvement of fungi in IVM activities in situations where resistance to synthetic insecticides [26]. In present study M. echinata has tremendous potential for isolation of compounds in the metabolites. Present study revealed that the LC90 and LC99 values of 195 and 215pp after exposure of 24 hours. Our study significantly depicted M. echinata culture filtrates have significant mosquito larvicidal activity against Ae. aegypti and Ae. albopictus. Thus the LC-MS/MS spectrum of a complex combination has depicted that overlaid distributions of several different compound. These combinations of compounds have affected the all instar larvae of Ae.aegypti and Ae. albopictus on all tested significant lethal concentrations.

Figure 6: (A) Aedes aegypti larvae before exposure. (B) Ae. Aegypti larvae after exposure. (C) Ae. albopictus larvae before exposure. (D) Ae. albopictus larvae after exposure of culture filtrate of Memnoniella echinata.






Figure 6:  (A) Aedes aegypti larvae before exposure. (B) Ae. Aegypti larvae after exposure. (C) Ae. albopictus larvae before exposure. (D) Ae. albopictus larvae after exposure of culture filtrate of Memnoniella echinata.

A sub-lethal concentration of Imidacloprid (IMI) was not significantly alter the daily survival rates of mosquito was identified to be 0.1 ppm. This sub-lethal concentration was combined with M. anisopliae conidia (1×109 conidia mL). Both the combined treatment and the conidia alone were able to reduce the survival of Ae. aegypti compared with untreated treated mosquitoes. Importantly, mosquito survival following exposure to the combined treatment for 6 and 12 hours was significantly reduced when compared with mosquitoes exposed to conidia alone [27]. In the present efficacy study the metabolites of M. echinatawas highly susceptible against all instar of Ae. aegypti and Ae. albopictus after exposure for 24 hrs. The significant LC90 values 188-196 have demonstrated the biomolecule of M. echinata can apply for controlling larvae of Ae. aegypti and Ae.albopictus.Moreover, the pathogenicity of nineteen hypocrealean entomopathogenic fungi from seven different genera was tested in adult Ae.aegypti. All fungi proved to be pathogenic, and Isariafumosorosea, Lecanicilliummuscarium, Lecanicilliumpsalliotae, M. anisopliae, M.lepidiotae, M.majus, M.frigidum, Paecilomycescarneus, and Paecilomyceslilacinus caused total mortality within 15 days of exposure of mosquitoes to the fungal culture. All fungi developed on dead individuals. The high susceptibility of adults to most tested strains underlines the interest of entomopathogenic fungi especially those of the genera Metarhizium, Isaria, Paecilomyces and Lecanicillium for biological control of Ae. aegypti [28]. M. anisopliae IP 46 conidia mixed with soil was tested for effectiveness against Ae.aegypti eggs. The mycelium and new conidia developed first on eggs between 4.8 and 15 days respectively after incubation of fungus-treated soils at 3.3×103 up to 3.3×105 conidia/g soil at 25°C and relative humidity close to saturation. After 15 day incubation, 53.3% of the eggs exposed to soil with 3.3× 105 conidia/g showed external development of mycelium and conidia [29]. The B. bassiana and M. anisopliae have decreased disease transmission by reducing mosquito vector longevity and also occur worldwide. Ninety three isolates of entomopathogenic fungi representing six species (B. bassiana, M. anisopliae, Isariafumosorosea, I. farinosa, I. flavovirescens, and Lecanicillium spp.) were screened as potential biological control agents of Ae.aegypti [30]. The efficiency of M. anisopliae impregnated cloths, with and without imidacloprid [IMI]) was evaluated against adult Ae. aegypti in simulated human dwelling [31]. The B. bassiana caused a reduction in the life span of Ae. aegypti and hindered dengue virus replication in the mosquito midgut. This infection was induced the expression a variety anti-microbial and dengue virus restriction factor genes [32]. Sub lethal effects of Leptolegniachapmanii are entomopathogenic microorganismon fecundity, number of gonotrophic cycles, fertility, and relationship between wing length and fecundity in Ae. Aegypti females. That survived infection with L. chapmanii laid fewer eggs, had a smaller number of gonotrophic cycles, had shorter wings, and were less fertile than controls. This is the first study on the sublethal effects experienced by specimens of Ae. Aegypti that survived infection with zoospores of L.chapmanii [33]. Beauvericin was first isolated from B. bassiana, which is a common and commercial entomopathogenic mycoinsecticide [34]. Beauvericin was confirmed as the active compound from B. bassiana against Artimiasalina, which was considered a model organism to study insecticidal activity. Subsequently, the insecticidal effect of beauvericin on a microgram level was investigated on Calliphoraerythrocephala, Ae.aegypti, Lygus spp., Spodopterafrugiperda and Schizaphisgraminum [35-37]. A significant progress has been made in understanding proteins and enzymes involved with penetration of larvae cuticle. The M. echinata can be more effective with combined action of present numerous toxins and enzymes of the culture filtrate.

Conclusion

The bioassays demonstrated that the metabolites of M. echinata were highly pathogenic against all instar of Ae. aegypti and Ae. albopictus. This stage arrangement of pathogenicity can be recommended that this fungus is developmental stage specific parameter. The findings in study emphasize a first step towards characterizing the complex field conditions that can allow interactions between mosquito larvae and M. echinata.They underscore the potential of mycolarvicides for the integrated control of all larval stages of Ae. aegypti and Ae. albopictus. The results in this study open the possibility for further investigations of the efficacy of adulticidal and for their repellent properties. Moreover, these results could be useful in the research for selecting newer, more selective, larvicidal compounds. The growing epidemics all over the globe suggest that new larvicides should be explored to control Chikungunya and Dengue in specific environment.

Acknowledgment

This work was funded by the Department of Science and Technology (DST), New Delhi under Fast Track scheme of the Science and Engineering Research Board. We sincerely thank Prof. P.K. Kalra, Director, Dayalbagh Educational Institute, for his encouragements for research. We are also thankful to DST-FIST program (2003-2008) for providing laboratory facilities in the Department of Zoology. We are acknowledging to SAIF CSIR-CDRI Lucknow, India for LC-MS/ MS analysis. G. Singh is indebted to DST-SERB, New Delhi for the award of Fast Track Young Scientist project (SR/FT/LS-01/2012), to conducts this study.
