Ileo-cecal Sphincteric Duplication-Total Cyst Excision with Ileo-cecal Valve Preservation

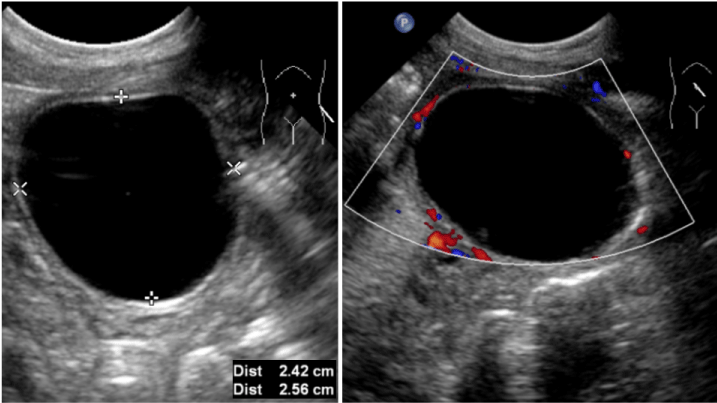

Figure 1 : Postnatal ultrasound scan and colour Doppler- Note double lining of enhancing intestinal mucosa and simple cyst less than 5 cm in diameter.

At 8 weeks of age she presented with significant bright fresh painless intermittent lower gastro-intestinal bleeding. On arrival she was pale; abdomen was soft with a palpable mobile mass in right lower quadrant. Her haemoglobin was 80 G/L.

After initial resuscitation and stabilisation, she underwent exploration through periumbilical incision which showed terminal ileal sphincteric duplication cyst with some blood in the lumen of bowel. The ileo-cecal area and cecum was very mobile. Cyst was aspirated. Ileo-cecal area with collapsed cyst was exteriorised. It was attached to ileal sphincter 4 cm away from the ileo-cecal valve via a small stalk on the mesenteric side. Both leaves of the mesentery were opened by displacing the vessels and the cyst wall was mobilised. Cyst was excised totally with closure of the mesenteric defect.

Post-operative period was uneventful and was discharged home on 3rd post-operative day. Histology confirmed ileal duplication cyst with ectopic gastric mucosa and ulceration of adjacent mucosa. At one year follow up, patient was thriving well and asymptomatic and was discharged.

Discussion

Congenital gastrointestinal duplications are rare, with an incidence of 1 in 4,500 neonatal autopsies or 1 in 18,000 live births. Although the small bowel duplications are the most common of all one third are situated in the jejuno-ileum (30%) and one third are situated close to ileocecal valve (30%) with the half of all lesions may contain ectopic gastric mucosa [3,4]. Over 90% are cystic and the remaining one may be tubular.

A duplication cyst diagnosed by prenatal and postnatal scans may create problems even when they are smaller than 5 cm in diameter, without having ectopic gastric mucosa and even before birth [5-7]. An anatomically intact and functionally preserved ileocecal valve is essential for better growth and nutrition in the neonates and infants and this fact has been taken into consideration at large neonatal and paediatric surgical centers with special interest in bowel preservation and lengthening rather than going on the transplant option.

Terminal ileum and ileocecal region has high incidence of congenital and acquired pathology in neonates and infants in the form of ileal atresia, congenital internal hernia, midgut malrotation, necrotizing enterocolitis, intussusception , etc. and a plea has been made recently for preservation of the ileocecal valve to retain its important functions should be considered in cases of benign lesions.

A simple abdominal cyst less than 5 cm diameter diagnosed prenatally and confirmed by postnatal scans as duplication cyst should be taken seriously. It can become symptomatic and present with life threatening emergency even before the planned excision and could be fatal.

Traditionally segmental bowel resection and anastomosis is performed which would sacrifice ileo-cecal sphincter and valve. Total excision of the cyst with preservation of ileo-cecal sphincter and valve is crucial in infants and it is feasible, safe and effective through small peri-umbilical incision.

Resection of duplication alone without the resection of the ileum or the ileocecal valve is the ideal treatment, and whenever possible laparoscopic resection is advised in uncomplicated cases. Recently a large series defending the conservation of the ileocecal valve has been published and traditional resection of the ileum with the ileocecal valve has been questioned [8].

Although considered to be congenital and in this era of prenatal diagnosis, most are diagnosed on antenatal scans but few may be missed and present later in life with catastrophic complications. Apparently benign with excellent prognosis when treated early and appropriately, such lesions may lead to lethal complications and few cases of sudden deaths have been reported even in the twenty first century [9-12].

References

1. Folaranmi S, Rakoczy G, Bruce J, Humphrey G, Bowen J, Morabito A, et al. Ileocaecal valve: how important is it? Pediatr Surg Int. 2011; 27: 613-615.
2. Shafik AA, Ahmed IA, Shafik A, Wahdan M, Asaad S, El Neizamy E, et al. Ileocecal junction: anatomic, histologic, radiologic and endoscopic studies with special reference to its antireflux mechanism. Surg Radiol Anat. 2011; 33: 249-256.
3. Bonacci JL, Schlatter MG. Gastric duplication cyst: a unique presentation. J Pediatr Surg. 2008; 43: 1203-1205.
4. Stern LE, Warner BW. Gastrointestinal duplications. Semin Pediatr Surg. 2000; 9: 135-140.
5. Lawther S, Patel RV, de la Hunt MN. Ileal duplication cyst associated with segmental ileal stenosis and neonatal perforation. J Pediatr Surg Case Reports. 2013; 1: 8–10.
6. Tong SC, Pitman M, Anupindi SA. Best cases from the AFIP. Ileocecal enteric duplication cyst: radiologic-pathologic correlation. Radiographics. 2002; 22: 1217-1222.
7. Kashiwagi Y, Suzuki S, Watanabe K, Nishimata S, Kawashima H, Takekuma K, et al. Sudden unexpected death associated with ileocecal duplication cyst and clinical review. Clin Med Insights Pediatr. 2010; 4: 25-28.
8. Catalano P, Di Pace MR, Caruso AM, De Grazia E, Cimador M. Ileocecal duplication cysts: is the loss of the valve always necessary? J Pediatr Surg. 2014; 49: 1049-1051.
9. Puligandla PS, Nguyen LT, St-Vil D, Flageole H, Bensoussan AL, Nguyen VH, et al. Gastrointestinal duplications. J Pediatr Surg. 2003; 38: 740-744.
10. Byard RW. Sudden infant death, large intestinal volvulus, and a duplication cyst of the terminal ileum. Am J Forensic Med Pathol. 2000; 21: 62-64.
11. Kibayashi K, Sumida T, Shojo H, Tokunaga O. Unexpected death due to intestinal obstruction by a duplication cyst in an infant. Forensic Sci Int. 2007; 173: 175-177.
12. Kashiwagi Y, Suzuki S, Watanabe K, Nishimata S, Kawashima H, Takekuma K, et al. Sudden unexpected death associated with ileocecal duplication cyst and clinical review. Clin Med Insights Pediatr. 2010; 4: 25-28.
