Cytokine Release Syndrome after Tisagenlecleucel
Infusion in Pediatric Patients with Refractory/Relapsed
B-Lineage Acute Lymphoblastic Leukemia: Is there a
Role for Diclofenac?

Napolitano S1; Ottaviano G; Bettini L; Russotto V; Bonanomi S; Rovelli A; Biondi A; Ronad R; Balduzzi A

Research Article

Austin Crit Care J. 2021; 8(1): 1035.

Cytokine Release Syndrome after Tisagenlecleucel Infusion in Pediatric Patients with Refractory/Relapsed B-Lineage Acute Lymphoblastic Leukemia: Is there a Role for Diclofenac?

Napolitano S¹*, Ottaviano G², Bettini L³, Russotto V⁴, Bonanomi S¹, Rovelli A¹, Biondi A^1,5, Ronad R⁴ and Balduzzi A^1,5

¹Department of Pediatric, Hematology-Oncology and Bone Marrow Transplantation Unit, Monza and Brianza Foundation for Children and their Mums, San Gerardo Hospital, Italy

²Molecular and Cellular Immunology Unit, University College of London, Great Ormond Street Institute of Child Health, United Kingdom

³Monza and Brianza Foundation for Children and their Mums, Tettamanti Laboratory, Italy

⁴Department of Emergency and Intensive Care, University Hospital San Gerardo, Italy

⁵University of Milan-Bicocca, Italy

*Corresponding author: Sara Napolitano, Pediatrician, Clinica Pediatrica, Università’ degli Studi di Milano Bicocca, Monza, Italy; Contact Information: Fondazione MBBM / Ospedale San Gerardo, Via Pergolesi 33, 20900 Monza (MB), Italy

Received: April 12, 2021; Accepted: May 11, 2021; Published: May 18, 2021

Abstract

Background: Cytokine Release Syndrome (CRS) is a major complication after Chimeric-Antigen Receptor (CAR) T cell treatment, characterized by an uncontrolled sistemic inflammatory reaction. The potential role of diclofenac in the management of CRS has been investigated in five pediatric patients treated for relapsed/refractory B-lineage acute lymphoblastic leukemia.

Procedure: in case of persistent fever with fever-free intervals shorter than 3 hours, diclofenac continuous infusion was initiated, at the starting dose of 0.5 mg/Kg/day, the lowest effective pediatric dose, in our experience, possibly escalated up to 1 mg/Kg/day, as per institutional guidelines. Vital signs, O₂ requirement, SpO₂/FiO₂ ratio and dosage of diclofenac and vasopressors until CRS resolution were recorded.

Results: CRS occurred at a median of 20 hours (range 8-27) after tisagenlecleucel infusion. Diclofenac was started at a median of 20 hours (range 13-33) after fever onset. A mean of 3,07 febrile peaks without diclofenac and 0,95 with diclofenac were reported (p-value 0.02). A clinical benefit was achieved by hampering the progression of tachypnea and, mainly, tachycardia. Despite fever control, CRS progressed in four of the five patients and hypotension requiring vasopressors, fluid retention, besides hypoxia, occurred. Vasopressors were followed by 1-2 doses of tocilizumab (one in patient 2 and two in patients 3, 4, and 5), plus steroids in patients 4 and 5.

Conclusion: based on a limited number of patients, diclofenac leads to a better fever control, which translates into symptom relief and improvement of tachycardia, but could not prevent the progression of CRS.

Introduction

Diclofenac is a commonly prescribed Non-Steroidal Anti- Inflammatory Drug (NSAID) with analgesic, anti-inflammatory, and antipyretic properties, which has been proven effective in a variety of acute and chronic pain and inflammatory conditions [1]. The principal mechanism of action is the inhibition of prostaglandin synthesis by the inhibition of Cyclooxygenase-1 (COX-1) and Cyclooxygenase-2 (COX-2) with relative equipotency. The binding of NSAIDs to COX isozymes inhibits the synthesis of prostanoids (prostaglandin PGE2, PGD2, PGF2, prostacyclin PGI2 and thromboxane TXA2). PGE2 is the dominant prostanoid produced in inflammation and the inhibition of its synthesis is considered the main mechanism of the potent analgesic and anti-inflammatory properties of these agents. Moreover, it has been demonstrated that diclofenac has higher selectivity for COX-2 than COX-1 [2]. In a cohort of consecutive unselected Intensive Care Unit (ICU) patients (including children) with fever (38.9⁰C - 41.3⁰C) not responsive to paracetamol, diclofenac sodium (starting dose 0.2 mg/kg intravenous - i.v.) was effective in reducing body temperature in the majority of the investigated patients, with no major side effects [3]. Continuous infusion of low-dose diclofenac allows to achieve fever control with no major cerebral or systemic side effects [4,5]. Renal function impairment represents a potential side effect, but it is expected to be transient/reversible, preventable by fluid optimization and infrequent in pediatrics.

The aim of this study is to describe the possible role of lowdose i.v. continuous infusion diclofenac in the management of Cytokine Release Syndrome (CRS). CRS is an uncontrolled systemic inflammatory reaction resulting from a massive release of cytokines due to the interaction between tumor and immune effector cells6. The initial source of cytokines can be either the target cells themselves or the immune cells that have been recruited to the tumor site. This condition leads to excessive activation of immune cells, especially macrophages, which induces a further release of cytokines, like IL- 1, IL-6, IL-8, IL-10, and MCP-1, culminating in a cytokine storm with an enhanced inflammatory response [6-8]. The clinical pattern of CRS ranges from mild to severe life-threatening symptoms (grade 1-4) [9]. Patients with CRS frequently present with fever, shivers, tachycardia, dyspnea, hypotension, fluid retention, malaise, headache, nausea, vomiting, rash, myalgia, arthralgia, and rigor. Respiratory symptoms such as dyspnea, tachypnea, and hypoxia occur frequently and severity may vary. Cardiac complications include tachycardia, hypotension, and sudden cardiac dysfunction. In addition, vascular leakage is common and presents as peripheral and pulmonary edema [10,11]. The severity of symptoms may correlate with serum cytokine concentrations and duration of exposure to the inflammatory cytokine storm [12]. Finally, sever neurological symptoms can occur with and, less often, without CRS, since some interleukins could drive trafficking of immune cells in central nervous system [7,9].

Multiple grading systems have been used to clinically classify the severity of CRS, including the National Cancer Institute Common Terminology Criteria for Adverse Events, the Penn Grading Scale, the Lee Grading Scale, which, more recently, were merged into the ASTCT Grading [9,11,13,14]. Criteria for severe or life-threatening CRS differ among these grading systems, in terms of dose and numbers of vasopressors and type and extent of O₂ support requirement. In all of these scales, severe and life-threatening grades of CRS require advanced supportive care.

The purpose of this study is to investigate the impact of diclofenac in the management of CRS occurring after tisagenlecleucel infusion.

Patients and Methods

All patients scheduled for receiving tisagenlecleucel were admitted in the Pediatric Transplant Unit for lymphodepleting chemotherapy and CAR-T cell infusion. In case CRS occurred, patients were managed in the ward, with the collaboration of the ICU medical staff, whenever appropriate. In case of life-threatening CRS, when respiratory management included the possibility of invasive mechanical ventilation, patients were transferred to ICU.

For the purpose of this study, CRS was graded according to the ASTCT grading, but also according to the two alternative main scoring systems, namely U-Penn and Lee classifications, all summarized in Table 1.

Table 1: Synopsis of CRS grading according to the U-Penn, Lee and ASTCT classifications.






    Hypertension
    Hypoxia
    Organ Toxicity


    Grade
    Penn [14]
    Lee [11]
    ASTCT [9]
    Penn [14]
    Lee [11]
    ASTCT [9]
    Penn [14]
    Lee [11]
    ASTCT [9]


    1
    -
    -
    -
    -
    -
    -
    -
    -
    NA


    2
    -
    1 LD VP
    No VP
    –
    O2 <40%
    O2 ≤6L
    I–II
    II
    NA


    3
    1 LD VP
    2 or HD VP
    1 VP
    any O2
    O2 ≥40%
    O2 >6 L
    III, trans IV
    III, LFTs IV
    NA


    ±vasopressin


    4
    =2 or HD VP
    =2 or HD VP
    =2VP
    intub
    intub
    B/C-PAP/ intub
    IV
    IV
    NA



Table 1: Synopsis of CRS grading according to the U-Penn, Lee and ASTCT classifications.

In case of persistent fever with fever-free intervals shorter than 3 hours, diclofenac continuous infusion was initiated, at the starting dose of 0.5 mg/Kg/day, the lowest effective pediatric dose, in our experience, possibly escalated up to 1 mg/Kg/day, as per institutional guidelines.

Peripheral oxygen saturation (SpO2), Heart Rate (HR), Noninvasive Blood Pressure (NBP), Respiratory Rate (RR) and body temperature (Temp) were recorded at least every 3 hours, more frequently or continuously if clinically appropriate. Blood tests (CBC, CRP, biochemistry, coagulation) were performed daily to assess and monitor CRS. Vasopressor use and doses and respiratory support parameters, which ranged from oxygen support through nasal cannula to Continuous Positive Airway Pressure (C-PAP) helmet, were recorded.

FiO₂ (Fraction of inspired Oxygen) values were estimated as follows: FiO₂ 24, 28, 32 and 36% for nasal cannulae with oxygen flow of 1, 2, 3 and 4 L/min respectively; FiO₂ 40% for aerosol mask with oxygen flow of 8 L/min; FiO2 from 24 to 50 % for Venturi mask; FiO₂ 100 % for non-rebreathing mask with reservoir bag; FiO₂ as set according to manufacturer instructions for helmet C-PAP.

The SpO₂ to FiO₂ ratio was calculated as a useful tool for stratification of hypoxia severity in the pediatric population. As previously reported, in the absence of an arterial access, directly measuring PaO₂ (Partial Pressure of Oxygen), the SpO₂ to FiO₂ ratio shows a good correlation with the FiO₂ to PaO₂ ratio [15,16].

Mann-Whitney statistical test was used for p-value calculation of the efficacy of diclofenac based on the number of febrile peaks during 24 hours with and without diclofenac (the results are shown in Table 3).

Results

Five out of the first 10 patients treated with tisagenlecleucel for chemorefractory or post-transplant relapsed B-lineage ALL in our institution, from August 2016 to August 2019, experienced some grade of CRS. Characteristics of the five patients (3 males; median age 5 years, range 3-21 years) are reported in Table 2. Briefly, patients 1, 3, and 4 had relapsed after stem cell transplantation, whereas patient 2 presented with a chemorefractory relapse and patient 5 with a second refractory relapse. Bone marrow blasts upon screening ranged from 15% to 70% and at lymphodepletion initiation ranged from 48% to 70% in this patient series.

Table 2: Characteristics of the five patients with relapsed/refractory B-ALL experiencing CRS after tisagenlecleucel.






    Patient 1
    Patient 2
    Patient 3
    Patient 4
    Patient 5


    Age (years)
    21
    5
    3
    7
    5


    Gender
    M
    F
    M
    F
    M


    Down Syndrome
    Yes
    Yes
    No
    No
    No


    Previous SCT (phase at SCT)
    Yes (CR2)
    No
    Yes (CR1)
    Yes (CR2)
    No


    Disease phase
    relapse
    1st refractory
    relapse
    relapse
    2nd refractory


    7 months post-SCT
    relapse
    7 months post-SCT
    16 months post-SCT
    relapse


    BM blasts upon    screening (%)
    15
    62
    50
    70
    38


    BM blasts at    lymphodepletion (%)
    60
    70
    65
    48
    58


    CRS day of onset (duration, days)
    +1 (14)
    +1 (10)
    +2 (10)
    +1 (15)
    +1 (14)


    CRS maximum grade (peak day)
    I (+1)
    III (+4)
    IV (+4)
    IV (+4)
    IV (+7)


    Numbers of vasosopressors (duration, days)
    -
    1 (7 )
    1 (7)
    1 (9)
    2 (3)


    Tocilizumab doses    (day)
    -
    1 (+4)
    2 (+4 and +6)
    2 (+6 and +7)
    2 (+6 and +8)


    Methyl-prednisolone    (starting day)
    No
    No
    No
    Yes (+8)
    Yes (+12)


    Seizures (day)
    No
    Yes (7)
    Yes (7)
    Yes (8)
    No



Table 2: Characteristics of the five patients with relapsed/refractory B-ALL experiencing CRS after tisagenlecleucel.

Vital signs monitoring (heart rate, respiratory rate, temperature, blood pressure, SpO₂/FiO₂) as well as CRP levels, diclofenac, dopamine and noradrenaline doses from the time of CAR-T cell infusion until resolution of CRS have been plotted for each patient in Figure 1 and scored according to three different grading systems Penn, Lee and ASCTC.

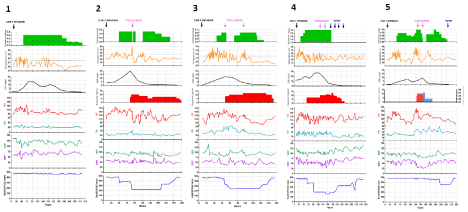

Figure 1: CRS course overtime in the five patients. Diclofenac mg/Kg: intravenous continuous infusion (i.v. c.i.) daily dose is indicated; body temperature (C); CRP levels (mg/dL); Dopamine infusion; HR: Heart Rate; RR: Breath Rate; SBP: systolic blood pressure; DBP: Diastolic Blood Pressure; SpO₂/FiO₂ ratio.



    Figure 1: CRS course overtime in the five patients.
Diclofenac mg/Kg: intravenous continuous infusion (i.v. c.i.) daily dose is indicated; body temperature (C); CRP levels (mg/dL); Dopamine infusion; HR: Heart Rate;
RR: Breath Rate; SBP: systolic blood pressure; DBP: Diastolic Blood Pressure; SpO₂/FiO₂ ratio.

Grade 3-4 CRS was observed in four patients, while only one patient presented with grade 1 CRS. Fever, consistently defined as grade 1 CRS among the different grading systems (even if lowgrade, i.e. <37.5⁰C) was almost invariably associated with shivers, tachycardia, tachypnea and hypotension. Moreover, the maximum interval elapsing between spikes, despite the use of i.v. paracetamol, rarely exceeded three hours.

Patient 1 experienced maximum grade I CRS, according to Penn, Lee and ASCTC, consisting of fever only, requiring antipyretic, including diclofenac. No need for oxygen support, vasopressors nor tocilizumab occurred within the duration of CRS (14 days).

Patient 2 experienced maximum grade 4 CRS, according to Penn and grade 3 according to Lee and ASCTC grading. High-dose oxygen (high-flow nasal cannula, HFNC) with FiO₂ 45% for almost 5 days (89 hours) and dopamine 10 mcg/kg/min for 24 hours were required.

Patients 3, 4, and 5 presented CRS maximum grade IV, according to Penn, Lee and ASCTC, and required high-dose dopamine (10-12 mcg/kg/min), plus norepinephrine in patient 5, C-PAP in patient 3 and 5 and intubation in patient 4.

Median time to fever onset was 20 hours (range 8-27) after CAR-T infusion, whereas treatment with diclofenac was initiated at a median of 20 hours (median, range 13-33) after fever onset. The starting dose of diclofenac i.v. continous infusion was 0.5 mg/kg/day, and the dose was escalated/adjusted according to the temperature curves, with a maximum dose of 1 mg/kg/day.

In order to assess the impact of diclofenac in the management of CRS, firstly, its effectiveness in controlling sustained fever within the first 24 hours after the start of the therapy, compared with the 24 hours prior to diclofenac initiation, was assessed. A decline in fever peaks as compared to baseline was observed in all patients during the first 24 hours after starting treatment with diclofenac (Figure 1). Specifically, the highest median body temperature was significantly lower within 13-24 h after diclofenac infusion started as compared to the early hours of fever onset, where patients remained febrile despite standard anti-pyretic drugs (e.g. paracetamol). Furthermore the efficacy of diclofenac has been assessed as the number of febrile peaks during 24 hours with and without diclofenac: a mean of 3,07 febrile peaks without diclofenac and 0,95 with diclofenac with a p-value of 0,02 (Table 3) have been observed.

Table 3: Number of febrile peaks/24 hours measured since the fever started up to the initiation of diclofenac and throughout diclofenac treatment up to tocilizumab, if any: a mean of 3.07 febrile peaks/24 hours without diclofenac and 0.95/24 hours with diclofenac were observed.






    Febrile peaks per    day (mean)



    Patient (n°)
    Without Diclofenac
    With Diclofenac



    1
    3.43
    0.55



    2
    2.12
    0.57



    3
    2.04
    1.65



    4
    5.76
    0.82



    5
    2.00
    1.17



    all pts (mean)
    3.07 (1.06-5.07)
    0.95 (0.38-1.53)
    p value: 0.02



Table 3: Number of febrile peaks/24 hours measured since the fever started up to
the initiation of diclofenac and throughout diclofenac treatment up to tocilizumab,
if any: a mean of 3.07 febrile peaks/24 hours without diclofenac and 0.95/24
hours with diclofenac were observed.

Moreover, we hypothesized that fever control by means of diclofenac could provide a beneficial effect on vital parameters and hemodynamic functions. Although some patients still presented with fever, within the first 48h hours after starting the infusion of diclofenac a clinical benefit was obtained by hampering progression of tachycardia and tachypnea. Heart rate and respiratory rate were significantly reduced after 48 hours of diclofenac therapy, as compared to the same baseline parameters, just before starting treatment (Figure 1). Conversely, no direct detrimental effect of diclofenac on blood pressure was observed.

Whenever diclofenac had to be discontinued (4 events in 3 patients), due to drug infusion incompatibilities in patients with venous access issues, fever invariably occurred, but was promptly controlled upon diclofenac resumption. However, despite fever control, in the following days, four patients presented with severe hemodynamic instability, with hypotension and oliguria, which required vasopressors: four patients received dopamine 5-12 mcg/kg/ day, and one patient received also i.v. norepinephrine at 0,1 mcg/kg/ min for less than 48 hours.

Vasopressors were followed by the administration of tocilizumab (1 dose in patient 2 and two doses in patients 3, 4, and 5), the recombinant humanized monoclonal antibody, directed against the interleukin-6 receptor, approved by the FDA for treatment of severe or life-threatening CAR-T cell induced CRS. Tocilizumab binds both soluble and membrane-bound IL-6 receptor and inhibits IL-6- mediated signaling through these receptors [17].

The SpO₂/FiO₂ ratio consistently varied along with the severity of CRS, with lower SpO₂/FiO₂ values in patients with higher body temperature, heart rate, respiratory rate and CPR values.

A SpO₂/FiO₂ ratio below 200 was considered among the clinical indicators of severe respiratory distress leading to the decision of ICU admission and invasive mechanical ventilation in patient 4. Patient 5 was transferred to ICU due to long-lasting refractory fluid overload, jeopardizing his cardio-respiratory dynamics.

Furthermore, a significant increase of CRP was observed in all patients, but rising with different kinetics, according to the evolution of CRS. The highest CRP was reached at a median of 4 days (range 4-8 days), with decreasing values thereafter. However it was not possible to attribute a role to the anti-inflammatory effect of diclofenac, compared with the powerful effect of tocilizumab, in reducing CRP to normal levels.

Eventually, CRS resolved at a median of 10 days (range 9-15) and no major sequelae were observed in the follow-up.

Discussion

NSAIDs have antipyretic, analgesic and anti-inflammatory effects. They are used in pediatrics, even if less frequently than in adults, and have multiple therapeutic indications, the most common ones being fever, pain after surgery, and inflammatory disorders [18,19]. In this study we described the course of CRS in five patients who have been treated with diclofenac for CRS-related fever after tisagenlecleucel infusion for relapse or chemorefractory B-lineage ALL.

The reported incidence of CRS after CAR-T cell therapy overall is highly variable and ranges from 35% to 93% [20-22]. In the pediatric ALL population CRS was reported in the 77% of the patients treated with tisagenlecleucel, with 22% and 27% presenting grade III and IV, respectively [23]. Time to CRS onset after CAR-T infusion was 3 days (range 1-22) and the median duration 8 days (range 1-36); 39% of the patients required tocilizumab (23% only one dose and 13% two doses), with 50% of the patients being transferred to the ICU and 15% requiring intubation [24].

CRS treatment included antipyretics for fever, intravenous fluids and vasopressors for hypotension, besides supportive care for respiratory distress, ranging from low flow oxygen to mechanical ventilation. Vasopressors were reported in the 53% of the patients enrolled in the expanded access, with 24% requiring high-doses [24].

Corticosteroids could mitigate the cytokine storm, but their use was limited due to the risk that the clinical effectiveness of CAR-T cell therapy could be potentially jeopardized by the blocking of T cell activation, function, and proliferation [8,25]. In the original trial with tisagenleclaucel corticosteroids were administered in 20% of the treated patients (16/79) [24].

The high-grade CRS occurring in our series of patients was not surprising, due to the high disease burden at the time of lymphodepletion. In the management of fever unresponsive to paracetamol or other NSAIDs, diclofenac i.v. continuous infusion from 0,5 mg/kg to 1 mg/kg was planned, according to our standard practice for persistent or refractory fever. Diclofenac was able to control fever, occurring between 12 and 72 hours after tisagenlecleucel infusion and characterized by a very severe profile, sometimes with spikes up to 39-40 ⁰C every 3-4 hours. In all the 5 patients diclofenac allowed prolonged control of tachycardia and tachypnea, on top of fever control. Despite the initial hemodynamic stability, diclofenac could not prevent CRS progression in 4 out of 5 patients.

We can conclude from our experience that the use of diclofenac had improved patient symptoms and decreased the complexity of patient management, by means of fever control and the consequent improvement of vital parameters, up to the progression of CRS. No toxic effects associated with diclofenac were observed [26]. Moreover diclofenac might have limited/delayed the use of other drugs in the management of CRS by getting rid of fever-associated vital sign impairment.

Mild to severe respiratory failure is among the hallmarks of CRS. Capillary leak is the mechanism underlying hypoxia and lung opacities. CRS-associated fever, however, has a major role in increasing minute ventilation and respiratory distress. We may argue that, in a significant proportion of patients, the increased respiratory workload driven by fever may prompt the decision to proceed with endotracheal intubation and invasive mechanical ventilation. Lowdose diclofenac infusion, through its effect in reducing oxygen consumption, may contribute to reduce non-invasive ventilation failure and prevent ICU admission. We cannot prove or rule out that diclofenac could have had any impact on CRS evolution in our series of patients. The patients in our series, with a high disease burden, became unstable shortly after CAR-t cell infusion and, in the absence of diclofenac, their CRS management would have required to anticipate the subsequent steps. Therefore diclofenac serves as first step in CRS management in our institution and may allow subsequent steps to be delayed. We cannot speculate whether the chance to delay tocilizumab could be of some benefit, allowing prolonged IL-6 effects.

In conclusion, the use of diclofenac relieved patient’s symptoms and decreased the complexity of management by limiting the increased cardio-respiratory workload secondary to fever. Despite CRS progression, fever control and the reduction of its detrimental effect on vital parameters decreased patient discomfort. No conclusions on CRS hampering could be drawn based on this limited series of patients.

Acknowledgment

The authors wish to thank the clinical and the laboratory team and are grateful to the Comitato Maria Letizia Verga per lo Studio e la Cura della Leucemia del Bambino for their continuous support of clinical and research activities.

Conflict of Interest

The author certify that there are no conflicts of interest in the subject matter or material discussed in this manuscript.
