Effect of Different Surface Treatments on Push-out Bond Strength of Glass Fiber Posts to Resin Composite Core Material

Research Article

J Dent App. 2015;2(6): 246-250.

Effect of Different Surface Treatments on Push-out Bond Strength of Glass Fiber Posts to Resin Composite Core Material

Samah Saker¹*, Naglaa El-Kholany¹ and Noha El- Wassefy²

¹Conservative Dentistry Department, Faculty of Dentistry, Mansoura University, 35516 El Gomhoria, Street, Egypt

²Dental Biomaterial Departments, Faculty of Dentistry, Mansoura University, 35516 El Gomhoria Street, Egypt

*Corresponding author: Samah Saker 35516 El Gomhoria Street, Conservative Dentistry Department, Faculty of Dentistry, Mansoura University, Egypt

Received: February 12, 2015; Accepted: April 27, 2015; Published: April 29, 2015

Abstract

The aim of this study was to evaluate the effects of surface pretreatments of fiber-reinforced post on thin-slice puch-out bond strength to resin composite core material. Prefabricated glass fiber posts Parapost 1.4 mm diameter were divided into four groups; Group C: no pretreatment, Group A: air abraded using110 μm aluminum oxide, Group PH: phosphoric acid immersion, and group H: hydrogen peroxide immersion. Each group was then subdivided into two subgroups; Subgroup A: Silane coupling agent (EspeSil, 3M Espe) and Subgroup B: ONESTEP adhesive system (ExciTE F DSC, Ivoclar Vivadent) applied to the treated post surfaces. A flowable dual-cured resin composite core material (Multicore Flow, Ivoclar Vivadent) was applied to each group for testing the adhesion using thin-slice push-out test. Data were analyzed using two-way ANOVA. The highest bond strengths was observed for H2O2 group after treatment with silane coupling agent (18.1± 2.3 MPa) followed by air abraded group (14.3 ± 1.8 MPa). The lowest bond strength was observed for phosphoric acid etching groups for both silane and adhesive treated subgroups (11.3 ± 1.6 MPa & 12.4 ± 1.9 MPa). When comparing bond strength (MPa) values dependent on the type of bonding used (silane vs. bonding), analysis of variance demonstrated no statistically significant differences (p<0.05).

Keywords: Bond strength; Glass fiber post; Push out test; Surface treatments

Introduction

Endodontically treated teeth often have substantial loss of tooth structure and its rehabilitation usually require a core buildup. However, if retention and resistance of the core are compromised, a post may also be necessary to retain the core [1-4]. Custom cast posts and cores or prefabricated metal posts were the standard for many years. Currently, increasing demand for esthetic posts and cores has led to the development of zirconia and fiber posts [5].

Nowadays, the restoration of endodontically treated teeth is based on the use of materials with a modulus of elasticity similar to that of dentine (18.6 GPa). Fiber posts, resin cements and some composite resins all have this characteristic [6]. With these materials, a mechanically homogeneous unit-monoblock can be created reducing fracture risk [7]. Unlike metallic posts, the most frequent failure of fiber post restoration was not due to fracture, but to debonding, which may occur between fiber post and resin or between resin and intraradicular dentin [8-10].

It should be noted that a reliable bond between fiber post and resin composite core also plays an important role in the post-core restoration of endodontically treated teeth. The retention and stability of the post systems and core build-up is an important factor for successful restoration [11]. The durability of a resin composite core restoration depends on the formation of a strong bond between the core material and residual dentin, as well as between the core and post material, enabling the interface to transfer stresses under functional loading [3,12].

Retention of resin composite core to the prefabricated post is influenced by several factors, including surface treatment of the post [13,14], the design of the post head, the post and the resincomposite core material [15,16]. The most commonly used core materials are glass ionomers, resin composites, amalgam, and cast metal alloys. Amongst which, resin composites are superior to glass ionomers and amalgam in that they enhance the retention and fracture resistance of the posts [17]. Moreover, resin composite core materials are aesthetically pleasing especially under all-ceramic crowns, performs as well as dental amalgam in strength, better than amalgam in bond strength to dentine, and similar to tooth structure in hardness and fracture toughness [18].

Different types of resin composites are available on the market that can be used to build-up a core onto the prefabricated posts [19,20].

A self-cure or dual-cure resin composite may be used rather than separate luting cement for cementation of the post and the subsequent buildup. These composites may be bulk-filled because they do not require deep penetration with a curing light. Self-cure and dualcure composites polymerize more slowly than light-cure materials, allowing the material to flow during polymerization contraction, and placing less stress on the adhesive bond [20,21].

A number of studies particularly focused on the possibility of improving adhesion at the fiber post-composite interface through various treatments of the post surface [13,22]. Certain mechanical and chemical treatments of post surface such as sandblasting, airborneparticle abrasion and silane coupling have shown favorable results in terms of improving the bond strength between fiber posts and core resins [14,23,24]. Chemical treatments of the post-surface such as etching with 10% hydrogen peroxide for 20min or 24% hydrogen peroxide for 10min also proved to be effective in promoting adhesion between the post and composite core [20,25]. Additionally, adhesion of dual-cure resin composite to epoxy resin-based fiber posts was claimed to be improved when the post surface was treated with a dual cured bonding agent or was silanized [12]. Although, sandblasting and phosphoric acid etching are used to improve the bonding of fiber posts to resin composite core material, these surface pretreatments can damage the glass fibers and affect the post integrity. Hydrogen peroxide is one of the materials that can selectively dissolve the epoxy matrix without interfering with the glass fibers and can expose the fibers to be silanated.

The purpose of this in vitro study was to evaluate the push-out bond strength of a flowable resin composite core material to fiber post treated with different conditioning methods followed by either application of silane coupling agent or an adhesive system. The null hypothesis tested was that post surface conditioning protocols and the type bonding system used would not affect the interfacial bond strength between fiber posts and resin composite core material.

Materials and Methods

Forty Prefabricated glass fiber posts Parapost (Colt´┐Żne AG 9450 Altstatten/ Switzerland) with a diameter of 1.4 mm were used in the study. Posts were divided into four groups, ten specimens each, according to the surface pretreatment performed.

Group C: no pretreatment was performed.

Group A: posts were air abraded using110 Μm aluminum oxide particles for 5 s at 2.8 bar (0.28 MPa) from a distance of 1 cm.

Group PH: posts were immersed in 37% phosphoric acid gel for 60 s and rinsed with deionized water for 2 min.

Group H: posts were immersed in 24% hydrogen peroxide for 10 min.

All protocols were performed at room temperature. After treating the surfaces, the posts were rinsed with water for 30 s and air-dried.

Each group was then subdivided into two subgroups, five specimens each;

Subgroup A; Silane coupling agent (EspeSil; 3M Espe) was applied for 60 s. to the treated post surfaces.

Subgroup B; ONE-STEP adhesive system (ExciTE F DSC, Ivoclar Vivadent) was applied to the treated post surfaces.

For the core build-up procedure, the post was placed into the plastic tube; the remaining part of the tube was removed by the cutting machine (to obtain a standardized central position of the post). Multicore Flow (Ivoclar Vivadent ) flowable dual-cured, core build-up resin composite was applied to the tube, and light-cured for 40s at 500mW/cm2 according to the manufacturer’s instructions, using a halogen light curing unit (Optilux501;Kerr).The resin was always irradiated directly from the open upper side of the tube, through the post. All specimens were stored in distilled water for 24 hat 37 C. The non-tapered 5-mm portion of the posts were sectioned with the cutting machine (Isomet 4000; Buehler, USA) resulting in 5 specimens, each 1mm thick discs. Thickness of each disc with a digital caliper (Liaoning MEC Group, Mainland, China) for the micro pushout test, the specimens were mounted in a universal testing machine (Lloyd LRX; Lloyd Instruments, Fareham Hants, UK) with a custom made jig. The discs were loaded with a flat ended cylindrical plunger, 1.1mm in diameter, centered on the disc avoiding contact with the surrounding core surface, with a cross-head speed of 1.0mm/min. The maximum failure load was recorded in Newton (N) and converted into megapascals (MPa). Push-out bond strengths were calculated for each section by using the following formula: Deboned stress = debonding force (N)/A where: A= area of post/cement interface. Debond stress values were converted to megapascals. (MPa).

Statistical Analysis

Statistical analysis was performed using SPSS 11.0 software for Windows (SPSS Inc., Chicago, IL, USA). Bond strength data (MPa) were submitted to two-way ANOVA with the bond strength as the dependent variable and the bonding type (2 levels; silane and one step adhesive) and the corresponding surface treatments as the independent variables (4 levels; c, A, PH, H). Multiple comparisons were made using Tukey’s post-hoc test. p-values less than 0.05 were considered to be statistically significant in all tests.

Results

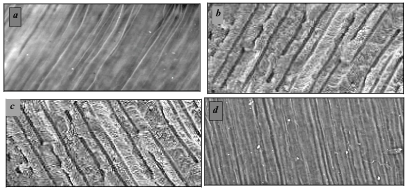

The mean bond strengths, standard deviations, and group differences for the four different surface- treatment groups are shown in Table 1. In the study groups, the lowest bond strength was observed for phosphoric acid etching groups for both silane and adhesive treated subgroups (11.3 ± 1.6 MPa and 12.4 ± 1.9 MPa). No statistically significant difference was observed between the control groups and phosphoric acid etching groups where bond strength values were (10.9 ± 1.3 MPa and 11.6 ± 1.5 MPa) respectively. The highest bond strengths was observed for H2O2 treated group (18.1 ± 2.3 and 20 ± 2.6 MPa) for both silane and adhesive treated subgroups respectively. Air abraded group showed signification difference in bond strength values compared to H2O2 treated group for both silane and adhesive treated subgroups (14.3 ± 1.8 and17.3 ±.8 MPa). The 2-way ANOVA revealed a significant influence of fiber reinforced post surface treatment on the push out pond strength to resin composite core (Table 2). For C, PH, A and H groups, there were significant differences between the different surface treatments for two types of bonding used (p<0.05). Regarding the C and etched groups, there was no significant difference in bond strength (p< 0.05). When comparing bond strength (MPa) values dependent on the type of bonding used (silane vs. bonding), analysis of variance demonstrated no statistically significant differences (p< 0.05). The SEM studies revealed that the surface irregularities of the fiber root canal post corresponded to the results of the bond-strength study. The surface topography of posts was modified following treatment with H2O2, phosphoric acid etching and air abrasion compared to control group (Figure 1). The surface treatments with H2O2 dissolved the resin matrix of the posts and exposed the glass fibers of the posts. In addition, the exposed glass fibers were not damaged or fractured by the surface treatments. Post surface treatment with air abrasion increase surface area avialble for bonding compared to phosphoric acid and control group (Figure 1).
