Alumina: As a Biocompatible Biomaterial Used in Dental Implants







    Figure 1b: Alumina specimen as per ASTM E384standard specification.

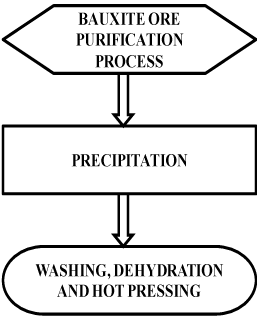

Bauxite contains aluminum oxide and oxide impurities like Fe₂O₃, SiO₂, Ga₂O₃ and TiO₂. Bauxite ore is first crushed and purification is achieved through process of diluting bauxite in powder form with sodium hydroxide treated at 300oC under normal pressure. The above solution is later treated from normal temperature to super saturated temperature of sodium aluminate. Excess oxides are removed by seeding technique, where gibbsite is obtained by precipitating aluminum oxide. Once, precipitated material is washed and then dehydrated at temperature of 1000^oC to 1200^oC to convert low temperature forms alumina, a coarsely crystalline material within which large single crystals can be formed [3].

The bulk fusion and cooling of alumina powder yields fused alumina or aluminum oxide having hexagonal closed packed crystalline structure. This aluminum oxide powder is hot pressed at a pressure of 35 – 70 MPa at temperature of 1200^oC – 1400^oC using graphite dies to desired shape and size. The melting point of alumina is 2072^oC and modulus of elasticity is 318 GPa [4]. Alumina is a single piece implant when compared to other two piece implant.

Application of Alumina

The following are the application of alumina

• Load bearing hip

• Knee prostheses

• Alveolar ridges

• Dental crown

• Dental screws

• Cardiovascular devices

Limitations of Alumina

The limitation of alumina is as follow

• Alumina is a brittle material hence; chances of fractures are more [5].

Biocompatibility

Biocompatible is measure of biomaterial ability to adhere to the biological condition to body. To determine biocompatible property, various biocompatibility tests are conducted and observations are made to evaluate the toxic effects of these materials when implanted in body. Typically material testing and analysis of a biomaterial component are conducted prior to any biological testing to check their cytotoxicity [6].

Cytotoxicity measures an ability of biomaterial to destroy living cell. Biocompatibility tests are categorized into two categories namely in vivo test and in vitro test. In invivo test experiments are conducted directly on the living cells or organisms usually humans and animals. In in-vitro test experiments are performed in test tube or outside living organisms. Once in vitro testing has been completed and satisfied, only then in-vivo testing will be performed to cross verify that the biomaterial will serve the purpose and that is to test biological response like irritation and other clinical testing.

The biomaterials undergo the following different kinds of tissue reactions:

1. Toxic: tissue cells death occurs

2. Nontoxic and inactive biological nature: fibrous growth between tissues.

3. Nontoxic and biologically active: bonding between tissues occur

4. Nontoxic and dissolve: replacement of adjacent tissue [7].

In-vitro test are conducted to evaluate whether tissue is biocompatible or not. These tests are done by cell culture method which is very effective method applied in medical field to evaluate diverse materials in medical industries [8].

Types of Cell Culturing Methods

The various types of cell culturing methods are:

1. Direct-contact method

2. Agar-diffusion method

3. Extraction method

For conducting the above mentioned test some of the variables of the experiment must be constantly monitored. Few of these constants are L929 cell line (mouse fibroblast), cell number, exposure time, sample size. The viability test was calculated comparing with control. The quantity of the cell death by viability test gives the measurement of cytotoxicity and in turn measures the biocompatible property of biomaterial tested.

Direct contact method: The test specimen is located directly on the cell line cultured medium. In this method blue haematoxylin is added to dilute the medium. Cytotoxicity is measured by the percentage of cell inhibition where death cells does not take up the stain and percentage of viability measures the stained cells which gives cell growth percentage.

Agar diffusion method: an alga made up of polymer is applied between the cells and sample. During this test the cytotoxicity is measured by comparing the active cells with death cells. Active cells take up stain which is red in colour [9].

Extraction process: Process of elution, in which the leachates from the contact bio-material is extracted and treated, assessment will be made directly on the human cells and medium by implanting it and check for any harmful effect in the potential behaviour and whether the bio-material is biocompatible with the adjacent tissue by surgical method [10]. The dimensions and geometry of implant plays a vital role after surgery, the material reaction with the corresponding adjacent tissue is monitored. So that any foreign particles present in implants may cause harmful toxic effect to the cell [11].

An ideal condition for implantation means implant must be easily and safely integrated to the surrounding adjacent tissues with very minimum time and the wound should heal as fast as possible and restore the damage one and replace it. But in real condition, now a day’s the implantation done under normal condition has lead to the various harmful effect due to surrounding adjacent tissue problems like tissue over growth, improper bonding of implant with tissue, implant fracture inside and in certain serious problems implant may have to be removed from the body completely. The duration of time for the implantation should be as minimum time as possible [12].

To prevent implant failure, standard clinical procedure has to be followed. Only stable material should be chosen for implantation, if the unstable material is chosen more chances of implant failure occurs [13]. Stable material will not react with the adjacent tissue easily and will have minimum toxic effect on the body, enhances biological properties and are highly biocompatible. While designing implant Computer modelling and FEA should be carried out along with simulation for better understanding by advanced simulating tool to identify the peak stress and strain values that cause failure of implant. After fabrication of implant, both mechanical test and biological test should be performed to recommend it for clinical application or intended purpose [14].

In the present study in-vitro assessment of tissue bio compatibility was conducted on L929 cell line (mouse fibroblast) by direct contact test and agar diffusion test method. In-vitro test, the toxicity of specimen has been done by computing percentage of viability in a cell cultured medium. Alternative process is to calculate radio-isotope incorporated in DNA by counting the automated counters and other related activities of cell. An MTT system means measuring the active cell activities with mitochondrial-dehydrogenases. It is easy method which gives accurate and precision results [15].

A MTT is [3-(4, 5- dimethylthiazol-2-yl)-2, 5-diphenyl tetrazolium bromide] an important substance made up of soluble water salt resulting in yellow liquid solution prepared in a media. MTT at this stage is converted to formazan soluble solution by enzyme (mitochondrial-dehydrogenases) of cell viability. This formazan solution is solubilised by DMSO solvent to convert from yellow to purple solution and it is measured spectrophotometrically depending on cytotoxic effect induced by the test specimen, the cell number may reduce or enhances. Hence, this leads to measure cytotoxicity [16,17].

There are certain criteria for selection of implant and implant should posses following:

• Biocompatible in nature Material must be bio-inert

• Good aesthetic property.

• Free from allergy

• Corrosion resistant and

• Wear resistant

• Economical

• Easily manufactured.

Materials and Methods

Material Preparation

Alumina block was sintered at a temperature of 1500oC for 1 Hr as per ASTM E384 standard specification and 20% of volumetric shrinkage was observed.

The Alumina specimen as per ASTM E384standard specification is shown in FIG 1.

TAB 1 shows the Dimensions of Alumina specimen prepared for biocompatible test.

Biocompatibility Testing Methods

The purpose of biocompatibility test or assay is to assess the effects of the leachates from the Aluminaon the L-929 mouse fibroblast cell line. For conducting biocompatibility test CO2 incubator, P35 dishes, Autoclave, Test tube, Cell culture reagents such as DMEM, FBS, Pen strip and Trypsin were used. L929 mouse fibroblast cell line, treated in supplement of DMEM with Fetal Bovine Serum 10% in inactive condition, 100 IU/ml quantity of penicillin, 100 μg/ml streptomycin, 5 μg/ml of amphotericin with 5% CO₂ was humidified at 37^oC temperature atmosphere till it reaches confluent stage. TPVG solution which contains 0.2 % trypsin, 0.02 % EDTA, 0.05 % glucose in PBS was used to cell dissociation. Checking was done for cell viability. On other hand 10, 00, 000 cells and 50,000 cells of L-929 fibroblast cell line was seeded in a 96 well plated P35 dish respectively and incubation was carried out at temperature 37oC with CO₂ 5% incubation for 24 hours as per ISO:10993-5 standard [12].

This research paper presents two methods of biocompatibility tests were carried out namely Direct Contact method and Extraction method.

Direct Contact Method: In Direct contact method sample specimen was cut and placed at the center of a cultured dish and incubated for 24 hours. Post incubation was carried out in which, the samples were removed carefully and cell morphology was observed under a microscope and scored according to the (Table 2.1).

Table 1: Dimensions of Alumina specimen.





Dimensions


Before    Sintering


After    Sintering at 1500 OC


Volumetric    Shrinkage







Breadth(mm)


Depth(mm)


Length    (mm)


Breadth    (mm)


Depth    (mm)


Length    (mm)


Percentage    (%)







15


15


20


12


12


16


20



Table 1: Dimensions of Alumina specimen.

Close

Table 2.1: Reactivity grades for Direct Contact Test [12].





Grades


Reaction level


Reaction Zone description







0


None


No cell death zone







1


Slight


Only Some cell death zone    under specimen







2


Mild


Few cell death with limited    zone to area below specimen







3


Moderate


Cell death zone extending    specimen size up to 10mm







4


Severe


Cell death zone beyond the    specimen more than 10mm



Table 2.1: Reactivity grades for Direct Contact Test [12].

Close

Extraction Method: In Extraction Method, Leachates from the samples were suspended in a DMEM plain media and 100μl was added to the well containing L929 mouse fibroblast cells in a 96 well plate and incubated for 24hrs by adding 100 μl of MTT to all well. Separately, test solutions were discarded in each well after the process incubation [13,14]. Incubation was done for 4hrs in CO₂ content 5% atmosphere at 37_oC. Removal of supernatant is done by adding DMSO of 100 μl quantity on plates and plate was solubilised by shaking gently to form Formosan. Micro plate reader having 590 nm wave lengths is used to measure absorbance by applying formula the viability and inhibition percentage was calculated. Later morphology grades indicating cytotoxicity in extract, reaction was given according to the (Table 2.2).

Table 2.2: Morphology grades indicating cytotoxicity reaction in extract [12].





Grades


Reaction level


All cell culture conditions    and cytotoxic effect







0


None


No cell death or Cell growth    unaffected







1


Slight


20% of Cell death occurs and    slightly cell growth effected.







2


Mild


50% of Cell death in the    medium and growth of cell is effected







3


Moderate


70 % of Cell death but    completely not destroyed and growth of cell is effected







4


Severe


Cells are completely    destroyed and cytotoxic.



Table 2.2: Morphology grades indicating cytotoxicity reaction in extract [12].

Close

Percentage of Viability and Inhibition is computed by formula [12]:

% of Inhibition = 100 – (outer diameter of sample) x 100

% of Viability = 100 – % Inhibition.

Results and Discussion

Biocompatibility In-Vitro Test Results of different methods are discussed below:

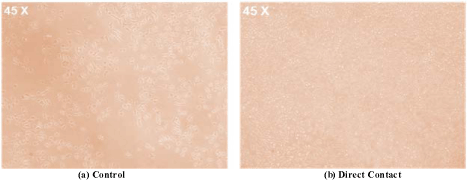

Figure 3.1 shows the microscopic image of a control and direct contact with Alumina bio material. In Figure 3.1(a) control which is an L-929 mouse fibroblast cell cultured in medium microscopic image and Figure 3.2 (b) microscopic image of Alumina biomaterial when place directly on the cultured L-929 mouse fibroblast cell medium. From the above microscopic observation reactivity grade is 1, which has only some cell death zone under Alumina treated specimen.

Figure 3.1: Microscopic image of Alumina (a) Control and (b) Direct contact.







    Figure 3.1: Microscopic image of Alumina (a) Control and (b) Direct contact.



Close

Table 3.1 shows the reactivity grade for direct contact test method for Alumina. Direct contact test method result showed that Alumina biomaterial have grade 1 and slight reaction level and only some cell death zone under specimen, which is within recommended limit. Hence Aluminais a best candidate alternate material for metal free dental implant.

Table 3.1: Reactivity level grade for Direct Contact test.





Sample


Grade


Reaction level


Figure No.


Result







Alumina


1


Slight


3.1(b)


Only    some cell death zone under specimen



Table 3.1: Reactivity level grade for Direct Contact test.

Close

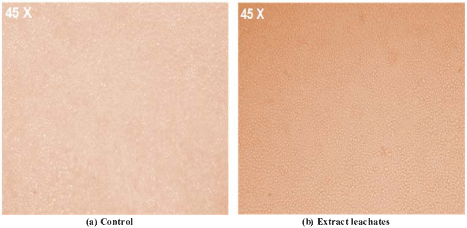

Figure 3.2 shows the microscopic image of a control and Extract leachates Alumina biomaterial is treated. In Figure 3.2 (a) control which is an L-929 mouse fibroblast cell cultured in medium microscopic image and Figure 3.2 (b) microscopic image of Alumina biomaterial leachates were suspended in a cultured L-929 mouse fibroblast cell medium.

Figure 3.2: Microscopic image of Alumina (a) Control and (b) Extraction leachates.







    Figure 3.2: Microscopic image of Alumina (a) Control and (b) Extraction

leachates.



Close

Table 3.2 shows the evaluation of effect of leachates on cell viability in L-929 cells where the Alumina cell growth is higher i.e., 93.05 %compared to metal other implants.

Table 3.2: Evaluation of effect of leachates on cell viability in L-929 cells.





Effect    of leachates on cell viability in L-929 mouse fibroblast cells







Compound    Name


Dilutions    in %


OD    at 590nm


%    Inhibition


%    Viability


Result







Control


0


0.7471


0.00


100.00





Cell growth is 93.05 % and    Cell death is 6.95%







Alumina


50


0.5392


27.83


72.17







25


0.5597


25.08


74.92







12.5


0.5808


22.26


77.74







6.25


0.6614


11.47


88.53







3.125


0.6795


9.05


90.95







1.562


0.74


6.95


93.05



Table 3.2: Evaluation of effect of leachates on cell viability in L-929 cells.

Close

Table 3.3 shows the Morphology grades indicating cytotoxicity reaction in extract, where Alumina exhibits 0 grade which results in No cell death or Cell growth unaffected. Hence Alumina can be considered as an alternate material to metal dental implant.

Table 3.3: Morphology grades indicating cytotoxicity reaction in extract.





Biomaterial


Grade


Figure No.


Result







Alumina


0


3.2(b)


No    cell death or Cell growth unaffected



Table 3.3: Morphology grades indicating cytotoxicity reaction in extract.

Close

Conclusions

Biocompatibility in-vitro test conducted by both Direct and Extraction methods, confirmed that Alumina exhibits a highest cell growth of 93.05% and resulted with zero grade cytotoxicity. Alumina having good aesthetic characteristics i.e., colour of the implant matches with the tooth colour. Hence, Alumina having high cell growth percentage can be used as alternate biomaterial dental implant and other medical applications.
