Effect of Red Blood Cell Transfusion on Central Venous-to-Arterial Carbon Dioxide Difference in Anemic Surgical Patients A Pilot Study

Special Article- Unusual Bleeding

Ann Hematol Onco. 2023; 10(4): 1431.

Effect of Red Blood Cell Transfusion on Central Venous-to-Arterial Carbon Dioxide Difference in Anemic Surgical Patients – A Pilot Study

Anton Alpatov1; Maria Wittmann1; Heidi Ehrentraut1; Achilles Delis1; Jochen Hoch2; Andreas C Strauss3; Holger Bogatsch4; Patrick Meybohm5; Markus Velten1#; Tobias Hilbert1#*

1Department of Anesthesiology and Intensive Care Medicine, University Hospital Bonn, Bonn, Germany

2Institute for Experimental Hematology and Transfusion Medicine, University Hospital Bonn, Bonn, Germany

3Department of Orthopedics and Trauma Surgery, University Hospital Bonn, Bonn, Germany

4Clinical Trial Centre Leipzig, Leipzig, Germany

5University Hospital Würzburg, Department of Anaesthesiology, Intensive Care, Emergency and Pain Medicine, Würzburg, Germany

*Corresponding author: Tobias Hilbert Department of Anesthesiology and Intensive Care Medicine, University Hospital Bonn, Venusberg-Campus 1, 53127 Bonn, Germany Email: thilbert@uni-bonn.de

#These authors have contributed equally to this article.

Received: June 10, 2023 Accepted: July 10, 2023 Published: July 17, 2023

Abstract

Background: Biochemical markers for monitoring adequacy of cardiac output and tissue perfusion such as blood lactate and central venous oxygen saturation (ScvO2) are meanwhile well established in clinical routine. In addition, in recent years, the central venous-to-arterial carbon dioxide difference (dCO2) has been evaluated as a further marker, and studies meanwhile have demonstrated the validity of an increased dCO2 to identify capillary perfusion mismatches. However, results from animal studies suggest that dCO2 may be influenced by altered hemoglobin values during severe bleeding. It was the aim of our study to evaluate if dCO2 changes upon Red Blood Cell (RBC) transfusion in humans.

Methods: Patients of the ongoing LIBERAL trial were prospectively evaluated. Participants were aged ≥70 years and scheduled for elective intermediate or high risk orthopedic or trauma surgery with the clinical need for invasive blood pressure monitoring and central venous catheterization. During surgery, drop of hemoglobin triggered administration of one single RBC unit, together with arterial and central venous blood analysis immediately before as well as after transfusion.

Results: In total, 46 patients were analyzed. Baseline median hemoglobin before RBC transfusion was 8.35 (7.48–8.73)g/dl, while dCO2 was 6.2 (3.4–9.6)mmHg. According to Spearman correlation, there was a linear association between pre-transfusion dCO2 and ScvO2. Transfusion of one RBC unit resulted in a significant increase of median hemoglobin by 1.2 (0.7–1.63)g/dl (p<0.0001), and hemoglobin increase was more pronounced when pre-transfusion hemoglobin was low, as evidenced by a significant negative association between both parameters (r=-0.61, p <0.0001). Neither lactate nor ScvO2 nor dCO2 were significantly influenced by transfusion. When the whole cohort was divided according to pre-transfusion dCO2 levels using a cut-off value of 6 mmHg, median dCO2 decreased significantly more pronounced following RBC transfusion when pre-transfusion values were high (>6 mmHg), compared to those patients with a pre-transfusion dCO2 below 6 mmHg.

Conclusions: The results of our study suggest that crude dCO2 is not influenced by moderate hemoglobin increases in orthopedic and trauma surgery patients. However, including dCO2 into the decision whether to administer RBC or not may be an interesting reasonable approach for further investigations on the way towards more individualized transfusion regimens.

Keywords: Transfusion; Bleeding; Capillary perfusion; Microcirculation; Cardiac output; Central venous oxygen saturation

Background

The purpose of hemodynamic optimization is to maintain adequate tissue perfusion. During capillary perfusion, oxygen is delivered to organs and tissues, while Carbon Dioxide (CO2) produced during cell metabolism is washed out. Impaired microcirculation disrupts this exchange with the risk of tissue loss and organ death due to a critical mismatch between oxygen demand and delivery.

It is meanwhile recognized that basic and also advanced monitoring solely taking systemic hemodynamic variables (e.g., arterial blood pressure, cardiac output, global volume status) into account may only poorly reflect actual tissue perfusion [1,2]. Administration of inotropics, vasopressors and fluids in reaction to hypotension or cardiac output failure irrespective of knowing actual capillary perfusion may further worsen the situation. This concept of dissociation of micro- and macrocirculation is called the loss of hemodynamic coherence, reflecting that optimizing systemic surrogate variables does not necessarily result in restored microcirculation but sometimes rather leads to the opposite [2-4]. Therefore, ways to assess capillary perfusion and tissue oxygenation to guide hemodynamic optimization are mandatory.

In addition to technically more advanced approaches such as side stream dark field imaging or intravital tissue oxygen assessment electrodes that are complex and therefore only available in limited form [4], biochemical markers for monitoring adequacy of cardiac output and tissue perfusion are well established in clinical routine. As such, lactate and mixed (or central) venous oxygen saturation (SmvO2 and ScvO2) have become widely used as easily assessable parameters to validly guide fluid and catecholamine support and transfusion in critical situations such as bleeding, sepsis or cardiogenic shock [5]. In addition to that, in recent years, the central venous-to-arterial carbon dioxide difference (dCO2) has been introduced and evaluated as a further marker for capillary perfusion mismatches. CO2 produced during cell metabolism is either combined with water to form bicarbonate, bound to hemoglobin or physically dissolved in blood. As these, it is carried from the capillary bed via venules and larger veins to the pulmonary alveolar system for exhalation. As the principle of Fick not only applies for mixed venous oxygen saturation but also for dCO2, CO2 production is proportional to cardiac output and capillary perfusion, and therefore so is the difference between CO2 partial pressure on the arterial and the one on the venous side. Studies meanwhile have demonstrated the validity of an increased dCO2 to identify capillary perfusion mismatches, even when ScvO2 is normal [6,7]. In critically ill patients, a cut-off value of 6 mmHg has been suggested to reflect the adequacy of tissue perfusion [8]. However, dCO2 should be interpreted with caution in case of, e.g., respiratory alkalosis [9]. Moreover, results from animal studies suggest that dCO2 may be influenced by altered hemoglobin values during severe bleeding [10]. Therefore, it was the aim of our study to evaluate if dCO2 changes upon Red Blood Cell (RBC) transfusion in humans. Orthopedic and trauma surgery patients with both arterial and central venous catheters and clinical indication for RBC transfusion were evaluated.

Methods

The present study recruited consecutive patients from orthopedic or trauma surgery as part of a subgroup of the ongoing LIBERAL trial during August 2019 to January 2023. The LIBERAL trial is a prospective multicenter, randomized, open phase IV trial, investigating the effects of a liberal transfusion strategy of RBCs on mortality and anemia-associated ischemic events in elderly patients undergoing non-cardiac surgery. It is funded by the German Research Foundation (DFG, protocol no. ME 3559/3-1). For a detailed description of the protocol of the LIBERAL trial, see Meybohm et al [11]. All analyses were performed in accordance with the Declaration of Helsinki. The leading ethics committee (University Wuerzburg 87/17_ff) and local ethics committee (University Hospital Bonn, Germany; protocol number 096/17-AMG) considered the study (clinical trials: NCT03369210) to be compliant with the applicable professional codes and regulations and thereby approved the study protocol. Written informed consent was obtained from all included patients. In brief, patients aged =70 years and scheduled for elective intermediate or high risk orthopedic or trauma surgery with the clinically indicated need for invasive blood pressure monitoring and central venous catheterization were included.

Exclusion criteria comprised emergency surgery, refusal or inability to provide written informed consent, preoperative severe anemia with hemoglobin levels below 9.0g/dl, chronic kidney injury requiring dialysis, participation in other interventional trials, and preoperative autologous blood donation. Arterial as well as central venous catheterizations were performed by the attending anesthetist who was not part of the study personnel.

Hemoglobin levels were monitored during surgery. If they dropped below =9.0g/dl, patients were randomized either to a liberal (receiving one single RBC unit each time hemoglobin reaches =9.0g/dl) or restrictive transfusion regime (a single RBC unit each time hemoglobin reaches =7.5g/dl). Immediately before and 10 minutes following transfusion of one single RBC unit, a central venous and an arterial blood sample were taken simultaneously and the following parameters were obtained using a Siemens Rapidpoint 500 blood gas analyzer (Siemens Healthineers, Erlangen, Germany):

- Hemoglobin

- Hematocrit

- Blood lactate

- Carbon dioxide partial pressure (pCO2)

- Central venous oxygen saturation (ScvO2)

The central venous-to-arterial carbon dioxide difference (dCO2) was calculated as follows:

dCO2 = pCO2 (central venous) - pCO2 (arterial)

Additional data recorded comprised:

- Body weight

- Body height

Body Mass Index (BMI) was calculated using the formula: BMI [kg/m²] = body weight [kg]/body height [m]².

Statistical analyses and visualizations were performed using MS Excel 2019 (Microsoft Corp., Redmond, CA, USA) and GraphPad PRISM 8 (La Jolla, CA, USA). Data are presented as median values with interquartile range (25-75) and were analyzed using Mann-Whitney test or Wilcoxon signed rank test, respectively, and Spearman correlation. The alpha level was set to 0.05. A sample size calculation prior to recruiting of the first participant revealed that at least 46 subjects would be required for sufficient power (given an effect size of 40%, a type-I error probability of 0.05 and a power of 85%). All data sets are available from the author upon reasonable request. This investigation did neither unblind any data nor analyze any group differences of the large LIBERAL trial.

Results

In total, 50 patients were prospectively included to participate in the study. Four cases were excluded due to incomplete sampling, resulting in 46 arterial and venous blood samples before and 46 arterial and venous samples after RBC transfusion (184 blood samples in total). Median patient age was 79 (75–83) years. The cohort comprised 46 patients, receiving upper or lower limb surgery in 25 and spine surgery in 21 cases. Median body weight was 76 (64–89) kg, height was 168 (162–178) cm, and Body Mass Index (BMI) was 26.6 (23.7–31.1) kg/m².

Baseline median hemoglobin before RBC transfusion was 8.35 (7.48–8.73) g/dl in arterial blood samples (Figure 1), while hematocrit was 24.5 (22–26) %. Blood lactate was 0.97 (0.84-1.38) mmol/l. Median arterial carbon dioxide partial pressure (pCO2) was 40.7 (37-44.6) mmHg. In central venous blood samples, median pCO2 was 47.2(43.6–50.6) mmHg, while oxygen saturation (ScvO2) was 78 (71–82) %. Before transfusion, median dCO2 was 6.2 (3.4-9.6) mmHg. According to Spearman correlation, there was a linear association between pre-transfusion dCO2 and ScvO2, with higher dCO2 values being associated with a lower ScvO2 (r=-0.37, p=0.01). There was no correlation between pre-transfusion hemoglobin and dCO2, ScvO2 or lactate.

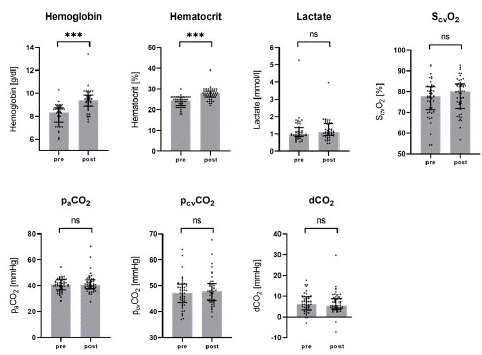

Figure 1: Pre- and post-transfusion values. In orthopedic and trauma surgery patients, blood was drawn simultaneously from an indwelling radial arterial as well as central venous catheter before (pre) and 10 minutes after transfusion of one red blood cell unit (post). Hemoglobin, hematocrit, lactate, central venous oxygen saturation (ScvO2), arterial and central venous carbon dioxide partial pressure (paCO2, pcvCO2) and the venous-to-arterial carbon dioxide difference (dCO2) were measured or calculated, respectively. Data are visualized as bar diagrams and scatter dot plot with median and interquartile range (25-75). n=46. Wilcoxon signed rank test. ***p<0.005













    Figure 1: Pre- and post-transfusion values.

In orthopedic and trauma surgery patients, blood was drawn simultaneously from an indwelling radial arterial as well as central venous catheter before (pre) and 10 minutes after transfusion of one red blood cell unit (post). Hemoglobin, hematocrit, lactate, central venous oxygen saturation (ScvO2), arterial and central venous carbon dioxide partial pressure (paCO2, pcvCO2) and the venous-to-arterial carbon dioxide difference (dCO2) were measured or calculated, respectively.

Data are visualized as bar diagrams and scatter dot plot with median and interquartile range (25-75). n=46. Wilcoxon signed rank test. ***p<0.005

Transfusion of one RBC unit resulted in a significant increase of hemoglobin and hematocrit in arterial blood samples (Figure 1), and there was no significant difference between hemoglobin values in arterial and central venous blood. Median hemoglobin increase was 1.2 (0.7–1.63) g/dl, while hematocrit increased by 4 (2–5) %. Accordingly, post-transfusion hemoglobin was 9.4 (8.88–9.83) g/dl (p<0.0001 vs. pre-transfusion), and post-transfusion hematocrit was 28 (26–29)% (p<0.0001). Hemoglobin increase was more pronounced when pre-transfusion hemoglobin was low, as evidenced by a significant negative association between both parameters (r=-0.61, p<0.0001) (Figure 2). The same applied for the hematocrit (r=-0.58, p<0.0001). Neither body weight nor height nor BMI had a significant influence on hemoglobin or hematocrit increase.

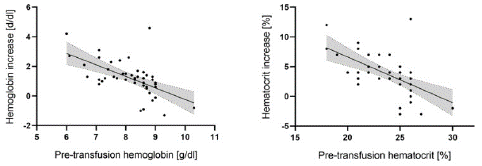

Figure 2: Pre-transfusion values and hemoglobin and hematocrit increase. Diagrams show the association between pre-transfusion hemoglobin (left) and hematocrit (right) and hemoglobin and hematocrit increase (respectively) following transfusion of one red blood cell unit. Spearman correlation. Grey area shows 95% confidence band.













    Figure 2: Pre-transfusion values and hemoglobin and hematocrit increase.

Diagrams show the association between pre-transfusion hemoglobin (left) and hematocrit (right) and hemoglobin and hematocrit increase (respectively) following transfusion of one red blood cell unit.

Spearman correlation. Grey area shows 95% confidence band.

In contrast to hemoglobin and hematocrit, neither lactate nor ScvO2 nor dCO2 were significantly influenced by transfusion (median post-transfusion lactate 1.1 (0.91–1.59) mmol/l (p=0.06 vs. pre-transfusion), ScvO2 80 (72–84) % (p=0.15), dCO2 5.5 (3.8–8.8) mmHg (p=0.63) (Figure 1). Although not influenced, as before transfusion, again there was a linear negative association between post-transfusion dCO2 and ScvO2 (r=-0.29, p=0.047). When the whole cohort was divided according to pre-transfusion dCO2 values (below or above a cut-off value of 6 mmHg, respectively [8]), median dCO2 decreased significantly more pronounced following RBC transfusion when pre-transfusion values were high (>6 mmHg), compared to those patients with a pre-transfusion dCO2 below 6 mmHg (p<0.0001, Figure 3). This could not be observed for ScvO2.

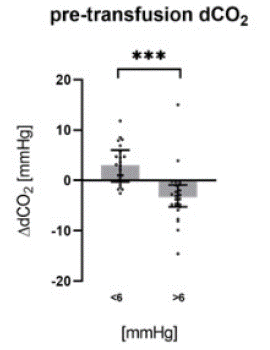

Figure 3: Pre-transfusion dCO2 and change following transfusion. The whole cohort was divided according to pre-transfusion dCO2 values (below or above a cut-off value of 6 mmHg, respectively). Median dCO2 decreased significantly more pronounced following transfusion when pre-transfusion values were high (>6 mmHg, n=24), compared to those patients with a pre-transfusion dCO2 below 6 mmHg (n=22). Mann-Whitney test. ***p<0.005













    Figure 3: Pre-transfusion dCO2 and change following transfusion.

The whole cohort was divided according to pre-transfusion dCO2 values (below or above a cut-off value of 6 mmHg, respectively). Median dCO2 decreased significantly more pronounced following transfusion when pre-transfusion values were high (>6 mmHg, n=24), compared to those patients with a pre-transfusion dCO2 below 6 mmHg (n=22).

Mann-Whitney test. ***p<0.005

Discussion

An increase in the difference between central venous and arterial carbon dioxide partial pressure (dCO2) has been demonstrated to be indicative for impaired capillary perfusion. However, despite results from animal studies suggest that severe bleeding alters this parameter, it is still elusive if red blood cell transfusion in humans also has an effect on dCO2 values. Our results demonstrate that in orthopedic and trauma surgery patients, dCO2 is inversely associated with ScvO2. Transfusion of one RBC unit significantly increased hemoglobin and hematocrit, and at lower pre-transfusion values, RBC administration had a more pronounced effect on this increase. Neither lactate nor ScvO2 nor dCO2 were influenced by RBC transfusion. However, median decrease in dCO2 was significantly more pronounced at pre-transfusion values above 6 mmHg, compared to those below this cut-off.

Human cell metabolism is oxygen-dependent. Glucose is oxidized during aerobic cellular respiration (glycolysis, oxidative decarboxylation, citric acid cycle and oxidative phosphorylation) via various intermediate products (pyruvate, acetyl-CoA, isocitrate, NADH). In the end, the energy transferred is used to generate bonds between Adenosine Diphosphate (ADP) and a further phosphate group to form high-energy Adenosine Triphosphate (ATP). Also, low-energy waste products (water and CO2) are created during this process. ATP is then used to drive energy-consuming cellular vital processes such as various substeps of DNA, RNA and protein synthesis, intra- and extracellular signaling or enzymatic activity. Therefore, oxygen supply to the cells is crucial.

Usually, in resting state, oxygen delivery to organs and tissues exceeds demand by far. While oxygen consumption in a healthy adult at rest is approximately 200-250 ml/min, delivery to the body achieves 800–1,000 ml/min. Blood returning to the lungs from periphery is still saturated with oxygen to a large extent, illustrating the physiological reserves of this system. A mixed-venous blood sample drawn from the pulmonary artery, showing an oxygen saturation of about 75%, is supposed to be indicative of a physiologically well-balanced relation between oxygen consumption and supply. If this balance is lost (either due to increased oxygen demand or to reduced cardiac output or limited oxygen transport capacity of the blood), this results in an increased peripheral oxygen extraction, evidenced by a reduced mixed-venous saturation [12]. The relevance of a decreased SmvO2 (or ScvO2) to diagnose critically impaired circulation, to evaluate the success of therapeutic measures and also as an outcome-related parameter in critically ill patients is meanwhile well accepted [5,12-15]. This holds especially true for changes over time [16]. Therefore, ScvO2 as well as SmvO2 can also be determined continuously by fiberoptics [12]. Hence, determination of SmvO2 has been implemented into guidelines to treat shock and circulatory failure [17-19]. ScvO2, which is determined via a central venous instead of a (more invasive) pulmonary artery catheter, is supposed to be about 5 % lower than SmvO2 in absolute values, but it compares to the latter in its diagnostic relevance. Again, this particularly holds true for changes, usually occurring equally in ScvO2 as well as SmvO2 [12].

For both parameters, an association with hemoglobin levels has been demonstrated [16]. This relation between cardiac output (Q), hemoglobin (Hgb) and SmvO2 can be derived from the equation: Q = (VO2)sys/[13.9 . [Hgb] . (SaO2-SmvO2)].

With unchanged cardiac output, a reduction in hemoglobin content results in a decrease in SmvO2. However, clinically, acute hemorrhage or hemodilution has been shown not to affect SmvO2 values until the hemoglobin level falls by approximately 50% because of a compensatory increase in cardiac output [10,20]. Our results are in line with that. Although in the whole cohort, median hemoglobin values were below the normal range given for adults (12-18g/dl), ScvO2 values were not significantly lowered (normal range >70%).

The relation between cardiac output and SmvO2 (and thus also ScvO2) is derived from the principle of Fick. The flow through the body of an indicator substance absorbed or released by the tissue is proportional to the difference of its concentration on the arterial and on the venous side. Similar to oxygen as an indicator that is absorbed by tissue (and measured in the arterial and the returning mixed venous blood), the principle of Fick can also be applied to CO2 (as an indicator released from tissue into the blood). As described above, CO2 is produced as waste product of aerobic cellular respiration in the citric acid cycle. Upon release, it is carried via capillaries, venules and the larger veins to the lungs and exhaled. Therefore, the difference between the CO2 content in venous and in arterial blood is likewise proportional to capillary perfusion. This relation is meanwhile well established: dCO2 is proportional to CO2 production and inversely related to cardiac output (and tissue perfusion) [6,7,21]. Clinically, it may therefore serve as a surrogate marker of venous return and the adequacy of cardiac output – for diagnostic and therapeutic approaches as well [6,7,22-24]. A dCO2 of 6 mmHg is considered a cut-off value - if capillary perfusion decreases to a critical degree, more CO2 is released into blood per time, causing the dCO2 to increase to values above 6 mmHg [8]. An association with a worsened outcome in surgery patients has been shown [25]. Since CO2 is approximately 20 times more soluble in the blood compared to oxygen, an increased dCO2 can indicate a perfusion mismatch in critically ill patients even when ScvO2 is still within a normal range [7]. In our cohort, ScvO2 and dCO2 were inversely correlated both before and after transfusion (i.e., increase in hemoglobin). This is in line with the findings of Al Duhailib et al. in a large population of more than 2,000 patients [23].

As expected, both hemoglobin level and hematocrit increased significantly by administration of one RBC unit in our cohort. Interestingly, the lower the pre-transfusion value was, the more pronounced was the increase in hemoglobin. Typically, according to the rule of thumb, transfusion of one unit of RBC in a normally constituted adult is expected to raise hemoglobin by 1g/dL [26]. Factors known to influence this include gender and BMI. In our study population, neither body weight nor height nor BMI had a significant influence on the increase. However, the dependence on pre-transfusion values we observed had already be described by others, e.g., by Naidech et al. in patients with subarachnoid hemorrhage [27]. Similarly, in trauma patients, cerebral oxygenation, which (in part) also depends on hemoglobin levels, is improved by transfusion to a greater extent the more impaired it was before [28]. Others demonstrated similar results for ScvO2, which could be improved by transfusion only in those patients whose pre-transfusion ScvO2 was already reduced and below 70% [29,30]. Hence, patients showing a more markedly compromised tissue oxygenation at decreased hemoglobin levels particularly benefit from transfusion, which highlights the value of an individualized approach to RBC administration, as opposed to fixed hemoglobin threshold values. Of note, in our study cohort, the majority (37 of 46) of pre-transfusion ScvO2 values were above 70% and therefore we did not observe these effects of RBC transfusion on ScvO2.

In our patient cohort, transfusion of one RBC unit had a significant effect on hemoglobin and hematocrit, but not on ScvO2 or dCO2. This may not be unexpected, given the fact that even before transfusion there was no association between hemoglobin and ScvO2 or dCO2 and that these both parameters (in contrast to hemoglobin) were measured within their normal ranges. Nevertheless, results from animal studies suggest an effect of pathologically decreased hemoglobin level in the setting of severe bleeding on dCO2. In a study by Kocsi et al., sequential and controlled severe isovolemic anemia was established in Vietnamese mini pigs [10]. A significant decrease in ScvO2 as well as an increase in dCO2 occurred, but only when hemoglobin levels decreased by more than 50%. This may explain why the (though significant but) only moderate change in hemoglobin levels in our whole cohort (median increase 1.2g/dL, corresponding to about 15% of pre-transfusion values) had no effect on ScvO2 or dCO2. Similar results were seen by Dubin et al. in a sheep hemorrhage model, who could not observe a change in dCO2 due to only a moderate reduction of hemoglobin concentration (as long as there was no concomitant reduction in cardiac output) [31,32]. Moreover, our results reflect those of Themelin et al., who studied the effect of RBC transfusion on (normal) dCO2 values in a cohort of 62 patients and observed no significant changes, achieving similar increases in hemoglobin levels as we did (1.0g/dL) [29].

Interestingly and comparable with the effect of pre-transfusion hemoglobin on the increase following RBC administration, in our study, dCO2 decreased significantly more pronounced in those patients with a pre-transfusion dCO2 above the threshold value of 6 mmHg, compared to those below this cut-off. This again suggests that patients with an impaired capillary perfusion at decreased hemoglobin levels (in this case reflected by an elevated dCO2) may benefit more from RBC transfusion than those with normal pre-transfusion values.

It should be assumed that for a more restrictive and individualized approach, in addition to a decreased hemoglobin value, parameters of impaired oxygenation or capillary perfusion mismatch should be taken into account when considering administering RBC. This may have the potential to reduce transfusion incidence without a negative impact on patient outcome [33]. Reasonable parameters can be ScvO2 or markers of cerebral oxygenation, as described above, but also, as in our case, increased dCO2 [28-30,34]. In fact, the protocol of a prospective cohort study to systematically investigate the value of dCO2 in combination with parameters of tissue oxygenation as transfusion trigger was recently published [35]. Its results as well as those of the ongoing LIBERAL trial may be helpful towards the development of more individualized transfusion approaches [11].

Our study has some limitations. First (and most significant), neither cardiac output nor microcirculation itself have been monitored directly. An upcoming study involving sublingual sidestream dark field imaging to evaluate our herein presented results should gain further insights on the relationship between transfusion outcome, dCO2 and capillary tissue perfusion. Second, sample size of our cohort was restricted, and our study population did not comprise critically ill patients with more severely impaired circulation. Therefore, our results may not necessarily be transferred to other patient populations and should be interpreted as pilot results that have to be validated in a larger trial.

In summary, the results of our study suggest that crude dCO2 is not influenced by moderate hemoglobin increases in orthopedic and trauma surgery patients. However, including dCO2 into the decision whether to administer RBC or not may be an interesting approach for further investigations on the way towards more individualized transfusion regimens.

Author Statements

Ethics Approval and Consent to Participate

The leading ethics committee (University Wuerzburg 87/17_ff) and local ethics committee (University Hospital Bonn, Germany; protocol number 096/17-AMG) considered the study (clinical trials: NCT03369210) to be compliant with the applicable professional codes and regulations and thereby approved the study protocol. All patients provided written informed consent prior to inclusion into the study.

Availability of Data and Materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Competing Interests

The authors declare that they have no competing interests.

Funding

The LIBERAL-Study is funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) – project number 286575274.

Conflicts of Interest

The authors state that they have no conflicts of interest to declare.

References

  1. Magder SA. The highs and lows of blood pressure: toward meaningful clinical targets in patients with shock. Crit Care Med. 2014; 42: 1241-51.
  2. Tsai AG, Friesenecker B, McCarthy M, Sakai H, Intaglietta M. Plasma viscosity regulates capillary perfusion during extreme hemodilution in hamster skinfold model. Am J Physiol. 1998; 275: H2170-80.
  3. Bakker J. Lactate levels and hemodynamic coherence in acute circulatory failure. Best Pract Res Clin Anaesthesiol. 2016; 30: 523-30.
  4. Tafner PFDA, Chen FK, Rabello R, Corrêa TD, Chaves RCF, et al. Recent advances in bedside microcirculation assessment in critically ill patients. Rev Bras Ter Intensiva. 2017; 29: 238-47.
  5. Janotka M, Ostadal P. Biochemical markers for clinical monitoring of tissue perfusion. Mol Cell Biochem. 2021; 476: 1313-26.
  6. Scheeren TWL, Wicke JN, Teboul JL. Understanding the carbon dioxide gaps. Curr Opin Crit Care. 2018; 24: 181-9.
  7. Habicher M, von Heymann C, Spies CD, Wernecke KD, Sander M. Central venous-arterial PCO2 difference identifies microcirculatory hypoperfusion in cardiac surgical patients with normal central venous oxygen saturation: A retrospective analysis. J Cardiothorac Vasc Anesth. 2015; 29: 646-55.
  8. Dres M, Monnet X, Teboul JL. Hemodynamic management of cardiovascular failure by using PCO(2) venous-arterial difference. J Clin Monit Comput. 2012; 26: 367-74.
  9. Morel J, Gergelé L, Dominé A, Molliex S, Perrot JL, et al. The venous-arterial difference in CO2 should be interpreted with caution in case of respiratory alkalosis in healthy volunteers. J Clin Monit Comput. 2017; 31: 701-7.
  10. Kocsi S, Demeter G, érces D, Kaszaki J, Molnár Z. Central venous-to-arterial CO2-gap may increase in severe isovolemic anemia. PLOS ONE. 2014; 9: e105148.
  11. Meybohm P, Lindau S, Treskatsch S, Francis R, Spies C, et al. Liberal transfusion strategy to prevent mortality and anaemia-associated, ischaemic events in elderly non-cardiac surgical patients - the study design of the LIBERAL-trial. Trials. 2019; 20: 101.
  12. Gutierrez G. Central and mixed venous O2 saturation. Turk J Anaesthesiol Reanim. 2020; 48: 2-10.
  13. De Backer D, Cecconi M, Chew MS, Hajjar L, Monnet X, et al. A plea for personalization of the hemodynamic management of septic shock. Crit Care. 2022; 26: 372.
  14. Mayer K, Trzeciak S, Puri NK. Assessment of the adequacy of oxygen delivery. Curr Opin Crit Care. 2016; 22: 437-43.
  15. Walton RAL, Hansen BD. Venous oxygen saturation in critical illness. J Vet Emerg Crit Care (San Antonio). 2018; 28: 387-97.
  16. Jain A, Shroff SG, Janicki JS, Reddy HK, Weber KT. Relation between mixed venous oxygen saturation and cardiac index. Nonlinearity and normalization for oxygen uptake and hemoglobin. Chest. 1991; 99: 1403-9.
  17. Brunkhorst FM, Weigand MA, Pletz M, Gastmeier P, Lemmen SW, et al. S3-Leitlinie Sepsis – Prävention, Diagnose, Therapie und Nachsorge. Med Klin Intensivmed Notfallmed. 2020; 115: 37-109.
  18. S3-Leitlinie zur Intensivmedizinischen Versorgung Herzchirurgischer Patienten – Hämodynamisches Monitoring und Herz-Kreislauf (AWMF-Register Nr. 001/016) – A&I Online – Anästhesiologie & Intensivmedizin [cited Apr 30 2023]. Available from: https://www.ai-online.info/supplements/2018/16-2018/s3-leitlinie-zur-intensivmedizinischen-versorgung-herzchirurgischer-patienten-haemodynamisches-monitoring-und-herz-kreislauf-awmf-register-nr-001-016.html.
  19. DGAI, editor. für die Leitliniengruppe Intravasale Volumentherapie bei Erwachsenen S3-Leitlinie Intravasale Volumentherapie bei Erwachsenen, AWMF-Registernummer. 2020; 001-20.
  20. Krantz T, Warberg J, Secher NH. Venous oxygen saturation during normovolaemic haemodilution in the pig. Acta Anaesthesiol Scand. 2005; 49: 1149-56.
  21. Mallat J, Lemyze M, Tronchon L, Vallet B, Thevenin D. Use of venous-to-arterial carbon dioxide tension difference to guide resuscitation therapy in septic shock. World J Crit Care Med. 2016; 5: 47-56.
  22. Cuschieri J, Rivers EP, Donnino MW, Katilius M, Jacobsen G, et al. Central venous-arterial carbon dioxide difference as an indicator of cardiac index. Intensive Care Med. 2005; 31: 818-22.
  23. Al Duhailib Z, Hegazy AF, Lalli R, Fiorini K, Priestap F, et al. The use of central venous to arterial carbon dioxide tension gap for outcome prediction in critically ill patients: A systematic review and meta-analysis. Crit Care Med. 2020; 48: 1855-61.
  24. Chalkias A, Laou E, Mermiri M, Michou A, Ntalarizou N, et al. Microcirculation-guided treatment improves tissue perfusion and hemodynamic coherence in surgical patients with septic shock. Eur J Trauma Emerg Surg. 2022; 48: 4699-711.
  25. Chen T, Pan T, Luo X, Wang D. High central venous-to-arterial CO2 difference is associated with poor outcomes in patients after cardiac surgery: A propensity score analysis. Shock. 2019; 52: 583-9.
  26. Ness P, Kruskall M, Hoffman K. Principles of Red Blood Cell Transfusion; Hematology: basic principles and practice. 4th ed. Orlando, FL: Churchill Livingstone; 2005.
  27. Naidech AM, Kahn MJ, Soong W, Green D, Batjer HH, et al. Packed red blood cell transfusion causes greater hemoglobin rise at a lower starting hemoglobin in patients with subarachnoid hemorrhage. Neurocrit Care. 2008;9(2):198-203.
  28. Leal-Noval SR, Rincón-Ferrari MD, Marin-Niebla A, Cayuela A, Arellano-Orden V, et al. Transfusion of erythrocyte concentrates produces a variable increment on cerebral oxygenation in patients with severe traumatic brain injury: a preliminary study. Intensive Care Med. 2006; 32: 1733-40.
  29. Themelin N, Biston P, Massart J, Lelubre C, Piagnerelli M. Effects of red blood cell transfusion on global oxygenation in anemic critically ill patients. Transfusion. 2021; 61: 1071-9.
  30. Wm AE, Gf E, Sr ES, Sm S. Effect of Blood Transfusion on Central Venous Oxygen Saturation in Anemic Patients on Intensive Care Unit. J Clin Investig Stud. 2018; 1.
  31. Dubin A, Estenssoro E, Murias G, Pozo MO, Sottile JP, et al. Intramucosal-arterial Pco2 gradient does not reflect intestinal dysoxia in anemic hypoxia. J Trauma. 2004; 57: 1211-7.
  32. Ferrara G, Kanoore Edul VS, Martins E, Canales HS, Canullán C, et al. Intestinal and sublingual microcirculation are more severely compromised in hemodilution than in hemorrhage. J Appl Physiol (1985). 2016; 120: 1132-40.
  33. Fischer MO, Guinot PG, Debroczi S, Huette P, Beyls C, et al. Individualised or liberal red blood cell transfusion after cardiac surgery: A randomised controlled trial. Br J Anaesth. 2022; 128: 37-44.
  34. Ranucci M, Castelvecchio S, Ditta A, Brozzi S, Boncilli A, et al. Transfusions during cardiopulmonary bypass: better When Triggered by venous Oxygen Saturation and Oxygen Extraction Rate. Perfusion. 2011; 26: 327-33.
  35. Gu WJ, Kong YJ, Li YJ, Wang CM. P(v-a)CO2/C(a-v)O2 as a red blood cell transfusion trigger and prognostic indicator for sepsis-related anaemia: protocol for a prospective cohort study. BMJ Open. 2022; 12: e059454.
