Cuesta-Barriuso R

Special Article - Hemophilia

Ann Hematol Oncol. 2017; 4(9): 1172.

Effectiveness of Physiotherapy in the Treatment of Hemophilic Arthropathy a Systematic Review

Cuesta-Barriuso R*

Department of Physiotherapy, European University of Madrid, Royal Victoria Eugenia Foundation, Spain

*Corresponding author: Cuesta-Barriuso R, Department of Physiotherapy, European University of Madrid, Royal Victoria Eugenia Foundation, Spain

Received: July 10, 2017; Accepted: August 21, 2017; Published: October 12, 2017

Abstract

Hemophilia is a congenital coagulopathy characterized by musculoskeletal bleeding. The recurrence of bleeding in one joint causes joint deterioration known as hemophilic arthropathy. This arthropathy is characterized by chronic pain, and loss of joint mobility, muscle strength and proprioception. Prophylactic medical treatment with physiotherapy may improve the physical conditions of patients with hemophilia.

Method: A systematic search was conducted in PubMed, Science Direct, Isi Web and the specialized journal Haemophilia. The information on the intervention, control condition, study methodology and the main findings of each study were extracted and summarized critically. The methodological quality of the selected studies was evaluated using the Van Tulder and PEDro scales.

Results: Data from 10 studies fulfilled the selection criteria. Physiotherapy programs through home exercise programs and ergonomic bicycle and treadmill exercises to develop muscle strength, gait and proprioception produced significant improvements in pain perception, joint range of motion and muscle strength. Similarly, manual therapy is safe and effective in improving chronic pain and joint mobility. Finally, educational physiotherapy improves the perception of pain and the quality of patients with hemophilia. The results were less clear for social perception and attributional bias. The overall methodological quality of the study was medium-high. The power of the results, through the size of the effect was medium-high.

Conclusion: Physiotherapy interventions through educational physiotherapy, manual therapy, stretching, muscle strength protocols and cycling exercises improve pain perception, functionality, proprioception and muscle strength, and quality of life and perception of disease in patients with hemophilic arthropathy.

Keywords: Hemophilia; Joint damage; Hemophilic arthropathy; Physiotherapy; Randomized clinical trial

Introduction

Hemophilia is a hereditary and recessive disease, linked to the X chromosome, characterized by the deficiency of one of the clotting factors. Based on the deficit factor, there two types of hemophilia: A (FVIII deficit factor) and B (IX deficit factor), and depending on the percentage in blood of FVIII/FIX, hemophilia severity varies (severe: <1%, moderate: 1-5%, and mild: >5%) [1]. The prevalence of the disease is 1: 5000 live births in hemophilia A and 1: 30000 live births in hemophilia B [2].

This hematological disease is characterized by hemorrhages in the locomotor system, mainly located in muscles and joints (haemarthrosis) [3]. Joint bleeding mainly occurs in knees, ankles and elbows [4]. Repeated haemarthrosis in the same joint leads to the development of synovial membrane hypertrophy, chemical and enzymatic intra articular alterations, and finally joint degeneration (hemophilic arthropathy) [5].

The onset of arthropathy presents with radiological alterations (decreased joint interline, bone deformity, and the development of osteophytes, among others), physical alterations (chronic pain, loss of range of motion and periarticular muscle strength, and altered proprioception) [6], as well as psychological alterations (decreased perception of quality of life) [7].

The Gold standard in the treatment of hemophilia is the periodic intravenous administration of the lacking clotting factor (prophylactic treatment) [8]. This therapeutic model has been shown to be the most effective in the prevention of hemorrhages and the development of hemophilic arthropathy. However, despite advances in medical treatments, adult patients and those living in developing countries have not had access to prophylaxis, thus exhibiting significant joint alterations [9].

When the joint has developed a degenerative arthropathy the therapeutic options include physiotherapeutic and orthopedic treatment with the aim of improving functionality [10]. An appropriate management of the hemophilia patient’s chronic pain is essential, requiring the participation of physiotherapists in the multidisciplinary team treating patients with hemophilia [11]. Although a number of studies have been designed to assess the safety and efficacy of the various physiotherapy techniques such as electrotherapy [12], strength and proprioception training [13], and aqua fitness training [14], further progress is needed identify and design a protocol for the physiotherapeutic approach in patients with hemophilic arthropathy. Conducting studies with a good methodological design that evaluate the safety and efficacy of well-defined protocols is fundamental for the generalized use of physiotherapy in patients with hemophilia [15].

The present study aims to carry out a systematic review of the treatment of physiotherapy in an approach to patients with hemophilic arthropathy.

Method

Study design

Systematic review carried out in May and June 2017.

Documentary sources

This review was prepared using the databases Science Direct, Isi Web and Medline. Haemophilia, specializing in research on patients with congenital coagulopathies, was also consulted.

Search strategy

The search strategy devised to locate the articles related to our object of study was: (haemophilia OR hemophilia) AND (physical therapy OR physiotherapy) and arthropathy) in the title, abstract and keywords.

Article selection criteria

No limit was placed on the year of publication of the articles or the language of publication in the search process.

The criteria for inclusion of the articles in this review were: published articles; describing the technique of physiotherapy used with duly identified measuring instruments; being a randomized clinical trial (RCT); and patients should be diagnosed with hemophilic arthropathy in one of the joints.

We excluded from the review those studies that were: studies in which patients followed programs of non-therapeutic exercise; and abstracts or Congress communications.

Qualitative analysis of the level of scientific evidence

In order to carry out the qualitative analysis of the level of scientific evidence of the selected articles, two scales were used: Van Tulder [16] and PEDro [17].

The Van Tulder scale analyzes the threats to the validity of randomized clinical trials based on the elements of adequacy of the random method, concealment of treatment placement, low vision and intention-to-treat analysis, using 11 items. The Physiotherapyspecific PEDro scale was developed to be used in experimental studies and provides an important source of information to support practice based on clinical evidence evaluating the internal validity and presentation of the statistical analysis of the studies, using 10 items. The presence of quality indicators scores 1 point, while no quality indicators score 0 points.

Quantitative analysis of selected studies

An analysis was carried out to obtain the main descriptive statistics (mean and standard deviation) of the methodological variables of the treatment and of the patients recruited in the articles analyzed.

Similarly, using the Rosenthal formula [18], the effect size of the results obtained with respect to the different study variables was calculated.

Results

Search results

As a result of the search process, 183 articles were identified. In a first phase, after discarding the 116 articles repeated among the various documentary sources, the titles and abstract of the remaining 67 studies were analyzed. Finally, following the selection process, only 10 articles [19-28] met the established criteria. Figure 1 shows the flow diagram with the selection made according to the criteria described above.

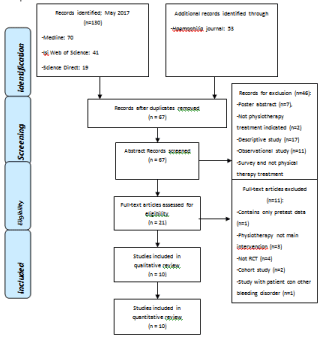

Figure 1: Flow Diagram of systematic review.



    Figure 1:  Flow Diagram of systematic review.

Description of the sample

The control groups and the experimental groups of most of the studies represented a homogenous population sample. However, in terms of the total population included in the different publications, there is much heterogeneity. Regarding the age of the subjects of the studies, the majority are between 9 and 64 years. The homogeneity of the type and severity of hemophilia of the patients is characteristic in all the studies, the most recruited patients being those with severe and moderate hemophilia A. However, only one of the studies [27] includes patients with FVIII/ FIX (inhibitors) antibodies, prophylactic treatment being the most frequently prescribed treatment in the patients included in the eight studies selected. Table 1 shows the main characteristics of the patients included in the selected studies.

Table 1: Characteristics of patients recruited in studies that met the inclusion criteria of this review.





    Article
    n (EG)
    n (CG)
    Age
    Type
    Severity
    Treatment
    Inhib.
    H


    Mazloum et al. 2014
    N_pre1= 13
    N_pre= 13
    EG1: 33.1 (10.5)
    HA: 26
    Severe: 19
    Prophylaxis: 17
    0
    No



    N_post1= 11
    N _post=9
    EG2: 33.4 (10.5)
    HB: 5
    Moderate: 12
    On demand:14





    N_pre2= 14

    CG:   33.6 (9.2)








    N_post2= 9









    Goto et al. 2014
    N_pre1= 19
    N_pre=18
    EG: 41.8 (8.6)
    HA: 26
    Severe: 27
    Prophylaxis: 25
    0
    No



    N_post1= 16
    N_post= 16
    CG: 43.9 (10.7)
    HB: 6
    Moderate or mild: 5
    On demand: 7




    Al-Ghalib et al. 2014
    N_pre1= 25
    N_pre=25
    EG: 38.14 (8.32)
    HA: 50
    Moderate: 50
    Prophylaxis: 0
    DU
    DU



    N_post1= 25
    N_post= 25
    CG: 37.97 (9.15)


    On demand:  50




    Cuesta-Barriuso et al. I 2014
    N_pre1= 5
    N_pre2= 4
    EG1: 37.6 (13.1)
    HA: 7
    Severe: 8
    Prophylaxis: 9
    0
    No



    N_post1= 5
    N_post2= 4
    EG2: 33.5 (11.7)
    HB: 2
    Moderate: 1
    On demand: 0




    Cuesta-Bariuso et al. II 2014
    N_pre1= 11
    N_pre= 10
    EG1: 35.3 (13.06)
    HA: 26
    Severe: 19
    Prophylaxis: 17
    0
    No



    N_post1= 11
    N _post=9
    EG2: 33.4 (14.87)
    HB: 5
    Moderate: 12
    On demand:14





    N_pre2= 10

    CG:   37.1 (11.59)








    N_post2= 9









    Eid et al. 2014
    N_pre1= 15
    N_pre=15
    EG: 12.00 (1.36)
    HA: 30
    Moderate: 30
    Prophylaxis: 30
    0
    DU



    N_post1= 15
    N_post= 15
    CG: 12.13 (1.35)


    On demand: 0




    Mohamed et al. 2014
    N_pre1= 15
    N_pre=15
    EG: 12.40 (1.37)
    HA: 30
    Mild and moderate: 30
    Prophylaxis: 0
    DU
    DU



    N_post1= 15
    N_post=15
    CG: 12.80 (1.39)


    On demand: 30




    El-Shamy et al. 2016
    N_pre1= 15
    N_pre=15
    EG: 11.55 (1.34)
    HA: 30
    DU
    Prophylaxis: 30
    0
    DU



    N_post1= 15
    N_post=15
    CG: 11.43 (1.45)


    On demand: 0




    Runkel et al. 2017
    N_pre1= 32
    N_pre=32
    EG: 41.9 (10.6)
    HA: 48
    Severe: 47
    DU
    3
    DU



    N_post1= 24
    N_post=28
    CG: 40.3 (8.8)
    HB: 4
    Moderate: 5





    Cuesta-Barriuso II  et al. 2017
    N_pre1= 10
    N_pre=10
    EG: 31.90 (12.52)
    HA: 16
    Severe: 10
    Prophylaxis: 7
    0
    DU



    N_post1= 10
    N_post=10
    CG: 30.00 (11.85)
    HB: 4
    Moderate: 3
    On demand: 13









    Mild: 7





    N_exp:    Number of patients in experimental group; N_cont: Number of    patients in control group; Type: Type of Hemophilia (A or B); Severity: Severity of Hemophilia    (severe, moderate or mild); Treatment: Pharmacological Treatment    (prophylactic or on demand); Inhib.: Inhibitor (antibodies to FVIII or FIX);    H: Haemarthrosis during the treatment period; GE: Experimental Group; EG1: Experimental    Group 1; EG2: Experimental Group 2; CG: Control Group; HA: Hemophilia A; HB: Hemophilia    B; DU: Data Unavailable



Table 1: Characteristics of patients recruited in studies that met the inclusion criteria of this review.

Description of applied treatments

The most frequently used technique in the selected studies is manual therapy. The development of home exercise programs and ergonomic bicycle and treadmill exercises to develop muscle strength, gait and proprioception were the most used therapeutic tools in the studies analyzed in the present review [19-21,24,25,27,28]. Joint traction (level I-II) and active and passive kinesitherapy are also used in the approach of hemophilic arthropathy [22,23].

Two articles [23,28] include an educational physiotherapy program in adult patients with hemophilia, and finally one article studies the safety and efficacy of a laser electrotherapy technique in hemophilia [26]. Table 2 details the methodological characteristics of the treatments carried out in the studies under review, as well as the results obtained in each one.

Table 2: Methodological characteristics of the ten studies included in the review.

Article
d
Variables
Measurement instruments
Treatment
Results

Mazloum et al.
2014
-Joint pain of knee
-Range of motion in knee
-Visual Analogical Scale
-Goniometer
-Stretching exercises, hamstring stretching (progression from isometric to isotonic) and gentle stretching (EG1).
-Coordinated movement of lower limb in water, hamstring stretching (progression from isometric to isotonic) and gentle stretching (EG2).
-Improved joint pain level and knee flexion and extension (EG1 and EG2).
-Improved pain was significantly more alleviated in hydrotherapy (EG2) in comparison to exercise therapy (EG1)

Goto et al.
2014
8
-Self-efficacy
-Joint pain
-Strength of knee extension
-Range of motion in knee and ankle
-Dynamic standing position balance
-Physical activity
-modified Marcus scale
-Visual Analogical Scale -Dynamometer
-Goniometer
-modified-Functional Reach Test
-Accelerometer
-Knee extension strength training: isometric exercise at a long-sitting position, resistive training at sitting position, a half squat with both legs at standing position and a half squat with a single leg at standing position (EG and CG).
-Balance training (3 times per day): moving the body’s center of gravity, stepping and standing balance exercises with a single leg (EG and CG)
-System of self-monitoring. The subjects access a server and receive the feedback results of exercise over time shown in graphs and
tables after monitoring items (EG).
-Improved self-efficacy and strength of knee extension (significant in EG compared with CG).
-Improved strength of knee extension, range of knee extension and ankle dorsiflexion, balance and physical activity (EG and CG).

Al-Ghalib et al.
2014
12
-Hand grip strength
-Markers of bone metabolism
(serum calcium and parathyroid hormone)
-Jamar hand dynamometer
-Samples of venous blood
-Moderate intensity aerobic exercise training at 65% to 75% of the maximum heart rate achieved in a reference ST performed according to a modified Bruce protocol (EG1).
-Mild intensity aerobic exercise training at 50% to 60% of the maximum heart rate (EG2).
-Improve markers of bone metabolism and hand grip strength (EG1).

Cuesta-Barriuso et al. I
2014
6
-Joint pain of ankle
-Range of motion
-Proprioception
-Quality of life
-Visual Analogical Scale
-Goniometer
-Romberg´s test
-A36 Hemophilia-QoL
-Superficial thermotherapy, passive mobilizations, resisted exercises, active muscle stretching, unipodal support with open and closed eyes and cryotherapy (EG1).
-Superficial thermotherapy, joint traction I–II, active exercise, passive muscle stretching, unipodal support with open and closed eyes and cryotherapy (EG2).
-Improved all ankle movements (EG and CG).
-Improved QoL (EG).
-Improved ankle pain (EG).

Cuesta-Bariuso et al. II
2014
12
-Joint pain of ankle
-Range of movement
-Muscle strength
-Gastrocnemius circumference
-Visual Analogical Scale
-Goniometer
-Rupture test
-Tape measure
-Superficial thermotherapy, joint traction I–II, passive muscle stretching, isometric and resisted exercise, unipodal support with open and closed eyes and cryotherapy (EG1).
-Educational sessions, exercises in favor of gravity to improve the ROM, isometric and isotonic exercises of ankle, active exercises for mobility and pain management, ankle proprioception exercises and swimming and cycling technique (EG2).
-Improved ankle pain (EG).
-Improved gastrocnemius circumference (EG).

Eid et al.
2014
12
-Bone mineral density
-Muscle strength
-Functional ability
-Dual Energy X-ray Absorptiometry
-Isokinetic dynamometer
-Six Minute Walk test
-Bicycle ergometer and resistance exercise training.
-Gentle stretching exercises for biceps brachii, hamstrings and calf muscles, static muscle contraction for quadriceps, hamstrings, anterior tibial group, calf muscles, biceps and triceps, Aerobic exercise in the form of treadmill training (CG).
-Improved in bone mineral density (EG).
-Improved knee extensors and flexors strength (EG).
-Improved functional ability (EG and CG).

Mohamed et al.
2014
12
-Balance
-Gait parameters
-Dynamic balance test (Biodex Stability System)
-Biodex gait trainer 2TM
-Gentle stretching exercises, isometric muscle contraction and balance and gait training exercises with obstacles (EG and CG)
-Bicycle ergometer (EG)
-Aerobic exercise in the form of treadmill training (CG)
-Improved balance and gait parameters (EG and CG)

El-Shamy et al.
2016
12
-Joint pain
-Functional ability
-Gait parameters
-Visual Analogical Scale
-Six Minute Walk test
-GAITRite^® system
-Hot packs, muscle stretching, strengthening exercises, proprioceptive training, balance and gait training (EG and CG)
-Pulsed high intensity laser therapy: dose of 1500 J for both knees (750 J for each knee) administered throughout three phases (EG)
-Improved Joint pain (EG)
-Improved functional ability (EG)
-Improved gait parameters (EG)

Runkel
et al. 2017
24
-Subjective physical performance
-Perception of generic quality of life
-Perception of specific quality of life
-HEP-Test-Q
-SF-36 Health Survey
-Haem-A-QoL
-A training plan for one patient usually consisted of 5–9 exercises (e.g. cable pull, leg press), which were selected out of an exercise catalogue of 30 practices regarding strength and coordination. Mobility and endurance were adopted individually. To get accustomed to the training, it was prescribed to begin with 10–30% of the maximum power in the first 3–4 weeks, followed by 30–50% and finally 50–70% in the last 4–6 months. In addition, the norm was three rates of 15 repetitions (EG).
-Improved of subjective physical performance (EG)
-Improved some domains of HR-QoL (EG).

Cuesta-Barriuso et al.
2017
15
-Joint status
-Joint pain
-Illness behavior
-Perception of quality of life
-Gilbert score
-Visual Analogical Scale
-Illness Behavior Questionnaire
-A36 Hemophilia-QoL
-Educational sessions, muscle stretching exercises of upper and lower limbs, isometric exercises of quadriceps, hamstrings, biceps, triceps, and calves, active exercises for mobility and pain management, proprioceptive exercises on 1 leg with visual support and recommended sports in hemophilia (EG)
-Improved Joint pain (EG)
-Improved some variables of illness behavior (EG)
-Improved some variables of quality of life (EG)

D: Type of Study; d: duration of the treatment (weeks); RCT: Randomized Clinical Trial; Variables: Dependent Variables; ROM: Range of Movement; Treatment: characteristic of the treatment of the study; EG: Experimental Group 1; EG2: Experimental Group 2; CG: Control Group.



Table 2: Methodological characteristics of the ten studies included in the review.

No adverse effects or complications have been found as a result of the administration of physiotherapy techniques. This suggests the safety of these interventions from the hemorrhagic point of view, and may help to identify a better efficacy and adherence to the treatment in these patients.

Qualitative analysis of the level of scientific evidence

The level of evidence of the studies obtained through the Van Tulder scale shows us that three studies [23,26,28] score a maximum of 9 out of 11 points. Blinding of the therapist and the patient or rater are the only items in which these articles did not achieve a positive score. On the other hand, two articles scored 8 points [22,25], the failure to describe the method of randomization being the main methodological deficiency. Three studies [20,21,24] scored 7 points, while one article scored 6 points [19], and only one [27] 5 points. This qualitative analysis presents medium-high scores due to proper randomization, the simple blind design and low experimental death, among other variables measured in the studies.

Table 3: Van Tulder and PEDro Scale: qualitative analysis of the level of scientific evidence of the selected studies.





    Scale
    Items
    Mazloum
      2014
    Goto
      2014
    Al-Ghalib
      2014
    Cuesta-Barriuso I
      2014
    Cuesta-Barriuso II
      2014
    Eid
      2014
    Mohamed
      2014
    El-Shamy
      2016
    Runkel 2017
    Cuesta-Barriuso
      2017


    Van Tulder
    Was the method of randomization adequate?
    0
    1
    0
    0
    1
    0
    1
    1
    0
    1


    Was the treatment allocation concealed?
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    Were the groups similar at baseline?
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    Was the patient blinded to the intervention?
    0
    0
    0
    0
    0
    0
    0
    1
    0
    0


    Was the care provider blinded to the intervention?
    0
    0
    0
    0
    0
    0
    0
    0
    0
    0


    Was the outcome assessor blinded to the intervention?
    0
    0
    0
    1
    1
    0
    0
    0
    0
    1


    Were co-interventions avoided or    similar?
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    Was the compliance acceptable in all groups?
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    Was the drop-out rate described and acceptable?
    1
    1
    1
    1
    1
    1
    1
    1
    0
    1


    Was the timing of the outcome assessment in all groups similar?
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    Did the analysis include an intention-to-treat analysis?
    0
    0
    1
    1
    1
    1
    1
    1
    0
    1


    Total scale
    6
    7
    7
    8
    9
    7
    8
    9
    5
    9


    PEDro

    Eligibility criteria were specified^*
    1
    1
    1
    1
    1
    1
    1
    0
    0
    1


    Subjects were randomly allocated to groups
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    Allocation was concealed
    0
    1
    0
    0
    1
    0
    1
    1
    0
    1


    The groups were similar at baseline
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    There was blinding of all subjects
    0
    0
    0
    0
    0
    0
    0
    1
    0
    0


    There was blinding of all therapists who administered the therapy
    0
    0
    0
    0
    0
    0
    0
    0
    0
    0


    There was blinding of all assessors who measured key outcome
    0
    0
    0
    1
    1
    0
    0
    0
    0
    1


    Measures were obtained from more than 85% of    the subjects allocated
    1
    1
    1
    1
    1
    1
    1
    1
    0
    1


    All subjects for whom outcome measures were    available outcome
    1
    1
    1
    1
    1
    1
    1
    1
    1
    1


    The results of between-group statistical    comparison are reported
    1
    1
    1
    1
    0
    1
    1
    1
    1
    1


    Total scale
    5
    6
    6
    6
    6
    5
    6
    7
    4
    7


    ^*Item not evaluable



Table 3: Van Tulder and PEDro Scale: qualitative analysis of the level of scientific evidence of the selected studies.

Regarding the analysis performed using the PEDro scale, we also obtained a maximum score of 7 points, in two studies [26,28], in which only the therapist’s, and the patient’s or rater’s, blinding is the negative item. Similarly, five articles [20-23,25] scored 6 points out of 9, mainly as a result from not describing the method of randomization and comparison between groups. Finally, two articles [19,24] scored 5 points, the main methodological deficiencies being blinding and randomization, while another article only reached a score of 4 points [27]. Based on the scores performed with the PEDro scale, we are able to conclude overall the medium-high methodological quality of the selected articles. The evaluation of the level of scientific evidence of the selected articles is shown in Table 4.

Table 4: Sample and treatment characteristics of selected articles, and their quantitative analysis.





    Moderating    variables
    k
    Min.
    Max.
    Mean
    SD


    Treatment variables







          Duration (weeks)
    10
    4
    24
    11.70
    5.45


          Intensity (hours/week)
    9
    2
    7.5
    3.16
    1.69


          Magnitude (hours/treatment)
    9
    12
    112.5
    40.5
    32.41


    Subject variables







       Age    (years)
    10
    9
    64
    29.35
    12.42


    Methodological variables







       SS of    the experimental group, at baseline
    10
    5
    32
    18.60
    8.38


       SS of the experimental group,    at post treatment
    10
    5
    27
    17.20
    6.89


       SS of    the experimental group, at follow-up
    3
    5
    20
    11.67
    7.63


       SS of the control group, at    baseline
    10
    4
    32
    15.80
    7.91


       SS of    the control group, at post treatment
    10
    4
    28
    15.00
    7.11


       SS of the control group, at    follow-up
    3
    4
    10
    7.67
    3.21


          Differential mortality in post treatment assessment (%)
    10
    0
    18.7
    4.5
    6.7


       Differential mortality in    follow-up assessment (%)
    3
    0
    0
    0
    0


    SS: Sample Size; %: Percentage; k: Number of Articles;    Min: Minimum Range; Max: Maximum Range; SD: Standard Deviation



Table 4: Sample and treatment characteristics of selected articles, and their quantitative analysis.

Quantitative analysis of selected studies

The selected studies have been quantitatively analyzed, valuing the main descriptive statistics regarding the sample and the physiotherapy interventions performed. The homogeneity in terms of duration of treatments with a mean of 11.70 weeks (range: 4-24) is noteworthy. With regard to the treatment intensity, the studies had a mean of 3.16 hours per week, with a range of 2-7.5 hours per week. Thus, the magnitude in terms of total hours of treatment was 40.5 hours on average. As for age, the population of the selected studies (n = 344) had a mean age of 29.35 years, widely ranging from 9 to 64 years.

Methodological variables

With regard to sample size, experimental death in both experimental and control groups, in the different evaluations (pretreatment, post-treatment and follow-up), indicate a very low number of dropouts during the interventions.

As for the experimental mortality data, all articles contribute data after the treatment period, presenting an average percentage of 4% of dropouts due to different causes. On the other hand, the 3 articles that assessed post-follow-up [22,23,28] showed that none of the patients with hemophilia dropped out in this last assessment. The evaluation of the quantitative analysis of the selected studies is shown in Table 4.

Results of effect size calculation

The effect size, measured as the mean difference between pretreatment standard deviation, yielded varying results depending on the study analyzed.

According to this statistical analysis, the treatment with a large effect size (d >0.8), and thus a greater magnitude of the effect of its results, is that carried out by El-Shamy, et al. [26] regarding improvement of knee pain, functionality and gait. Also noteworthy is the intervention based on balance, gait and ergonomic bicycle isometric exercises, carried out by Eid, et al. [24] and Mohamed, et al. [25].

Although the use of a sports therapy program and manual and educational therapy showed significant improvements, they showed mean effect size results (d> 0.5), the ankle pain variable providing stronger results, followed by proprioception and quality of life [22,23,27,28]. Finally, it should be noted that the use of monitored home exercises [20] presents a high effect size in the improvement of knee extension strength (d=1.02). The remaining results provided a low effect size (d <0.5), which reduces the weight of the results, and therefore their efficacy, in the clinical improvement of patients with hemophilic arthropathy. Table 5 shows the results of the effect size calculation of the selected studies.

Discussion

The aim of this review is to evaluate the efficacy of physiotherapy in the treatment of patients with hemophilic arthropathy. Following a search carried out in the various documentary sources, ten randomized clinical trials were selected. In the reviewed studies, the effectiveness of different physiotherapy techniques was analyzed in the approach to the main clinical manifestations of hemophilic arthropathy (chronic pain, reduced range of motion, loss of muscle strength, and impaired gait and proprioception).

The safety of physiotherapy interventions in patients with hemophilia is an essential aspect. The literature discloses clinical studies in which, when administering physiotherapy interventions, the frequency of bleeding was reduced [29,30]. In this regard, although only three studies clearly indicate that none of the patients suffered bleeding episodes [20,22,23], the remaining studies report no bleeding complications.

The chronic pain associated with hemophilic arthropathy is one of the major clinical manifestations reported by patients, and one of the leading causes of disability [31]. The improvement of this variable in most of the studies analyzed in this review is a good prognostic factor for the use of the techniques described in standard clinical practice.

Hemophiliac arthropathy in the lower limb joints (knee and ankles), causes significant alterations in gait and function [32,33]. The effectiveness of the interventions analyzed, regarding the improvement of these two variables allows us to support the suitability of applying, within the usual clinical protocol, the guidelines described in the articles included in this review.

Although muscle strength is one of the most analyzed and studied clinical variables in patients with hemophilia [34,35], there are few randomized clinical studies that have analyzed the effectiveness of different physiotherapy techniques to improve this variable. Despite the short duration of the studies analyzed, the improvement observed may be useful in implementing protocols for improving muscular strength in patients with hemophilia, both at the hospital and at home.

An aspect that stands out in all the studies is the low dropout rate. The patient’s involvement in a physiotherapy intervention and their adherence to it is an important success factor that must be encouraged. In the same way that efforts are made to implement adherence to pharmacological treatment, greater scientific evidence is needed to demonstrate the safety and efficacy of these techniques [36]. Reducing the fear of developing bleeding as a result of a physical therapy intervention together with clinical improvement will allow a greater adherence in these patients. Similarly, only one study [27] has included patients with hemophilia and inhibitors. Heijnen [37] pointed out that the administration of a physiotherapy program in these patients should be carefully protocolized, taking into account that any bleeding should be treated with ice, rest or immobilization. However, at present, the good results obtained in the prevention and treatment of bleeding with licensed derivation agents such as APCC recombinant factor VIIa and, not to mention the new still unlicensed products (emicizumab and fiturisan) allow the application of physiotherapy techniques with lower risk for these patients.

The development of typical clinical manifestations associated with hemophilic arthropathy may lead to a decrease in physical capacity and a poorer perception of quality of life [36]. Among the studies analyzed in this study, three articles [22,27,28] have noted how, following a physiotherapy intervention, the quality of life of patients with hemophilia, among other dependent variables, improved.

Qualitative analysis of the level of scientific evidence

Despite the small number of randomized clinical studies analyzed, the methodological quality analysis with the Van Tulder and PEDro scales was positive. Previous reviews [15,38] indicated the need to implement more ambitious methodological criteria in the development of physiotherapy studies in patients with hemophilia. The implementation of studies that include blinding systems, with a good dropout rate, and statistical analyzes according to the scientific model, support the evidence of the results obtained in each of the articles under study. Although the implementation of a broader scientific model that supports the safety and efficacy of many physiotherapy techniques in hemophilia patients is still necessary, a qualitative analysis of the level of scientific evidence offers encouraging results.

Table 5: Calculation of the effect size of the treatments studied.





    Article
    Variable
    M (SD) pre
    M (SD) post
    Sig.
    ES


    Mazloum et al.
      2014
    Joint    pain of knee (EG1)
      Joint    pain of knee (EG2)
      Flexion    in knee (EG1)
      Flexion    in knee (EG2)
      Extension    in knee (EG1)
      Extension    in knee (EG2)
    6.6.    (1.3)
      6.9    (1.3)
      102.8    (24.0)
      111.5    (14.4)
      -10.6    (5.2)
      -9.1    (5.4)
    5.7    (1.4)
      5.2    (1.3)
      110.0    (24.0)
      118.5    (13.4)
      -8.7    (5.0)
      -7.1    (4.9)
    p <    0.001
      p <    0.001
      p <    0.001
      p <    0.001
      p <    0.001
      p <    0.001
    -0.69
      -1.30
      0.30
      0.48
      0.36
      0.37


    Goto et al. 2014
    Self-efficacy    for exercise (points)
    16.0 (4.8)
    17.9 (2.9)
    p = .049
    0.39


    Joint pain
    14.2 (11.4)
    16.7 (15.3)
    p = .493
    0.21


    Strength    of knee extension
    1.03 (0.4)
    1.44 (0.7)
    p = .000
    1.02


    Range of    knee extension
    -6.9 (7.3)
    -2.5 (3.7)
    p = .000
    0.60


    Range of    ankle dorsiflexion
    -5.0 (25.4)
    0 (21.5)
    p = .004
    0.19


    Dynamic    standing position balance
    29.6 (8.2)
    34.7 (8.8)
    p = .023
    0.62


    Al-Ghalib et al.
      2014
    Hand    grip strength (EG1)
      Hand    grip strength (EG2)
      Serum    calcium (EG1)
      Serum    calcium (EG2)
      Parathyroid    hormone (EG1)
      Parathyroid    hormone (EG2)
    138.45 (8.61)
      134.98 (7.96)
      8.26 (1.47)
      8.14 (1.52)
      14.91 (2.85)
      14.63 (2.97)
    172.74 (7.78)
      155.24 (7.18)
      10.91 (1.36)
      9.37 (1.42)
      11.52 (2.61)
      13.12 (2.75)
    p <    0.001
      p <    0.001
      p <    0.001
      p <    0.001
      p <    0.001
      p <    0.001
    3.98
      2.54
      1.80
      0.80
      -1.18
      -0.50


    Cuesta-Barriuso    I
      et al. 2014
    Plantar    flexion (EG1)
    38.3 (8.3)
    40.4 (10.2)
    p = .380
    0.25


    Plantar    flexion (EG2)
    32.0 (14.5)
    34.8 (11.4)
    p = .100
    0.19


    Dorsal    flexion (EG1)
    8.5 (6.5)
    8.0 (6.2)
    p = .680
    -0.07


    Dorsal    flexion (EG2)
    3.5 (3.7)
    4.8 (4.7)
    p = .100
    0.34


    Ankle pain    (EG1)
    3.6 (2.1)
    2.6 (1.8)
    p = .010
    -0.48


    Ankle pain    (EG2)
    5.6 (2.1)
    5.0 (2.0)
    p = .014
    -0.30


    Romberg    test, open eyes (EG1)
    0.7 (0.4)
    0.6 (0.1)
    p = .470
    0.36


    Romberg    test, open eyes (EG2)
    0.7 (0.2)
    0.5 (0.2)
    p = .350
    -0.63


    Romberg    test, closed eyes (EG1)
    0.9 (0.5)
    1.0 (0.3)
    p = .450
    0.13


    Romberg    test, closed eyes (EG2)
    0.7 (0.3)
    0.7 (0.2)
    p = .720
    -0.21


    Limits    test (EG1)
    73.8 (42.4)
    59.8 (21.3)
    p = .060
    -0.33


    Limits    test (EG2)
    41.0 (4.3)
    38.8 (6.7)
    p = .500
    -0.50


    Cuesta-Barriuso    II
       et al. 2014
    Muscle    strength of gastrocnemius (EG1)
    0.12 (0.22)
    0.05 (0.15)
    p = .08
    -0.33


    Muscle    strength of gastrocnemius (EG2)
    0.15 (0.37)
    0.05 (0.15)
    p = .10
    -0.28


    Gastrocnemius    muscle circumference (EG1)
    34.52 (2.33)
    34.95 (2.59)
    p = .00
    0.18


    Gastrocnemius    muscle circumference (EG2)
    33.87 (4.68)
    34.28 (4.96)
    p = .07
    0.08


    Plantar    flexion (EG1)
    38.35 (8.35)
    40.45 (10.21)
    p = .38
    0.25


    Plantar    flexion (EG2)
    32.0 (14.51)
    34.84 (11.40)
    p =.10
    0.19


    Dorsal    flexion (EG1)
    8.55 (6.58)
    8.05 (6.27)
     p =.68
    -0.07


    Dorsal    flexion (EG2)
    3.58 (3.79)
    4.89 (4.70)
    p = .10
    0.34


    Ankle pain    (EG1)
    2.95 (2.38)
    1.10 (1.81)
    p = .00
    -0.77


    Ankle pain    (EG2)
    0.84 (1.42)
    0.44 (0.83)
    p = .10
    -0.27


    Eid et al.
      2014
    Femoral    neck bone mineral density
    0.59 (0.17)
    0.86 (0.12)
    p = .0001
    1.58


    Proximal tibia bone mineral density
    0.58 (0.1)
    0.74 (0.1)
    p = .0001
    1.60


    Distal    tibia bone mineral density
    0.37 (0.08)
    0.54 (0.1)
    p = .0001
    2.12


    Knee    extensors, isokinetic strength
    51.2 (14.13)
    70.22 (14.43)
    p = .0001
    1.34


    Knee    flexors, isokinetic strength
    22.32 (8.92)
    33.31 (8.67)
    p =.0001
    1.23


    Functional    ability
    274.66 (36.02)
    301.66 (40.86)
    p =.0001
    0.74


    Mohamed et al.
      2014
    Overall    stability index
    2.07 (0.24)
    1.69 (0.24)
    p = .01
    -1.58


    Anterior–posterior    stability index
    2.03 (0.35)
    1.60 (0.32)
    p = .01
    -1.22


    Medio-lateral    stability index
    1.41 (0.32)
    1.05 (0.24)
    p =.01
    -0.28


    Time on    each foot
    41.83 (1.86)
    43.43 (1.78)
    p =.01
    0.86


    Average    step length
    0.34 (0.04)
    0.39 (0.03)
    p = .01
    1.25


    Average    step cycle
    0.63 (0.68)
    0.68 (0.06)
    p =.01
    0.07


    El-Shamy
      et al. 2014
    Right knee    joint pain
    5.07 (0.46)
    2.8 (0.56)
    p <    .001
    -4.93


    Left knee    joint pain
    5.00 (0.53)
    2.73 (0.59)
    p <    0.01
    -4.28


    Functional    capacity
    276.8 (31.46)
    316.6 (35.27)
    p <    .001
    1.26


    Stride    length
    87.47 (3.62)
    135.0 (6.18)
    p <    .001
    13.12


    Step    length
    38.07 (3.26)
    63.73 (2.12)
    p <    .001
    7.87


    Velocity
    74.4 (2.75)
    134.2 (3.41)
    p <    .001
    21.74


    Cadence
    81.73 (2.76)
    135.4 (2.97)
    p <    .001
    19.44


    Runkel
      et al. 2017
    Subjective    physical performance
    54.7 (24.3)
    68.9 (18.9)
    p = .007
    0.58


    Physical    component score (SF-36)
    40.0 (11.6)
    42.8 (11.5)
    p =.121
    0.24


    Mental    score (SF-36)
    53.0 (8.6)
    54.6 (8.4)
    p = .245
    0.18


    Total    score (HAEM-A-QoL)
    30.1 (13.3)
    27.0 (14.4)
    p = .109
    -0.23


    Cuesta-Barriuso
      et al. 2017
    Physical    condition of ankle
    3.0 (1.94)
    2.95 (1.75)
    p =.79
    -0.02


    Physical    condition of knee
    1.2 (1.82)
    1.30 (1.90)
    p = .87
    0.05


    Physical    condition of elbow
    3.0 (1.60)
    1.00 (1.08)
    p =.31
    -1.25


    Ankle pain
    1.47 (2.07)
    0.32 (0.79)
    p =.007
    -0.55


    Knee pain
    0.60 (1.89)
    0.35 (1.10)
    p = .51
    -0.13


    Elbow pain
    0.07 (0.23)
    0.00 (0.00)
    p = .14
    -0.30


    Quality of    life
    106.4 (24.95)
    121.2 (16.33)
    p = .003
    0.59


    Eversion
    18.2 (5.1)
    18.4 (2.5)
    p = .001
    0.03


    M(SD)pre:    Mean (standard deviation) at baseline; M(SD)post: Mean (standard deviation)    posttreatment; Sig: Signification; ES: Effect Size; EG1: Experimental Group    1; EG2: Experimental Group 2.



Table 5: Calculation of the effect size of the treatments studied.

Limits of the review

The description of the main clinical data of the patients included in the different studies (type of treatment and hemophilia, and degree of arthropathies and their location, mainly) raised doubts during the data coding process. Likewise, the lack of information regarding some moderating variables (model of random sample allocation, blinding and the method of application of treatment) limited the possibilities of obtaining detailed results. Although most studies have been published in the last decade, the number of studies meeting the selection criteria is low, thus reducing the weight of the results of this review.

Implications for clinical practice

If we consider the physiotherapy techniques applied to patients with hemophilia, we note how neither complex nor expensive instruments of measurement and intervention are used. This fact may favor, together with safety in terms of absence of bleeding, the application of the interventions performed in the studies analyzed to the general population of patients with hemophilia.

The application of any physiotherapy intervention in patients with hemophilia should combine several aspects. Safety and efficacy are two indivisible characteristics to favor both the administration of physiotherapy treatments in a continuous way and based on solid scientific evidence, such as the adherence to these interventions.

Recommendations for future studies

The consolidation of scientific evidence is a necessary and fundamental factor in the implementation of physiotherapy treatments in patients with hemophilia. Most physiotherapeutic techniques are contraindicated in patients with hemophilia. However, this criterion is based essentially on the ignorance, fear and caution of physiotherapists, rather than on scientific criteria. Therefore, through the design of randomized clinical studies duly formulated and designed, studies on physiotherapy in hemophilia should be implemented to assess the safety and efficacy of different physiotherapy techniques in these patients.

The development of multicenter studies and a larger sample of patients with hemophilia would help to achieve more consolidated results, which will help to generalize the results obtained. Likewise, blinding of raters, the use of reliable measuring instruments and the establishment of follow-up periods after the intervention would improve the methodological quality of the future studies to be carried out.

Conclusion

This systematic review suggests that physiotherapy interventions through manual therapy, stretching, muscle strength protocols and cycling exercises improve pain perception, functionality, and proprioception and muscle strength in patients with hemophilic arthropathy. Educational physiotherapy interventions along with home exercises improve joint pain, quality of life and perception of disease.

The development of the physiotherapy techniques described in this review has not been noted to cause bleeding as a result of their application in patients with hemophilia.

Further randomized clinical studies are needed to confirm the results observed and, in the same way, to increase the scientific evidence regarding the use of physiotherapy in hemophilia.

References

Download PDF

Citation:Cuesta-Barriuso R. Effectiveness of Physiotherapy in the Treatment of Hemophilic Arthropathy a Systematic Review. Ann Hematol Oncol. 2017; 4(9): 1172. ISSN:2375-7965

Instruction for Authors

Submit Your Article
