Transition Metal Clusters: A Unique STEM Playground

Abstract

In this editorial review the interdisciplinary nature of the general area of transition metal clusters is discussed, including biomimetic clusters, molecular magnets, and some of the synthetic methodologies towards them. The properties of these systems are traditionally an interdisciplinary effort amongst all STEM disciplines, making transition metal clusters and single–molecule magnets a unique playground for STEM scientists. Some perspectives about the applicability of this interdisciplinary field in modern medical technologies is also provided, which further emphasizes the value of research beyond the strict confines of a scientific discipline or set of expertise.

Introduction

Transition metal clusters are molecular oxide–bridged assemblies of metal ions, which are surrounded by an organic envelope; the latter is the feature that keeps them zero–dimensional (molecular), and prevents them from polymerizing. Oxide bridges are typical for transition metal clusters, but hydroxides, halides, and pseudohalides are also common. The organic shells are typically organic moieties with arms and functional groups, which bind to one or more metal ions. Cluster species have been central in the investigation of new materials for a plethora of applications of particular interest are hybrid materials possess a combination of properties, such as magnetism, conductivity, photosensitivity, and others. This is an exciting area of nano–materials research, since molecular systems possessing such property combinations can be considered magnetic, conducting, and⁄or photosensitive nanoparticles, with possible applications in medicine, nano–devices such as sensors, quantum computer components, and high–density information storage, to name a few [1,2]. Even though such applications constitute attractive potential uses of these materials, their path to commercial products may be very long due to other technological limitations. Nevertheless, the study of molecular systems and their properties is of importance for the basic science aspect as well, since they provide valuable insights to the structure–property, and dimensionality–property relationships [3–6]. It is thus imperative to review some of the milestones in cluster chemistry, outline some of the major research areas within the realm of transition metal clusters, and look into the future of these molecular materials in nano–devises,nano–electronics, and nanomedicine applications.

Bioinorganic⁄Biomimetic Chemistry

The synthesis of 3d transition metal clusters is of particular interest, in part because of their possible biomimetic activity. As such, transition metal clusters have been synthesized and analyzed as models for the active centers of many metalloproteins, [7–9] such as the cofactor of nitrogenase, [10–12] the ferrodoxin family of proteins [13,14], the inorganic center of ferritin, [15,16] and others. In many cases, reports have included direct comparisons of spectroscopic and physical measurements data for the model compounds, with the respective data for the native enzymes. Such comparisons have been complementary to other methods for gaining insight on the actual structure of the active center of the enzyme, if⁄when x–ray crystallography had not been reported. As such, massive literature has accumulated over the years for model compounds of bioinorganic macromolecules, including many generations of models that progressively approach the properties of the active site of the enzymes they are meant to model.

One such characteristic example is the active site of Photo system II (PS–II) in plants, algae and cyano bacteria, which is also termed as the water oxidizing complex (WOC), or the oxygen evolving complex (OEC). The latter’s function is to activate water, i.e. acts as a catalyst for the oxidation of H₂O to O₂. This is a 4–electron light–driven process, and WOC functions as an electron–transfer center for PS–II, while also being the O2 generator [17]. The WOC was only recently characterized with x–ray crystallography at a resolution of 1.9Å, [18] and was found to contain a Mn₄Ca cluster, bearing a cubane Mn₃Ca unit, which is also bound to a fourth Mn ion. This recent discovery came after many attempts to model this active site, with 4 generations of model compounds. Each generation is signified by the amount of information available at the time about the structure of WOC. Early on, an oligonuclear manganese cluster was thought to be the core of WOC, which attracted many investigators in the general bioinorganic area to start looking into it. Thus, clusters such as [Mn3O]^x+ triangles and [Mn4O2]^x+ butterflies were initially proposed as models [19–22]. Later studies on the enzyme revealed that a cubane unit is more likely the core of WOC, and as such Mn₄cubane clusters were thought of models (2^nd generation); [23–25] it is noted that metalloproteins bearing cubane units have already been identified with the ferrodoxins often bearing Fe–S cubes [13–14]. In recent years the presence of a different metal ion in WOC’s cluster core was suggested, and as such 3^rd generation models have included large hetero nuclear clusters with structural features resembling the structure of WOC, as it was known at that time [26–28]. Finally, after the definitive structure of the core of WOC became available, the emphasis of the biomimetic cluster community was directed to Mn4Ca compounds, with a few recent successes [29–31]. Overall, all these efforts in biomimetic inorganic chemistry constituted a big push for transition metal cluster chemistry. During this process, very interesting clusters were synthesized and characterized, which were in turn sparks for another major interest–shift for many synthetic groups worldwide: molecular magnetism.

Molecular magnetism

Molecule–based materials were initially suggested by Richard Feynman in his 1959 APS lecture “There is plenty of room at the bottom7rd . As Feynman suggested, instead of trying to fragment bulk materials in order to miniaturize technologies, we should look at a different route – what is known as the bottom–up approach [32]. Magneto chemists caught up with this idea very early on, and molecule–based magnets were introduced, [33–34] which were threedimensional arrays of linked interacting molecules. This area has since evolved and has included over the years organic radical species, [35] as well as rigid cyanide–bridged networks, [36,37] and others. Even though molecule–based magnets are based on molecules, their properties originate mostly in the interaction between the molecular units, rather than the neat units. It was not until 1993 (25 years later) when the first reports of single molecules intrinsically behaving as super paramagnets were identified [38]. These molecules were termed single–molecule magnets or SMMs, the first one being a Mn₁₂ complex [39]. This [Mn₁₂O₁₂(O₂CCH₃)16(H₂O)₄] (hereafter referred to as Mn₁₂Ac) compound was the beginning of a new era for molecular clusters, where most of the attention was directed towards the magnetic properties of the resulting systems [40]. In the last decade, another type of molecule–based magnetic systems was identified, which differ fundamentally from both SMMs and the aforementioned molecule–based magnets, since they are one–dimensional chains; these are known as single–chain magnets or SCMs. The differences between SMMs and SCMs are mostly related to the magnetization relaxation mechanism in the two cases, one being an Orbach phononmediated relaxation mechanism for SMMs, whereas for SCMs it is based on a Glauber dynamic model for sequential magnetization reversal along the chain [41–45].

The 20–year old literature of SMMs has included a plethora of very interesting cluster systems, with aesthetically appealing structures, and often exciting magnetic properties. The main requirements for observing single–molecule magnetism are a well–isolated high spin ground state and a large and negative magnetoanisotropy (Isingtype anisotropy) [46]. It is noted that a very fine balance between high spin and axial anisotropy needs to be in place for significant SMM behavior. Therefore, designing materials bearing that balanced combination of spin and anisotropy is one of the biggest challenges, since synthetic chemists in any given reaction system can only control the starting materials, the solvent(s), and the conditions, but the selfassembly process is naturally a serendipitous process [47].

Target synthesis has traditionally been limited to small clusters, where large chelates are employed to direct self–assembly and limit the size of the resulting molecules, by capping multiple coordination sites of the metal ions [48–54]. Another targeted synthetic approach is ligand substitution, which played a major role in the development of the SMM area. Ligand substitution was the method of choice for the synthesis of most Mn12Ac derivatives, as the acetate groups could be readily replaced by other carboxylates, purposely present in the reaction mixture, taking advantage of the azeotropic mixture of acetic acid and toluene [40]. Lately we have been successful in the target synthesis of cluster and SMM aggregates, using this methodology [58]. Overall, cluster chemistry has been relying on smart choices of ligands for the aggregation of coordination complexes to clusters, while a few examples of targeted synthetic methods have also been reported in the literature.

Approaches to the synthesis of SMMs

Groups worldwide have ventured to synthesize high–nuclearity clusters with hopes for particularly high spin states from the cooperative interaction of metal centers, as well as particularly anisotropic systems often bearing lanthanide ions or a combination of 3d–4f metal ions. Both approaches are of importance and these efforts are clearly justifiable, but unfortunately both have flaws as well.

Large polynuclear transition metal clusters theoretically possess large numbers of unpaired electrons, making them attractive for such investigations. In reality, such large systems in order to be fully characterized they need to crystallize for single–crystal x–ray diffraction studies. As such, following basic crystal engineering trends, large systems tend to favor more symmetrical lattices where the asymmetric unit is relatively small, but after the symmetry operations dictated by the crystal system, the overall cluster is a multiple of this asymmetric unit, and therefore overall very large [59]. Aesthetically these tend to be beautiful structures, but magnetically they suffer most of the time from inter–unit antiferromagnetic exchange interactions leading to small spin ground states [1,60,61]. It is also noted that there are several exceptions reported, which have particularly high S values [62–66]. Another problem that arises for these highly symmetric systems is the uniform dispersion of the anisotropic features of the asymmetric unit, i.e. the unit itself may be highly anisotropic but after all the symmetry operations the molecule does not appear to be collectively anisotropic. Nevertheless, high nuclearity systems are still interesting for their aesthetic beauty, their reactivity, as well as the structure–property relationship as outlined (vide infra). Incorporation of highly anisotropic metals in transition metal clusters is another way of introducing anisotropic features to the structure, but this imposes a different challenge. Anisotropic metals that have been traditionally incorporated in transition metal clusters include lanthanide ions, such as trivalent Dy, Eu, Ho [67– 70]. The problem arises due to the exchange interaction between the lanthanides to other metals in the cluster, which is orders of magnitude weaker than 3d–3d metal exchange couplings. In turn, this stabilizes excited states of this magnetic system, which are now energetically accessible, which results in poor isolation of the ground state, and a complicated low–lying manifold of magnetic states [71,72]. In a number of recent homonuclear lanthanide clusters, this has not been an issue due to the presence of bridging ligands that promote strong exchange coupling, such as inorganic radicals [73]. It is also noted that several organometallic–type structures have proven to possess SMM properties, such as lanthanide metallocenes, and their stacked derivatives [74–80].

In 3d–metal clusters however, manganese has been the dominating metal of choice for SMMs, which stems from the availability of different intermediate oxidation states for the metal ion, all of which are paramagnetic. In particular Mn3+ has been a desired feature for such cluster systems, since it is nearly always octahedrally coordinated (distorted), high–spin (typically coordinated to oxo–type bridges), and as a d⁴ ion is subject to first order Jahn–Teller distortion; the latter is commonly expressed as elongation of the axial metal–ligand bonds. These Jahn–Teller (JT) elongations result in significant single–ion anisotropy of the Ising type (axial), which is one of the requirements for SMMs [46]. As discussed earlier, having anisotropic features in the structure is important, and assuming that they are not evenly dispersed within the structure (i.e. molecular vector map of JT axes does not result in canceling of single ion anisotropy vectors), should result in significant molecular anisotropy. In combination with the significant S=2 spin of the ion in its high–spin configuration, Mn3+ constitutes a prominent candidate metal ion for SMMs [35].

Mixed–valent manganese clusters have also been particularly interesting, since they result in magnetic systems where there are uncompensated spins even though the interaction between metal ions (or between groups of metal ions) is antiferromagnetic in nature [81]. This is the case with Mn₂Ac, where the core is comprised of a central cubane unit of Mn⁴⁺ ions, surrounded by a circumvolution of eight Mn³⁺ ions, with the entire metal–core bridged via μ₃ oxides. This can be considered a small piece of a mixed–valence Mn–oxide network. The organic envelope of this cluster is made of sixteen acetate bridges, and there are also four terminally coordinated water molecules bonded to 4 different Mn³⁺ ions in the non–planar Mn³⁺ 8 ring, as seen in Figure 1. Magnetically, this compound exhibits an S=10 ground state which results from the antiferromagnetic combination of two metal–ion groups. Specifically, within the Mn⁴⁺ 4 cube, the Mn⁴⁺ ions (each being S=3⁄2) are ferromagnetically coupled resulting in S=6 for the cubane moiety. Similarly, the Mn³⁺ ions within the Mn³⁺ 8 nonplannar ring are also ferromagnetically coupled, resulting in S=16 for the group. The two groups, i.e. the cubane and the ring, being antiferromagnetically coupled results in S=10 [82]. The family of Mn₁₂ SMMs has been the main source of insight in the physics of SMMs. The mesoscopic nature os SMMs being small with both classical and quantum properties (i.e. quantum tunneling of the magnetization, quantum phase interference, and others), makes them very attractive for interdisciplinary research.

Figure 1: a) Top view of Mn₁₂Ac. Hydrogen atoms and interstitial solvent molecules have been omitted for clarity; b) The core of Mn₁₂Ac; c) Side view of Mn₁₂Ac emphasizing on the parallel arrangement of the Jahn-Teller elongation axes (shown in cyan bonds) - parts of the carboxylate ligands have been omitted for clarity; d) A crystal sample of the product (photograph without magnification). Color scheme: Mn^IV violet, Mn^III green, O red, C gray.

Figure 1:  a) Top view of Mn12Ac. Hydrogen atoms and interstitial solvent molecules have been omitted for clarity; b) The core of Mn12Ac; c) Side view of Mn12Ac emphasizing on the parallel arrangement of the Jahn-Teller elongation axes (shown in cyan bonds) - parts of the carboxylate ligands have been omitted for clarity; d) A crystal sample of the product (photograph without magnification). Color scheme: MnIV violet, MnIII green, O red, C gray.

Close

Interdisciplinary investigations

Along these lines, we have been investigating the structureproperty and dimensionality–property relationships in SMMs, as well as in homo– and hetero–metallic transition metal clusters, and have synthesized a variety of polynuclear species, including aggregates of clusters and SMMs [1,58,82–84]. The typical characterization methods used include x–ray diffraction, dc and ac magnetometry, high–field high–frequency spectroscopies and others. Often, more specialized spectroscopies and physical methods have been utilized in clusters including SQUID and micro–SQUID magnetometry, [3,85,86] pressure– and light–induced magnetometry, [87] EPR and High–frequency⁄field EPR, [5,6,82] solution and solid state NMR, [82,88] Hall magnetometry, [89–91] Mössbauer spectroscopy, [83,84] thermal gravimetric analysis (TGA), [83,84] differential scanning calorimetry (DSC), heat capacity measurements, [58] theoretical magnetic exchange studies using DFT (B3LYP and other hybrid functionals),[83,84] inelastic neutron scattering, x–ray magnetic circular dichroism, X–ray absorption studies (XANES, EXAFS), and many others. Recent examples from our group beautifully portray this interdisciplinary work (Figure 2).

Figure 2: a) X-ray crystal structure of [Mn^II ₆Mn^III ₆(mpt)₆(CH₃CO₂)₁₂(py)₆] (mpt = 3-methyl-1,3,5-pentanetriol). Color scheme: Mn^II turquoise, Mn^III blue, N green, O red, C grey. b) Spin density map of [Mn^II ₆Mn^III ₆(mpt)6(CH₃CO₂)₁₂(py)₆] calculated at the B3LYP level. c) X-ray crystal structure of [Fe₇O₃(OH)₃(hmpip)₆(O₂CPh)₇] (hmpip = 2-hydroxymethyl piperidine). Color scheme: FeIII orange, O red, N blue, C grey. d) Room temperature Mössbauer spectrum from a powder sample of [Fe₇O₃(OH)₃(hmpip)₆(O₂CPh)₇].

Figure 2:  a) X-ray crystal structure of [MnII 6MnIII 6(mpt)6(CH3CO2)12(py)6] (mpt = 3-methyl-1,3,5-pentanetriol). Color scheme: MnII turquoise, MnIII blue, N green, O red, C grey. b) Spin density map of [MnII 6MnIII 6(mpt)6(CH3CO2)12(py)6] calculated at the B3LYP level. c) X-ray crystal structure of [Fe7O3(OH)3(hmpip)6(O2CPh)7] (hmpip = 2-hydroxymethyl piperidine). Color scheme: FeIII orange, O red, N blue, C grey. d) Room temperature Mössbauer spectrum from a powder sample of [Fe7O3(OH)3(hmpip)6(O2CPh)7].

Close

Recently, we have also been investigating the incorporation of molecular clusters in chemical sensing technologies (photoelectric chemical sensors or PECS) [92], with several successes in sensing organic vapors and aqueous analytes, down to micromolar concentrations (sample data presented in Figure 3) [93]. From the breadth of these methods and the various expertise involved in these studies, it is clear that transition metal clusters and the associated resulting materials is an area of multi–level cross–disciplinary investigation, and a unique STEM playground.

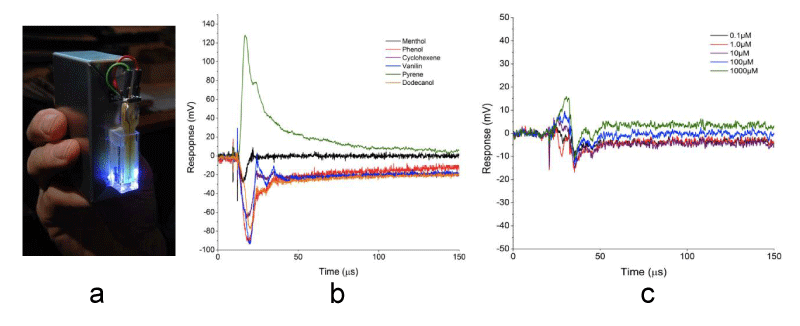

Figure 3: a) Photograph of the handheld-type of a PECS sensor; b) Plot of the background-corrected modified photovoltagevs time for a variety of vapor analytes, as indicated in the legend; c) Plot of the modified photovoltagevs time for the analyte aqueous methanol at the indicated concentrations.[43]

Figure 3:  a) Photograph of the handheld-type of a PECS sensor; b) Plot of the background-corrected modified photovoltagevs time for a variety of vapor analytes, as indicated in the legend; c) Plot of the modified photovoltagevs time for the analyte aqueous methanol at the indicated concentrations.[43]

Close

Biomedical applications of magnetic clusters and nanoparticles

Most biomedical applications have been traditionally involving metal oxide nanoparticles, rather than transition metal cluster systems. In nanoparticles the properties are size–tunable, and these characteristics in combination with the magnetic behavior of transition metal oxides have found many diverse applications [44]. Iron oxide has been the focus of many developments due to its proven compatibility with biological systems, its superparamagnetic character at the nanoscale, and the ability to control the uniformity in size of the nanoparticles, which is important for preventing agglomeration for in vivo applications [95]. Also, spinel ferrites such as MFe2O4 (where M = Mn, Co, Ni, Cu, Zn, and others) have become attractive for similar applications, with promising results [96]. Some of the applications where magnetic nanoparticles have shown potential for utility include i) localized drug delivery, [97] ii) protein detection [98], iii) magnetic resonance imaging [99–101], iv) Stem cell labeling, [102] and v) as agents for the hyperthermic treatment of tumors [103]. Transition metal clusters, such as the ones reviewed herein, can be considered small pieces of metal oxides, and as explained they have been nearly as successful as metal oxides in sensors (vide supra). However, clusters have not been as popular as ferrites in biomedical applications, but in a few occasions they have been investigated as antitumor biomarkers. One such example is an anionic paramagnetic hexa–iodo rhenium selenide cluster [Re₆Se₈I₆]^3–, which has luminescence properties and as such was used both as a biomarker, and as agent of apoptotic–like cell death of cancer cells [104]. In general, cluster systems have been avoided for biomedical applications, mostly because of poor solubility and⁄or stability in biologically relevant solvents, as well as due to their possible toxicity, and potentially high production cost. On the contrary, mononuclear coordination complexes of transition metals, bearing ornate organic chelates have been extensively studied as high resolution imaging probes for positron emission tomography (PET) studies, as well as the development of new drugs for non–invasive highly targeted radiotherapy, as recently reviewed by Pascu and coworkers [105].

Perspectives

In summary, the area of cluster chemistry has evolved over the years, and has matured to a multidisciplinary arena where different expertise work together to understand the structure–property relationships, model mesoscopic phenomena, and⁄or figure out how good a cluster mimics the active site of an enzyme. This field has been a spark for interdisciplinary work, providing avenues for collaborative investigations by chemists, experimental and theoretical physics, spectroscopists, and recently engineers. Even though some of the materials may never reach the applicability⁄versatility level for commercial applications and mass–produced technologies, the indepth knowledge we have gained and we continue to gain from these systems will likely contribute to a plethora of other investigations into materials for advanced applications, such as quantum computing or bio–inspired energy materials, magnetic refrigeration, and the design of magnetothermally–responsive nanocarriers as hyperthermiatriggered drug release vehicles [106]. The latter field, namely medical physics, has been of particular interest, and is another example of a modern multidisciplinary research area bringing together the physical sciences (chemistry and physics) to biomedical engineering and medicine.

Overall, the future of medical applications may very well be in interesting non–invasive technologies such as nanoparticle vehicles for selective drug release. Interdisciplinary research fields, such as the one briefly reviewed herein, are catalysts for interactions between a range of scientists with strictly–speaking unrelated expertise; this is the beauty of interdisciplinary work. Cluster science, including molecular magnetism and biomimetic chemistry, fit perfectly in this realm of studies. As such they continue to evolve and provide deeper insights in the macroscopic properties of the resulting materials, while investigating microscopic changes and their effects on mesoscopic phenomena. This knowledge will be of particular value in the design of materials for advanced applications, with general applicability to defense technologies (such as sensing), energy related materials (such as in gas storage), environmental science (i.e. in gas separation), bioinspired commercial technologies (such as homo⁄heterogeneous catalysis), and biomedical applications (cancer treatment, drug release, and medical imaging).

Acknowledgement

J.M.C. acknowledges the Chemistry Department for the summer research fellowship; C. L. acknowledges the University of North Florida, and the Research Corporation (Cottrell College Science Award) for financial support.
