Research Article
Austin J Obstet Gynecol. 2021; 8(2): 1169.
IUGR is Commonly Observed among Prenatally Diagnosed Chromosome 4p Deletion Syndrome
Su JS1#, Chan YM2#, Cao Y2,3#, Yang SH4, Luo JS1, Qin Z1, Zhu XF2, Fu HY5, Huang HQ1, Zhang Y1, Zhang SJ1, Lu WL1, Li W1, Jiang TT1, Wei SK1, Leung TY2,6, Choy KW1,2,6* and Wei HW1*
1Department of Genetic and Metabolic Central Laboratory, Guangxi Maternal and Child Health Hospital, China
2Department of Obstetrics & Gynecology, The Chinese University of Hong Kong, China
3Department of Pediatrics, The Chinese University of Hong Kong, China
4Department of Ultrasound Examination, Guangxi Maternal and Child Health Hospital, China
5Department of Prepotency Out-Patient Clinic, Guangxi Maternal and Child Health Hospital, China
6Chinese University of Hong Kong-Baylor College of Medicine Joint Center for Medical Genetics, The Chinese University of Hong Kong, China
#These authors contributed equally to this work
*Corresponding author: Wei Hongwei, Guangxi Zhuang Autonomous Region Women and Children Health Care Hospital, NO.225, Xinyang Road, Nanning City, Guangxi province, 530012, People’s Republic of China
Choy Kwong Wai, Department of Obstetrics & Gynecology, The Chinese University of Hong Kong, Hong Kong SAR, China
Received: January 25, 2021; Accepted: February 27, 2021; Published: March 06, 2021
Abstract
Objective: our study aimed at retrospectively assessing the abnormal prenatal ultrasound findings of chromosome 4p deletion syndrome.
Methods: 21 cases with abnormal sonographic signs revealed 4p deletion by Chromosome Microarray (CMA) in this retrospective analysis. Clinical information and molecular basis of this cohort were compared with those from other two groups in China, the critical region related to special ultrasound findings was mapped with the smallest regions of overlap.
Results: This is the largest prenatal series to evaluate the prenatal ultrasound features of 4p deletion syndrome detected by CMA. Firstly we refined the relationship between the genomic coordinates with IUGR in chromosome 4p terminal deletion syndrome. Additional chromosomal abnormalities was identified in 12 cases. Intrauterine embryonic arrest was diagnosed at first trimester for 9 cases. The most consistent ultrasound indicator was IUGR (95.5%), and the smallest region response for IUGR correspond to a 2.05Mb at 4p16.3-pter (chr4: 68,345-2,121,057, hg19). Increased Nuchal Translucency (NT) could be a risk factor for predicting WHS at first-trimester pregnancy with the rate of 16.6% from our data. A 3.6Mb microdeletion located at 4p16.3-pter (chr4: 68,345-3,753,422, hg19) might be the candidate region associated with increased NT.
Conclusion: We identified IUGR as the most common feature in prenatal 4p terminal deletion and Wolf-Hirschhorn syndrome. The existence of additional CNVs may contribution to possible explanations for the clinical heterogeneity of this syndrome. Prenatal findings of IUGR, increased NT or early spontaneous abortion should warrant the diagnosis of 4p terminal deletion WHS.
Keywords: IUGR; Prenatal diagnosis; 4p deletion syndrome; Chromosome microarray
Introduction
Wolf-Hirschhorn Syndrome (WHS; OMIM#194190) is a wellknown contiguous gene deletion syndrome caused by chromosome 4p terminal deletion, first reported by Wolf and Hirschhorn in 1965 [1,2]. The prevalence was reported as 1 in 50,000 to 1 in 20,000 world widely and the female to male ratio was estimated to be 2:1 [3-5]. Distinctive craniofacial features of WHS patients are characterized as “Greek warrior helmet”, including the wide bridge of the nose continuing to the forehead, high anterior hairline with prominent glabella, widely spaced eyes, epicanthus, highly arched eyebrows, short philtrum, downturned corners of the mouth, micrognathia, poorly formed ears with pits/tags, and microcephaly. Major structural anomalies such as renal hypoplasia, cardiac malformations, fetal growth retardation, and increased Nuchal Translucency (NT) are also reported in some of the WHS fetuses [6,7].
About 55% of WHS is caused by an isolated 4p terminal deletion, and 40%-45% is due to an unbalanced translocation with a 4p deletion and a duplication of another chromosome. Such unbalanced translocations can be de novo or inherited from a parent-carrier of the balanced rearrangement. Other rare complex conditions include chromosome 4 ring, 4p deletion mosaicism, or a derivative chromosome 4 leading to 4p16.3 deletion [8]. Conventional karyotyping analysis can detect 50-60% of WHS cases with deletions larger than 5Mb. FISH analysis with WHSCR (WHS critical region) probe or Chromosomal Microarray (CMA) could detects more that 95% of deletions in WHS [9].
Two critical regions contributed the core phenotype of WHS, namely WHSCR and WHSCR2. The WHSCR was a 165 kb interval at 4p16.3, about 2Mb away from the chromosome 4 telomere [10], defined between the loci D4S166 and D4S3327 [10,11]. WHSCR2, partially overlaps with WHSCR [12], was mapped within a 300- 600 kb region in 4p16.3, resides 1.9Mb from the terminal of the 4p, between loci D4S3327 and D4S98-D4S168 [5]. Information on genotype-phenotype correlation for WHS is limited.
Prenatal ultrasound provides the opportunity to diagnose WHS prenatally. However, specific ultrasound markers has not been established for WHS. The most consistent presentation was severe IUGR [6,7], other signs such as increased NT, prominent glabella, ocular hypertelorism, micrognathia, short philtrum, cleft lip/palate, cystic cerebral lesions, abnormal nasal bone or renal hypoplasia were previously reported in cases of WHS diagnosed prenatally [13,14]. As the implementation of chromosomal microarray using in both postnatal and prenatal diagnosis of WHS, the critical regions for specific WHS features could probably be refined. Herein, we identified 21 prenatal cases with chromosome 4p terminal deletion detected by SNP-microarray by our retrospective study, we evaluated the deletion coordinates through reviewing the literature to refine the critical regions for IUGR and increased NT thickness by smallest regions pf overlap, and help further delineated the genotype-phenotype correlation in WHS with the specific prenatal ultrasound signs.
Materials and Methods
Subjects
This was a retrospective study to assess the clinical details of prenatal cases with 4p deletions Indications for prenatal invasive testings, prenatal ultrasound findings, CMA results and pregnancy outcome of these cases were reviewed. Overall, a total of 26,179 pregnant women were referred to our laboratory for invasive prenatal diagnosis from January 2013 to August 2018. The indications for invasive prenatal diagnosis include: fetus with various ultrasound abnormalities, embryonic arrest, intrauterine growth restriction (Head circumference/Abdominal Circumference/Biparietal Diameter <-2SD), cleft lip/palate, cystic cerebral lesions, abnormal nasal bone or renal hypoplasia, increased NT (thickness >3 millimeters), positive Down syndrome screening test, positive NIPT, family history with recurrent spontaneous miscarriage. Twenty-one cases with 4p-deletions were recruited in this study.
Prenatal ultrasound detection
Fetal ultrasound anatomy scans were routinely performed for pregnant women by experienced sonographers using GE E8 ultrasound machines (General Electric Healthcare, US) in Maternal and Child Health Hospital of Guangxi Autonomous Region. Transabdominal ultrasound examination included a full structural survey, and NT was measured according to established guidelines during the gestational week 11th to 13th.
Molecular and cytogenetic analysis
Chorionic villi sampling, amniocentesis or cordocentesis was performed under ultrasound guidance after informed consent. Genomic DNA was extracted using QIAamp DNA Blood Mini Kit (Qiagen, Germany) according to the manufacturer’s protocol. SNP microarray testing was performed using Illumina HumanCytoSNP-12 v2.1 BeadChip (Illumina, USA). The SNP data were collected and analyzed by Illumina Genome Studio and KaryoStudio software. The coordinates were shown according to the human (GRCh37/hg19) assembly. The genomic critical regions for WHS related ultrasound abnormalities was proposed as according to the smallest regions of overlap based on the previously reported prenatal WHS cases and our WHS cohort.
Results
A total of 21 prenatal cases with 4p deletion were identified in our cohort. All of them were diagnosed prenatally by CMA, and twelve of them cases were also detected by karyotyping. Their detailed information were listed in (Table 1). Nine cases (42%) were referred to the hospital for first trimester ultrasound test for suspected early spontaneous abortion, the median maternal age was 29 years old (23-44) and the median gestational age at prenatal diagnosis was 27 weeks (11-34). Case 1-3, 6-8, 13, 16, 18-19, 21 with additional pathogenic chromosome abnormalities. Two cases with an increased NT thickness (case 7, case 19) carried additional chromosome 7p terminal duplication. In total, 10 cases (47%) were observed to have abnormal fetal ultrasound findings at second trimester of pregnancy.
Case
Maternal age (years)
Gestation (weeks+ days)
Pregnancy history
SNP array(hg19)
Inheritance
G-band
Ultrasound finding
Pregnancy outcomes
1
29
NA
G2P0
arr4p16.3p16.1(48,283-7,142,868)x1, 14q31.1q32.33(80,848,449-107,282,437)x3
Maternal, 46,XX,t(4;14)(p16.1;q31.1)
NA
EA
SA
2
26
NA
G2P0
arr4p16.3p15.33(48,283-11,547,106)x1, 15q21.3q26.3(56,821,025-102,397,836)x3
Maternal, 46,XX,t(4;15)(p16;q22)
NA
EA
SA
3
31
8+4
G1P0
arr4p15.31p16.3(48,283-18,787,232)x1, 4p15.1p15.31(18,789,372-27,878,240)x1~2, 4q34.3q35.2(179,929,126-190,880,409)x1~2
NA
NA
EA
SA
4
34
8+2
G2P0
arr4p16.3p15.1(48,283 -28,544,298)x1
NA
NA
EA
SA
5
36
9+1
G2P1
arr4p15.33p16.3(48,283-12,707,180)x1
NA
NA
EA
SA
6
31
10+5
G2P1
arr4p16.3p15.1(48,283-34,323,177)x1, 4q31.3q35.2(155,331,774-190,880,409)x1.
NA
NA
EA
SA
7
38
11+6
G3P1
arr4p16.3(48,283-3,804,286)x1, 7p22.3p22.1(46,239-6,779,270)x3
NA
NA
NT: 3.8mm
SA
8
28
12+1
G4P0
arr4p16.3p16.1(48,283-8,728,783)x1, 4q35.2(188,609,718-190,880,409)x1, 10q11.22q11.23(46,947,635-51,739,867)x1, 8p23.3p23.1(176,818-11,898,209)x3
NA
NA
EA
SA
9
23
8+1
G0P0
arr4p15.1p16.3(48,283-34,573,079)x1
NA
NA
EA
SA
10
28
22+6
G1P1
arr4p16.3p15.2(48,283-25,065,147)x1
NA
46,XN,del(4)(p15)
IUGR,VSD,CDH
TOP
11
30
23+1
G2P1
arr4p16.3p15.2(48,283-22,878,904)x1
de novo
46,XX,del(4)(p15)
IUGR
TOP
12
28
24+4
G2P0
arr4p16.3p15.32(48283-15,315,490)x1
NA
46,XX,del(4)(p15)
IUGR,STC,HNB
TOP
13
27
25
G2P1
arr4p16.3p16.1(48,283 -8,728,783)x1,
NA
46,XY
FGR
TOP
8p23.3p23.2(176,818-6,974,050)x3
14
28
26+4
G2P0
arr4p16.3p15.2(48,283-27,534,917)x1
de novo
46,XX,del(4)(p15.2)
Cleft lip
TOP
15
23
28+2
G1P0
arr4p16.3p16.1(48,283-11,236,408)x1
NA
46,XX,del(4)(p16.1p16.3)
CAH, CPC, HNB,RH, SUA
TOP
16
28
30
G1P0
arr4p16.3p16.1(48,283-7,048,842)x1, arr4p16.1p13(7,055,603-43,968,054)x3
de novo
46,XY,der(4)del(4)(p16)dup(4)(p13p16)
IUGR,Cleft lip,VB,RH
TOP
17
26
31+6
G1P0
arr4p16.3p16.1(48,283-7,782,434)x1
NA
46,XY,del(4)(p16)
IUGR
TOP
18
28
32
G1P0
arr4p16.3p15.1(48,283-34,397,464)x1, 21q11.2q21.1(14,687,571-20,989,949)x1
de novo
45,XN,der(4)t(4;21)(p15;q21),-21
IUGR,RH, Microcephaly
TOP
19
32
12+2
G3P1
arr4p16.3(48,283-3,350,248)x1, 7p15.3p22.3(46,239-22,584,183)x3
Maternal 46,XX,t(4,7)(p16,p15)
46,XX,der(4)t(4,7)(p16,p15)
NT:4.1mm
TOP
20
35
24+3
G3P1
arr4p16.3(48,283-2,300,841)x1.
NA
normal
IUGR,VB
TOP
21
28
16+3
G2
arr4p16.3(63,781-3,809,371)x1, 11p15.5p15.4(215,049-3,381,999)x3
Maternal 46,XX.isht(4,11)(p16.3,p15)
NA
NA
TOP
IUGR: Intrauterine Growth Restriction; SA: Spontaneous Abortion; EA: Embryonic Arrest; CDH: Congenital Diaphragmatic Hernia; STC: Small Transparent Compartment; HNB: Hypoplastic Nasal Bone; CAH: Cerebellar Axillary Hypoplasia; CPC: Choroid Plexus Cysts; RH: Renal Hypoplasia; SUA: Single Umbilical Artery; VB: Ventricular Broaden; NT/INF: Nuchal translucency/Fold; NA: Not Available.
Table 1: Pathogenic copy number variants identified by CMA among our patients with chromosome 4p terminal deletion.
Deletion sizes ranged from 5Mb to 35Mb, and all included WHS critical regions WHSCR and WHSCR2 (Figure 1). Two cases (cases 5, 6) with sole 4p terminal deletion resulted in sporadic abortion in early pregnancy. The smallest region relating to IUGR was located in the band 4p16.3, contained the WHSCR and WHSCR2, approximately 2.05Mb from the telomere, described by Zhen et al. (Figure 1). Increased NT/NF thickness was counted to 18.7% in the cases with pure 4p deletion and the region was narrowed down within a 3.6Mb interval in 4p16.3 (Figure 1).

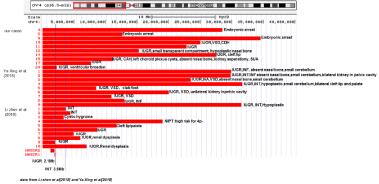

Figure 1: The summarization of isolated 4p deletion cases from the literatures and our cohort with genomic coordinations and ultrasound findings.
Discussion
Our study provided the largest series of prenatal WHS cases to assess the relationship between ultrasound abnormalities and their molecular defects. The incidence of 4p deletion in our cohort was one in 1250 (21/26,179). Among them, 47.6% (10/21) of our cases had an isolated 4p terminal deletion, while 38.0% (8/21) of our cases had a de novo or familial inherited unbalanced rearrangement, characterized by a deletion of 4p and a partial trisomy of another chromosome as reported before [15,16]. Since most of the previously reported prenatal WHS cases were identified by conventional karyotyping with a 4p deletion larger than 5Mb, it is difficult to precisely refine the critical regions for specific ultrasound anomaly [1,2,10,11,13,14,17- 24]. Refining with the two prenatal centers that include diagnosis of WHS with CMA as stated in supplemental Table S1, we are able to include more cases to refine the genotype-phenotype correlation of prenatal WHS. Through our observation, the most consistent ultrasound sign of prenatal WHS cases was IUGR (95.5%) (Table 2). Using overlapping analyses of 4p terminal deletions, we concluded a smallest region spanned from 4p16.3 to the telomere including WHSCR and WHSCR2 of 2.05Mb in size to be associated with severe IUGR, described by Li zhen et al. [7]. Similarly, 4p16.3- 4pter of about 3.6Mb in size (chr4: 68,345-3,753,422, hg19, case10) might be the candidate region associated with increased NT (Figure 1). Both regions echoed the findings reported by Li et al., Wright et al., Zollino et al. proposed the critical region known as WHSCR and WHSCR2 by smallest regions of overlap [5,10]. Through the same strategy, we first refined the smallest region account for the distinctive IUGR and increased NT in prenatal WHS in China based on the CMA results. Notably, the phenotypic spectrum of postnatal WHS cases were classified into three categories based on the deletion size: (1) individuals with a deletion smaller than 3.5Mb at 4p16-4pter usually present with mild phenotype; (2) individuals with a deletion between 5 and 18 Mb usually presents with classic WHS phenotype; (3) individuals with a deletion larger than 22Mb usually present with major malformations [12]. Variable expressivity of clinical features also indicated that WHS was a contiguous gene syndrome [3,25]. The postnatal classification may not apply for prenatally diagnosed cases, as the phenotype-genotype correlation had not been well established during the first and second trimester. Most cases of 4p terminal deletion in our cohort or in other reported cases only presented with IUGR. Embryonic arrest occurred at first-trimester pregnancy with 4pter deletion had not been described before, the rate was 42.8% (9/21) in our cohort. Three cases with isolated 4pter deletion, and the remaining 6 cases had additional pathogenic chromosomal abnormalities which may contribute the clinical outcome. CMA for case 6 identified a complex rearrangement with terminal 4p and 4q deletion simultaneously likely resulting from a chromosome 4 ring. However, karyotype was not available to confirm the findings. CMA of case 7 with spontaneous miscarriage showed a 4p16.3 deletion and a 7p22.3p22.1 duplication. This finding raised the suspicion of parental balanced translocation. However, couple refused further evaluation. Our findings supported that important gene or genes within 4p terminal region is potentially responsible to regulate embryonic development. CMA is not a routine practice for pregnancies with early embryonic arrest, our findings support that CMA should be performed to look for submicroscopic chromosomal abnormalities in these cases.
Prenatal Ultrasound Signs
Previously reported(n=61)a
Our group(n=21)
Total
Embryonic Arrest
Not mentioned
8/21 (36.3%)
8/21 (36.3%)
IUGR b
55/56 (98.5%)
10/12c (83.3%)
65/68 (95.5%)
Typical“Greek warrior helmet” facial appearance
10/40 (27.5%)
0/12
10/58 (17.2%)
prominent glabella
2
-
-
short philtrum
1
-
-
micrognathia
5
2
-
hypertelorism
6
-
-
flat profile
2
-
-
Renal hypoplasia
5/56 (8.9%)
3/12 (25.0%)
8/68 (11.7%)
Cardiac malformation
7/56 (12.5%)
1/12 (8.3%)
8/68 (11.7%)
Cleft lip and palate
3/56 (5.3%)
2/12 (16.6%)
5/68 (7.3%)
Increased NT/NF
11/56 (19.6%)
2/12 (16.6%)
13/68 (19.1%)
Absent/hypoplastic nasal bone
6/56 (10.7%)
2/12 (16.6%)
8/68 (11.7%)
aData collected from Xing Y, et al. [6] and Zhen L, et al. [7].
Table 2: Summary of the WHS fetuses with pure terminal 4p deletion from the literature compared to the cases in our cohort.
Increased NT (>3mm) or NF (>6mm) thickness was another risk factor for WHS at first-trimester pregnancy. The rate of increased NT in WHS cases was 16.6% (2/12) which is comparable to previous report of 19% [6]. Case 31 were diagnosed with WHS by non-invasive prenatal testing (NIPT) with a large chromosome 4p deletion in the first trimester. Accuracy of NIPT on the detection of microdeletion syndrome is determined by the size thus many cases of WHS with small deletion (<3-5 megabase) would be missed by NIPT. Also, due to the low prevalence of WHS in the population, clinical application of NIPT on WHS is limited by a low positive predictive value [26]. Based on the findings of our cohort and previous reports, NT assessment might be more useful in detecting WHS in the first trimester comparing to NIPT.
IUGR was the most common ultrasound finding in prenatal WHS cases. The previously reported rate was 98.2% (55/56) [6,7], compared with 83.3% (10/12) in our cohort . Generally, the IUGR was observed by ultrasound at second trimester fetal structure evaluations, even early at 16th gestational week. The IUGR could be also various degree? and severe (all measurements were below the third percentile) in cases at the third trimester [27]. In our cohort, 7 cases were diagnosed with IUGR less than one percentile. The size of chromosome 4p deletion does not necessarily correlate with the severity of IUGR. For example, case 18 presented with severe IUGR (below 1st centile) with the CMA findings of 2.05Mb microdeletion at 4p16.3. While case 11 presented with IUGR below 3rd centile had the chromosome findings of a much larger deletion of 15.2Mb at 4p16.3-4p16.1. In our cohort, we demonstrated that structural anomaly of WHS such as renal hypoplasia, cardiac anomaly, cleft lip and palate could be detected prenatally by USG. Although typical WHS facial characteristics was previously reported to be detectable prenatally, it would be difficult in prenatal USG and depend on the sonographer to detect subtle facial features [6,7,22,25,28]. Our study and prenatal ultrasound findings reiterate the clinical utility of CMA for fetuses with structural anomaly.
Conclusion
We presented the largest prenatal series of WHS diagnosed by CMA. IUGR was the most common features in prenatal WHS cases and the smallest region of overlap on chromosome 4p relating to IUGR was approximately 2.05Mb in size, span 4p16.3 to the telomere including WHSCR1 and WHSCR2. Embryonic arrest could occur in the cases with 4p terminal deletion. We also proposed the smallest deletion region relating to increased NT may be a 3.6Mb interval at 4p16.3-4pter. The rate of increased NT/NF thickness in WHS cases was 16.6% from our own data, which showed that increased NT/NF thickness is a strong indicator for WHS diagnosis. Prenatal CMA should be considered for pregnancies with isolated or multiple anomaly such as renal hypoplasia, cardiac malformation, cleft lip and palate, skeletal anomalies, absent/hypoplastic nasal bone to look for WHS.
Acknowledgment
We appreciate the patients and family for the study. This work was supported by the China NSFC project 81741009 and Guangxi Zhuang Region Health Department No. Z20200623.
References
- Hirschhorn K, Cooper HL, Firschein IL. Deletion of short arms of chromosome 4-5 in a child with defects of midline fusion. Humangenetik. 1965; 1: 479-482.
- Wolf U, Reinwein H, Porsch R, Schroter R, Baitsch H. [Deficiency on the short arms of a chromosome No. 4]. Humangenetik. 1965; 1: 397-413.
- Wieczorek D, Krause M, Majewski F, Albrecht B, Horn D, Riess O, et al. Effect of the size of the deletion and clinical manifestation in Wolf-Hirschhorn syndrome: analysis of 13 patients with a de novo deletion. European journal of human genetics: EJHG. 2000; 8: 519-526.
- Zollino M, Di Stefano C, Zampino G, Mastroiacovo P, Wright TJ, Sorge G, et al. Genotype-phenotype correlations and clinical diagnostic criteria in Wolf- Hirschhorn syndrome. American journal of medical genetics. 2000; 94: 254- 261.
- Zollino M, Lecce R, Fischetto R, Murdolo M, Faravelli F, Selicorni A, et al. Mapping the Wolf-Hirschhorn syndrome phenotype outside the currently accepted WHS critical region and defining a new critical region, WHSCR-2. American journal of human genetics. 2003; 72: 590-597.
- Xing Y, Holder JL, Liu Y, Yuan M, Sun Q, Qu X, et al. Prenatal diagnosis of Wolf-Hirschhorn syndrome: from ultrasound findings, diagnostic technology to genetic counseling. Archives of gynecology and obstetrics. 2018; 298: 289- 295.
- Zhen L, Fan SS, Huang LY, Pan M, Han J, Yang X, et al. Prenatal diagnosis of Wolf-Hirschhorn syndrome: Ultrasonography and molecular karyotyping results. European journal of obstetrics, gynecology, and reproductive biology. 2018; 225: 19-21.
- South ST, Hannes F, Fisch GS, Vermeesch JR, Zollino M. Pathogenic significance of deletions distal to the currently described Wolf-Hirschhorn syndrome critical regions on 4p16.3. American journal of medical genetics Part C, Seminars in medical genetics. 2008; 148C: 270-274.
- Battaglia A, Carey JC, Wright TJ. Wolf-Hirschhorn (4p-) syndrome. Advances in pediatrics. 2001; 48: 75-113.
- Wright TJ, Ricke DO, Denison K, Abmayr S, Cotter PD, Hirschhorn K, et al. A transcript map of the newly defined 165 kb Wolf-Hirschhorn syndrome critical region. Human molecular genetics. 1997; 6: 317-324.
- Wright TJ, Costa JL, Naranjo C, Francis-West P, Altherr MR. Comparative analysis of a novel gene from the Wolf-Hirschhorn/Pitt-Rogers-Danks syndrome critical region. Genomics. 1999; 59: 203-212.
- Zollino M, Murdolo M, Marangi G, Pecile V, Galasso C, Mazzanti L, et al. On the nosology and pathogenesis of Wolf-Hirschhorn syndrome: genotypephenotype correlation analysis of 80 patients and literature review. American journal of medical genetics Part C, Seminars in medical genetics. 2008; 148C: 257-269.
- Boog G, Le Vaillant C, Collet M, Dupre PF, Parent P, Bongain A, et al. Prenatal sonographic patterns in six cases of Wolf-Hirschhorn (4p-) syndrome. Fetal diagnosis and therapy. 2004; 19: 421-430.
- Sase M, Hasegawa K, Honda R, Sumie M, Nakata M, Sugino N, et al. Ultrasonographic findings of facial dysmorphism in Wolf-Hirschhorn syndrome. American journal of perinatology. 2005; 22: 99-102.
- Dallapiccola B, Mandich P, Bellone E, Selicorni A, Mokin V, Ajmar F, et al. Parental origin of chromosome 4p deletion in Wolf-Hirschhorn syndrome. American journal of medical genetics. 1993; 47: 921-924.
- Battaglia A, Carey JC, South ST. Wolf-Hirschhorn syndrome: A review and update. American journal of medical genetics Part C, Seminars in medical genetics. 2015; 169: 216-223.
- Eiben B, Leipoldt M, Schubbe I, Ulbrich R, Hansmann I. Partial deletion of 4p in fetal cells not present in chorionic villi. Clinical genetics. 1988; 33: 49-52.
- Verloes A, Schaaps JP, Herens C, Soyeur D, Hustin J, Dodinval P. Prenatal diagnosis of cystic hygroma and chorioangioma in the Wolf-Hirschhorn syndrome. Prenatal diagnosis. 1991; 11: 129-132.
- Tachdjian G, Fondacci C, Tapia S, Huten Y, Blot P, Nessmann C. The Wolf- Hirschhorn syndrome in fetuses. Clinical genetics. 1992; 42: 281-287.
- Vinals F, Sepulveda W, Selman E. Prenatal detection of congenital hypospadias in the Wolf-Hirschhorn (4p-) syndrome. Prenatal diagnosis. 1994; 14: 1166-1169.
- Kohlschmidt N, Zielinski J, Brude E, Schafer D, Olert J, Hallermann C, et al. Prenatal diagnosis of a fetus with a cryptic translocation 4p;18p and Wolf- Hirschhorn syndrome (WHS). Prenatal diagnosis. 2000; 20: 152-155.
- Chen CP, Hsu CY, Lee CC, Chen WL, Chen LF, Wang W. Prenatal diagnosis of de novo pure partial monosomy 4p (4p15.1-->pter) in a growth-restricted fetus with a Greek warrior helmet face and unilateral facial cleft on threedimensional ultrasound. Prenatal diagnosis. 2004; 24: 934-936.
- Levaillant JM, Touboul C, Sinico M, Vergnaud A, Serero S, Druart L, et al. Prenatal forehead edema in 4p- deletion: the ‘Greek warrior helmet’ profile revisited. Prenatal diagnosis. 2005; 25: 1150-1155.
- Casaccia G, Mobili L, Braguglia A, Santoro F, Bagolan P. Distal 4p microdeletion in a case of Wolf-Hirschhorn syndrome with congenital diaphragmatic hernia. Birth defects research Part A, Clinical and molecular teratology. 2006; 76: 210-213.
- Sifakis S, Manolakos E, Vetro A, Kappou D, Peitsidis P, Kontodiou M, et al. Prenatal diagnosis of Wolf-Hirschhorn syndrome confirmed by comparative genomic hybridization array: report of two cases and review of the literature. Molecular cytogenetics. 2012; 5: 12.
- Advani HV, Barrett AN, Evans MI, Choolani M. Challenges in non-invasive prenatal screening for sub-chromosomal copy number variations using cellfree DNA. Prenatal diagnosis. 2017; 37: 1067-1075.
- De Keersmaecker B, Albert M, Hillion Y, Ville Y. Prenatal diagnosis of brain abnormalities in Wolf-Hirschhorn (4p-) syndrome. Prenatal diagnosis. 2002; 22: 366-370.
- Ikonomou T, Antsaklis P, Daskalakis G, Sindos M, Papantoniou N, Kosmaidou Z, et al. Prenatal diagnosis of Wolf-Hirschhorn syndrome: ultrasonography and genetics. The journal of maternal-fetal & neonatal medicine: the official journal of the European Association of Perinatal Medicine, the Federation of Asia and Oceania Perinatal Societies, the International Society of Perinatal Obstet. 2013; 26: 941-942.
