Traumatic Dislocation of the Knee Unsuitable for the Reconstruction of Ligamentous Injuries Because of Vascular Injury: A Case Report

Case Report

Austin J Orthopade & Rheumatol. 2021; 8(1): 1099.

Traumatic Dislocation of the Knee Unsuitable for the Reconstruction of Ligamentous Injuries Because of Vascular Injury: A Case Report

Ukai T*, Kosuke H and Watanabe M

Department of Orthopaedic Surgery, Surgical Science, Tokai University School of Medicine, Kanagawa, Japan

*Corresponding author: Ukai T, Department of Orthopaedic Surgery, Surgical Science, Tokai University School of Medicine, 143 Shimokasuya, Isehara, Kanagawa 259-1193, Japan

Received: May 14, 2021; Accepted: June 14, 2021; Published: June 21, 2021

Abstract

Traumatic dislocation of the knee is rare, but often requires surgical intervention because complications frequently occur, including various ligamentous injuries. In this study, we report a case of knee dislocation with ligamentous injuries and injury to the popliteal artery.

The patient was a 32-year-old man. He fell while bouldering and was diagnosed with dislocation of the right knee and multiple ligamentous injuries. Upon examination, we found that his right dorsal foot was numb, and the dorsal artery of the right foot was not palpable. His right leg felt cold compared to the other leg. Magnetic resonance imaging revealed injuries to the anterior cruciate ligament, posterior cruciate ligament, and lateral collateral ligament. Computed tomography revealed that the patient’s right popliteal artery was partially obstructed. We planned to reconstruct the injured ligaments. Prior to the surgery, the radiologist performed angiography, and the patient’s popliteal artery became completely obstructed during angiography; therefore, revascularization was performed immediately. Although the blood flow in the right leg recovered, it remained cold, and we did not reconstruct the ligamentous injuries.

Knee dislocation requiring revascularization is quite rare. However, it causes severe dysfunction of the knee. Thus, meticulous and frequent evaluation of vascular injuries is necessary for the treatment of knee dislocation.

Keywords: Case report; Knee dislocation; Vascular injury; Ligamentous injury; Ligament

Abbreviations

ACL: Anterior Cruciate Ligament; PCL: Posterior Cruciate Ligament; MCL: Medial Collateral Ligament; LCL: Lateral Collateral Ligament; TA: Tibialis Anterior; EHL: Extensor Hallucis Longus; MRI: Magnetic Resonance Imaging; CT: Computed Tomography; KD: Knee Dislocation; ABI: Ankle-Brachial Pressure Index

Case Presentation

Traumatic knee dislocation accounts for 0.02%-0.2% of all dislocations [1-6]. Most patients with traumatic knee dislocation also present with ligamentous injuries, such as Anterior Cruciate Ligament (ACL), Posterior Cruciate Ligament (PCL), Medial Collateral Ligament (MCL), and Lateral Collateral Ligament (LCL) injuries that require reconstruction. Reports suggest that an improved range of motion is seen in patients who undergo surgical reconstruction compared to patients managed nonoperatively, and that nonoperative treatment results in a decreased range of motion, fixed flexion deformity, and poor Lysholm scores [7-11].

Natsuhara et al. investigated 8050 cases of knee dislocations and reported that the incidence of arterial injury with knee dislocation is 3.3% [12]. Traumatic knee dislocation with arterial injury is quite rare, so there are very few reports on knee dislocation with arterial injury requiring revascularization. Arterial injury must be treated promptly and appropriately, because once the patients experience complications with a vascular injury, they may require amputation. Thus, simultaneous evaluation of ligamentous and arterial injuries is necessary in knee dislocation. In this study, we present a case of traumatic knee dislocation where reconstruction of the ligamentous injuries could not be performed due to vascular injury.

A 32-year-old man fell while bouldering and his right knee was hyper-extended. He consulted a doctor on the day of injury, and he was diagnosed with dislocation of the right knee and multiple ligamentous injuries of the knee. His right knee was fixed with a knee brace and he was referred to our hospital. According to the medical records from the previous hospital, the dorsal artery of the right foot was palpable and he scored 1 out of 5 in a manual muscle test of his Tibialis Anterior (TA) and Extensor Hallucis Longus (EHL) muscles. However, when he was admitted to our hospital, the weakness in his right foot had recovered completely. In contrast, we confirmed numbness of the right dorsal foot, and the dorsal artery of the right foot was not palpable. Compared to his left limb, his right leg and foot felt cold. Physical examination revealed positive Lachman, Pivot shift, varus stress, posterior drawer, and dial tests. Roentgenography performed at the previous hospital revealed dislocation of the right knee and dislocation of the tibia to the former side (Figure 1). Magnetic Resonance Imaging (MRI) revealed injuries to the ACL, PCL, and LCL of his right knee (Figure 2). Contrast enhanced Computer Tomography (CT) revealed that the right popliteal artery was obstructed at the level of the knee joint (Figure 3). We diagnosed the patient with ligamentous injuries of the knee (ACL, PCL, and LCL) and popliteal artery injury. We planned to perform angiography before reconstructing the ligamentous injuries. However, blood flow in the lower leg disappeared during angiography (Figure 4) and revascularization was performed immediately using an artificial blood vessel. After the operation, the blood flow of the limb recovered; however, the right leg remained cold and we did not attempt reconstruction of the ligamentous injury because we anticipated that reconstruction of multiple ligamentous injuries needed a longer operative time and use of a tourniquet, which would further worsen the blood flow of the right leg. The patient’s knee flexion is currently 140° and his knee extension is 0°. He can walk using a cane and experiences slight pain.

Figure 1: Radiograph showing dislocation of the right knee.








    Figure 1: Radiograph showing dislocation of the right knee.

Figure 2: Magnetic resonance images. a) Coronal image showing an LCL injury (arrow); b) Sagittal image showing an ACL injury (single arrow) and a PCL injury (double arrows). ACL: Anterior Cruciate Ligament; LCL: Lateral Collateral Ligament; PCL: Posterior Cruciate Ligament.








    Figure 2: Magnetic resonance images. a) Coronal image showing an LCL
injury (arrow); b) Sagittal image showing an ACL injury (single arrow) and a
PCL injury (double arrows). ACL: Anterior Cruciate Ligament; LCL: Lateral
Collateral Ligament; PCL: Posterior Cruciate Ligament.

Figure 3: Contrast-enhanced computed tomography image showing interruption of the right popliteal artery (red arrow).








    Figure 3: Contrast-enhanced computed tomography image showing
interruption of the right popliteal artery (red arrow).

Figure 4: Angiogram showing blood flow. a) Angiogram showing that blood flow is initially maintained below the knee; b) Angiogram showing the interruption of blood flow.








    Figure 4: Angiogram showing blood flow. a) Angiogram showing that blood
flow is initially maintained below the knee; b) Angiogram showing the
interruption of blood flow.

Discussion/Conclusion

The rate of vascular injury with knee dislocation is reported to be between 11% and 19% [13,14]. However, only a few articles have reported cases with a vascular injury that require surgical treatment. According to a report by Parker, one in twenty-five traumatic dislocations of the knee require vascularization [15]. It has also been reported that up to 20% of patients with vascular injuries require amputation [12,16]. Traumatic dislocation of the knee with vascular injury is rare; thus, some orthopedic surgeons may overlook the symptoms of complications owing to inexperience. Therefore, understanding the complications of knee dislocation is important to identify early signs of complications.

Schenck et al. [17] categorized traumatic dislocations of the knee into six distinct types (Table 1). Moatshe et al. [18] analyzed data of 303 patients with knee dislocations and revealed that Knee Dislocation (KD) III-M was the most common type (52.4%) and KDIII-L was the second most common type (28.1%) based on the Schenck classification. They also reported that KDIII-L dislocations were significantly associated with popliteal artery injuries. In addition, peroneal nerve injuries were significantly associated with vascular injury [18]. In our case, the patient had ACL, PCL and LCL injuries (KDIII-L), which were further complicated by the development of a sensory disorder of the peroneal nerve region and motor weakness of the right TA and EHL. Thus, classification of dislocation type and neurological evaluation are helpful when assessing vascular injury.

Table 1: Schenck Anatomic Knee Dislocation Classification.








KD I


Injury to single cruciate and collaterals






KD II


Injury to ACL and PCL with intact collaterals






KD III-M


Injury to ACL, PCL, and MCL






KD III-L


Injury to ACL, PCL, and LCL






KD IV


Injury to ACL, PCL, MCL, and LCL






KD V


Dislocation and fracture






ACL: Anterior Cruciate    Ligament; KD: Knee Dislocation; LCL: Lateral Collateral Ligament; MCL: Medial    Collateral Ligament; PCL: Posterior Cruciate Ligament.












Table 1: Schenck Anatomic Knee Dislocation Classification.

Initially the patient’s dorsal artery of the right foot was palpable; however, it was not palpable when he was admitted to our hospital. Previous studies have reported that initial palpation of pedal pulses is not sufficient to rule out significant limb-threatening vascular injury [19] because sufficient collateral circulation maintains pedal pulses in the acute stage of complete popliteal rupture [19]. Nicandri et al. recommended an algorithm for the diagnosis of vascular injury with knee dislocation [20] (Figure 5). They insisted that even if the distal artery is palpable or the Ankle-Brachial Pressure Index (ABI) is >0.9, a 24-hour observation and serial physical examinations are necessary. They also insisted that angiography should be considered when distal pulses are asymmetric or the ABI is <0.9, and surgical exploration should be considered when the distal pulse is absent or there are other signs of vascular injury. In our case, the patient’s dorsal artery of the right foot was not palpable, and CT revealed popliteal injury. Therefore, we conducted angiography before reconstructing the compound ligamentous injuries even though blood flow of the leg worsened during angiography. Through this experience, we learned that once blood flow is obstructed completely, it is difficult for the patient to recover. In addition, reconstruction of ligamentous injuries requires a longer operative time and use of a tourniquet, which can also induce obstruction of the artery. Thus, clinicians must be aware that in some cases, patients with knee dislocation may experience complications such as arterial injuries, which cause severe dysfunction of the knee. Additionally, clinicians must be aware that meticulous and frequent evaluation of vascular injuries is necessary when treating dislocation of the knee.

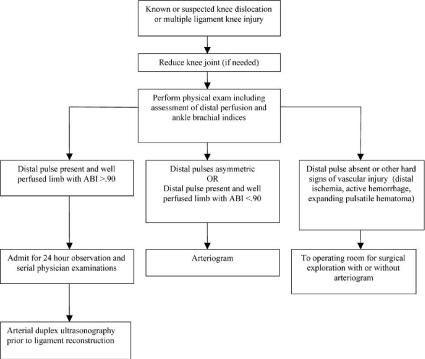

Figure 5: Algorithm for the diagnosis of vascular injury following dislocation of the knee. ABI: Ankle-Brachial Pressure Index.








    Figure 5: Algorithm for the diagnosis of vascular injury following dislocation of the knee. ABI: Ankle-Brachial Pressure Index.

Even if the blood flow of the limb appears to be maintained, dislocation of the knee can easily induce limb ischemia. Clinicians must pay attention to vascular injuries, particularly when performing surgery for knee dislocation.

Clinical Message

Knee dislocation requiring revascularization is quite rare. However, it causes severe dysfunction of the knee. Thus, meticulous and frequent evaluation of vascular injuries is necessary for the treatment of knee dislocation.

Consent

The patient provided informed consent for publication of this report.
