Study of TCM Medication Rules against Aging based on Network Pharmacology and Data Mining

Research Article

Austin J Pharmacol Ther. 2023; 11(1): 1167

Study of TCM Medication Rules against Aging based on Network Pharmacology and Data Mining

Bo Li1,2,4#,Wei Meng1#, Mengnan Liu1, Fei Wang3,Huairong Luo2,4, Li Wang1* and Li Dong1,2,3*

¹Affiliated Traditional Chinese Medicine Hospital of Southwest Medical University, Luzhou, Sichuan Province, China

²Key Laboratory of Luzhou City for Aging Medicine, Southwest Medical University, Luzhou, Sichuan Province, China

³Chengdu University of Traditional Chinese Medicine, Chengdu, Sichuan Province, China

4;Faculty of Chinese Medicine and State Key Laboratory of Quality Research in Chinese Medicine, Macau University of Science and Technology, Macau, China

#These authors have contributed equally to this article.

*Corresponding author: Li Wang & Li DongAffiliated Traditional Chinese Medicine Hospital of Southwest Medical University, Luzhou, Sichuan Province, China

Received: December 14, 2022; Accepted: January 18, 2023; Published: January 25, 2023

Abstract

Background and Objective: Aging and age-related diseases have become a global concern. There may be a lot of room for the development of TRADITIONAL CHINESE MEDICINE (TCM) in the future. However, it has yet to fully form a system. Therefore, this study aims to explore the material basis and rules of TCM anti-aging based on network pharmacology and data mining.

Methods: In this study, potential targets were searched using the HAGR and Aging Atlas databases, followed by compounds and traditional Chinese herbs from the TCMSP database. On this basis, the target-compound network, compound-Chinese herb network and target-compound-herb network were constructed and visualized using Cytoscape 3.7.2. These networks were used to identify potential targets, compounds and herbs. Finally, the rules of Chinese herbs were summarized by the analysis of properties, flavors, and meridian tropism.

Results: A total of 25 potential targets, 210 candidate small compounds and 135 kinds of herbs were obtained. The top five targets included PTGS2, AR, ESR1, GSK3B and CCNA2, and diosgenin, formononetin, tanshinone IIA, phaseolin and phaseollidin were identified as the top 5 compounds. In addition, five core herbs (Huluba, Tiandong, Danshen, Kushen and Shandougen) were confirmed. Moreover, according to the frequency statistics, the Chinese herbs that interfere with aging were mainly bitter, acrid, and sweet, had both cold and warm properties, and belonged to the liver and lung meridians.

Conclusion: We explored the potential mechanisms of TCM anti-aging by using network pharmacology and summarized the general rules of traditional Chinese herbs medicine. TCM has great potential in the treatment of aging, and this study provides a new approach and idea for the clinical application of integrated Chinese and Western medicine in the treatment of aging.

Introduction

The proportion of people aged 65 and over has been rising steadily in both developed and developing countries. There is no doubt that the prevalence of the older populations has led to a global burden of age-related disorders, posing a serious threat to human health and reducing the quality of life for elderly people. As a result, health care costs have become a huge burden for both society and aging populations, and it is essential to explore the mechanisms of aging and counter the occurrence of aging-related diseases.

Aging, unlike sickness, is a progressive time-dependent process that can be divided into pathological and physiological aging. It carries from person to person and can be a complex biological process characterized by a decline in tissue and organ function, structural degradation, and reduced adaptability and resistance, all of which is closely contributed to most chronic diseases and increased morbidity and mortality [1,2], such as diabetes, hypertension, cardiovascular disease, cancer, and neurodegenerative disease. The search for effective strategies to improve normal lifespan has been an influential goal of aging research for many years. Until now, pharmacological interventions may have been an effective way to improve health span and delay the onset of age-related diseases, and numerous compounds with anti-aging activity have been found in yeast, worms, fruit flies and mice. While treatments for age-related diseases have been extensively studied and progress has been made, Traditional Chinese Medicine (TCM) is particularly well-suited for drug discovery for the long-term treatment of age-related diseases.

TCM is a treasure of natural compounds used in the treatment of a variety of diseases. It has a wide range of sources, a large number of effective compounds, stable compound structures and security. In addition, TCM has the combined advantages of multi-target and multi-effect for diseases with complex pathogenesis. Therefore, TCM has great significance in preventing and improving the clinical symptoms and severity of age-related diseases, such as Ginseng, Radix Astragali and Gynostemma pentaphyllum are recognized by the “nourishing of life” and their role as anti-aging psychotherapeutic is gaining attention increasingly [3].

Network pharmacology is a combination of systems pharmacology, multidirectional pharmacology, data mining and other multi-disciplines, which is used to analyze and predict the pharmacological mechanisms of drugs by constructing a “drug-target-disease” network, and it is suitable for the study of traditional Chinese medicine and compounds. Therefore, it is currently widely used in the mechanism study of the role of TCM and in the development of new drug compounds.

In this study, through the method of network pharmacology, aging-related targets were obtained as the breakthrough points and matched to the corresponding compounds in Chinese medicine, and further establish the “target-compound-herb” network, in order to analyze the relationship. In addition, we evaluated the mechanisms of action and general rules of TCM. Our findings provide a theoretical foundation for the follow-up exploration and provide ideas for clinical research on TCM, therapeutic strategies and the integration of TCM and Western medicine in aging management. A flow chart of this study is shown in (Figure 1).

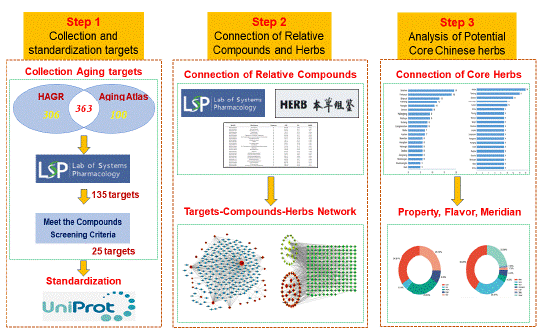

Figure 1: Research process.













    Figure 1: Research process.

Materials and Methods

Screening of Aging-Related Target Genes

The targets related to the mechanism of aging were obtained from HAGR [4]

(https://www.genomics.senescence.info/) and Aging Atlas [5] (https://ngdc.cncb.ac.cn/databases) databases. The full name of each target is determined in the UniProt protein database [6] (https://www.uniprot.org/).

Screening Alternative Compounds and “Target-Compound” Network Construction

Compounds that have effects on age-related targets were obtained by using the Traditional Chinese Medicine Systems Pharmacology Database and Analysis Platform (TCMSP) [7] (https://tcmspw.com/). Candidate compounds were screened according to pharmacokinetic parameters (ADME) and Lipinski's rule [8]. Specific screening criteria were oral efficacy (OB) ≥ 30%, drug similarity (DL) ≥ 0.18 [9], drug half-life > 4 h, topological polar surface area < 140 angstroms [10], number of rotatable bonds ≤ 10 [11] and molecular weight ≤ 500 Da. Considering that the parameters provided by the TCMSP platform are predicted by the computer, some of the data may not be consistent with the actual situation. After the preliminary screening, the deleted compounds were checked one by one to complement the relevant active compounds. The modified compound was used as a candidate compound. Together with these compounds, potential targets were imported into Cytoscape 3.7.2 software [12] to build a “target-compound” network. The degrees of the network nodes were then calculated and based on core targets, compounds and herbs were identified.

Matching Herb and Target-Compound-Herb Network Construction

The herbs containing the candidate compounds were collected on TCMSP to construct a "compound-herb" network. Combine the "target-compound" network and "compound-herb" network through function module in Cytoscape 3.7.2 to build the "target-compound-herb" network. Then, the key nodes were determined according to the degree of each node in the network, and the efficacy intensity of the Chinese medicine and compound treatment for aging was evaluated.

Analyzing Characteristics of the Candidate Herbs

With the frequency analysis, the anti-aging rules of the candidate herbs were summarized. The features studied include properties, flavors, and meridional tropism. Considering the heterogeneity of characteristic information from different sources, the criteria adopted in this study were Chinese Pharmacopoeia (2015) [13], Chinese Pharmacy (the textbook of the 13th Five-Year Plan Period) [14] and Chinese Dictionary of Clinical Medicine [15]. Herbs were removed due to a lack of relevant information.

Results

Results of Target Acquisition

In this study, 306 and 100 age-related targets were obtained from HAGR and Aging Atlas databases, respectively. The targets were complemented with the Herb database, and a total of 363 targets were subsequently obtained after the duplicate values and 135 targets were successfully obtained in TCMSP database. Finally, 25 targets were matched to compounds that met both the ADME and Lipinski screening criteria. These targets were standardized in the Uni Prot database and defined as potential targets for herbs anti-aging, as shown in (Table 1).

Table 1: Information of potential aging targets.














ID



Gene Symbol



Uniport ID



Protein Name









1



PTGS2



P35354



Prostaglandin G/H synthase 2









2



AR



P10275



Androgen receptor









3



ESR1



P03372



Estrogen receptor









4



GSK3B



P49841



Glycogen synthase kinase-3 beta









5



CCNA2



P20248



Cyclin-A2









6



MAPK14



Q16539



Mitogen-activated protein kinase 14









7



NR3C1



P04150



Glucocorticoid receptor









8



TNF



P01375



Tumor necrosis factor









9



IL6



P05231



Interleukin-6









10



TP53



P04637



Cellular tumor antigen p53









11



CDKN1A



P38936



Cyclin-dependent kinase inhibitor 1









12



MYC



P01106



Myc proto-oncogene protein









13



BCL2



P10415



Apoptosis regulator Bcl-2









14



BCL2L1



Q07817



Bcl-2-like protein 1









15



AKT1



P31749



RAC-alpha serine/threonine-protein kinase









16



HIF1A



Q16665



Hypoxia-inducible factor 1-alpha









17



VEGFA



P15692



Vascular endothelial growth factor A









18



CAT



P04040



Catalase









19



BAX



Q07812



Apoptosis regulator BAX









20



SOD1



P00441



Superoxide dismutase









21



CREB1



P16220



Cyclic AMP-responsive element-binding    protein 1









22



NFKBIA



P25963



NF-kappa-B inhibitor alpha









23



MTOR



P42345



Serine/threonine-protein kinase mTOR









24



PPARG



P37231



Peroxisome proliferator-activated receptor    gamma









25



TRPV1



8NER1



Transient receptor protential cation    channel subfamily V member 1





















Table 1: Information of potential aging targets.

Candidate Compound Acquisition and Target-Compound Network Construction

Twenty-five potential targets were matched with 7,501 small molecule compounds in the TCMSP database, among which 210 candidate compounds met the ADME and Lipinski criteria (Table 2). (Figure 2) shows the target-compound network constructed with 235 nodes and 455 edges of potential targets and candidate compounds. As shown in the figure, the red nodes represent the target points, the blue nodes represent the compounds, the edge represents the relationship between two adjacent nodes, and the degree represents the number of edges connected by the node. In addition, the size of the graph indicates the degree value of the node. The larger the graph, the more significant the effect on the network. The top 5 target proteins included PTGS2, AR, ESR1, GSK3B and CCNA2, and the top 5 compounds were diosgenin, formononetin, tanshinone IIA, phaseolin and phaseollidin. These findings suggest that the top 5 targets were involved in anti-aging therapies, and that these compounds may interact with related target proteins with high anti-aging activity.

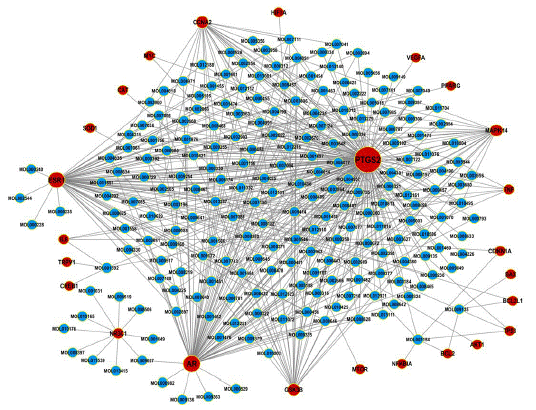

Figure 2: The target-compound network. The red nodes represent the target points; the blue nodes represent the compounds.













    Figure 2: The target-compound network. The red nodes represent the target points; the blue nodes represent the compounds.

Table 2: Information of candidate core compounds (degree ≥ 5).














MoIID



MoIName



Degree



OB



DL



BBB









MOL000546



diosgenin



9



80.88



0.81



0.27









MOL000392



formononetin



7



69.67



0.21



0.02









MOL007154



tanshinone iia



6



49.89



0.4



0.7









MOL000456



Phaseolin



6



78.2



0.73



0.39









MOL000457



Phaseollidin



6



52.04



0.53



0.25









MOL003896



7-Methoxy-2-methyl isoflavone



6



42.56



0.2



0.56









MOL004391



8-(3-methylbut-2-enyl)-2-phenyl-chromone



6



48.54



0.25



0.99









MOL004835



Glypallichalcone



6



61.6



0.19



0.23









MOL004891



shinpterocarpin



6



80.3



0.73



0.68









MOL004957



HMO



6



38.37



0.21



0.25









MOL005003



Licoagrocarpin



6



58.81



0.58



0.61









MOL006174



Xyloidone



6



31.61



0.18



0.47









MOL010495



6,7-dimethoxy-2-(2-phenylethyl)chromone



6



31.93



0.3



0.37









MOL010496



DMPEC



6



32.38



0.39



0.18









MOL012910



Bianfugecine



6



36.08



0.42



0.29









MOL001592



piperine



5



42.52



0.23



0.62









MOL000258



dehydrodiisoeugenol



5



56.84



0.29



0.52









MOL001461



Dihydrochelerythrine



5



32.73



0.81



0.61









MOL001463



Dihydrosanguinarine



5



59.31



0.86



0.49









MOL007100



dihydrotanshinlactone



5



38.68



0.32



0.81









MOL007111



Isotanshinone II



5



49.92



0.4



0.45









MOL007124



neocryptotanshinone ii



5



39.46



0.23



0.16









MOL010586



Formononetin



5



66.39



0.21



0.12









MOL013287



Physovenine



5



106.21



0.19



0.2









MOL004991



7-Acetoxy-2-methylisoflavone



5



38.92



0.26



0.16





















Table 2: Information of candidate core compounds (degree ≥ 5).

Herb Acquisition and Target-Compound-Herb Network Construction

A total of 355 Chinese herbal medicines matching 210 candidate compounds were screened from TCMSP database, of which only 1 of which was not included in the Chinese Pharmacopoeia (2015), Chinese Pharmacy (“Thirteenth Five-Year Plan” textbook), and Chinese Dictionary of Clinical Medicine. After deleting duplicated values, 135 Chinese herbs were eventually obtained.

To further understand the relationship between the potential targets, compounds, and traditional Chinese medicine in aging treatment, Chinese herbs with degree greater than 3 were selected to generate the target-compound-herb network, as shown in (Figure 3). In the figure, green circle nodes represent compounds, yellow quadrilateral nodes represent potential targets, and red diamond nodes represent Chinese herbs. Moreover, the size of each node was positively correlated with the degree value, indicating that the effect is more significant in the network. As can be seen in Figure 4, the top 5 herb nodes with the highest degree were Danshen, Yanhusuo, Baiqucai, Kudiding and Huangbo containing 19, 18, 13, 12 and 11 candidate compounds, respectively. The herb targets were collected by bridging of candidate compounds. The results showed that Huluba, Tiandong, Danshen, Kushen and Shandougen contained the most targets, which were 16, 14, 12, 10 and 10, respectively). It can be inferred that these herbs had the strongest anti-aging regulation effect among the 135 herbs.

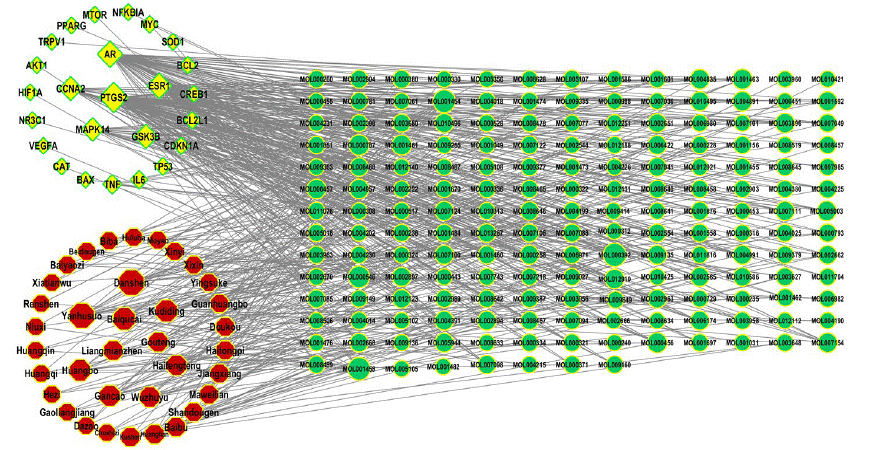

Figure 3: The target-compound-traditional Chinese medicine network (degree ≥3). The green circle nodes represent the compounds, the yellow quadrilateral nodes represent the potential targets, and the red diamond nodes represent the traditional Chinese herbs, respectively.













    Figure 3: The target-compound-traditional Chinese medicine network (degree ≥3). The green circle nodes represent the compounds, the yellow quadrilateral nodes represent the potential targets, and the red diamond nodes represent the traditional Chinese herbs, respectively.

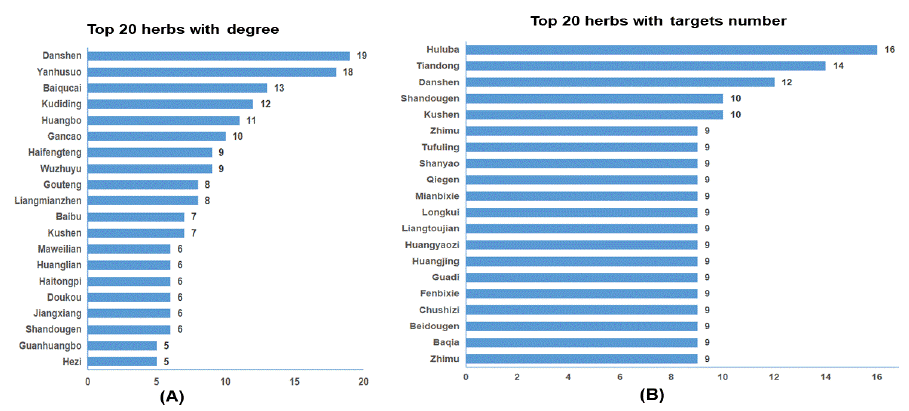

Figure 4: Distribution of candidate compounds and targets in herbs.













    Figure 4: Distribution of candidate compounds and targets in herbs.

Properties, Tastes, and Meridian Tropism of Herbs

To analyze the information of properties, tastes, and meridian tropism of the 135 traditional Chinese herbs, a statistical analysis of frequency using the Excel program showed that bitter (93), acrid (60) and sweet (51) ranked highest in terms of nature. In addition, the proportion of cold (34.81%) and warm (25.93%) herbs was the highest. The results of frequency statistical analysis were shown in (Figure 5 (A-B)).

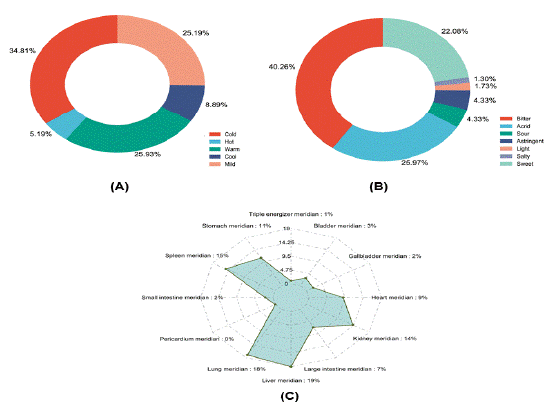

Figure 5: Information on Chinese medicine herbs. (A) nature; (B) flavour; (C) meridian.













    Figure 5: Information on Chinese medicine herbs. (A) nature; (B) flavour; (C) meridian.

In terms of meridian tropism, among the 135 Chinese herbal medicines, the liver meridian accounted for 19.42%, the lung meridian accounted for 17.97%, the spleen meridian accounted for 14.78%, the kidney meridian accounted for 13.62%, and the stomach meridian accounted for 11.30%. It can be seen that anti-aging treatment may be closely related to liver, lung, spleen, kidney and stomach meridian, as shown in (Figure 5 (C)).

Discussion

Aging is an irreversible biological process that manifests itself mainly through functional decline. With the development of the economy, aging and age-related diseases, including cardiovascular and cerebrovascular diseases, have become crucial health problems [16]. After thousands of years of clinical practice in China, Traditional Chinese Medicine (TCM) has accumulated a large number of valuable experiences. With its multi-component, multi-target and multi-functionality, TCM has demonstrated unique advantages in the prevention and treatment of age-related diseases. As a result, TCM is used as a complementary therapy to delay aging. However, systematic studies of TCM interventions in aging have been inadequate. It is of great clinical importance to study the mechanisms of TCM intervention in aging and develop related drug preparations based on this.

Targets

In this study, 6 core targets (PTGS2, AR, ESR1, GSK3B, CCNA2 and MAPK14) were identified from the target-compound-herb network. It is worth mentioning that PTGS2 is the most remarkable with a degree of 190. PTGS2, is also known as COX-2, an enzyme inhibited by nonsteroidal anti-inflammatory drugs such as aspirin, which is associated with prognosis in patients with colorectal cancer [17]. Besides, activated PTGS2 can produce Prostaglandin E2 (PGE2), which acts on a number of cell signaling pathways involving cell proliferation, angiogenesis, apoptosis and immunosuppression which could increase tumor progression.

Compound

The core compounds obtained in this study included diosgenin, formononetin, tanshinone IIA and phaseolinz. Diosgenin is a naturally occurring steroidal saponin found in a variety of plants, including dioscorea species, fenugreek and costus speciosus. Diosgenin has many biological activities such as anticancer [18-21], antiviral [22] and anti-inflammatory [23]. Diosgenin has been recognized as the most potent component of yam, and according to traditional Chinese medicine theories, it is believed to improve ovarian function in women. Researchers have investigated that diosgenin could counteract age-associated ovarian dysfunction in a natural aging mice model [24], and provide neuroprotective effects for prevention of the D-galactose-induced aging brain by suppressing neuronal Fas-dependent and mitochondria-dependent apoptotic pathways and enhancing the Bcl-2 family associated pro-survival and IGF-1-PI3K-AKT survival pathways.

Formonetin, the principal ingredient in Radix Astragali, has long been used in traditional Chinese medicine to treat age-related diseases. Several studies have reported that formononetin has numerous pharmacological properties [25-26], including anti-tumor, anti-inflammatory, anti-atherosclerosis, anti-oxidant, and selective neuroprotective effects. Huang et al. demonstrated formononetin was able to alleviate I/R (ischemia/reperfusion)-induced cellular apoptosis in aged cells by facilitating autophagy [27], Fei et al. found formononetin could significantly improve learning and memory ability. Moreover, FMN treatment alleviated ultra structural changes in hippocampal vascular endothelial cells [28].

Tanshinone IIA (Tan IIA) is one of the major therapeutic components of Salvia miltiorrhiza Bunge, which is popularly known as Danshen and widely used in China and Southeast Asian countries for many centuries. Modern pharmacological research showed that Tan IIA had many effective activities such as cardioprotective, neuroprotective, renoprotective, hepatoprotective and it has been widely used to treat aging-related diseases such as Myocardial Infarction (MI), stroke, Alzheimer’s disease, Parkinson’s disease and other conditions. Some reports have shown that Tan IIA can inhibit ROS-induced oxidative stress and attenuate vascular inflammation [29]. Furthermore, a few clinical trials have been perused to evaluate the beneficial effects of tanshinone in humans. The above effects lead us to speculate that Tanshinone may play an influential role in anti-aging and cardiovascular and cerebrovascular diseases.

Herbs

The core herbs obtained in this study include Huluba, Tiandong, Danshen, Kushen and Shandougen. Fenugreek has been a traditionally well-used medicinal plant in Asian countries for centuries. According to traditional Chinese medicine theory, fenugreek, which is bitter in taste and warm in nature, belongs to the meridian of the kidney, and it has the effect of warming and toning the kidney, dissipating cold and relieving pain. Modern pharmacological studies have shown that it has antioxidant, antidiabetic, anticarcinogenic, hypocholesterolemic and immunological activities [30]. In recent decades, many of the health benefits of fenugreek have been clinically and preclinically validated. Trigonelline is the main alkaloid with bioactivity presented in fenugreek, which is reported to have neuroprotective [31], anti-inflammatory [32], anti-oxidant [33], anti-degranulation [34], and anti-carcinogenic effects [35]. A previous study has reported that trigonelline at different concentrations could prolong the healthy lifespan, enhance the locomotor ability and reduce the accumulation of lipofuscin in the body in C. elegans. Moreover, trigonelline was also able to delay the progression of age-related diseases in C. elegans models of AD, PD, and HD [36].

Tiandong, a popular traditional Chinese medicine, is sweet in taste and cold in nature. It belongs to the lung and stomach meridian and mainly treats the syndrome of lung and stomach yin deficiency and kidney yin deficiency. Modern pharmacological studies have confirmed that tiandong can be used to treat a variety of diseases, including age-related conditions. Therefore, Xiong et al. [37] investigated the biochemical indicators related to aging in mouse brains and livers. Similarly, Lei and colleagues [38] explained the anti-aging proprieties in the D-galactose-induced mouse aging model.

Danshen is regarded as an important herb for “activating circulation and dispersing stasis or sludging of blood” with light smell, lightly bitter and astringent taste in traditional Chinese medicine. A total of 201 compounds from Danshen have been reported, which have proved various pharmacological activities, including anti-inflammation, anti-oxidation, anti-tumor, anti-atherogenesis, and anti-diabetes. In recent years, Danshen has been widely applied in studies and clinics. The different dosage forms of Danshen such as tablets, capsules, granules, oral liquid and injections have become effective methods for treating various human diseases. Meanwhile, Fufang Danshen tablet and dripping pill have been officially listed in Chinese Pharmacopoeia (2020). In the anti-aging aspect, Hou et al. [39] selected 24-month-old guinea pigs as the aging model and fed them with different doses (75, 100, 150 mg/kg/day) of Danshen extract for 28 days continuously, the study was surprised to find that the blood viscosity and viscoelasticity were significantly improved at the 150 mg/kg/day dose and the aging phenotype was reduced to a certain extent.

Actual Property, Flavor, and Meridian

Traditional Chinese medicine for anti-aging is mainly bitter, acrid and sweet, and its medicinal properties are mainly cold and warm, belonging to the liver, lung, spleen and kidney meridians. Pharmacological studies have shown that most of the bitter and warm herbs contain volatile oil, while the bitter and cold drugs contain more alkaloids and glycosides, which have anti-inflammatory and anti-oxidant effects. Chen et al. [40] detected the distribution of TCM active components in body and confirmed that was basically in line with the theory of traditional Chinese. For example, heart meridian drugs contain terpenoids, flavonoids and volatile oils, which have the effect of dilating coronary arteries and anti-arrhythmia, while lung meridian herbs have anti-inflammatory and anti-viral effects. Therefore, in exploring the relationship between TCM and anti-aging effects, we should fully integrate taste and meridian tropism to explore the potential value of TCM.

In summary, the aforementioned herbs may have anti-aging potential, which would provide an alternative to related trials of TCM for the treatment of aging. Moreover, information on herbal flavors and meridians can serve as a foundation for future theoretical discussions and research on TCM on aging. At the same time, the obtained core compounds and targets can provide evidence for prescription exploration in integrating traditional Chinese and Western medicine for the treatment of aging, which may be an alternative strategy in future studies.

In this study, network pharmacology was used to obtain herbs and compounds with the potential to treat aging from a large number of TCM practitioners, and then data mining was performed according to TCM theory, which not only saves time and economic costs, but also improves the efficiency of research. Despite the insightful findings, there are still some limitations: Firstly, we focus on the relationship between the targets, the ingredients and the drugs, but the content of the ingredients and the efficacy of TCM have not been thoroughly discussed. Secondly, drugs were selected from existing databases or literature, and new drugs on the market are not sufficiently included. Thirdly, the study is limited to a single TCM, except for TCM compounds that have been clinically applied. Thus, further research is needed and we will continue to follow up related advances in the future.

Conclusion

In conclusion, based on a network pharmacology approach, we constructed a target-compound-herb network using aging-related targets from multiple databases and matched compounds and herbs from the TCMSP platform. The core compounds (diosgenin, formononetin, tanshinone IIA, phaseolinz) and potential Chinese herbs (Huluba, Tiandong, Danshen, Kushen) were identified from the network. In addition, most of the candidate herbs were bitter, acrid, and warm, and belonged to the liver, lung, and spleen meridians. Therefore, these conclusions provide a reference for the prescription of combining TCM and Western medicine to treat aging in an advanced manner, and their mechanism of action should be further explored.

Author Contributions

Data curation: Li Dong, Li Wang, Bo Li.

Formal analysis: Li Dong.

Investigation: Wei Meng.

Methodology: Mengnan Liu, Fei Wang.

Validation: Huairong Luo.

Writing- original draft: Fei Wang.

Writing-review & editing: Li Dong, Li Wang, Bo Li.

Funding

This study was supported in part by a grant from projects funded by Sichuan Provincial Administration of Taditional Chinses Medicine (2021MS458/2020JC015) and Project of Southwest Medical University (2020XYLH-008).The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

References

  1. Bao Q, Pan J, Qi H, Wang L, Qian H, Jiang F, et al. Aging and age-related diseases--from endocrine therapy to target therapy. Mol Cell Endocrinol. 2014; 394: 115-8.
  2. Dillin A, Gottschling DE, Nyström T. The good and the bad of being connected: the integrons of aging. Curr Opin Cell Biol. 2014; 26: 107-12.
  3. Gao Y, Wei Y, Wang Y, Gao F, Chen Z. Lycium Barbarum: A Traditional Chinese Herb and A Promising Anti-Aging Agent. Aging Dis. 2017; 8: 778-791.
  4. Tacutu R, Craig T, Budovsky A, Wuttke D, Lehmann G, Taranukha D, et al. Human Ageing Genomic Resources: integrated databases and tools for the biology and genetics of ageing. Nucleic Acids Res. 2013; 41: D1027-33.
  5. Aging Atlas Consortium. Aging Atlas: a multi-omics database for aging biology. Nucleic Acids Res. 2021; 49: D825-D830.
  6. UniProt Consortium T. UniProt: the universal protein knowledgebase. Nucleic Acids Res. 2018; 46: 2699.
  7. Ru J, Li P, Wang J, Zhou W, Li B, Huang C, et al. TCMSP: a database of systems pharmacology for drug discovery from herbal medicines. J Cheminform. 2014; 6: 13.
  8. Lipinski CA, Lombardo F, Dominy BW, Feeney PJ. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv Drug Deliv Rev. 2001; 46: 3-26.
  9. Tao W, Xu X, Wang X, Li B, Wang Y, Li Y, et al. Network pharmacology-based prediction of the active ingredients and potential targets of Chinese herbal Radix Curcumae formula for application to cardiovascular disease. J Ethnopharmacol. 2013; 145: 1-10.
  10. Ertl P, Rohde B, Selzer P. Fast calculation of molecular polar surface area as a sum of fragment-based contributions and its application to the prediction of drug transport properties. J Med Chem. 2000; 43: 3714-7.
  11. Veber DF, Johnson SR, Cheng HY, Smith BR, Ward KW, Kopple KD. Molecular properties that influence the oral bioavailability of drug candidates. J Med Chem. 2002; 45: 2615-23.
  12. Otasek D, Morris JH, Bouças J, Pico AR, Demchak B. Cytoscape Automation: empowering workflow-based network analysis. Genome Biol. 2019; 20: 185.
  13. NP Committee, Chinese Pharmacopoeia, China Medical Science and Technology Press, Beijing, China, 2015.
  14. Zhong GS, Chinese Pharmacy, China Press of Traditional Chinese Medicine, Beijing, China, 2016.
  15. Peng C, Chinese Dictionary of Clinical Medicine, China Medical Science and Technology Press, Beijing, China, 2018.
  16. López-Otín C, Blasco MA, Partridge L, Serrano M, Kroemer G. The hallmarks of aging. Cell. 2013; 153: 1194-217.
  17. Kunzmann AT, Murray LJ, Cardwell CR, McShane CM, McMenamin UC, Cantwell MM. PTGS2 (Cyclooxygenase-2) expression and survival among colorectal cancer patients: a systematic review. Cancer Epidemiol Biomarkers Prev. 2013; 22: 1490-7.
  18. Cheng SM, Ho YJ, Yu SH, Liu YF, Lin YY, Huang CY, et al. Anti-Apoptotic Effects of Diosgenin in D-Galactose-Induced Aging Brain. Am J Chin Med. 2020; 48: 391-406.
  19. Raju J, Mehta R. Cancer chemopreventive and therapeutic effects of diosgenin, a food saponin. Nutr Cancer. 2009; 61: 27-35.
  20. Lepage C, Léger DY, Bertrand J, Martin F, Beneytout JL, Liagre B. Diosgenin induces death receptor-5 through activation of p38 pathway and promotes TRAIL-induced apoptosis in colon cancer cells. Cancer Lett. 2011; 301: 193-202.
  21. Chen PS, Shih YW, Huang HC, Cheng HW. Diosgenin, a steroidal saponin, inhibits migration and invasion of human prostate cancer PC-3 cells by reducing matrix metalloproteinases expression. PLoS One. 2011; 6: e20164.
  22. Wang YJ, Pan KL, Hsieh TC, Chang TY, Lin WH, Hsu JT. Diosgenin, a plant-derived sapogenin, exhibits antiviral activity in vitro against hepatitis C virus. J Nat Prod. 2011; 74: 580-4.
  23. Jung DH, Park HJ, Byun HE, Park YM, Kim TW, Kim BO, et al. Diosgenin inhibits macrophage-derived inflammatory mediators through downregulation of CK2, JNK, NF-kappaB and AP-1 activation. Int Immunopharmacol. 2010; 10: 1047-54.
  24. Shen M, Qi C, Kuang YP, Yang Y, Lyu QF, Long H, et al. Observation of the influences of diosgenin on aging ovarian reserve and function in a mouse model. Eur J Med Res. 2017; 22: 42.
  25. Zhou R, Xu L, Ye M, Liao M, Du H, Chen H. Formononetin inhibits migration and invasion of MDA-MB-231 and 4T1 breast cancer cells by suppressing MMP-2 and MMP-9 through PI3K/AKT signaling pathways. Horm Metab Res. 2014; 46: 753-60.
  26. Jin F, Wan C, Li W, Yao L, Zhao H, Zou Y, et al.Formononetin protects against acetaminophen-induced hepatotoxicity through enhanced NRF2 activity. PLoS One. 2017; 12: e0170900.
  27. Huang Z, Liu Y, Huang X. Formononetin may protect aged hearts from ischemia/reperfusion damage by enhancing autophagic degradation. Mol Med Rep. 2018; 18: 4821-4830.
  28. Fei HX, Zhang YB, Liu T, Zhang XJ, Wu SL. Neuroprotective effect of formononetin in ameliorating learning and memory impairment in mouse model of Alzheimer’s disease. Biosci Biotechnol Biochem. 2018; 82: 57-64.
  29. Zhang HS, Wang SQ. Nrf2 is involved in the effect of tanshinone IIA on intracellular redox status in human aortic smooth muscle cells. Biochem Pharmacol. 2007; 73: 1358-66.
  30. Mohamadi N, Sharififar F, Pournamdari M, Ansari M. A Review on Biosynthesis, Analytical Techniques, and Pharmacological Activities of Trigonelline as a Plant Alkaloid. J Diet Suppl. 2018; 15: 207-222.
  31. Qiu Z, Wang K, Jiang C, Su Y, Fan X, Li J, et al. Trigonelline protects hippocampal neurons from oxygen-glucose deprivation-induced injury through activating the PI3K/Akt pathway. Chem Biol Interact. 2020; 317: 108946.
  32. Omidi-Ardali H, Lorigooini Z, Soltani A, Balali-Dehkordi S, Amini-Khoei H. Inflammatory responses bridge comorbid cardiac disorder in experimental model of IBD induced by DSS: protective effect of the trigonelline. Inflammopharmacology. 2019; 27: 1265-1273.
  33. Khalili M, Alavi M, Esmaeil-Jamaat E, Baluchnejadmojarad T, Roghani M. Trigonelline mitigates lipopolysaccharide-induced learning and memory impairment in the rat due to its anti-oxidative and anti-inflammatory effect. Int Immunopharmacol. 2018; 61: 355-362.
  34. Nugrahini AD, Ishida M, Nakagawa T, Nishi K, Sugahara T. Trigonelline: An alkaloid with anti-degranulation properties. Mol Immunol. 2020; 118: 201-209.
  35. Arlt A, Sebens S, Krebs S, Geismann C, Grossmann M, Kruse ML, et al. Inhibition of the Nrf2 transcription factor by the alkaloid trigonelline renders pancreatic cancer cells more susceptible to apoptosis through decreased proteasomal gene expression and proteasome activity. Oncogene. 2013; 32: 4825-35.
  36. Zeng WY, Tan L, Han C, Zheng ZY, Wu GS, Luo HR, et al. Trigonelline Extends the Lifespan of C. Elegans and Delays the Progression of Age-Related Diseases by Activating AMPK, DAF-16, and HSF-1. Oxid Med Cell Longev. 2021; 2021: 7656834.
  37. Xiong D, Yu LX, Yan X, Guo C, Xiong Y. Effects of root and stem extracts of Asparagus cochinchinensis on biochemical indicators related to aging in the brain and liver of mice. Am J Chin Med. 2011; 39: 719-26.
  38. Lei L, Ou L, Yu X. The antioxidant effect of Asparagus cochinchinensis (Lour.) Merr. shoot in D-galactose induced mice aging model and in vitro. J Chin Med Assoc. 2016; 79: 205-11.
  39. Hou WC, Tsay HS, Liang HJ, Lee TY, Wang GJ, Liu DZ. Improving abnormal hemorheological parameters in aging guinea pigs by water-soluble extracts of Salvia miltiorrhiza Bunge. J Ethnopharmacol. 2007; 111: 483-9.
  40. Chen SH, LV GY. Study on the properties of traditional Chinese medicine from the perspective of “the combination of actual smell, taste and meridian”. Pharmacology and Clinic of Traditional Chinese Medicine. 2008; 24: 58-62.

Citation: Li B, Wei Meng W, Liu M, Wang F, Luo H, et al. Study of TCM Medication Rules against Aging Based on Network Pharmacology and Data Mining. Austin J Pharmacol Ther. 2023; 11(1): 1167
