The Effect of Upright Lower Body Negative Pressure on Muscle Activity and Hemodynamics during Exercise

Research Article

Austin Sports Med. 2023; 8(1): 1053.

The Effect of Upright Lower Body Negative Pressure on Muscle Activity and Hemodynamics during Exercise

Gallardo P1, Giannakopoulos I1, Romare M1, Karanika P1, Elcadi GH1,2 and Tsaklis PV1,3,4*

1Department of Physical Education and Sport Science, ErgoMech-Lab, University of Thessaly, Trikala, Hellas, Greece

2Division of Ergonomics, School of Engineering Sciences in Chemistry, Biotechnology, & Health, KTH Royal Institute of Technology, Huddinge, Sweden

3Department Molecular Medicine and Surgery, Growth and Metabolism, Karolinska Institute, Solna, Sweden

4Center of Orthopaedics and Regenerative Medicine (C.O.RE.)/(C.I.R.I.) - Aristotle University Thessaloniki, Hellas, Greece

*Corresponding author: Tsaklis PVDepartment of Physical Education and Sport Science, University of Thessaly, Trikala, Greece

Received: January 19, 2023; Accepted: March 10, 2023; Published: March 17, 2023

Abstract

Purpose: The aim of the study was to evaluate the changes that occur in parameters relating to muscle work and muscle hemodynamicsunder the influence of upright Lower Body Negative Pressure (LBNP) application during walking.

Methods: 18 young females were included in this study. All 18 subjects participated in 2 trials of a 12-minute walking exercise on a treadmill equipped with a LBNP chamber, on a constant speed of 5 km/h. The first trial was executed under the application of a LBNP program (3 stages of -15, -25 and -30 mbar), while the second trial was similar, but without the activation of the negative pressure chamber. During both trials, the Vastus Lateralis (VL) muscle hemodynamic conditions were monitored continuously with a Functional Near-Infrared Spectroscopy (fNIRS) device and parallelly, VL activation was monitored via a Surface Electromyography (sEMG). Heart Rate (HR) values were recorded in the beginning and during the10th min of each trial, after which, the difference between the 2 values was calculated. Immediately after the conclusion of each trial, participants were asked to provide a score for perceived exertion using Borg CR-10 scale (10 for maximum exertion).

Results: During the LBNP trial, Total Hemoglobin (tHb) and Oxy-Hemoglobin (O2Hb) concentrations in the Vastus Lateralis (VL), was significantly lower compared to the control (p=0.007, p=0.001), but with a significant increase rate in deoxy-hemoglobin (HHb) (p= 0.001). Tissue Saturation Index (TSI%) showed no significant alteration between trials (p= 0.668). All calculated parameters relating to work output showed a significant difference in the LBNP trial compared to control. HR was increased (p= 0.001), there were an increase in MPF and RMS amplitude in the VL (p=0.006, p < 0.001, respectively) and subjects reported higher rate of perceived exertion (p=0.001).

Conclusions: The application of LBNP showed elevated work characteristics, mainly on the work output and less local muscle hemodynamics. This could be a time efficient training tool for stressing the musculoskeletal system, faster improve body composition and potentially enhancing cardio respiratory fitness.

Keywords: Negative air pressure and exercise; Muscle activation and hemodynamics

Introduction

It is well documented that performing regular Physical Activity (PA) promotes good health and plays a vital role in the prevention of non-communicable diseases, such as type 2 diabetes [1,2], coronary heart disease [2,3], breast cancer [2,4] and obesity [5,6]. Among the adult population, walking has been reported to be the most common type of PA [7–9], and it is considered to be feasible and safe form of PA to undertake regardless of age, health status, and ability [10,11]. While there is robust evidence that regular walking at low intensities has potent health effects in terms of producing favorable changes in the lipoprotein profile [12] and improving glycemic control [13,14], accumulating data suggest that there may be additional physiological benefits by performing PA at higher intensities, especially in the context of obtaining pronounced improvements in cardio respiratory fitness (Duncan et al. 1991 and promoting skeletal muscle hypertrophy [15,16], which accumulating evidence suggest attenuates age-related loss in muscle function [17,18].

However, it has been reported that performing more intense PA may be difficult for certain populations (e.g., adults with mobility disability and seniors) [7,8]. Several training equipment and methods have been used to increase the intensity of gait-based activates for these populations, including walking with weighted vests [19,20], uphill walking [21], downhill walking [22] and walking while pushing a sled [23]. Still, there are environmental conditions were performing any kind of PA may be challenging or impractical, such as during spaceflights and bed rest, which predisposes these populations to microgravity-induced physiological deconditioning [24], and consequently increases the risk for muscle atrophy [25], immobility [25], orthostatic intolerance [26,27], cardiovascular morbidity [27] and all-cause mortality [27]. Hence, there has been a need for methods that simulate the Earth’s gravity, 1g environment, during microgravity conditions to protect against these detrimental health effects. One such alternative is a utilizing a treadmill within a Lower Body Negative Pressure (LBNP) chamber, allowing participants to walk and run in a simulated hypergravity environment [24]. This device and tool combined with exercise, either in a supine or upright position, has been proposed to be very effective for simultaneously stress the cardiovascular and musculoskeletal system in clinical trials, with simulated microgravity conditions [24,28].

The method was originally invented to produce dry operating fields during surgery and to remove blood from diseased organs, and has later mainly been applied in clinical research to study the hemodynamic and neurohormonal responses following central hypovolemia [24]. It is based on transiently inducing orthostatic stress that simulates a state of central hypovolemia, which consequently activates several compensatory mechanisms that have been proposed to induce mechanical and cardiovascular responses that may be comparable to exercising in Earth's 1g environment [24,29]. This is accomplished by progressively reducing the pressure surrounding the lower body extremities inside the chamber, which redistribute blood volume from upper (above the iliac crest) to lower body compartments, diminishing central venous pressure and stroke volume, and sequentially reduces cardiac output and mean arterial pressure [24,30].

This initiates integrated compensatory responses that quickly enhance sympathetic tone to stabilize the mean arterial pressure, which includes increasing the Heart Rate (HR) and systemic vascular resistance [24,30]. During exercise, this been shown to provide a cardiovascular load that may be comparable to more intense forms of PA in 1g environments [26,28]. Additionally, there is also evidence that the LBNP chamber generates foot ward forces, or Ground Reaction Forces (GRFs), that is propositional to the exposed negative pressure [29,31], which has been suggested to have applications during orthopedic rehabilitation [24,32] and in space medicine to prevent lower body muscle atrophy for space travelers [26,28]. This is briefly accomplished by uses a neoprene skirt sealed at the superior iliac crest inside the LBNP treadmill chamber, was the cross-sectional area of body at seal, in conjunction with the pressure differences between the external ambient and internal chamber environment, actively pulls the participant downwards and generates GRFs [31].

Furthermore, LBNP in combination with exercise has been proven to provide a load bearing that is adequate to maintain exercise capacity [28] and leg lean body mass [33] during simulated microgravity environments (bed rest). For Instance, Watenpaugh et al., and colleagues (2000) [28] demonstrated that supine lower body negative pressure exercise (walking and running) in the LBNP chamber for 40 min per day maintained aerobic fitness (VO2 max) and sprint speed during bed rest, for a period of 15 days. Although, there is evidence that LBNP exercises (walking and running) may countermeasure physiological deconditioning during long duration spaceflight and bed rest [24,28,33], most studies was conducted in a supine position, leaving an uncertainty of the effects during upright LBNP exercise. Moreover, while there is data suggesting that LBNP during intense restive exercise may increase the muscle activity, Surface Electromyography (sEMG) amplitude, of the Vastus Lateralis (VL) and simultaneously elevate Total Hemoglobin (tHb) and Oxy-Hemoglobin (O2Hb) concentrations in the VL [30], it remains uncertain if continuous treadmill walking with LBNP induces similar electromyographical and hemodynamic response patterns, and if they are different from normal treadmill walking without LBNP. Additionally, it is also unclear whether the effects of LBNP occur due to the pressure change affecting the skeletal muscle oxidative metabolism or the increased mechanical load that is provoked by the simulated hypergravity condition in the LBNP chamber. Therefore, the aim of this study was to evaluate the impact of upright LBNP exercise onparameters relating to muscle work and hemodynamics during walking.

Material & Methods

Subjects

Eighteen female subjects aged 26.0 (±5.0) volunteered for this study. Subjects were given oral and written explanation of the testing procedures. Subjects signed a written consent prior to the study. This study was approved by the Bioethics committee, Department of Physical Education and Sports Science, University of Thessaly.

Protocol

The study’s crossover design consisted of two trials where subjects were placed in a specialized LBNP treadmill chamber (VACUPOWER, ™Thessaloniki, Greece). Subjects wore costume-made neoprene skirts for ensuring airtight sealing at the iliac crest, and performed a 12 minute walking exercise inside the chamber, on a constant speed of 5 km/h (Figure 1). During trial 1, they walked for 2 minutes without any existing pressure change and at the beginning of the third minute, the LBNP program was activated. The program started with a pressure of -15 mbar inside the chamber for 2 minutes, continued with a pressure of -25 mbar for the next 2 minutes, and finally pressure was maintained at -30 mbar for 4 minutes. For the remaining 2 minutes, the LBNP was terminated, and subjects continued walking unhindered as a cool down period. After a 30 minutes rest, the trial 2 was performed. It was identical to the LBNP trial, but without the engagement of the LBNP program. Upon their arrival at the laboratory, subjects participated in a small interview where they provided us with their history of physical activity and then were given the necessary instructions for the procedure, in order to familiarize themselves with the upcoming task. During both trials, we collected data related to cardiovascular and muscular work (i.e., HR, Borg Scale and sEMG data) and muscle hemodynamics (i.e., fNIRS data) from all participants. Prior to the commencement of the experiment, resting heart rate was obtained with the use of a standard handheld oximeter and their bodyweight was calculated by standing on top of a stationary force plate. Further, to obtain a reliable fNIRS and sEMG signal, the skin of subjects on the VL area was shaved, cleaned with alcohol, and lightly abraded using fine sandpaper at the fixation sites.

Except the program trials, we conducted in another day a validation procedure with one subject using a portable force plate (PASCO CAPSTONE TM), which was positioned inside the LBNP chamber. The subject was standing still on top of the force plate throughout this trial, wearing a neoprene skirt, which sealed the chamber opening and emulated the same hindering forces that the chamber provided. The program took 6 minutes and began with a pressure level of -15 mbar inside the chamber for 2 minutes, continued with an increase to -25 mbar for the next 2 minutes, and continued under -30 mbar for the last two 2 minutes. The force plate was used to track the GRFs of standing still during the different pressure levels, (Newtons). The purpose of this trial was based on the idea that negative pressure might increase the GRF due to mechanical/gravity effect that may appear. The motive for only assessing a single subject for this validation was because it is well-established that gravity acts the same on all masses and pulling all the objects to the Centre of the Earth [34]. Thus, there was no need to add extra participants.

Surface Electromyography

A wireless EMG system (Myon AG, Switzerland) were used to examine changes in muscle activation in the VL muscle. The sEMG bipolar electrodes were placed within two thirds of a straight line from the spina iliaca to the lateral condyle on the VT on the right leg in accordance with SENIAM guidelines [35]. The EMG signal was than processed and smoothened by band-pass filtering at 10-400 Hz (4th order Butterworth filter). A Fast- Fourier Transform (FFT) window analysis was applied to determine the cut off frequencies, Further, the FFT was also used to obtain the Mean Power Frequency (MPF). The signal amplitude of sEMG was rectified and calculated as Root Mean Square (RMS) values. Subsequently, the MPF and RMS amplitude was used for statistical analysis.

Near-Infrared Spectroscopy

A portable NIRS system (Portalite, Artinis Medical Solutions, Netherlands) were used to monitor changes in total hemoglobin and muscle perfusion in the VL muscle. A NIRS probe were placed ~ 15 cm above the proximal border of the patella and was fixed to the VL on the right leg, using a dark 7.5 cm dynamic tape to avoid external light and artifacts.

During each trial, muscle perfusion and activation were continuously monitored using both the NIRS and an sEMG respectively. The three time-frames that were separated during our data analysis and the mean tHb was calculated for each LBNP phase.

Statistical Analysis

The data are presented as means ± Standard Deviations (SD) unless otherwise stated. The differences between the LBNP trial and the control was normally distributed and was checked using the Shapiro–Wilk test. A paired t-tests were carried out to compare the means of the hemodynamical and work-related parameters in each condition.

For intra-trial analysis of the tHb concentration between each LBNP phase, statistical analysis was performed through generalized linear models’ analysis. All statistical analyses were executed using SPSS ver. 28.0 statistical program for Windows (SPSS Software, IBM Inc., Chicago, IL, USA). The level of significance was set at p < 0.05.

Results

Work Characteristics

There was a significant difference in all parameters relating to work output between the LBNP trials compared to the control. The mean MPF and RMS amplitude was significantly higher in the LBNP condition compared to the control (p<0.001 and p = 0.036, respectively). In addition, the mean difference between resting HR and the HR after 10 minutes of exercise was 54.16 ± 12.70 for the LBNP and 38.61 ± 11.42 for the control (p < 0.001). Subjects also reported a higher value for the rate of perceived exertion, evaluating their exhaustion with a mean value of 3.44 ± 1.29 on the 10-point Borg scale for the LBNP trial and 1.88 ± 0.90 for the control (p<0.001) (Table 2, Graf. 1).

Table 1: Characteristics of the subjects (n = 18).














Characteristics



(Mean ± SD)









Age (years)



26.0 + 5.0









Height (cm)



167.8 + 4.8









Weight (kg)



63.5 + 14.5









Note: SD = Standard Deviation





















Table 1: Characteristics of the subjects (n = 18).

Table 2: Work Characteristics; Values are means ± SD. LBNP = Lower body negative pressure, RMS = Root mean square (μV), MPF = Mean power frequency (Hz), HRDiff = Heart rate difference is the difference between Heart Rate during rest and Heart Rate during the 10th minute of each trial.














Parameter



Exercise Session



p-value













LBNP (n=18)



Control (n=18)













RMS Amplitude (μV)



40.23 ± 30.05



31.00 ± 25.23



0.036









MPF (Hz)



43.97 ± 27.33



33.39 ± 20.29



0.006









HRDiff



54.16 ± 12.70



38.61 ± 11.42



<0.001









Borg Scale



3.44 ± 1.29



1.88 ± 0.90



<0.001





















Table 2: Work Characteristics; Values are means ± SD. LBNP = Lower body negative pressure, RMS = Root mean square (μV), MPF = Mean power frequency (Hz), HRDiff = Heart rate difference is the difference between Heart Rate during rest and Heart Rate during the 10th minute of each trial.

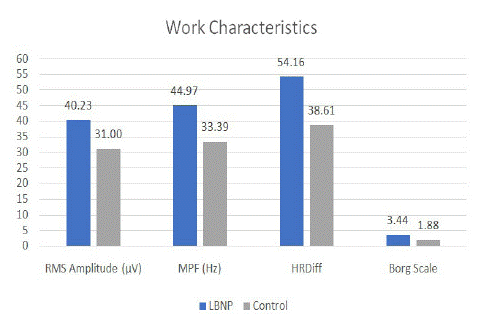

Graf 1: Work Characteristics. Values are means. HRDiff is the difference between Heart Rate during rest and Heart Rate during the 10th minute of each trial.













    Graf 1: Work Characteristics. Values are means. HRDiff is the difference between Heart Rate during rest and Heart Rate during the 10th minute of each trial.

Hemodynamic Characteristics

During exercise under the application of LBNP, mean concentration of both tHb and O2Hb were smaller, compared to the control trial (p=0.007, p <0.001, respectively). However, the opposite effect was observed for the mean concentration of HHb (μmol/L) since exercise under the application of LBNP showed a statistically significant increase (p <0.001) in HHb concentration within the muscle. The difference between O2Hb and HHb was smaller during the LBNP trial. However, TSI% showed small and insignificant alteration between trials (Table 3, Graf. 2). No sliding of the NIRS probe was documented between the trials.

Table 3: Hemodynamic Characteristics














Parameter



Exercise Session



p-value













LBNP (n=18)



Control (n=18)













O2Hb (μmol/L)



37.67 ± 6.32



40.08 ± 7.10



<0.001









HHB (μmol/L)



25.85 ± 3.99



24.60 ± 4.13



<0.001









tHB (μmol/L)



63.36 ± 10.12



64.68 ± 10.95



0.007









HbDiff (μmol/L)



11.98 ± 3.45



15.48 ± 3.89



<0.001









TSI%



99.94 ± 0.07



99.93 ± 0.05



0.668









Values are means ± SD. O2Hb= Oxyhemoglobin concentration,    HHb= Deoxyhemoglobin concentration, tHb= total hemoglobin concentration,    HbDiff= Difference between O2Hb and HHb, TSI %= Tissue Saturation Index %.





















Table 3: Hemodynamic Characteristics

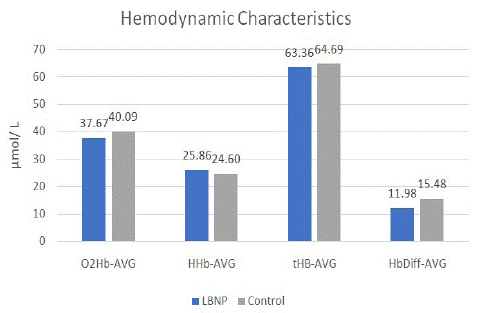

Graf 2: Hemodynamic Characteristics. Values are means. O2Hb= Oxyhemoglobin concentration, HHb= Deoxyhemoglobin concentration, tHb= total hemoglobin concentration, HbDiff= Difference between O2Hb and HHb.













    Graf 2: Hemodynamic Characteristics. Values are means. O2Hb= Oxyhemoglobin concentration, HHb= Deoxyhemoglobin concentration, tHb= total hemoglobin concentration, HbDiff= Difference between O2Hb and HHb.

The three separate LBNP phase time-frames were separated and mean tHb was calculated for each phase for both trials. In the LBNP trial, tHb showed lower values for all three stages, but with a higher increase rate between phases than in control. In LBNP, mean tHb for phase 1 was 61.93 μmol/L, while for control was 64.19 μmol/L. For phase 2, mean tHb for LBNP was 63.13 μmol/L, while in control were 64.79. Finally, in phase 3, mean tHb for LBNP was 63.92 μmol/L, while in control was 65.32 μmol/L, (Table 4, Graf 3).

Table 4: LBNP Phase Characteristics.














Parameter



LBNP Phase



p-value













tHb- Phase 1(-15mbar)



tHb- Phase 2(-25mbar)



tHb- Phase 3(-30mbar)













LBNP



61.93± 9.91



63.13± 10.05



63.92± 10.14



0.948









Control



64.19± 10.87



64.79± 11.11



65.32± 10.97



0.992









Values are means ± SD. tHb= total Hemoglobin.





















Table 4: LBNP Phase Characteristics.

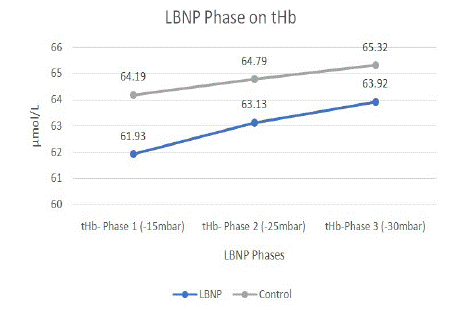

Graf 3: Values are means. tHb= total Hemoglobin (μmol/L). Phase 1,2,3 are the separate time frames that were defined by LBNP change (-15 mbar, -25 mbar, -30 mbar)













    Graf 3: Values are means. tHb= total Hemoglobin (μmol/L). Phase 1,2,3 are the separate time frames that were defined by LBNP change (-15 mbar, -25 mbar, -30 mbar)

Validation Procedure

There was a significant difference in GRFs of standing still with a pressure level of -15 mbar, -25 mbar & -30 mbar inside the chamber compared to standing still with no negative pressure (p=0.003, p <0.001, p < 0.001, respectively). The force plate analysis revealed that the GRFs of standing increases proportionally to the negative pressure exerted by the LBNP chamber, which consequently simulates a higher bodyweight (see Graf 4).

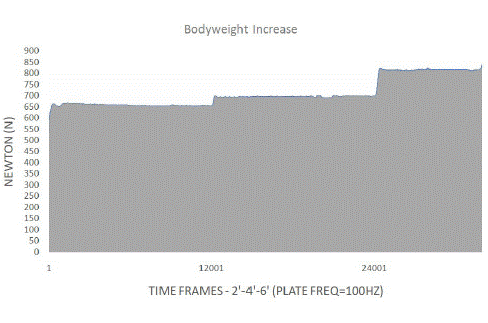

Graf 4: Bodyweight changes during LBNP changes (-15 mbar, -25 mbar, -30 mbar)













    Graf 4: Bodyweight changes during LBNP changes (-15 mbar, -25 mbar, -30 mbar)

Discussion

The aim of this study was to evaluate the impact of upright LBNP exercise on parameters relating to muscle work and hemodynamics during walking. The main findings were that all parameters related to work output were significantly higher in LBNP trial compared to the control (Table 2), but not for the hemodynamic-related variables (Table 3). Of note, we observed in that the subjects during LBNP trial had significantly higher HHB values, and lower O2Hb and HbDiff values in trial 1 compared to the control in trial 2.

This suggest that upright LBNP walking may induce a stronger stress on micro vascular oxygenation than normal walking [36]. This is in line with previous research suggesting that LBNP may impact sympathetically mediated vasoconstriction (i.e., functional sympatholysis, a protective mechanism that facilitates blood flow), venous return and minimize blood pooling in the lower extremity muscles [36-38]. Interestingly, the average volume of tHB was also significantly lower in the LBNP trial compared to the control, indicating that the blood volume decreased to a greater extent in VL muscle during the LBNP condition [39]. These results contradicts some earlier research suggesting that the concentration of tHB tend increase during LBNP exercise [36,40] or remain constant [41].

The discrepancy in our findings may be explained by differences in LBNP exercises (e.g., leg press exercise vs walking) [42], the intensity (e.g., near-maximal vs. sub maximal [43] and differences in muscle used (e.g., calf vs vastus laterals) [36] compared to previous work. Intriguingly, TSI% (i.e., muscle oxygenation) were not statistically significantly between the LBNP and control conditions, which also inconsistent with other studies using LBNP [42,44]. For instance, a study by Parganlija et al., (2020) found that the TSI% decreased while the HHB simultaneously increased with graded LBNP exercise, which supports the notation that exercise under LBNP may rely more on energy production from oxidative metabolism compared to normal exercise [30].

However, based on our results, there may be minor differences in energy dependence from muscle oxidative metabolism during light intensity LBNP exercise in comparison to normal light intensity exercise, as light aerobic exercise (in normal conditions) already predominantly relies on the oxidative phosphorylation to meet increasing metabolic demands [45]. Still, we found that HRDiff was significantly higher in LBNP trial compared to the control (Table 2). This implies that LBNP treadmill walking may nevertheless more strongly stress the cardiovascular system compared normal treadmill walking, even at low intensities. These findings are coherent with previous research suggesting that HR increases by being exposed to greater negative pressures in a LBNP chamber, independent of performing any exercise [24,46], as a protective response to counterbalance the decreased stroke volume and maintain adequate mean arterial pressure [24]. Furthermore, we also found that the average MPF and RMS amplitude, and borg scale was significantly elevated in the LBNP condition compared to the control (Table 2), indicating that the subjects had higher muscle activation in the VL muscle during the LBNP exercise, but also exercised more vigorously and in total performed more mechanical work. Although, the average MPF commonly decreases during sub maximal sustained contraction as the muscle begins to fatigue [47], there is also data indicating that an increased MPF may be caused by higher proportion of type II fiber recruitment [48,49]

Moreover, there is also evidence that RMS tends to increase proportionally with increasing force [47]. Therefore, we can speculate that the LBNP trial demanded a higher contractile force from the VL muscle and consequently the increased MPF reflects a higher engagement of type II muscle fibers.

This supports the premise that LBNP combined with exercise may also be a time efficient and an applicable tool for stressing the musculoskeletal system [24,50]. Interestingly, we observed in the validation procedure that standing inside a LBNP chamber with ≤-15mbar can generate a higher mechanical load on the lower body, though increasing the GRFs, independent of performing any movement (Graf 4). This suggest that the increased energy expenditure, but also the higher RMS amplitude and MPF, during LBNP exercise may be more related to the higher mechanical load on the lower body though stimulating a higher bodyweight, as it is well documented that moving a higher body mass requires more muscular force [51,52] and expands more energy per unit of time at the same exercise intensity [53]. Moreover, this also provides evidence for the potential use of LBNP as training equipment for improving body composition (i.e., reduce subcutaneous adipose tissue), by helping to increase total daily energy expenditure and consequently lower the risk of obesity.

Noteworthy, we also found that the energy consumption was significantly elevated in the LBNP trial compared to the control, independently of changes in oxidative muscle metabolism. To the best of our knowledge, this is the first study that demonstrated that the higher metabolic cost during LBNP exercise may predominantly be related to the provoked mechanical load on the lower body via simulating a higher bodyweight and a hyper gravity condition. The present study may therefore provide new insight in sport and space medicine. However, there are some limitations with this study. For instance, the subjects were exclusively females, which limit the generalization of the results. Secondly, there is strong evidence that the NIRS signal is directly influenced by the thickness of the subcutaneous adipose tissue [54]. Thirdly, the subjects had no previous experience with this training method, which may potentially have influenced the findings in our study. However, since the LBNP exercise was at a light intensity and the task was non-complex, this probably had minimal effects on our results.

Conclusions

Although an LBNP treadmill exercise might be expensive for personal use, these findings suggest that its application may elevate training effects in a more time efficient manner compared to normal exercise. Exercise under the application of LBNP mainly seems to increase work characteristics and less local muscle hemodynamics. These findings suggest that exercising with a LBNP treadmill might be a time efficient training tool for stressing the musculoskeletal system, more rapidly improve body composition, and potentially more effectively enhance cardiorespiratory fitness in the general adult population.

References

  1. Hayes C, Kriska A. Role of Physical Activity in Diabetes Management and Prevention. Journal of the American Dietetic Association. 2008; 108: S19–S23.
  2. Saqib ZA, Dai J, Menhas R, Mahmood S, Karim M, et al. Physical Activity is a Medicine for Non-Communicable Diseases: A Survey Study Regarding the Perception of Physical Activity Impact on Health Wellbeing. RMHP. 2020; 13: 2949–2962.
  3. Varghese T, Schultz WM, McCue AA, Lambert CT, Sandesara PB, et al. Physical activity in the prevention of coronary heart disease: implications for the clinician. Heart. 2016; 102: 904–909.
  4. Lynch BM, Neilson HK, Friedenreich CM. Physical activity and breast cancer prevention. Recent Results Cancer Res. 2011; 186: 13–42.
  5. Rippe JM, Hess S. The role of physical activity in the prevention and management of obesity. J Am Diet Assoc. 1998; 98: S31-38.
  6. Jakicic JM, Rogers RJ, Davis KK, Collins KA. Role of Physical Activity and Exercise in Treating Patients with Overweight and Obesity. Clinical Chemistry. 2018; 64: 99–107.
  7. McPhillips JB, Pellettera KM, Barrett-Connor E, Wingard DL, Criqui MH. Exercise patterns in a population of older adults. Am J Prev Med. 1989; 5: 65–72.
  8. Hollis ND, Zhang QC, Cyrus AC, Courtney-Long E, Watson K, et al. Physical activity types among US adults with mobility disability, Behavioral Risk Factor Surveillance System, 2017. Disabil Health J. 2020; 13: 100888.
  9. Glass NL, Bellettiere J, Jain P, LaMonte MJ, LaCroix AZ, et al. Evaluation of Light Physical Activity Measured by Accelerometry and Mobility Disability During a 6-Year Follow-up in Older Women. JAMA Netw Open. 2021; 4: e210005.
  10. Morris JN, Hardman AE. Walking to health. Sports Med. 1997; 23: 306–332.
  11. Lee I-M, Buchner DM. The Importance of Walking to Public Health. Medicine & Science in Sports & Exercise. 2008; 40: S512–S518.
  12. Duncan JJ, Gordon NF, Scott CB. Women walking for health and fitness. How much is enough? JAMA. 1991; 266: 3295–3299.
  13. Yates T, Davies M, Gorely T, Bull F, Khunti K. Effectiveness of a pragmatic education program designed to promote walking activity in individuals with impaired glucose tolerance: a randomized controlled trial. Diabetes Care. 2009; 32: 1404–1410.
  14. Hui SS-C, Xie YJ, Woo J, Kwok TCY. Effects of Tai Chi and Walking Exercises on Weight Loss, Metabolic Syndrome Parameters, and Bone Mineral Density: A Cluster Randomized Controlled Trial. Evidence-Based Complementary and Alternative Medicine. 2015; 2015: 1–10.
  15. Schwartz RS, Shuman WP, Larson V, Cain KC, Fellingham GW, et al. The effect of intensive endurance exercise training on body fat distribution in young and older men. Metabolism. 1991; 40: 545–551.
  16. Fry AC. The role of resistance exercise intensity on muscle fibre adaptations. Sports Med. 2004; 34: 663–679.
  17. Porter MM. The Effects of Strength Training on Sarcopenia. Can J Appl Physiol. 2001; 26: 123–141.
  18. Larsson L, Degens H, Li M, Salviati L, Lee YI, et al. Sarcopenia: Aging-Related Loss of Muscle Mass and Function. Physiological Reviews. 2019; 99: 427–511.
  19. Greendale GA, Salem GJ, Young JT, Damesyn M, Marion M, et al. A Randomized Trial of Weighted Vest Use in Ambulatory Older Adults: Strength, Performance, and Quality of Life Outcomes. Journal of the American Geriatrics Society. 2000; 48: 305–311.
  20. Puthoff ML, Darter BJ, Nielsen DH, Yack HJ. The effect of weighted vest walking on metabolic responses and ground reaction forces. Med Sci Sports Exerc. 2006; 38: 746–752.
  21. Carroll JF, Pollock ML, Graves JE, Leggett SH, Spitler DL, et al. Incidence of Injury During Moderate-and High-Intensity Walking Training in the Elderly. Journal of Gerontology. 1992; 47: M61–M66.
  22. Rodio A, Fattorini L. Downhill walking to improve lower limb strength in healthy young adults. European Journal of Sport Science. 2014; 14: 806–812.
  23. Rosario M, Pagel C, Miller W, Weber M. Pushing A Sled with Constant Resistance and Controlled Cadence Induces Lower Limb Musculature Quicker Activation Response and Prolongs Duration with Faster Speed. EJSPORT. 2022; 1: 23–28.
  24. Goswami N, Blaber AP, Hinghofer-Szalkay H, Convertino VA. Lower Body Negative Pressure: Physiological Effects, Applications, and Implementation. Physiological Reviews. 2019; 99: 807–851.
  25. Gillis A, MacDonald B. Deconditioning in the hospitalized elderly. Can Nurse. 2005; 101: 16–20.
  26. Murthy G, Watenpaugh DE, Ballard RE, Hargens AR. Exercise against lower body negative pressure as a countermeasure for cardiovascular and musculoskeletal deconditioning. Acta Astronaut. 1994; 33: 89–96.
  27. Fedorowski A, Melander O. Syndromes of orthostatic intolerance: a hidden danger. J Intern Med. 2013; 273: 322–335.
  28. Watenpaugh DE, Ballard RE, Schneider SM, Lee SM, Ertl AC, et al. Supine lower body negative pressure exercise during bed rest maintains upright exercise capacity. J Appl Physiol (1985). 2000; 89: 218–227.
  29. Macias B, Groppo E, Bawa M, Tran Cao HS, Lee B, et al. Lower Body Negative Pressure Treadmill Exercise is More Comfortable and Produces Similar Physiological Responses as Weighted Vest Exercise. Int J Sports Med. 2007; 28: 501–505.
  30. Parganlija D, Nieberg V, Sauer M, Rittweger J, Bloch W, et al. Lower body negative pressure enhances oxygen availability in the knee extensor muscles during intense resistive exercise in supine position. Eur J Appl Physiol. 2019; 119: 1289–1303.
  31. Hargens AR, Whalen RT, Watenpaugh DE, Schwandt DF, Krock LP, et al. Lower body negative pressure to provide load bearing in space. Aviat Space Environ Med. 1991; 62: 934–937.
  32. Hargens AR, Groppo ER, Lee SMC, Watenpaugh DE, Schneider S, et al. The gravity of LBNP exercise: preliminary lessons learned from identical twins in bed for 30 days. J Gravit Physiol. 2002; 9: P59-62.
  33. Schneider SM, Lee SMC, Feiveson AH, Watenpaugh DE, Macias BR, et al. Treadmill exercise within lower body negative pressure protects leg lean tissue mass and extensor strength and endurance during bed rest. Physiological Reports; 4. 2016; 4: e12892.
  34. Lackner JR, DiZio P. Human orientation and movement control in weightless and artificial gravity environments. Exp Brain Res. 2000; 130: 2–26.
  35. Criswell E, Cram JR (eds). Cram’s introduction to surface electromyography. 2nd ed. Sudbury, MA: Jones and Bartlett. 2011.
  36. Hachiya T, Blaber AP, Saito M. Near-infrared spectroscopy provides an index of blood flow and vasoconstriction in calf skeletal muscle during lower body negative pressure. Acta Physiol. 2008; 193: 117–127.
  37. Hachiya T, Hashimoto I, Saito M, Blaber AP. Peripheral Vascular Responses of Men and Women to LBNP. aviat space environ med. 2012; 83: 118–124.
  38. Caldwell JT, Sutterfield SL, Post HK, Lovoy GM, Banister HR, et al. Vasoconstrictor responsiveness through alterations in relaxation time and metabolic rate during rhythmic handgrip contractions. Physiol Rep. 2018; 6: e13933.
  39. Ferrari M, Muthalib M, Quaresima V. The use of near-infrared spectroscopy in understanding skeletal muscle physiology: recent developments. Philos Trans A Math Phys Eng Sci. 2011; 369: 4577–4590.
  40. Zange J, Beisteiner M, Müller K, Shushakov V, Maassen N. Energy metabolism in intensively exercising calf muscle under a simulated orthostasis. Pflugers Arch - Eur J Physiol. 2008; 455: 1153–1163.
  41. Nishiyasu T, Tan N, Kondo N, Nishiyasu M, Ikegami H. Near-infrared monitoring of tissue oxygenation during application of lower body pressure at rest and during dynamical exercise in humans. Acta Physiol Scand. 1999; 166: 123–130.
  42. Parganlija D, Gehlert S, Herrera F, Rittweger J, Bloch W, et al. Enhanced Blood Supply Through Lower Body Negative Pressure During Slow-Paced, High Load Leg Press Exercise Alters the Response of Muscle AMPK and Circulating Angiogenic Factors. Front Physiol. 2020; 11: 781.
  43. Muthalib M, Lee H, Millet GY, Ferrari M, Nosaka K. Comparison between maximal lengthening and shortening contractions for biceps brachii muscle oxygenation and hemodynamics. Journal of Applied Physiology. 2010; 109: 710–720.
  44. Bartels SA, Bezemer R, Milstein DMJ, Radder M, Lima A, et al. The microcirculatory response to compensated hypovolemia in a lower body negative pressure model. Microvasc Res. 2011; 82: 374–380.
  45. Korzeniewski B, Liguzinski P. Theoretical studies on the regulation of anaerobic glycolysis and its influence on oxidative phosphorylation in skeletal muscle. Biophysical Chemistry. 2004; 110: 147–169.
  46. Raven PB, Rohm-Young D, Blomqvist CG. Physical fitness and cardiovascular response to lower body negative pressure. Journal of Applied Physiology. 1984; 56: 138–144.
  47. Guilherme H. Elcadi, Forsman M, Crenshaw AG. The relationship between oxygenation and myoelectric activity in the forearm and shoulder muscles of males and females. Eur J Appl Physiol. 2011; 111: 647–658.
  48. Gerdle B, Karlsson S, Crenshaw AG, Elert J, Friden J. The influences of muscle fibre proportions and areas upon EMG during maximal dynamic knee extensions. Eur J Appl Physiol. 2000; 81: 2–10.
  49. Kupa EJ, Roy SH, Kandarian SC, Luca CJD. Effects of muscle fiber type and size on EMG median frequency and conduction velocity. J Appl Physiol (1985). 1995; 79: 23–32.
  50. Boda WL, Watenpaugh DE, Ballard RE, Hargens AR. Supine lower body negative pressure exercise simulates metabolic and kinetic features of upright exercise. Journal of Applied Physiology. 2000; 89: 649–654.
  51. Kellis E, Baltzopoulos V. The effects of the antagonist muscle force on intersegmental loading during isokinetic efforts of the knee extensors. Journal of Biomechanics. 1999; 32: 19–25.
  52. Arons AB. Development of energy concepts in introductory physics courses. American Journal of Physics. 1999; 67: 1063–1067.
  53. Westerterp KR. Physical activity and physical activity induced energy expenditure in humans: measurement, determinants, and effects. Front Physiol. 2013; 4: 90.
  54. Craig JC, Broxterman RM, Wilcox SL, Chen C, Barstow T. Effect of adipose tissue thickness, muscle site, and sex on near-infrared spectroscopy derived total-[hemoglobin + myoglobin]. Journal of Applied Physiology. 2017; 123: 1571–1578.
  55. Hiroyuki H, Hamaoka T, Sako T, Nishio S, Kime R, et al. Oxygenation in vastus lateralis and lateral head of gastrocnemius during treadmill walking and running in humans. European Journal of Applied Physiology. 2002; 87: 343–349.

Citation:Gallardo P, Giannakopoulos I, Romare M, Karanika P, Elcadi GH, et al. The Effect of Upright Lower Body Negative Pressure on Muscle Activity and Hemodynamics during Exercise. Austin Sports Med. 2023; 8(1): 1053.
