Chien-Lung Chan; Hsien-Wei Ting; Chia-Li Chen

Research Article

Austin J Emergency & Crit Care Med. 2015;2(2): 1017.

How Information Technologies Support the Intensive Care Systems: An Application of Mortality Prediction Model with Support Vector Machine

Chien-Lung Chan¹, Hsien-Wei Ting^1,2 and Chia-Li Chen^1,3*

¹Department of Information Management, Yuan Ze University, Taiwan

²Department of Neurosurgery, Taipei Hospital, Taiwan

³Department of Information Management, Lung Hwa University, Taiwan

*Corresponding author: Chia-Li Chen, Department of Information Management, Lung Hwa University, No.300, Sec.1, Wanshou Rd., Guishan Shiang, Taoyuan County 33306, Taiwan

Received: January 11, 2015; Accepted: March 06, 2015 Published: March 10, 2015

Abstract

Background and Objective: Intensive care is very important in modern health care. Mortality prediction models are good outcome predictors for intensive care and resources allocation. Many research used the information technologies to construct new mortality prediction models. This study used the Support Vector Machine (SVM) to construct a better mortality prediction model.

Methods: This study collected 695 patients (230 women and 465 men) who were admitted to the surgical intensive care unit in a 600-bed hospital as training data from January 1, 2005 to December31, 2006. Among the 695 patients, 538 (77.41%) patients were alive and 157 were dead (22.59%). This study selected the Gaussian RBF kernel to build a mortality prediction model with empirical data. All variables were included in this model.

Results: The precision rate, recall rate and F-Measure of the SVM model were 0.899, 0.902 and 0.899, respectively. The area under ROC curve (AUR) of models was calculated. The SVM model (AUR=0.932) is better than SAPS II (AUR=0.883) and APACHE II (AUR=0.885) (p<0.01).

Conclusion: The SVM can manage the twin peaks phenomenon which is one of the characteristics of health or medical data.

Keywords: Acute Physiology and Chronic Health Evaluation System, 2^nd version (APACHE II); Decision support system; Intensive care; Medical decision making; Mortality prediction; Simplified Acute Physiology System, 2^nd version (SAPS II); Support Vector Machine

Introduction

Intensive care is very important in modern health care [1] and the outcome evaluation for intensive care can help to make decisions regarding intensive care facilities [2,3]. Some researchers used mortality prediction models as outcome predictors for intensive care. Popular mortality prediction models include the Acute Physiology and Chronic Health Evaluation System, 2^nd version (APACHE II) [4], 3^rd version (APACHE III) [5], and 4^th version (APACHE IV) [6]; the Simplified Acute Physiology System, 2^nd version (SAPS II) [7] and 3^rd version [8]; and the Mortality Probability Model, 2^nd version (MPM II) [9] and 3^rd version (MPM III) [10]. These models are good outcome prediction models for intensive care [11], and are general mortality prediction models for any kind of patient admitted to an intensive care unit. Some mortality prediction models are constructed for a special purpose. For example, the Multiple Organ Dysfunction Score (MODS), Sequential Organ Failure Assessment (SOFA) score and Sepsis-related Organ Failure Assessment are frequently used to assess the outcome of sepsis or multiple organ failure [12-17]. These models are constructed for different purposes.

The first mortality prediction model was constructed by McCabe and Jackson. They collected 173 septicemia patients and divided patients into nonfatal, ultimately fatal and fatal groups. This model may calculate the tendency of mortality [18]. Cullen et al. [19] collected 70 variables of patients and scored these variables from 1 to 4 in terms of severity. They evaluated the severity of patients by summing the collected scores. This is called the Therapeutic Intervention Scoring System. The Glasgow Coma Scale (GCS) is also a severity tendency model [20,21]. Recently, some researchers have simplified the GCS for outcome evaluation, and the simplified models are as good in terms of mortality prediction as the GCS [22]. These models focus on the tendency of mortality, and are pure scoring systems rather than probability systems. Some models constructed based on the probabilities and statistical methodologies. APACHE II and SAPS II are the two most popular models [4,5,7,23]. These models are constructed with Probity regression and use probabilities as the outcome description of mortality. The 2^nd version of the Mortality Probability Model (MPM II) is also an intensive care unit (ICU) outcome prediction model with probabilities [9] and new versions of these models have been constructed in recent studies [5,6,8]. Recently, researchers have constructed some mortality prediction models using artificial intelligence technologies [1,17,23-25,50]. These models can add to the health information system as an intensive care facilities decision support system and improve the quality of medical care and facilities allocation.

There are some important characteristics of medical data to consider. One of the most important characteristics is the twin peaks phenomenon. For example, the “within normal range” systolic blood pressure (SBP) is from 90 mmHg to 140 mmHg. We defined hypertension as a SBP greater than 140 mm Hg. Sometimes patients are defined as hypertension if their SBP is less than 90 mmHg [26,27]. Most laboratory or physiological data got normal range of data. It means that the data “within normal range” present that the result of this data is good. Patient with extreme data results will be worse than the patients who have data within normal range. Therefore, if we want to predict the tendency of mortality using these data, the twin peaks phenomenon needs to be solved. APACHE II and SAPS II solved this problem by ranking the raw data and summarizes them into one score as the tendency of mortality or probabilistic models [4,7]. Although many researchers have attempted to improve the accuracy of these mortality models, the definitions of ranking are still constructed subjectively.

Researchers solved medical problems with artificial intelligence technologies. These technologies are usually referred to as classification methodologies. Among the classification methods, the logistic regression (LR) method is one of the most popular methodologies for classification. LR uses a statistic method and builds a logical classification tool. Most studies have used artificial neural networks (ANNs) as the classification method for medical problems, even for mortality prediction in patients in intensive care units [23,28,29]. Muniz et al. [30] evaluated the effect of sub thalamic stimulation in Parkinson disease with probabilistic ANNs, Support Vector Machines (SVMs) and logistic regression models, and concluded that the ANNs are better than other models in this research. The accuracy of ANNs is influenced not only by the numbers of input nodes and the numbers of hidden nodes: large scale data are also required for training models [23]. Unfortunately, the logic of hidden layer cannot be explained.

Decision trees are another kind of classification technology and are more logical in terms of presentation than ANNs. These methods use statistic difference and/or entropy difference as a base to find the best decision nodes and trees [31]. The modeling may be applied to decision support systems and to manage data easily for problemsolving [31,32]. Ting et al. [31] modified the Alvarado scoring system using C5.0 and constructed a better decision model for acute appendicitis diagnosis and improved the misdiagnosis rate. Abu- Hanna et al. [24] combined decision trees with logistic regression and improved the evaluation power of intensive care prognosis. However, the decision tree methods are hard to manage the twin peaks phenomenon, which is one of the characteristics of health or medical data.

Support Vector Machine (SVM) was first proposed by Vapnik in 1995 [33]. It is a kind of information technology which used on the problems of classification. The method uses both statistical learning and structural risk minimization to find an optimal separation hyperplane which can separate different class outcome in a multidimensional space [33,34]. SVM uses both statistical learning and structural risk minimization (SRM) to find an optimal separation hyperplane which can separate different class outcome in a multidimensional space [34-36]. It has been used on many problems in different fields, included text categorization; image recognition; face detection; voice recognition; genetic classification and medical diagnostic problems [34,37-40]. Zhu et al. [41] constructed a SVMbased classifiers. It may has better performance to evaluate the pulmonary nodules found in computer tomography are malignant or not. Yamamoto et al. [40] also used the SVM technology to identify the possible multiple sclerosis lesions correctly in the brain magnetic resonance images. Verplancke et al. [25] constructed a novel mortality prediction model for hematological malignancies patients with SVM, which was better than logistic regression. It is good method for classification and they improved many classification problems of medical fields.

Based on the fitness of kernels distributions, the SVM is one of the classification models that can be used to manage this problem. A new mortality prediction model using SVM technology was constructed for the patients who are admitted to ICU in this study.

Methodology

SVM model proposed by Vapnik [33] is an effective classification method and used in many different fields, including text categorization; image recognition; face detection; voice recognition; genetic classification and medical diagnostic problems [34,37-40]. It uses both statistical learning and structural risk minimization (SRM) to find an optimal separation hyperplane, which can separate different class outcomes in a multi-dimensional space [34-36]. Proper parameter selection can improve the classification accuracy of the SVM model. We describe some concepts of support vector machines below. Given training data x_i ,i =1,..., n y_i∈{1,i1} the SVM requires the solution of the following optimization problem [42]: $\begin{array}{l} \min_{w, b, ξ} \frac{1}{2} W^{T} W+c \sum_{i = 1}^{l} ξ_{i} \\ subject to y_{i} (W^{T} ϕ (X_{i}) + b) \geq 1 - ξ_{i}, \end{array}$ ξi are slack variables used to tolerate the classification condition which cannot separate linearly (Figure 1).

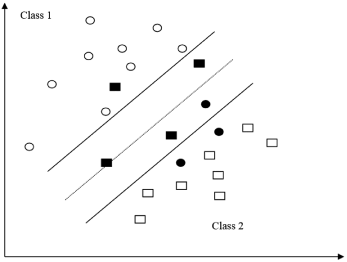

Figure 1: Sets are not linearly separable.



    Figure 1:  Sets are not linearly separable.

A very important factor to improve the accuracy of the model for SVM models is penalty parameter C. The parameter C presents the degree of punishment and adjust on the models [43]. Proper tuning of parameter C is very crucial [44]. Another important factor for the accuracy improvement in SVM is kernel function mapping. Usually, we use kernel functions (Φ) to map x_i into a higher dimensional space. The SVM finds the linear separating hyperplane with the maximal margin in higher dimensional space (Figure 2).

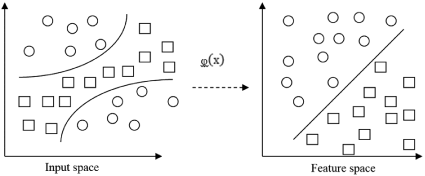

Figure 2: Kernel functions mapping to feature space.



    Figure 2:  Kernel functions mapping to feature space.

Different kernel functions have their own different surfaces. The training vectors of SVM are mapped into higher dimensional space using kernel functions to map to feature space. A linear separating hyperplane with the maximal margin is obtained [11,34-36]. Selection of the proper kernel is very important. Different kernel functions have their own different surfaces and distributions. It will influence the accuracy of the SVM. Many kernels can be chosen from. The four most popular kernels of SVM, which are used in many fields, are as follows [42,43]:

Gaussian radial basis function (RBF): K(x_i; x_j) = exp(- γ?x_i - x_j?²), γ> 0.
Linear kernel: K(x_i; x_j) = x_i ^Tx_j.
Polynomial of degree d: K(x_i; x_j) = (γx_i ^Tx_j + r)^D, γ> 0.
Sigmoid kernel: K(x_i; x_j) = tanh(γx_i ^Tx_j + r).

This study used Rapid Miner version 5.1.001 and it is a kind of free software for data mining [45]. We tried the mortality prediction data set to choose the best kernel first. Every kernel has a specialty for classification. Researchers concluded that the RBF kernel is better than other kernels for classification. It can handle the situation when the relationship between class labels and attributes is nonlinear. The polynomial kernel has more hyper parameters than the RBF kernel. The RBF kernel is simpler and faster than the others [42]. This study therefore used the RBF kernel, for which two factors, C (cost parameter) and γ (kernel function), must be selected. A10-fold cross validation procedure was also used to prevent the over-fitting problem. One subset was tested using the classifier trained on the remaining nine subsets sequentially.

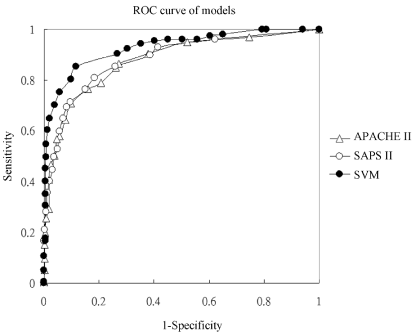

The receiver operating characteristic (ROC) curves and the areas under the ROC curves (AUR) of the new model, SAPS II and APACHE II mortality prediction models were calculated and compared. The Wilcoxon signed rank test and the AUR were used to compare the accuracy of the two mortality prediction models. The Wilcoxon signed rank test was performed using SPSS version 12.0 (SPSS Inc., Chicago, IL, USA) and comparison of the significance between the ROC curves was performed using MedCalc Version 9.3.8.0 (MedCalc Software, Mariakerke, Belgium). Significant differences were defined as p<0.05.

Experiment Design

The structured and interactive approach CRISP-DM (Cross Industry Standard Process for Data Ming) provides guidelines for planning a data mining project [51]. This approach consists of six phases: business understanding, data understanding, data preparation, modeling, evaluation and deployment. The six phases are simplified and illustrated in Figure 3.

Figure 3: Simplified CRISP-DM approach.



    Figure 3:  Simplified CRISP-DM approach.

Business understanding

Intensive care is very important in modern health care and mortality prediction models are used for outcome predictors for intensive care and resources allocation. Many researchers continue to use the information technologies to construct better mortality prediction models. This study used the Support Vector Machine (SVM) to construct an innovative mortality prediction model.

Data understanding and data preparation

This study retrospectively collected training data from 695 patients (230 women and 465 men) who were admitted to the surgical ICU in a 600-bed hospital (12-bed surgical ICU) from January 1, 2005 to December31, 2006. All patients’ data were collected confidentially with randomized codes. The average patient age was 57.26 (SD = 20.41) years. Due to these cases were used for the training data, both the attributes of APACHE II and SAPS II were collected without missing data. The mean scores of APACHE II and SAPS II were 13.6 (SD=7.8) and 37.8 (SD=16.8). The mean probabilities of APACH II and SAPS II were 0.2456 (SD=0.2003) and 0.2698 (SD=0.2618) (Table 1). The age, type of ICU admission (medical disease, elective and emergency surgery) and Glasgow coma scale (GCS) were all included in the attributes. The definition of being alive is that the patients were discharged alive or stayed in hospital for at least 30 days. The definition of being dead is that the patients died before being discharged from the hospital. The mean scores and mortality probabilities of the dead group were significant higher than the alive group (p<0.001), no matter the APACHE II or SAPS II prediction systems (Table 1). A new model was constructed containing the recorded data of all of the patients.

Table 1: The scores and probabilities prediction of APACHE II and SAPS II.





    Variable
    Alive (SD)
    Dead (SD)
    Total (SD)
    p value


    APACHE II***
    11.0 (5.6)
    22.6 (7.2)
    13.6 (7.8)
    0.000


    Probability (APACHE II)***
    0.1763 (0.1313)
    0.4828 (0.2142)
    0.2456 (0.2003)
    0.000


    SAPS II***
    32.2 (12.1)
    57.2 (16.3)
    37.8 (16.8)
    0.000


    Probability (SAPS II)***
    0.1779 (0.1739)
    0.5845 (0.2687)
    0.2698 (0.2618)
    0.000



Table 1:  The scores and probabilities prediction of APACHE II and SAPS II.

Among the 695 patients from whom training data were collected, 538 (77.41%) patients were alive and 157 were dead (22.59%). Among these patients, 238 (34.24%) did not undergo surgery, 153 (22.01%) underwent emergency surgery, and 304 (43.74%) underwent elective surgery. The emergency surgical patients died more frequently than they remained alive. There was a significant difference in surgical status between the alive group and the dead group (p < 0.001) (Table 2).

Table 2: Demographic data of surgical status.





    Surgical status
    Alive
    Dead
    Sum


    No operation
    144
    94
    238


    Elective surgery
    271
    33
    304


    Emergency surgery
    123
    30
    153


    Sum
    538
    157
    695



Table 2:  Demographic data of surgical status.

Eighteen variables related to patients’ laboratory and physiological data were collected. Twelve variables of patient data differed significantly between the dead and alive groups. These variables were systolic and diastolic blood pressure; heart rate; urine output; sodium; blood urea nitrogen (BUN); creatinine; blood sugar; haematocrit; arterial pH; bicarbonate; and Glasgow coma scale (GCS). The GCS included 3 components. The other 6 variables did not differ significantly between the dead and alive groups. The standard deviations (SDs) of the variables in the dead patients were all larger than the SDs of the variables in the alive patients, with the exception of age. This means that the data variation of the dead patients was larger than the data variation of the Alive patients (Table 3). The SD of age did not differ significantly between the Alive group and the Dead group. The demographic data of the Glasgow coma scale (GCS) are shown in Table 4. There were significant differences in the GCS between the alive and dead patients (p < 0.001) (Table 4).

Table 3: Attributes of the training data.





    Variable
    Alive (SD)
    Dead (SD)
    Total (SD)
    p value


    Temperature (�C)
    36.60 (1.46)
    36.21 (2.58)
    36.52 (1.78)
    0.070


    Systolic BP (mmHg) *
    140.8 (30.4)
    131.6 (49.0)
    138.7 (35.6)
    0.027


    Diastolic BP (mmHg) **
    76.9 (19.6)
    70.6 (24.7)
    75.5 (21.0)
    0.004


    Heart rate (per min) ***
    96.8 (20.6)
    113.1 (32.6)
    100.5 (24.8)
    0.000


    Breath rate (per min)
    19.7 (5.5)
    19.6 (7.0)
    19.7 (5.8)
    0.839


    Urine output (c.c.) ***
    2780 (2833)
    5449 (8151)
    3383 (4732)
    0.000


    Bilirubin (mg/dL)
    0.44 (1.47)
    0.48 (1.53)
    0.45 (1.48)
    0.743


    Sodium (mEq/L) ***
    140.6 (5.9)
    145.7 (14.9)
    141.8 (9.0)
    0.000


    Potasium (mEq/L)
    3.80 (0.64)
    3.86 (1.00)
    3.81 (0.74)
    0.487


    BUN (mg/dL) ***
    15.68 (12.28)
    26.34 (27.82)
    18.09 (17.62)
    0.000


    Creatinine (mg/dL) ***
    1.1 (0.9)
    1.6 (1.5)
    1.2 (1.1)
    0.000


    Sugar (mg/dL) ***
    142.0 (63.8)
    168.6 (96.3)
    148.0 (73.2)
    0.001


    Hematocrit (%) ***
    34.0 (6.0)
    30.8 (7.4)
    33.3 (6.5)
    0.000


    WBC (/�L)
    11126 (4961)
    11757 (6138)
    11268 (5252)
    0.239


    Arterial pH **
    7.408 (0.070)
    7.367 (0.156)
    7.398 (0.098)
    0.002


    HCO3 (mEq/L) ***
    23.37 (4.07)
    20.52 (5.70)
    22.73 (4.64)
    0.000


    PaO2
    144.3 (79.6)
    153.4 (103.9)
    146.3 (85.7)
    0.311


    Age *
    56.43 (20.62)
    60.10 (19.46)
    57.26 (20.41)
    0.042


    * p<0.05 ** p<0.01 ***    p<0.001

      BUN: blood urine nitrogen; WBC: white blood cell; HCO₃:    bicarbonate anion; PaO₂: partial pressure of oxygen in arterial    blood



Table 3:  Attributes of the training data.
